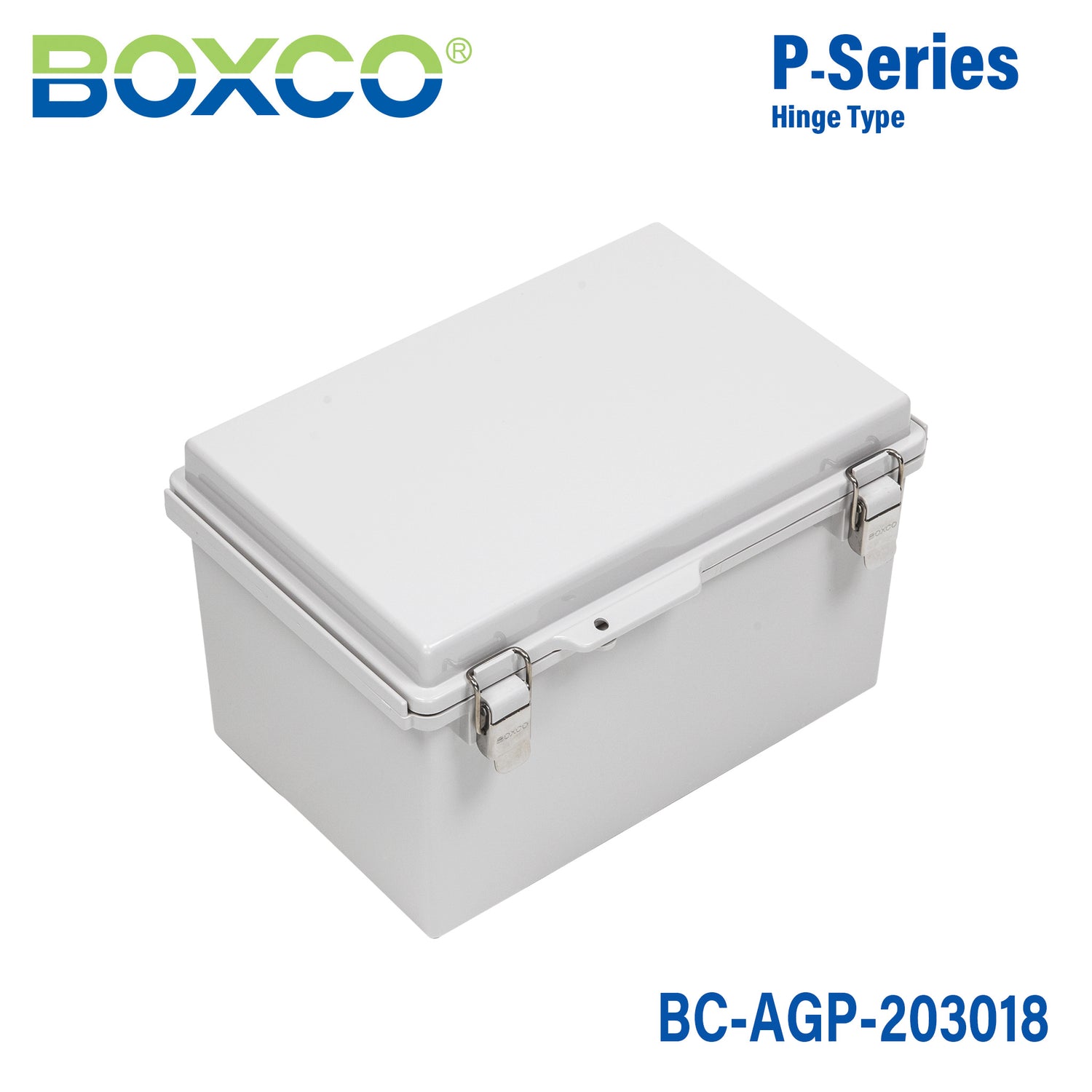

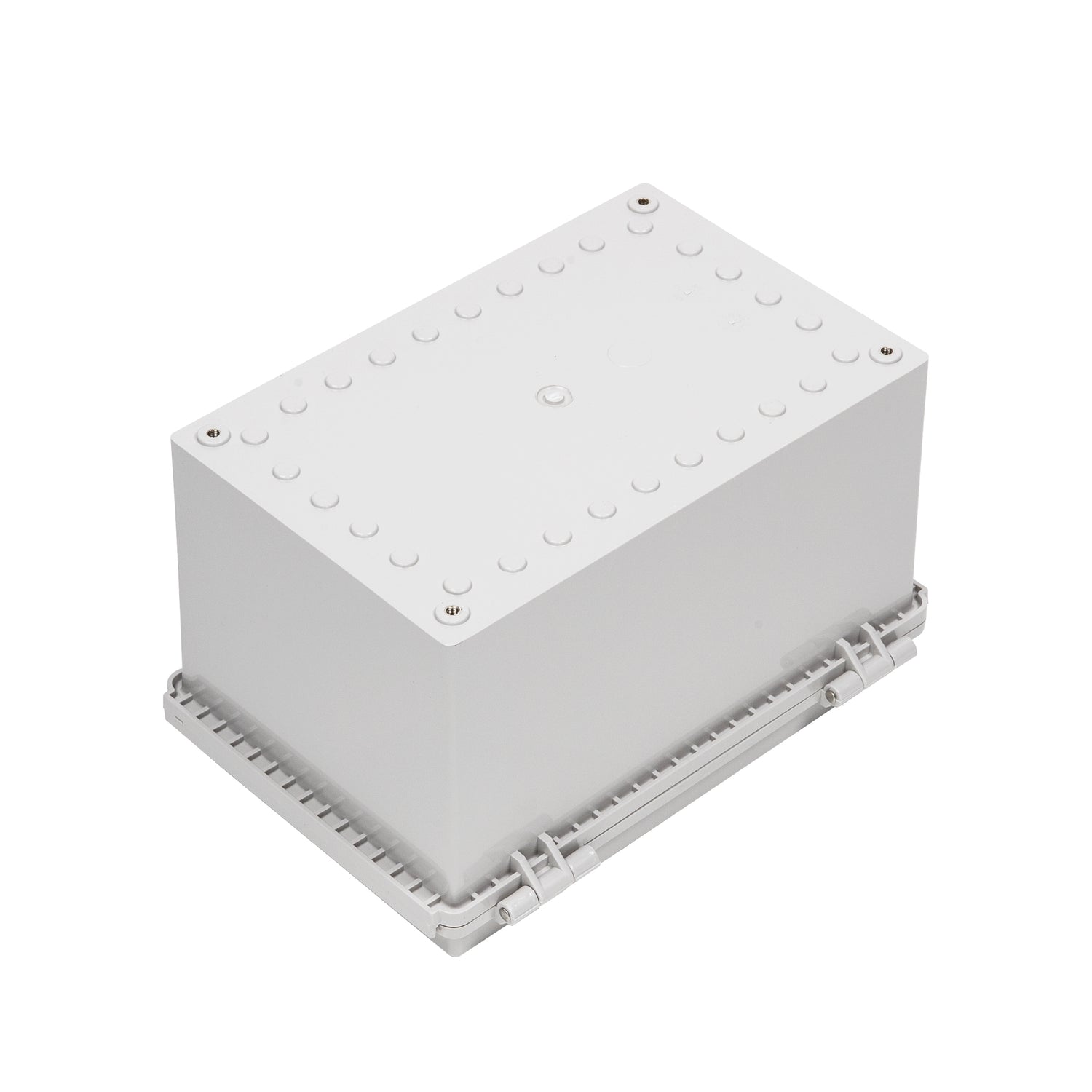

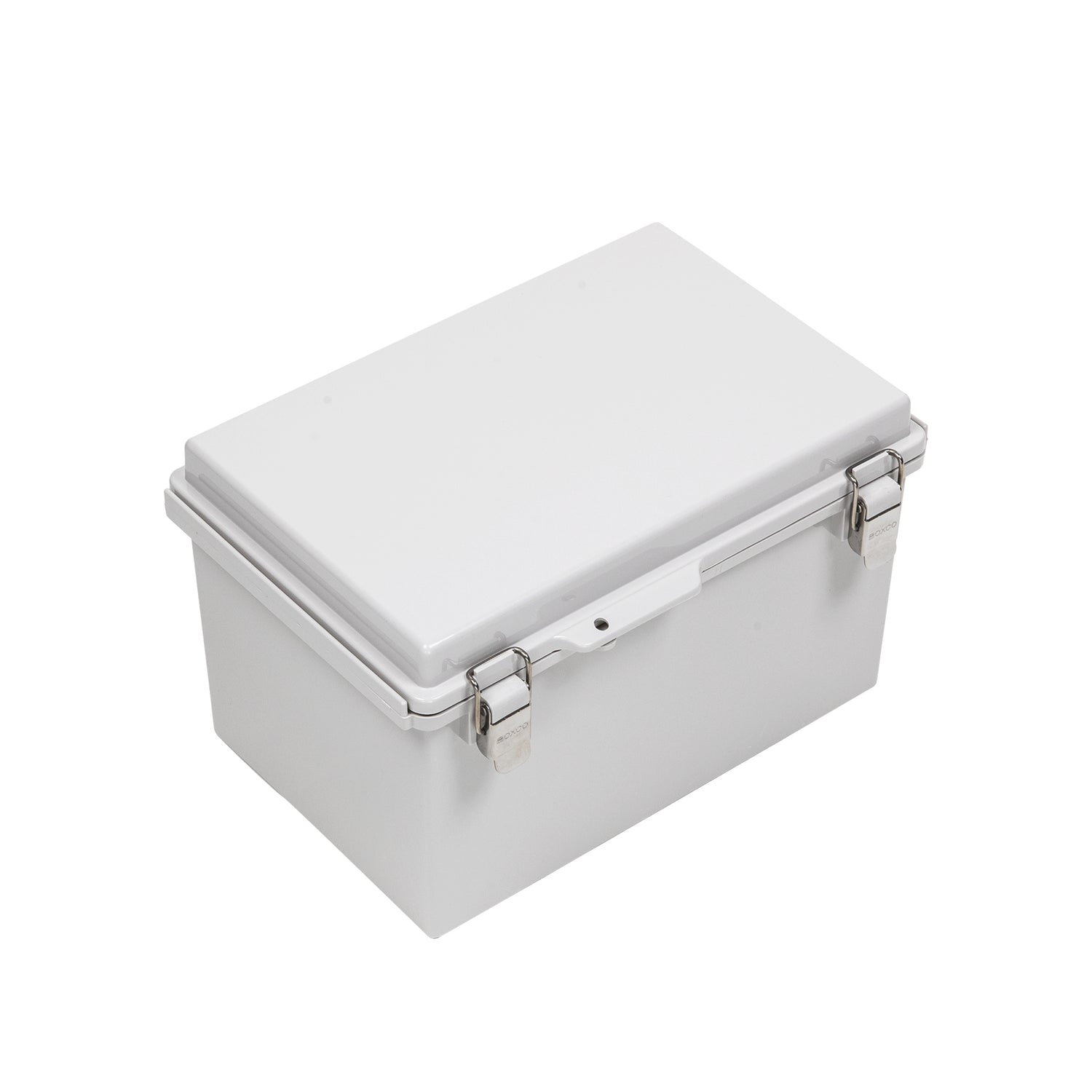

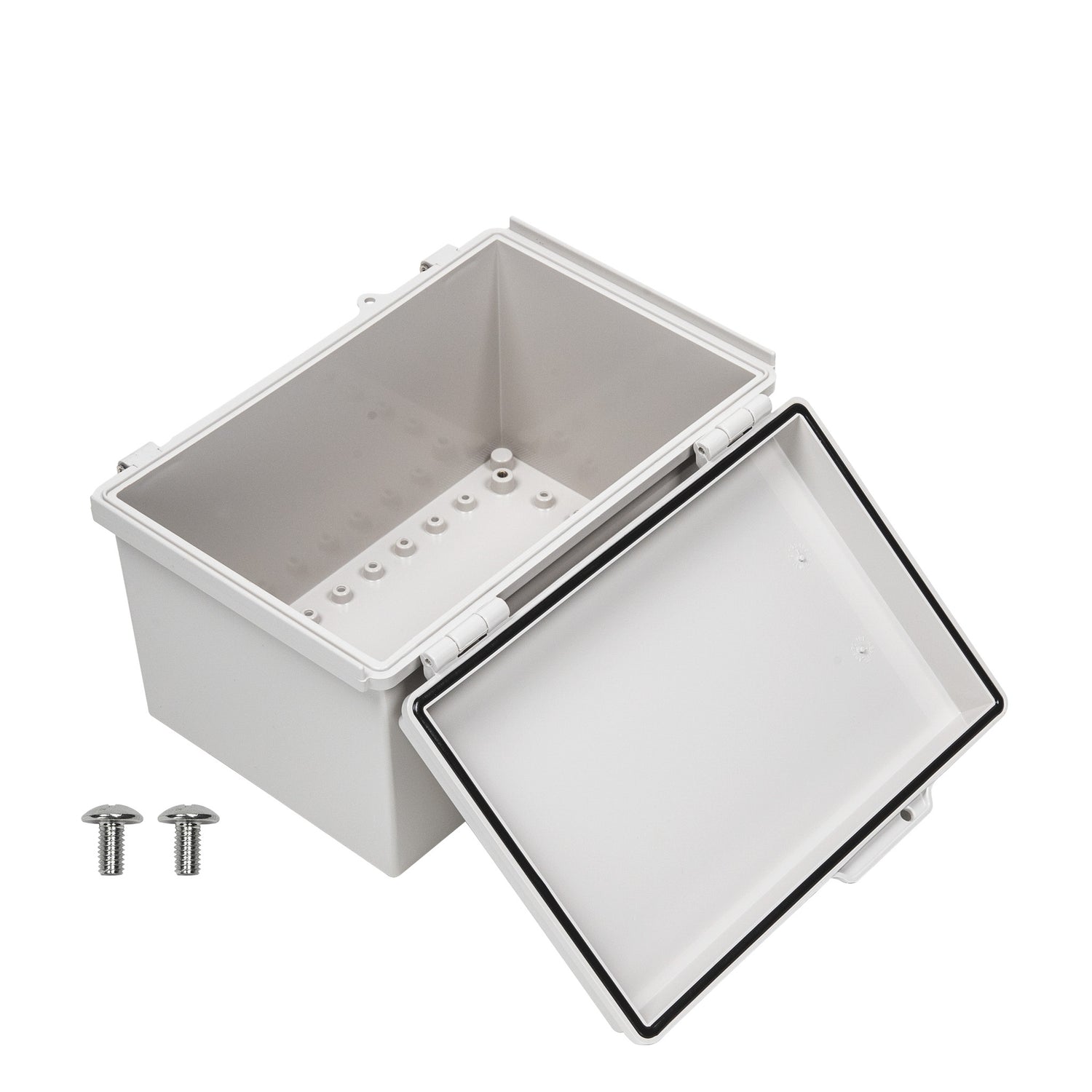

Boxco P-Series 200x300x180mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Molded Hinge and Latch Type

SKU BC-AGP-203018
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-AGP-203018 is a 200×300×180 mm ABS enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-AGP-203018Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
200×300×180 mm (7.87×11.81×7.09 in)
Mounting plate dimension M1 × M2
167 × 267 mm

Material

Material
ABS
Cover
Grey
Mounting plates
2030 P (Plastic, P type), 2030 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

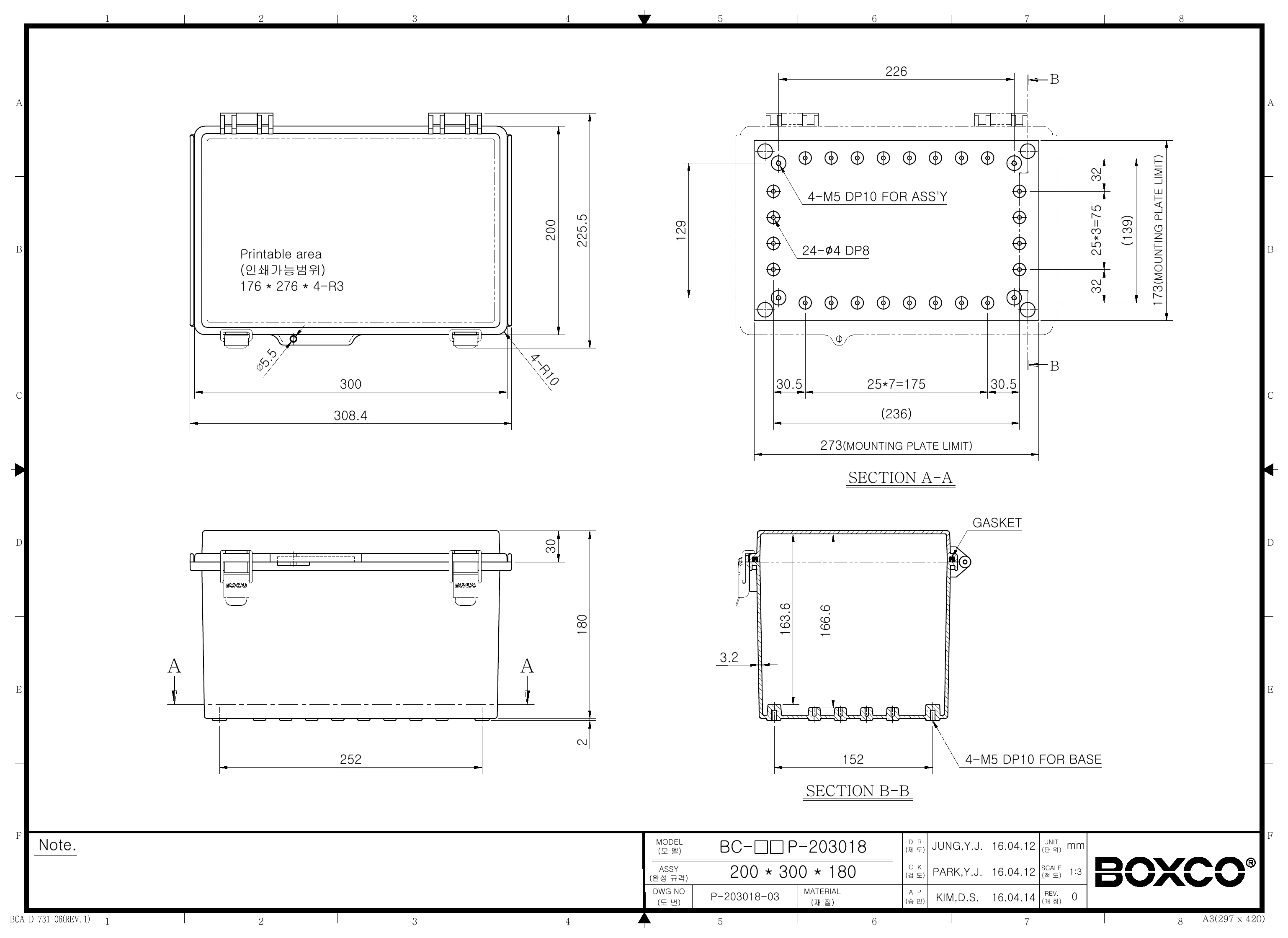

Technical drawings

BC-AGP-203018 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

Is the Boxco P-Series BC-AGP-203018 suitable for outdoor industrial use?

Yes. This enclosure is described with an ultraviolet stabilizer for outdoor usage, and its design includes roof protection features to help reduce water and dust penetration when the cover is opened or closed. Its IP67 rating also indicates strong protection against dust ingress and temporary immersion conditions.

What protection level does this enclosure provide against water, dust, and impact?

This model is rated IP67 and IK08. That means it is built for demanding environments where dust protection and resistance to water exposure matter, while also offering a defined level of impact resistance. The injected gasket and high-impact ABS construction support that protective design.

What are the dimensions and material of this enclosure?

The enclosure measures 7.87 x 11.81 x 7.09 inches, which corresponds to 200 x 300 x 180 mm. It is made from ABS and comes with a grey cover. This is a hinged, latch-type plastic enclosure in the Boxco P-Series.

Can this enclosure be used for sensitive electronics or control equipment?

It can be a strong fit for control and instrumentation applications because the description states that anti-static material is used to help protect sensitive electronic instruments from static electricity. The enclosure also includes pre-molded mounting screw nuts and mounting plate attachment points, which can support organized internal equipment mounting. Buyers should still confirm internal space and component fit for their specific assembly.

What temperature range is this enclosure rated for?

This model is specified for operation from -40°C to 70°C. That range supports use in both cold and warm industrial environments where enclosure durability matters. It is important to verify that the devices placed inside the enclosure are also rated for the same conditions.

What design features distinguish this Boxco P-Series enclosure from a basic plastic box?

This model includes a molded hinge with a stainless steel bearing, a stainless steel draw-latch main part, injected gasket sealing, roof protection geometry, and brass-inserted mounting plate attachment points. It is also described as using high-impact resistant material and anti-static material. Those details make it more specialized than a basic non-sealed plastic project box.
