Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

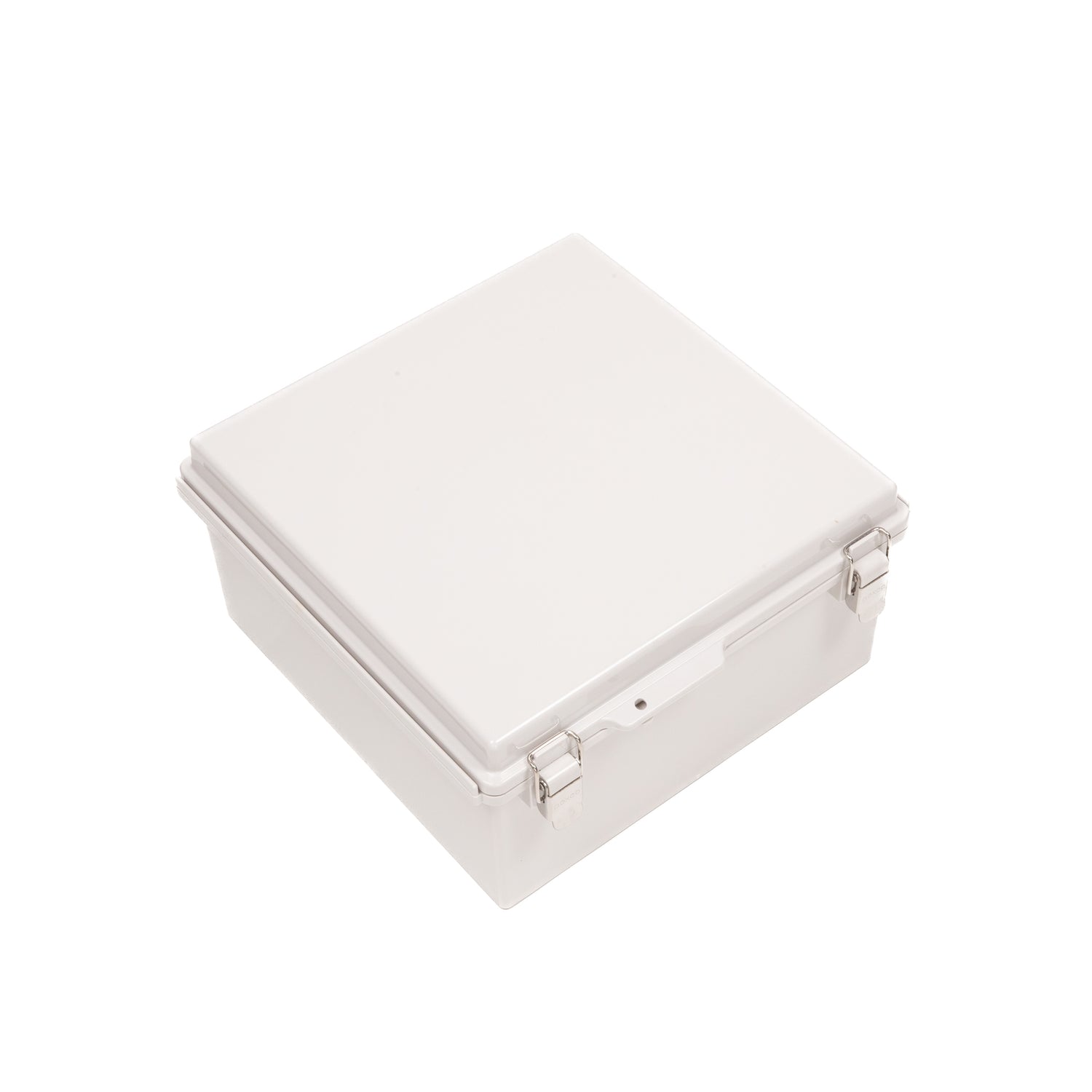

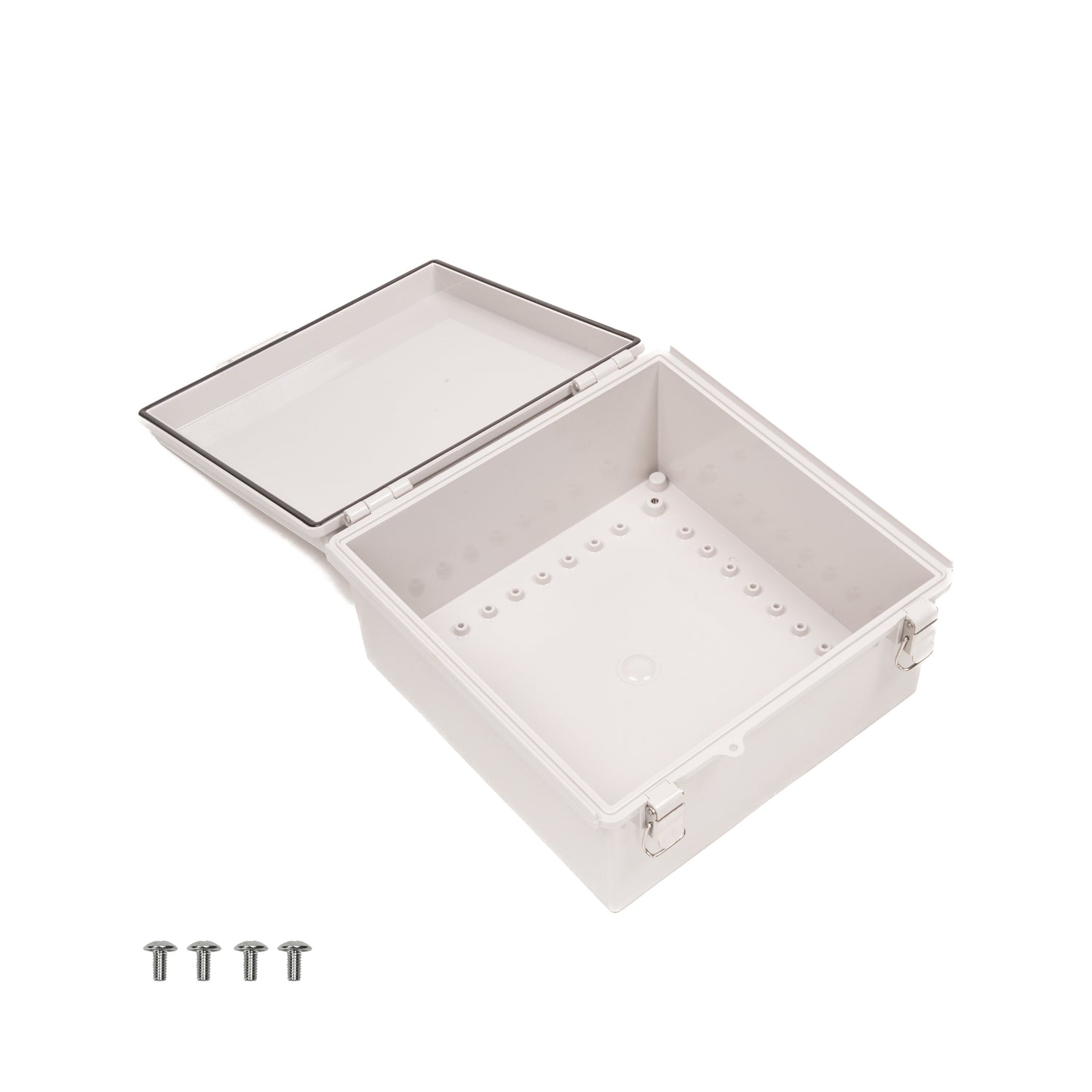

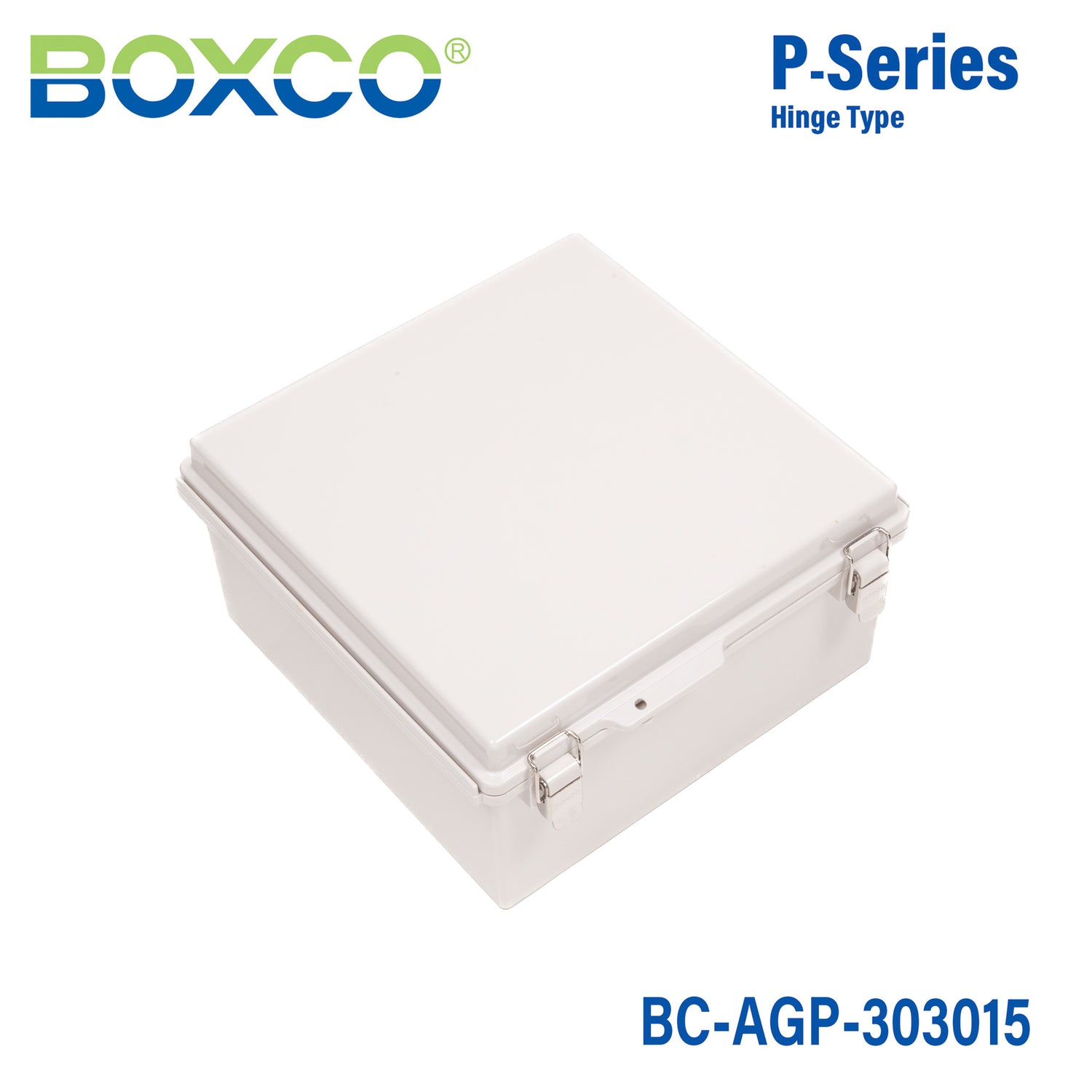

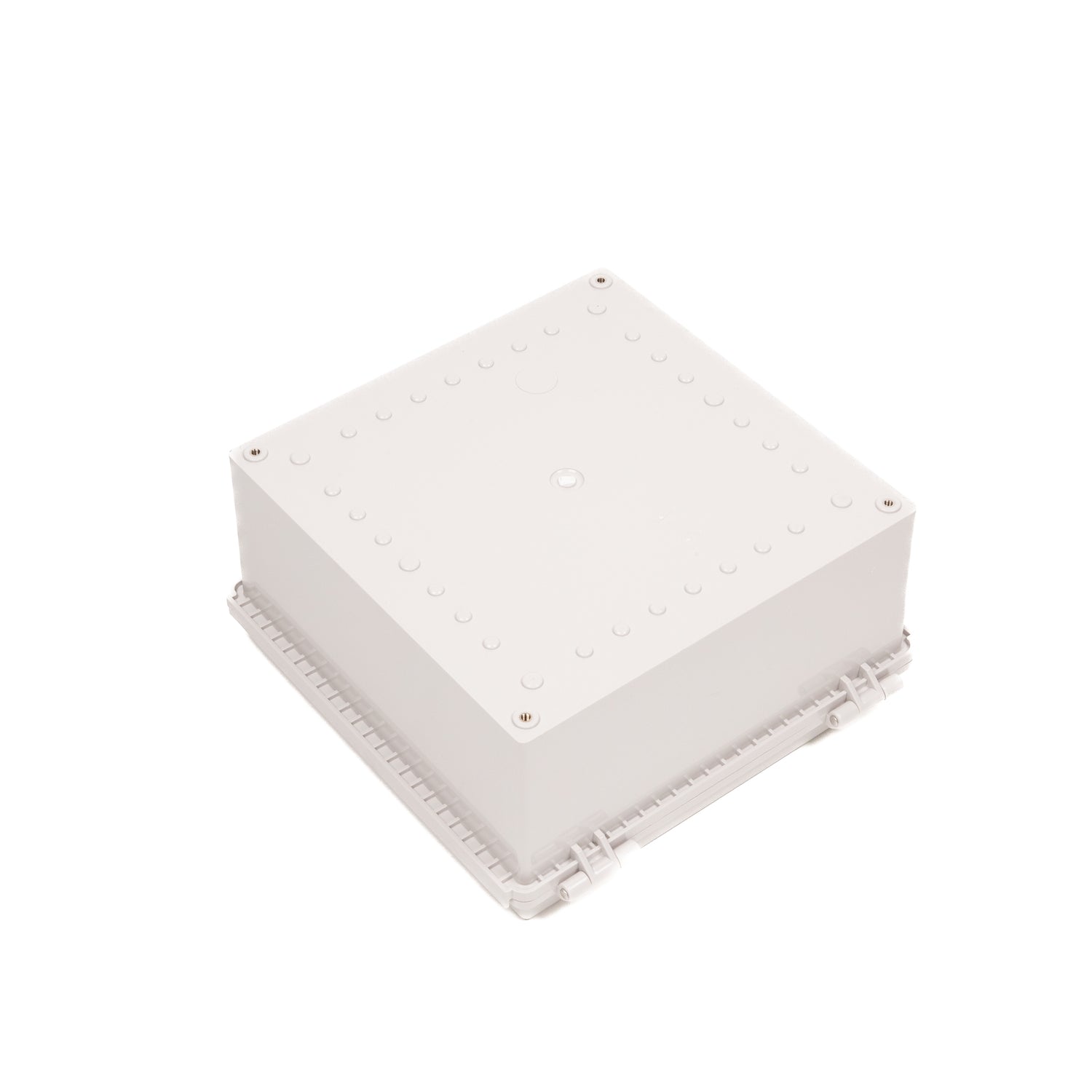

Boxco P-Series 300x300x150mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Molded Hinge and Latch Type

SKU BC-AGP-303015
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-AGP-303015 is a 300×300×150 mm ABS enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-AGP-303015Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
300×300×150 mm (11.81×11.81×5.91 in)
Mounting plate dimension M1 × M2
262 × 262 mm

Material

Material
ABS
Cover
Grey
Mounting plates
3030 P (Plastic, P type), 3030 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

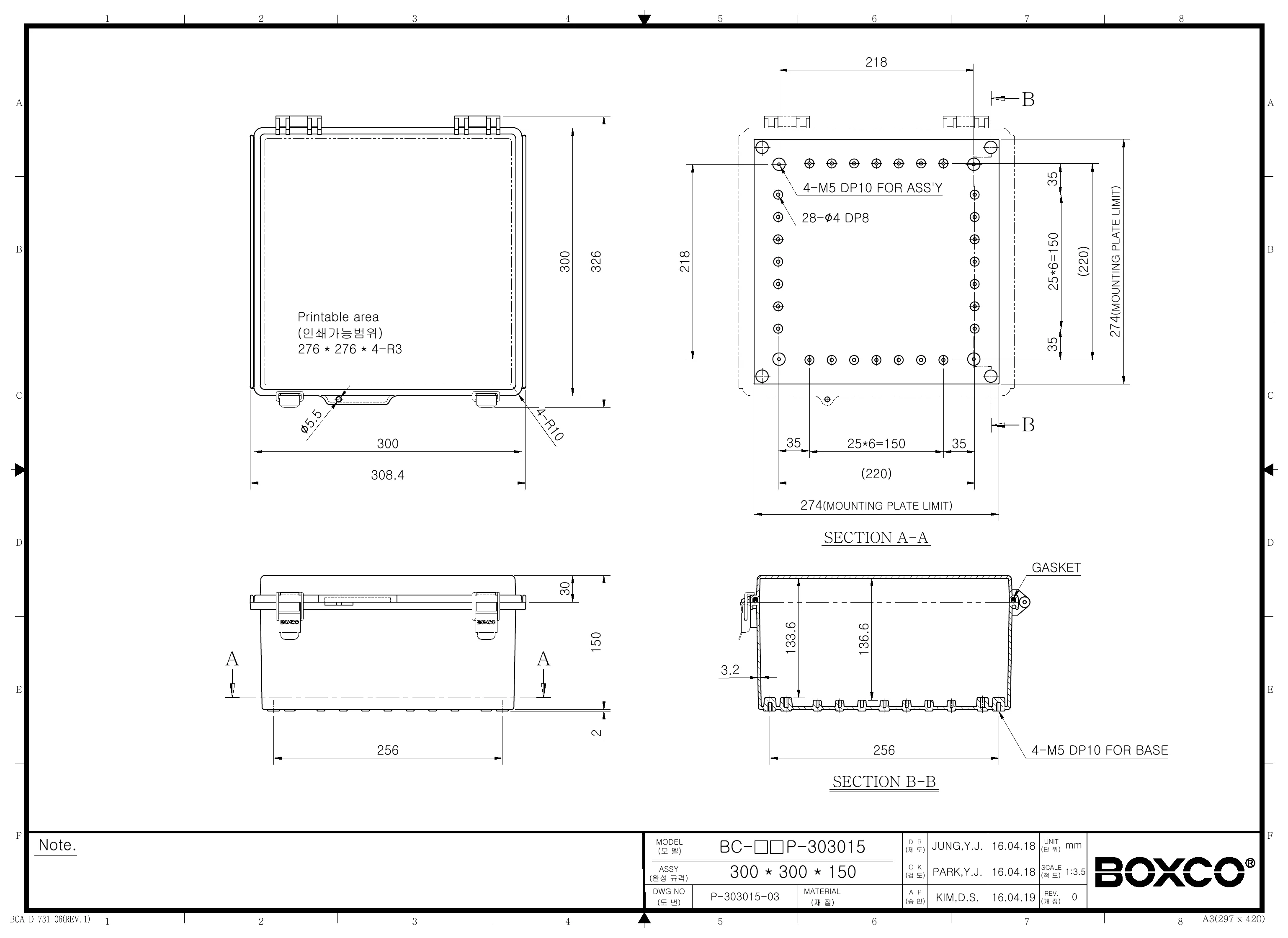

BC-AGP-303015 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco P-Series BC-AGP-303015 enclosure suited for?

This enclosure is designed for protecting industrial and commercial electrical or electronic components in indoor or outdoor environments. Its molded hinge, latch-style cover, and internal mounting features make it a practical choice for control, monitoring, or protection equipment that needs a sealed non-metallic housing.

What are the key size and material specs for this enclosure?

The BC-AGP-303015 measures 11.81 x 11.81 x 5.91 inches, which corresponds to 300 x 300 x 150 mm. It is made from ABS and features a grey cover in Boxco's P-Series molded hinge and latch design.

How well does this enclosure handle dust, water, and impact exposure?

This model is rated IP67 for dust-tight sealing and resistance to temporary water exposure, and it carries an IK08 impact rating. Boxco also notes a precision-injected gasket and roof protection design to support waterproof and dust-proof performance during regular use.

Is this plastic enclosure appropriate for outdoor use?

Yes, Boxco states that ultraviolet stabilizer is added to help protect the enclosure in outdoor conditions. The product description also notes that only minor color change is expected over long-term use.

What temperature range can this enclosure operate in?

The listed operating temperature range for this model is -40 °C to 70 °C. That range supports use in both cold and warm industrial environments, provided the overall application stays within the enclosure's published limits.

What makes this model different from a basic plastic junction box?

This P-Series enclosure includes a molded integrated hinge, a latch system with stainless steel main latch components, pre-molded mounting screw nuts, and attachment points for an internal mounting plate. Those features make it more application-ready than a plain box that only provides an empty shell.

Does this enclosure support mounting internal equipment?

Yes, the product description specifies pre-molded mounting screw nuts and internal mounting plate attachment points. These features are intended to help secure installed equipment inside the enclosure more firmly.
