Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

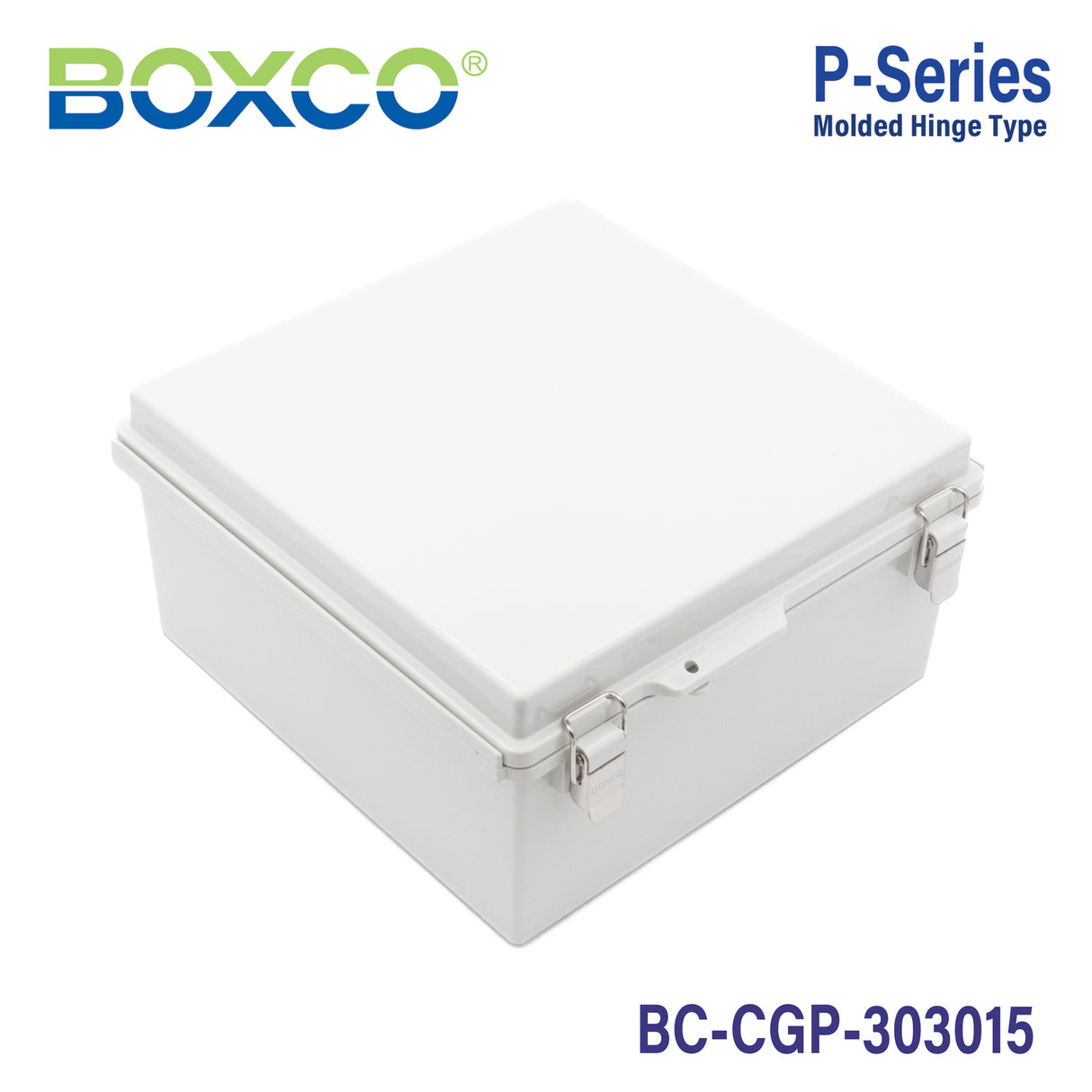

Boxco P-Series 300x300x150mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Molded Hinge and Latch Type

SKU BC-CGP-303015
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGP-303015 is a 300×300×150 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-CGP-303015Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
300×300×150 mm (11.81×11.81×5.91 in)
Mounting plate dimension M1 × M2
262 × 262 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
3030 P (Plastic, P type), 3030 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

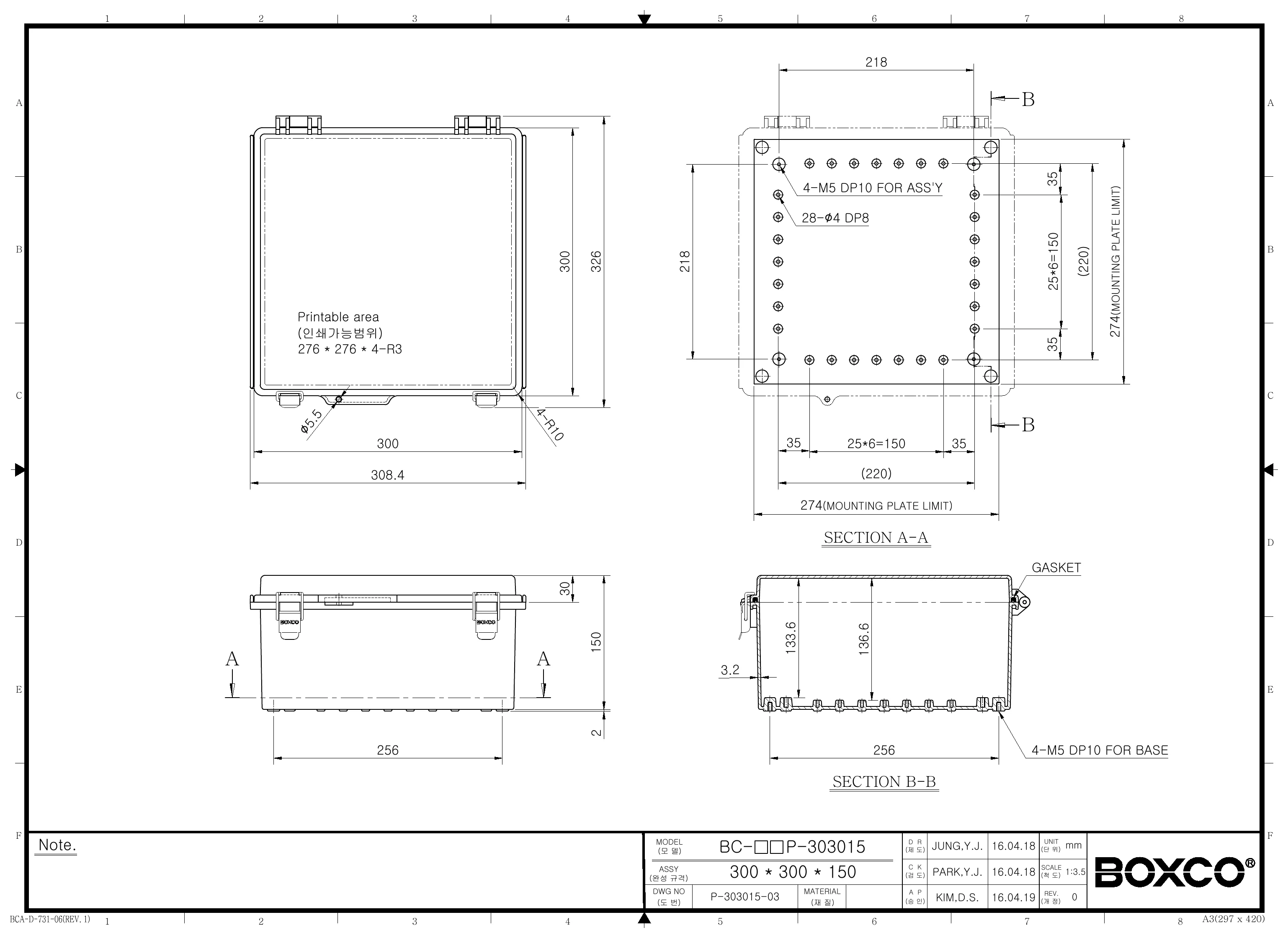

Technical drawings

BC-CGP-303015 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco P-Series enclosure best suited for?

This enclosure is suited for protecting industrial and commercial electronics that need a durable non-metallic housing. Its molded hinge and latch design, internal equipment mounting points, and outdoor-oriented material features make it a practical choice for control, monitoring, and protection applications.

Is this enclosure suitable for outdoor environments?

Yes, this model is designed with outdoor use in mind. The description states that an ultraviolet stabilizer is added to help protect the enclosure outdoors, and the roof protection feature is intended to reduce water and dust intrusion during cover operation.

What do the IP67 and IK08 ratings indicate for this enclosure?

IP67 indicates this enclosure is built for strong protection against dust and water ingress. IK08 indicates resistance to external impact, which aligns with the product's high-impact plastic construction and protective design features.

What material is this enclosure made from?

This model is made from PC, or polycarbonate, and has a grey cover. The description also notes high impact resistance, anti-static material properties, and UV-stabilized construction for demanding environments.

What size is this Boxco P-Series enclosure?

The enclosure measures 11.81 x 11.81 x 5.91 inches, which corresponds to 300 x 300 x 150 mm. This gives it a square footprint with enough depth for applications that need more internal space than a shallow junction-style box.

What internal equipment compatibility features does this enclosure include?

This model includes pre-molded mounting screw nuts so internal equipment such as DIN rail-related hardware can be fixed inside more easily. It also includes mounting plate attachment points with brass-inserted injection molding to support securely mounted internal components.

How does this hinged plastic enclosure differ from a basic non-hinged box?

This model uses an integrated molded hinge and latch format, which supports repeated access without fully separating the cover from the base. It also adds outdoor-oriented roof protection, injected gasket sealing, and stainless steel latch and hinge-bearing elements that distinguish it from simpler box designs.

What operating temperature range does this enclosure support?

This enclosure is rated for temperatures from -40 degrees C to 110 degrees C. That range makes it suitable for applications exposed to both low-temperature and elevated-temperature operating conditions within that specified span.
