Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

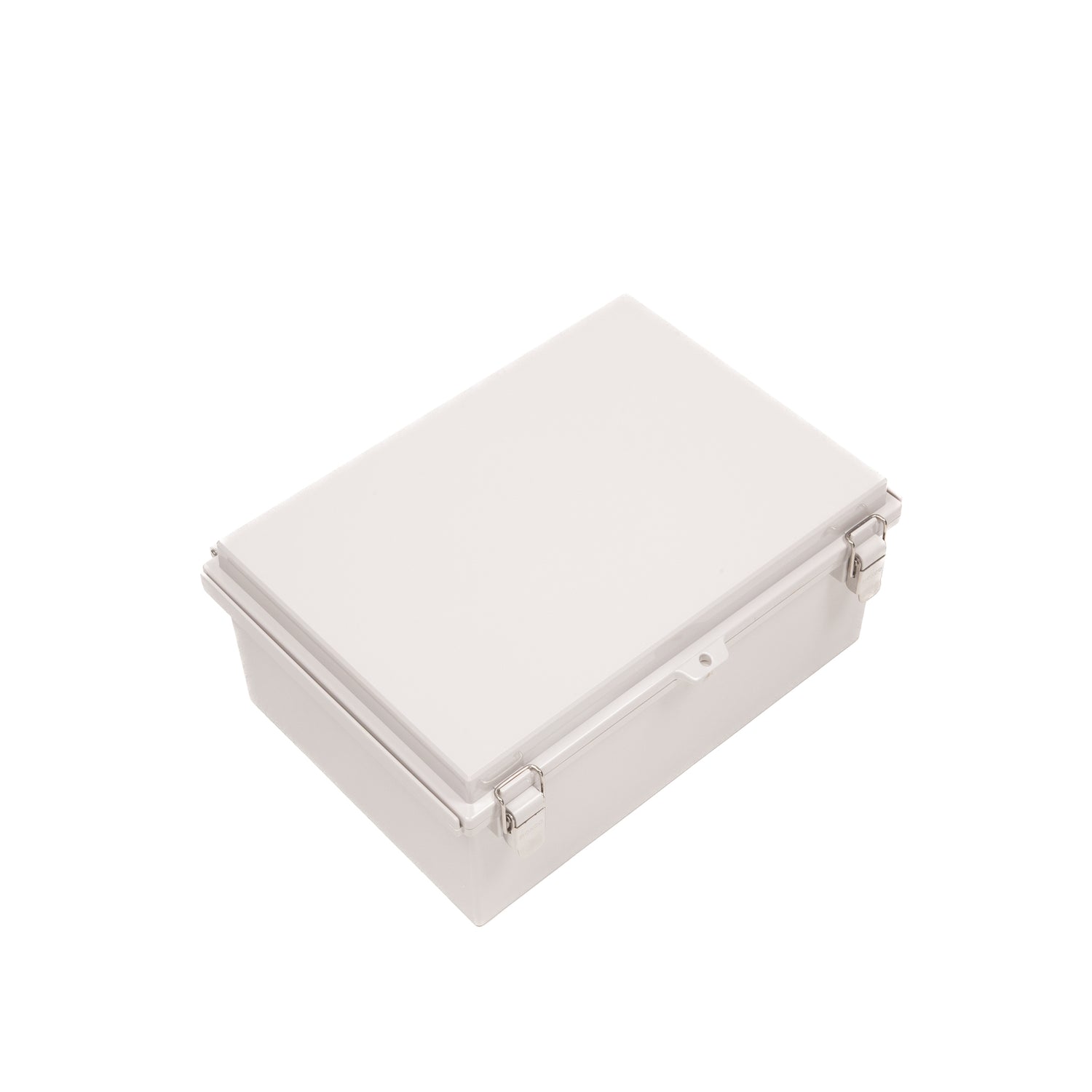

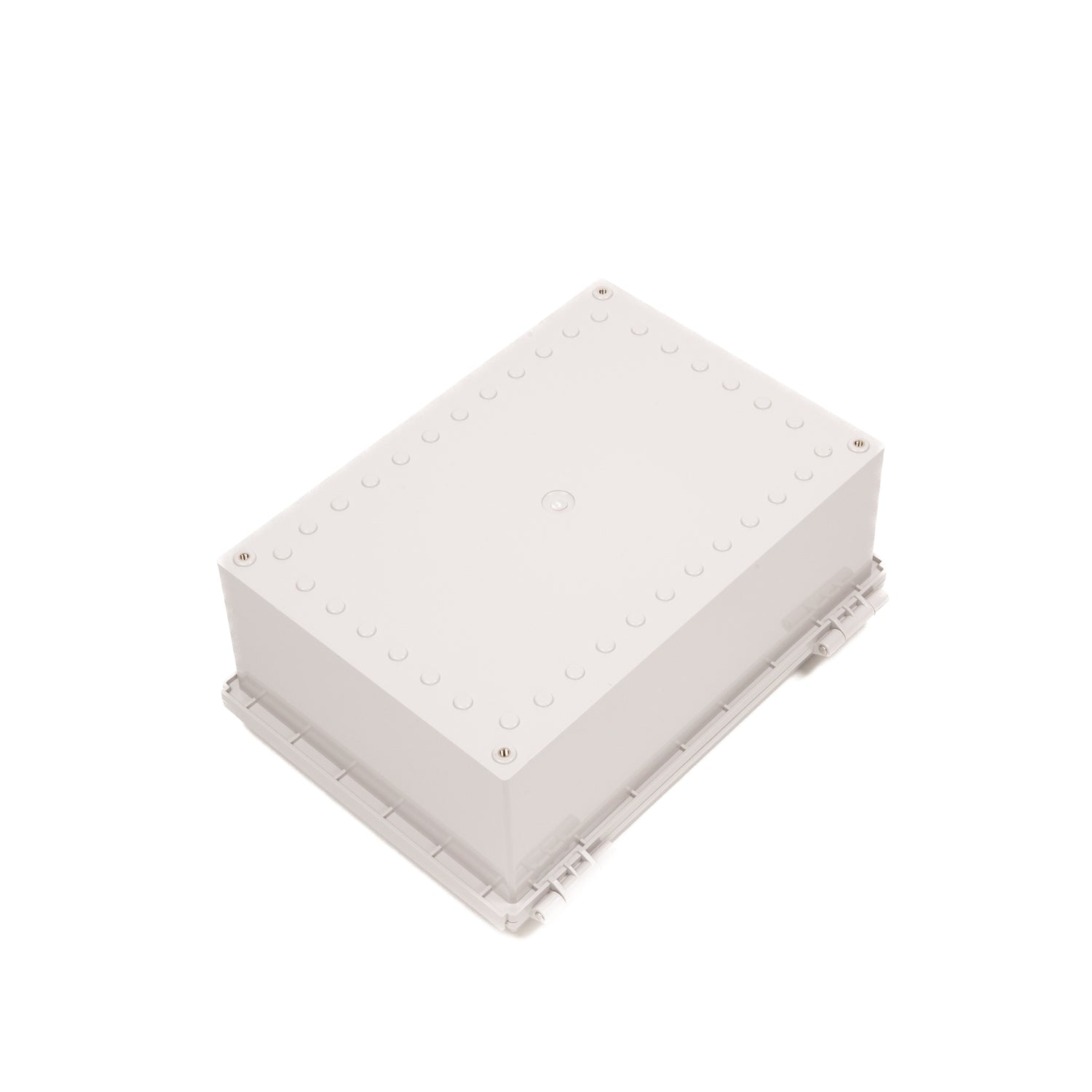

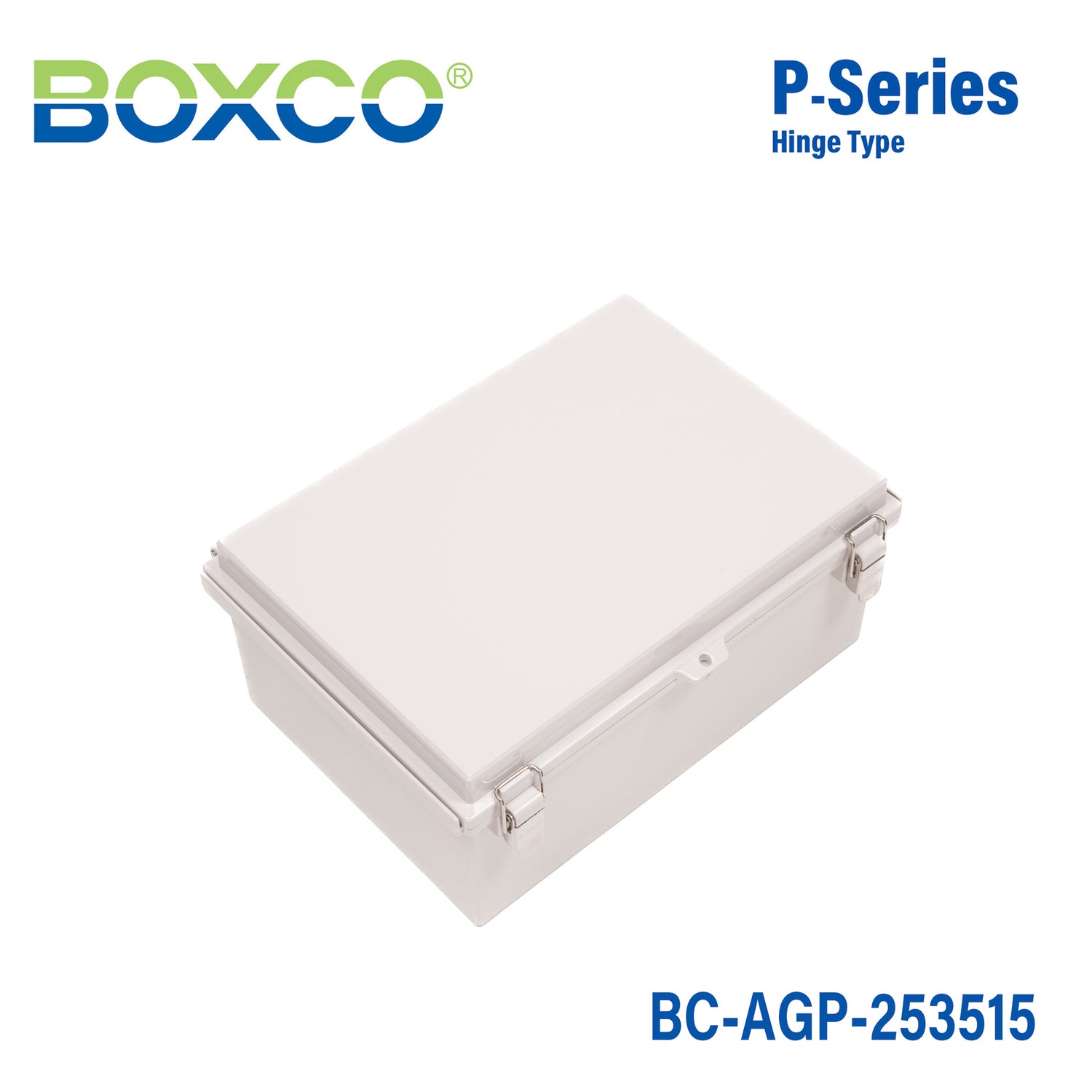

Boxco P-Series 250x350x150mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Molded Hinge and Latch Type

SKU BC-AGP-253515
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-AGP-253515 is a 250×350×150 mm ABS enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-AGP-253515Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
250×350×150 mm (9.84×13.78×5.91 in)
Mounting plate dimension M1 × M2
216 × 316 mm

Material

Material
ABS
Cover
Grey
Mounting plates
2535 P (Plastic, P type), 2535 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

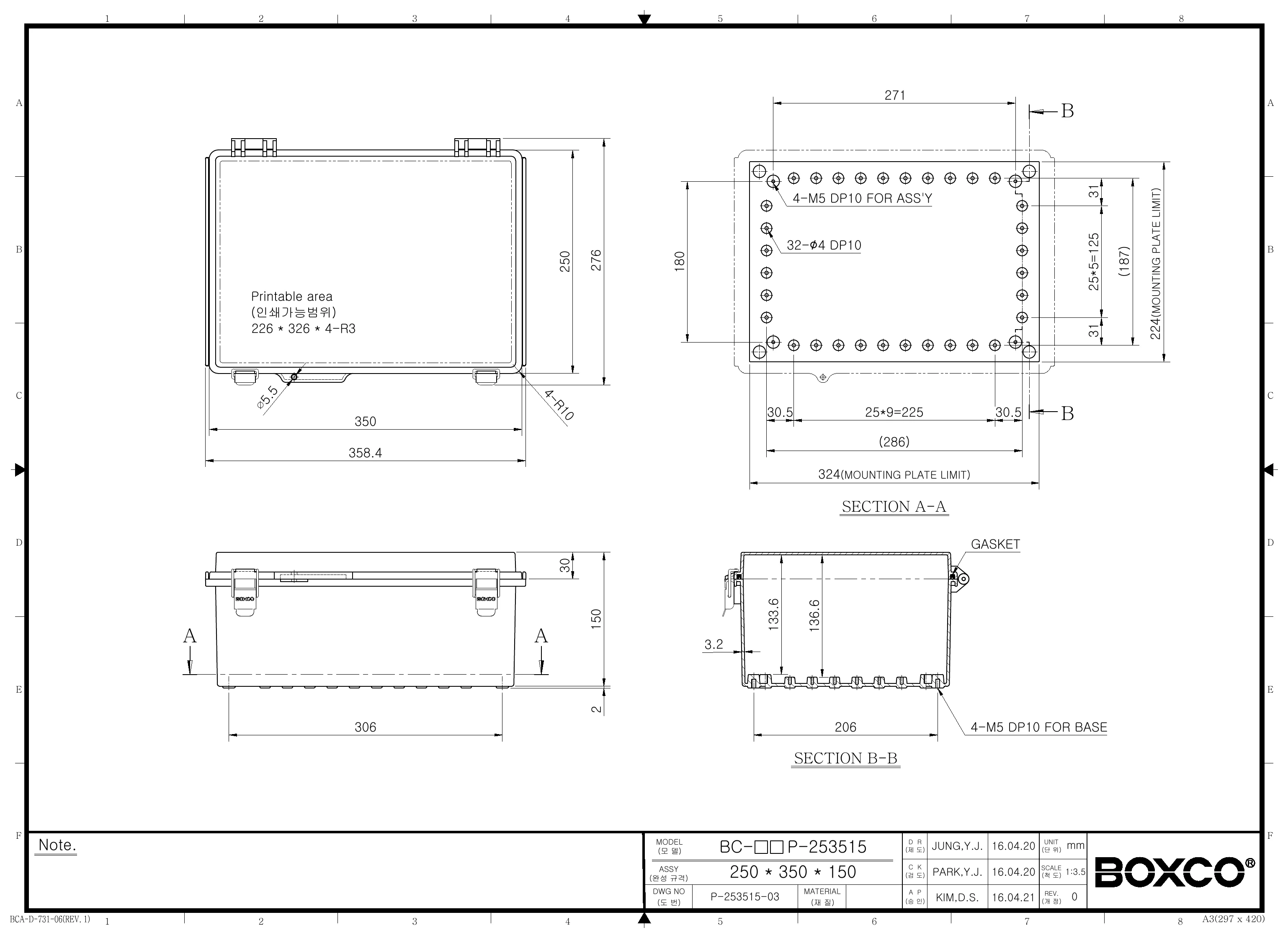

Technical drawings

BC-AGP-253515 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco P-Series enclosure best suited for?

This enclosure is suited for protecting industrial controls, monitoring devices, and other sensitive electronic equipment in indoor or outdoor environments. Its ABS construction, molded hinge and latch design, and impact and ingress ratings make it a practical choice for demanding commercial and industrial use.

Is this enclosure suitable for outdoor use?

Yes. The product description states that an ultraviolet stabilizer is added for outdoor usage to help reduce visible color change over long periods. It also includes roof protection features and a precision-injected gasket to support water and dust resistance.

What does the IP67 rating mean for this enclosure?

The IP67 rating indicates this model is built to provide strong protection against dust ingress and temporary water exposure. For buyers comparing enclosure options, that makes it a higher-protection choice for harsh environments where moisture and dust are concerns.

How durable is this plastic enclosure?

This model is made from high impact resistant ABS and carries an IK08 impact rating. The integrated plastic hinge also uses a stainless steel bearing to improve service life, and the main part of the draw latch is stainless steel for added strength.

What size is this enclosure?

This Boxco P-Series enclosure measures 9.84 x 13.78 x 5.91 inches, which corresponds to 250 x 350 x 150 mm. That size gives it a relatively large internal form factor for applications that need more protected space inside the enclosure body.

What temperature range can this enclosure handle?

The specified operating temperature range for this model is -40°C to 70°C. That makes it appropriate for environments with substantial temperature variation, including many industrial and outdoor applications.

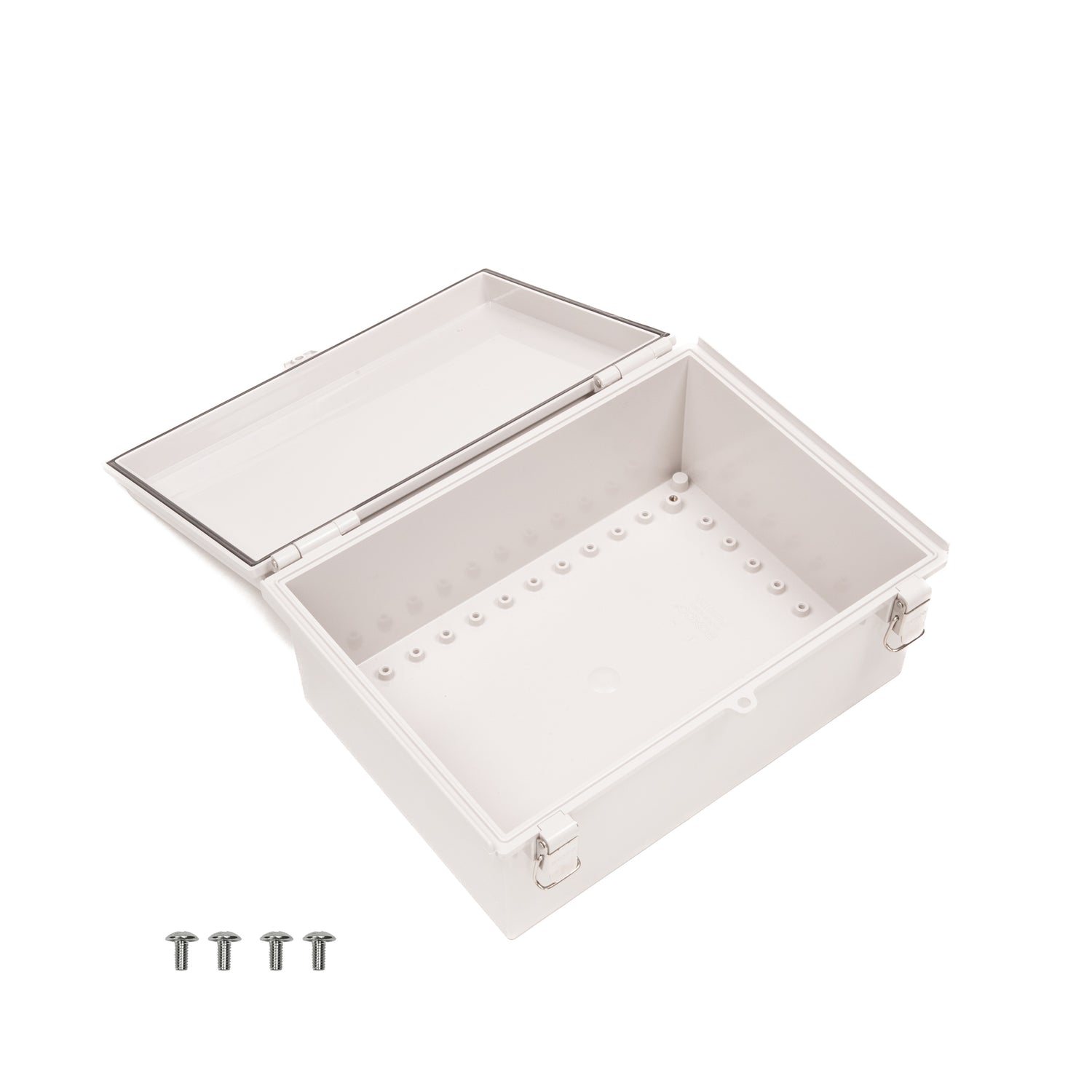

Does this enclosure support mounting internal components?

Yes. The enclosure includes pre-molded mounting screw nuts for securing DIN rail or other equipment, and it also has mounting plate attachment points with brass inserted injection molding for heavier internal components. These built-in features make the enclosure more adaptable for equipment-heavy applications.
