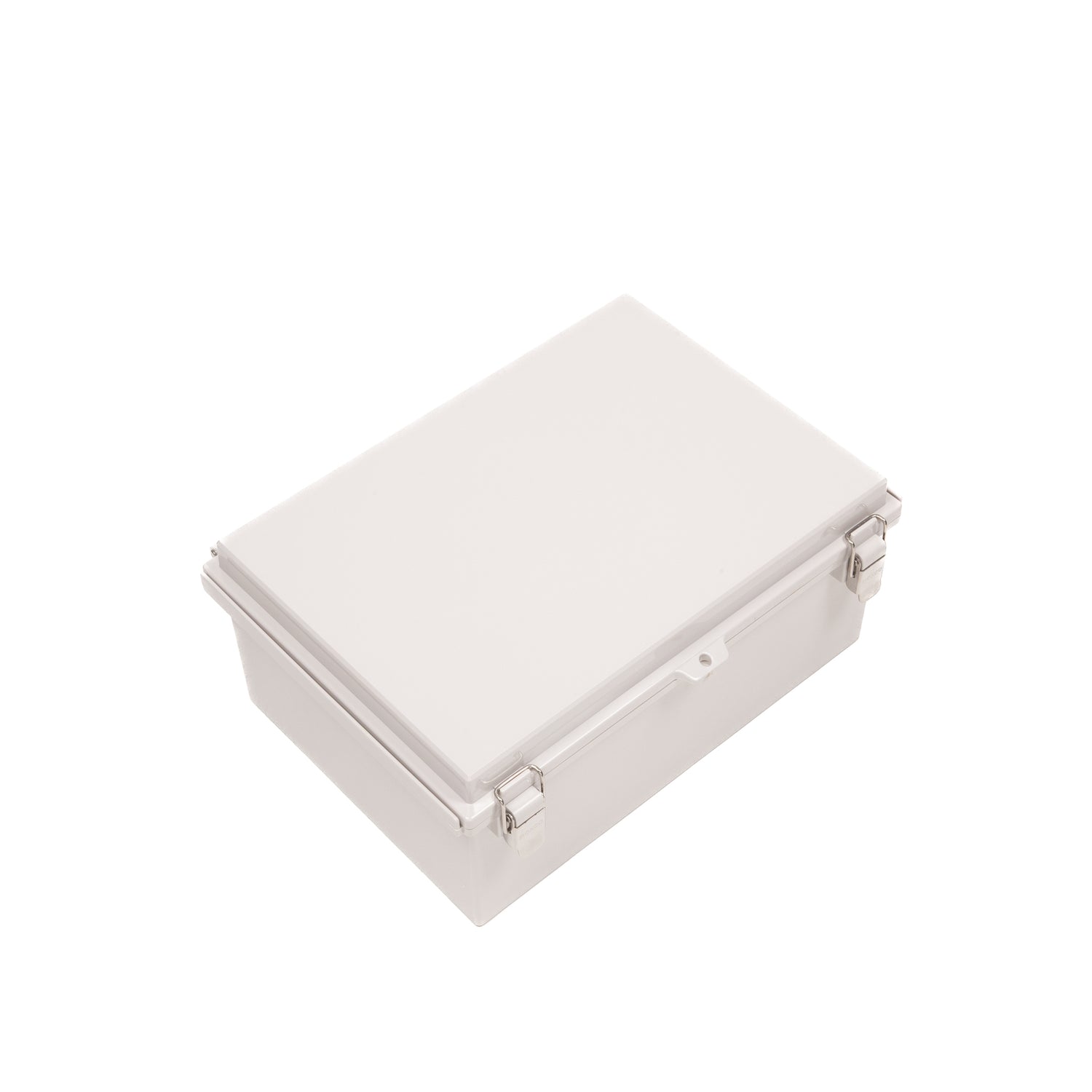

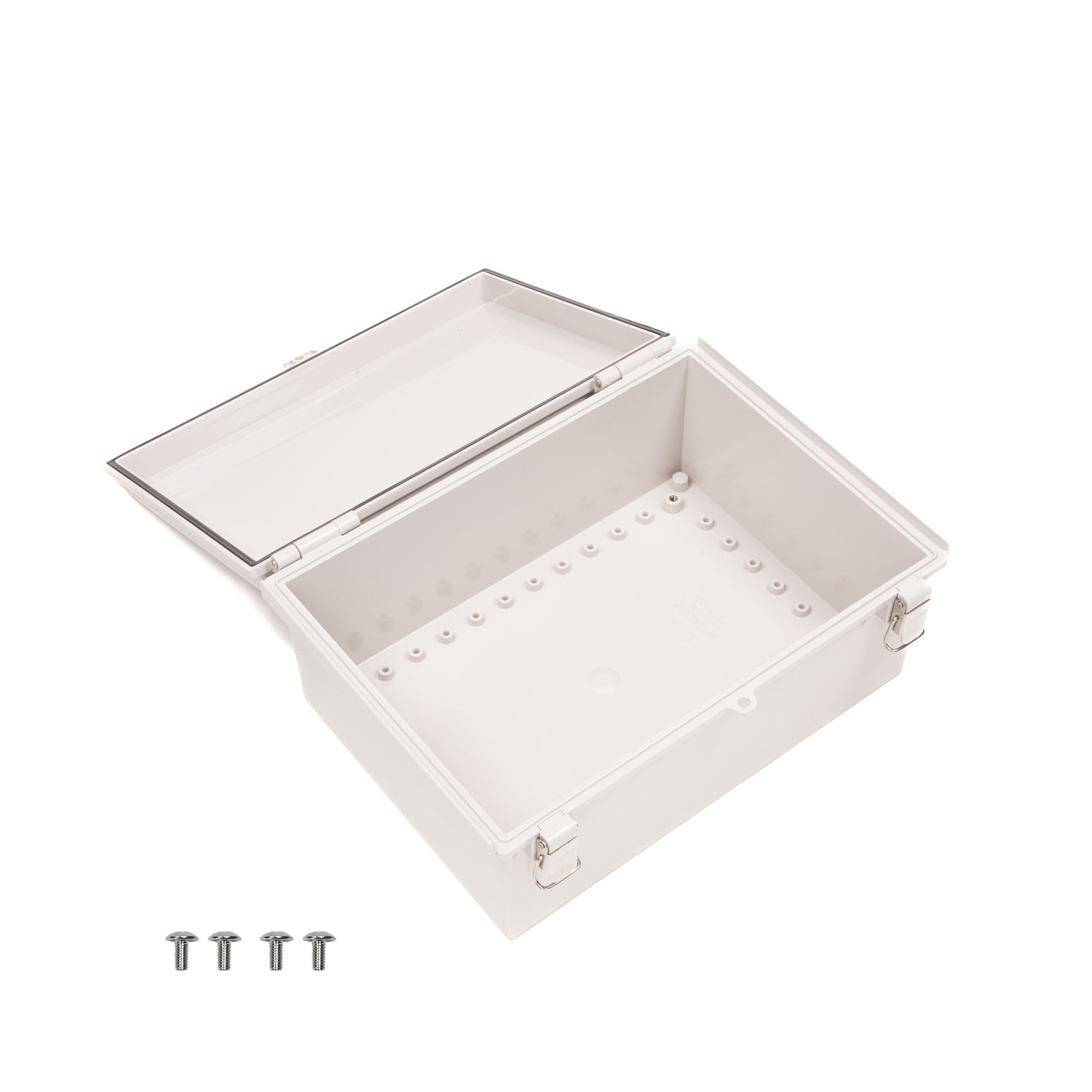

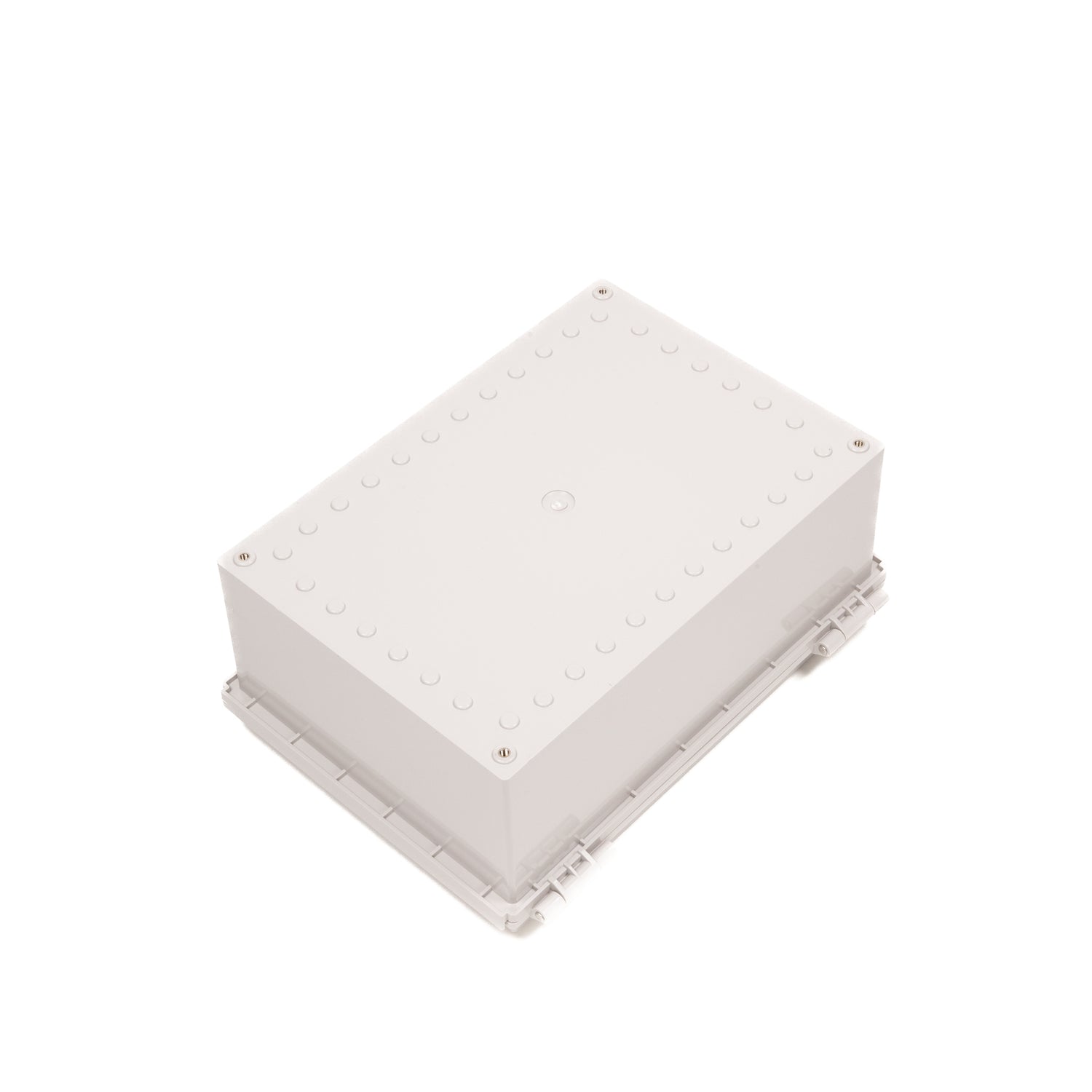

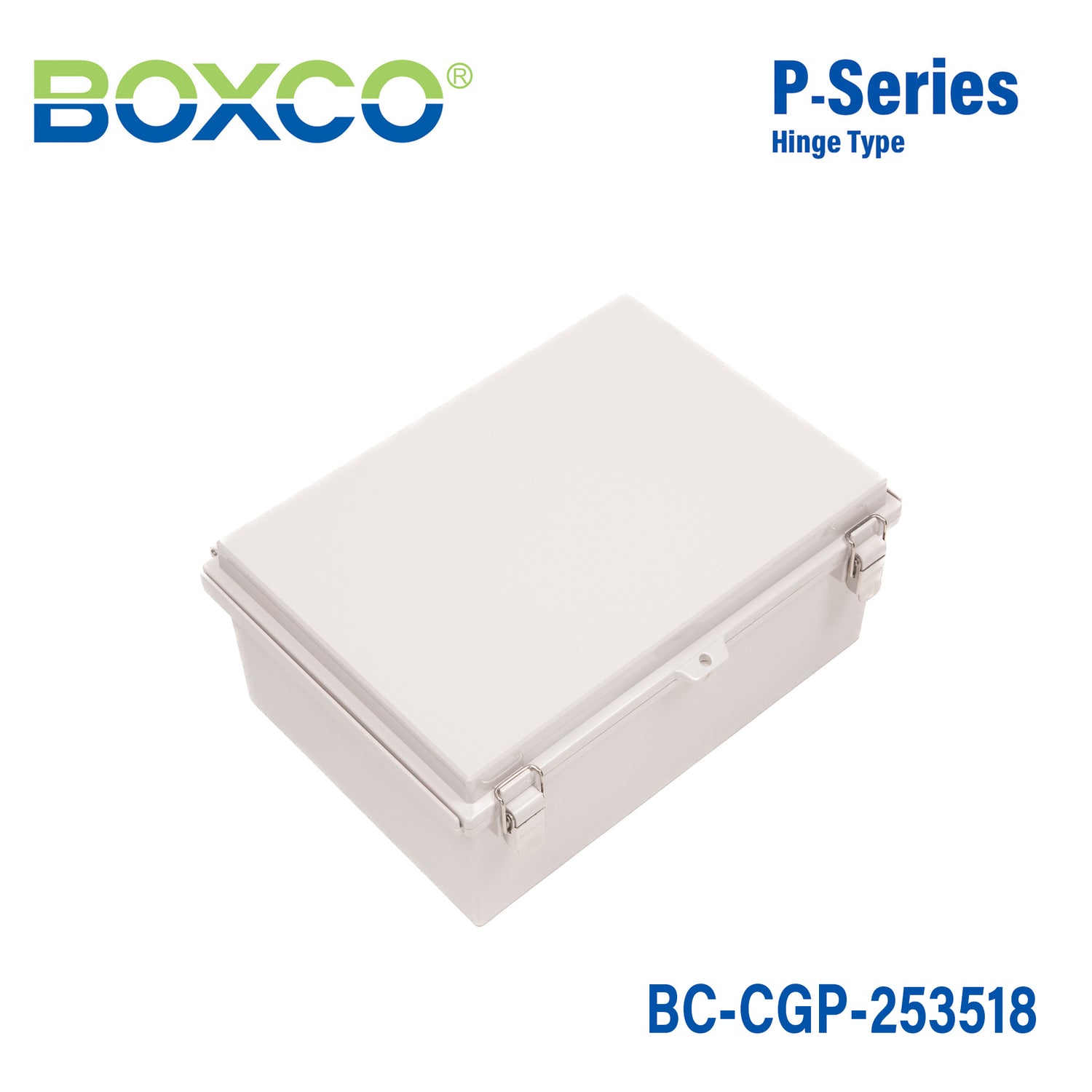

Boxco P-Series 250x350x180mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Molded Hinge and Latch Type

SKU BC-CGP-253518
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-CGP-253518 is a 250×350×180 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-CGP-253518Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
250×350×180 mm (9.84×13.78×7.09 in)
Mounting plate dimension M1 × M2
216 × 316 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
2535 P (Plastic, P type), 2535 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

BC-CGP-253518 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What material is this enclosure made from?

This Boxco P-Series enclosure is made from polycarbonate (PC) and includes a grey cover. The product description also notes anti-static material use for protecting sensitive electronic instruments and a high-impact-resistant construction.

Is this enclosure suitable for outdoor environments?

Yes. The product description states that an ultraviolet stabilizer is added to help protect the enclosure for outdoor usage, and the design includes roof protection features to reduce water and dust penetration during cover operation. Its IP67 rating also supports use where strong protection against dust and water ingress is required.

What ingress and impact protection ratings does this model have?

This enclosure is rated IP67 for ingress protection and IK08 for impact resistance. Those ratings make it a fit for applications where the enclosure needs strong dust protection, resistance to temporary water exposure, and durable mechanical protection.

What size is this Boxco P-Series enclosure?

This model measures 9.84 x 13.78 x 7.09 inches, which is 250 x 350 x 180 mm. That larger format can help when the application needs extra internal space for protected components and mounting hardware.

What operating temperature range does this enclosure support?

The specified temperature range for this model is -40°C to 110°C. That gives it a wide operating range for demanding industrial and outdoor environments.

What features make this enclosure practical for industrial equipment protection?

This model includes a molded hinge and latch design, a stainless steel latch main part, pre-molded mounting screw nuts, gasket sealing, and internal mounting plate attachment points. The product description also highlights brass-inserted injection molding for securely supporting heavier installed equipment.

How does this model differ from a basic plastic enclosure box?

This P-Series model combines a polycarbonate body, IP67 and IK08 ratings, integrated hinge construction, gasket sealing, UV-stabilized outdoor suitability, and anti-static material features. Compared with a more basic enclosure, it is positioned for tougher environments and applications that need stronger sealing and impact resistance.
