Boxco

Boxco P-Series 110x260x100mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Molded Hinge and Latch Type

SKU BC-CGP-112610
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-CGP-112610 is a 110×260×100 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-CGP-112610Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
110×260×100 mm (4.33×10.24×3.94 in)
Mounting plate dimension M1 × M2
76 × 225 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
1126 P (Plastic, P type), 1126 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

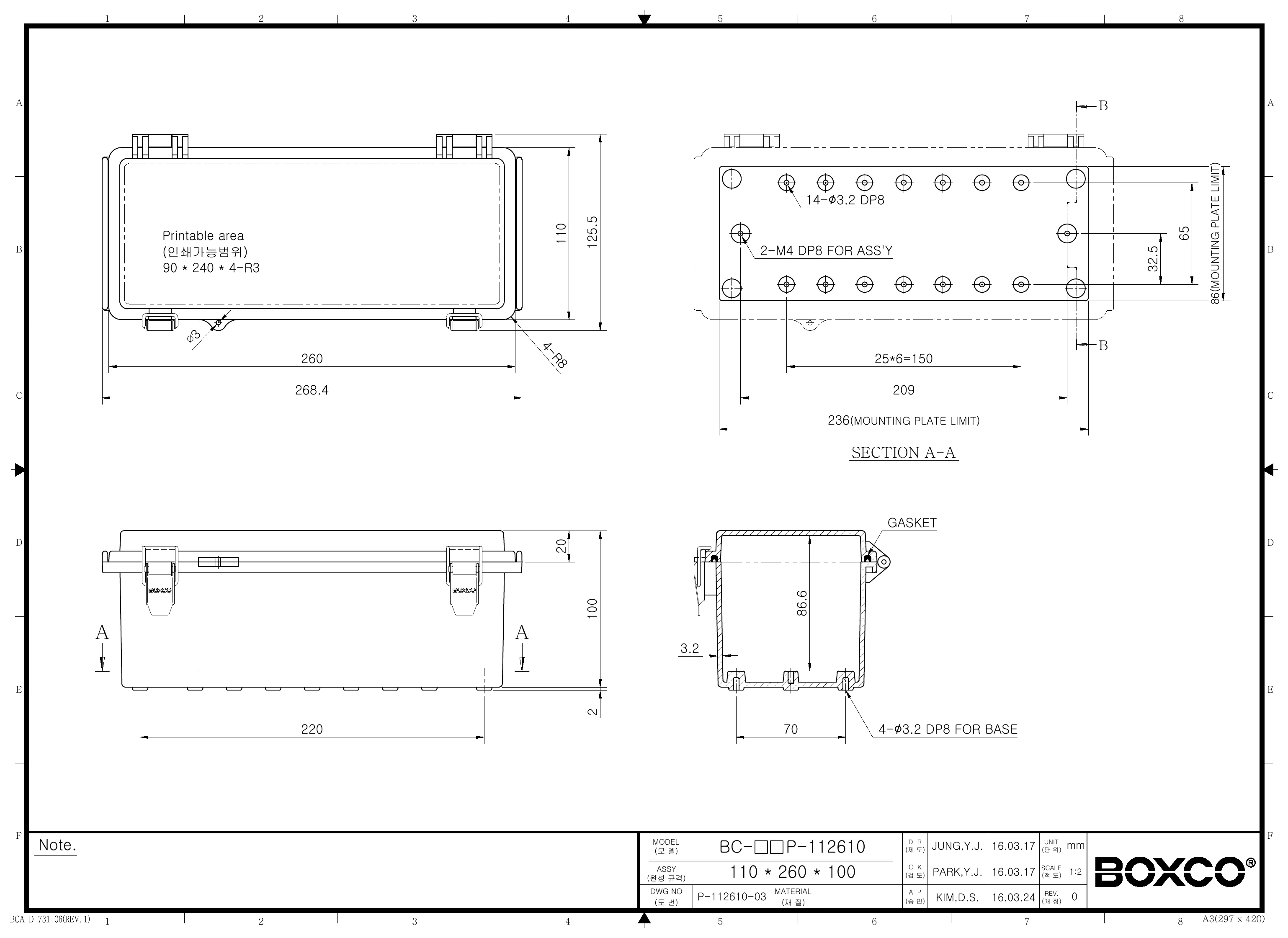

Technical drawings

BC-CGP-112610 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the main specifications of this Boxco P-Series enclosure?

This model is a Boxco P-Series plastic enclosure with overall dimensions of 4.33 x 10.24 x 3.94 inches (110 x 260 x 100 mm). It is made from polycarbonate (PC), has a grey cover, and uses a molded hinge and latch design. The enclosure is rated IP67 for dust and water resistance and IK08 for impact resistance.

Is this enclosure suitable for outdoor use?

Yes, this enclosure is designed for outdoor use. The product description states that an ultraviolet stabilizer is added to help protect the enclosure outdoors and reduce visible color change over time. Its IP67 rating and roof protection design also support resistance to water and dust exposure.

What kind of applications is this enclosure commonly used for?

This enclosure is suited for protecting electronic equipment in industrial and commercial environments where dust, water, and impact resistance matter. The anti-static material makes it relevant for housing sensitive electronic instruments. Its internal mounting features also make it practical for equipment that needs secure enclosure support.

What does the IP67 rating mean for this model?

The IP67 rating indicates this enclosure is built for strong protection against dust and water ingress. Boxco also notes that the gasket is robot-injected for waterproof and dust-proof performance. That makes this model a good fit for demanding environments where enclosure sealing is important.

How durable is the hinge and latch design on this enclosure?

This model uses an integrated plastic hinge with a stainless steel bearing to help improve service life. The main part of the draw latch is made of stainless steel for added strength. It also carries an IK08 impact rating and is described as using high impact resistant material.

What temperature range can this enclosure handle?

This enclosure is specified for use from -40 °C up to 110 °C. That range supports use in both very cold and elevated-temperature environments. Buyers should still confirm the full assembly requirements of their specific application.

What equipment compatibility features are built into this enclosure?

The enclosure includes pre-molded mounting screw nuts for securing DIN rail or other equipment. It also has internal mounting plate attachment points designed to hold a mounting plate tightly using brass inserted injection molding. These features help support heavier internal components within the enclosure.
