Boxco

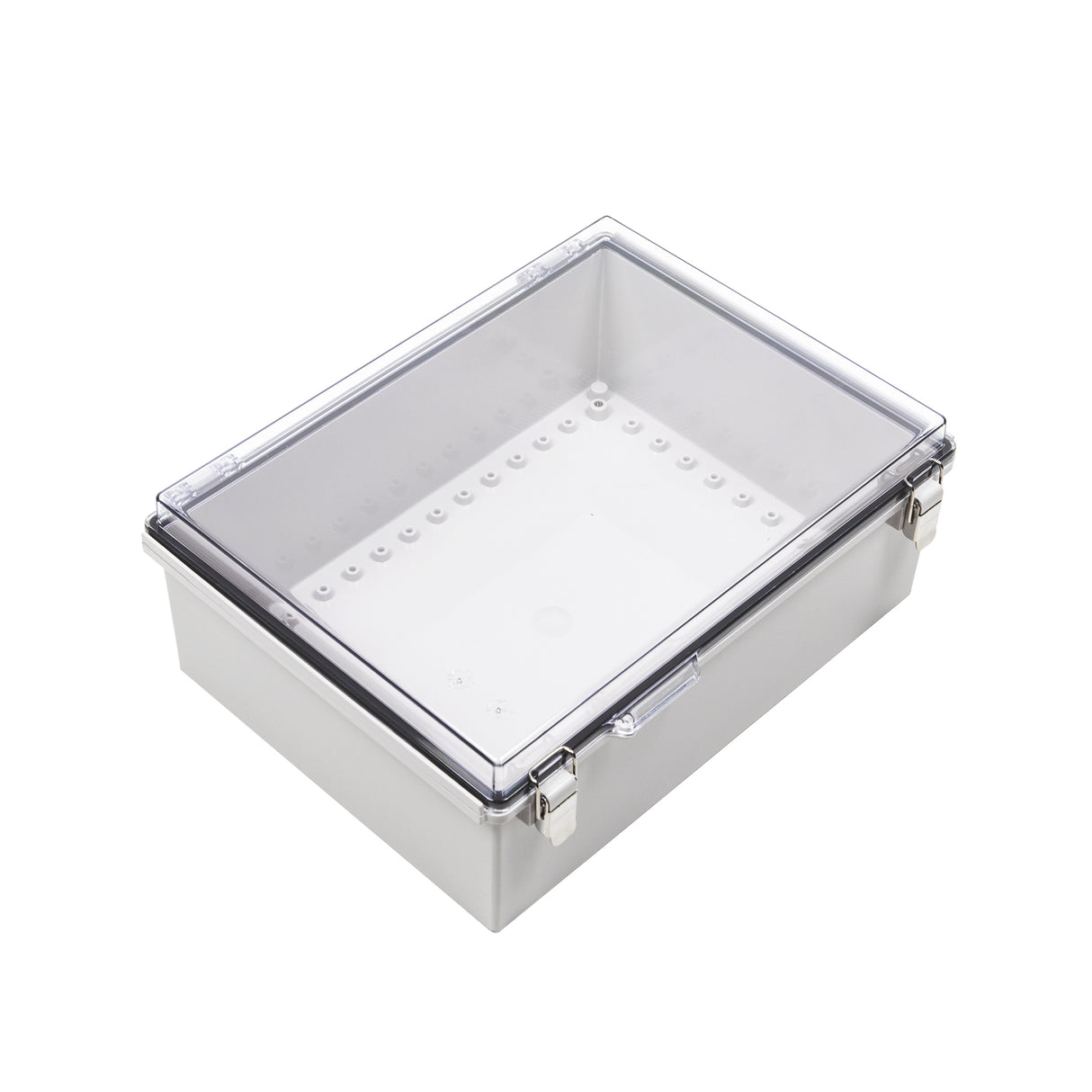

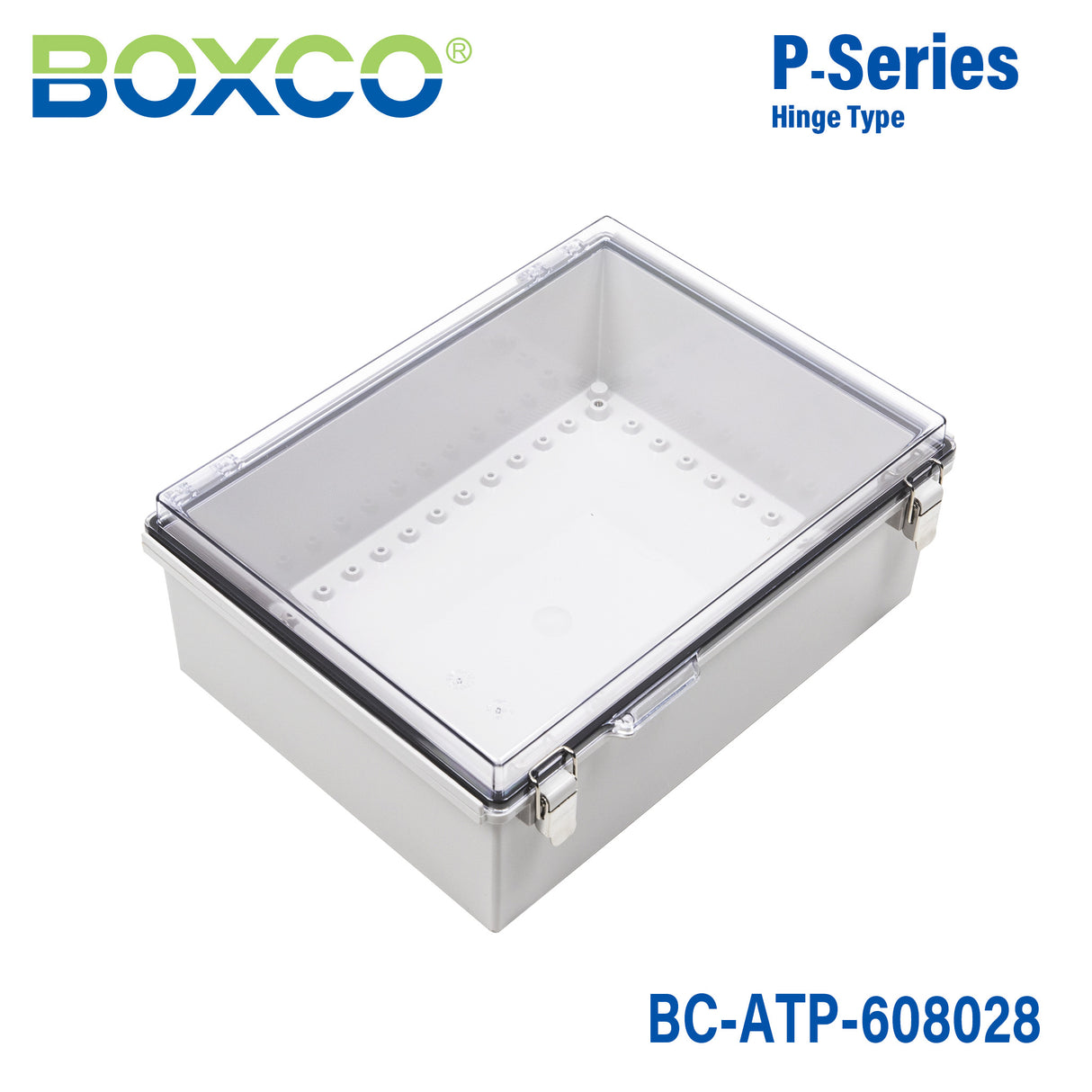

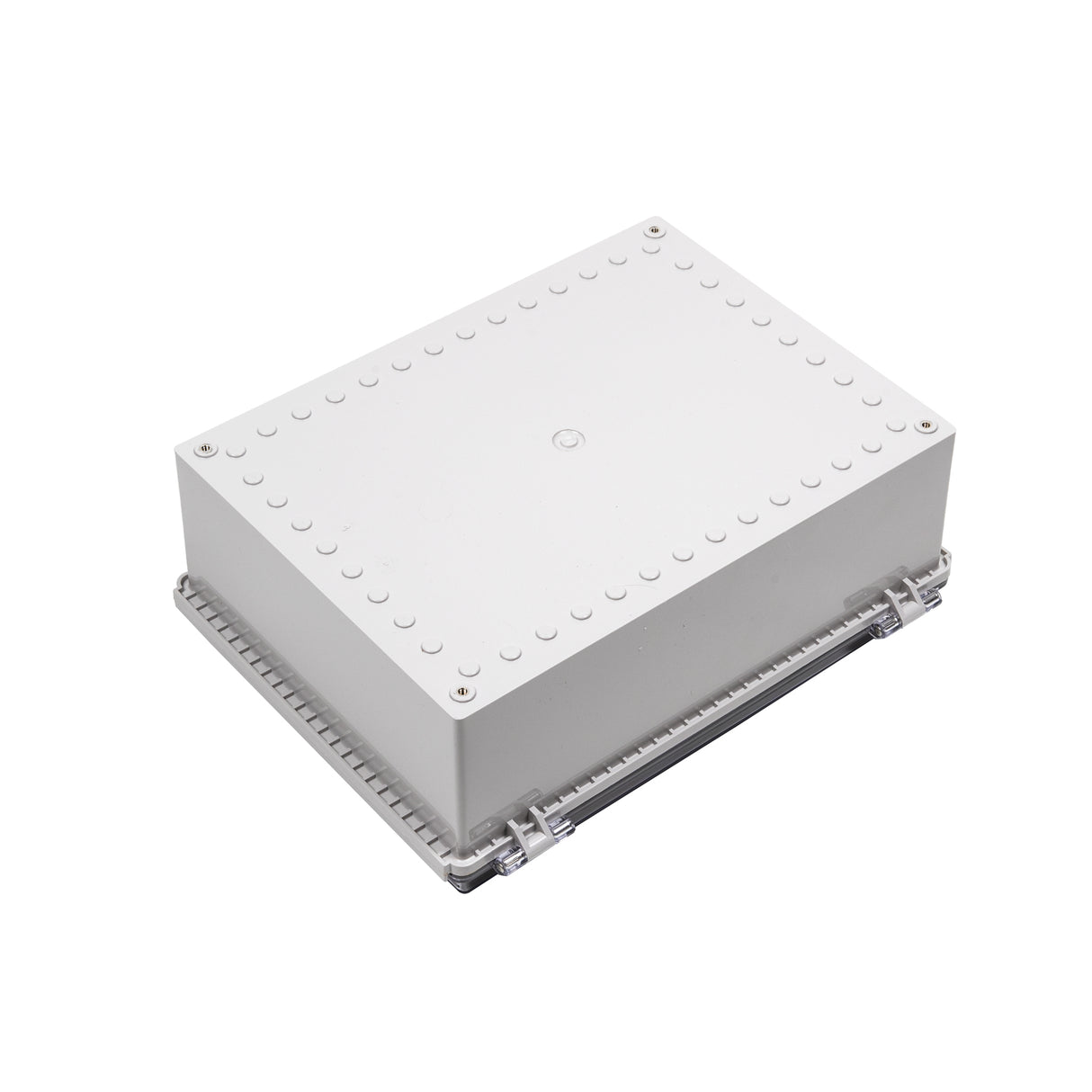

Boxco P-Series 630x830x285mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Molded Hinge and Latch Type

SKU BC-ATP-608028
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-ATP-608028 is a 630×830×285 mm ABS enclosure with a transparent cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-ATP-608028Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
630×830×285 mm (24.80×32.68×11.22 in)
Mounting plate dimension M1 × M2
560 × 752 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
6080 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

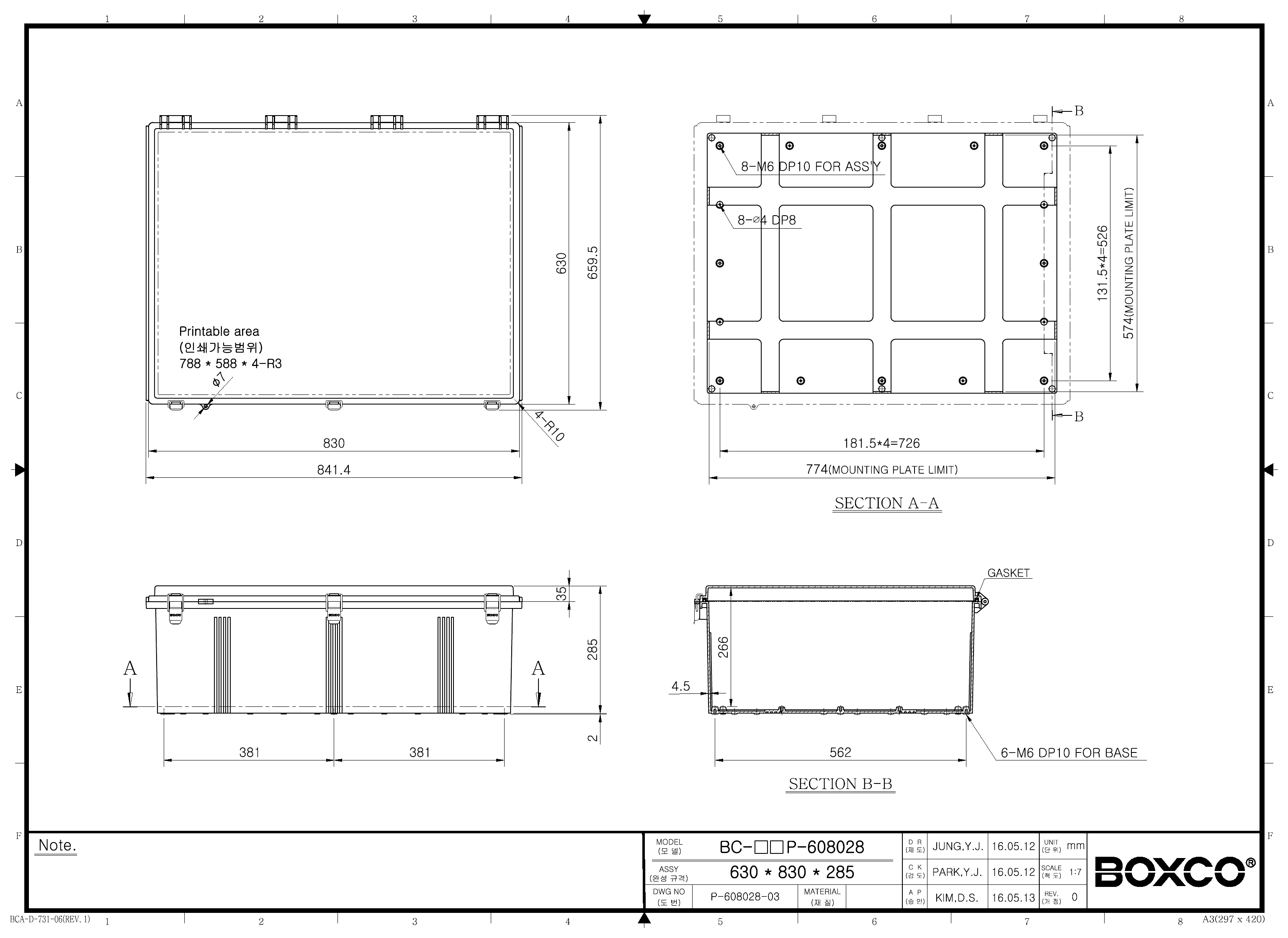

Technical drawings

BC-ATP-608028 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco P-Series BC-ATP-608028 enclosure best suited for?

This enclosure is intended for protecting industrial and commercial electrical or electronic equipment that needs a large, durable housing. Its large 24.80 x 32.68 x 11.22 inch size, transparent cover, and impact-resistant ABS construction make it a practical option for outdoor control, monitoring, or instrumentation enclosures where internal components may need to be visually checked without opening the cover.

Is the BC-ATP-608028 suitable for outdoor environments?

Yes. Boxco states that this P-Series enclosure includes an ultraviolet stabilizer for outdoor usage, and the design includes roof protection features to help reduce water penetration when used outside. It is also rated IP67 for dust-tight performance and protection against temporary water immersion when properly closed.

What do the IP67 and IK08 ratings mean for this enclosure?

The IP67 rating indicates this model is built to provide strong protection against dust ingress and temporary water exposure. The IK08 rating indicates resistance to mechanical impact, which supports use in environments where the enclosure may be exposed to accidental bumps or external force.

What material is this enclosure made from, and why does it matter?

The BC-ATP-608028 is made from ABS plastic with a transparent cover. Boxco also notes high impact resistance, anti-static material for protecting sensitive electronic instruments, and UV stabilization for improved outdoor durability, making this material choice useful for demanding industrial environments.

What is the operating temperature range for this model?

This enclosure is specified for use from -40 degrees C to 70 degrees C. That range supports use in both cold and hot operating environments, subject to the requirements of the equipment installed inside the enclosure.

Does this enclosure support internal mounting of equipment?

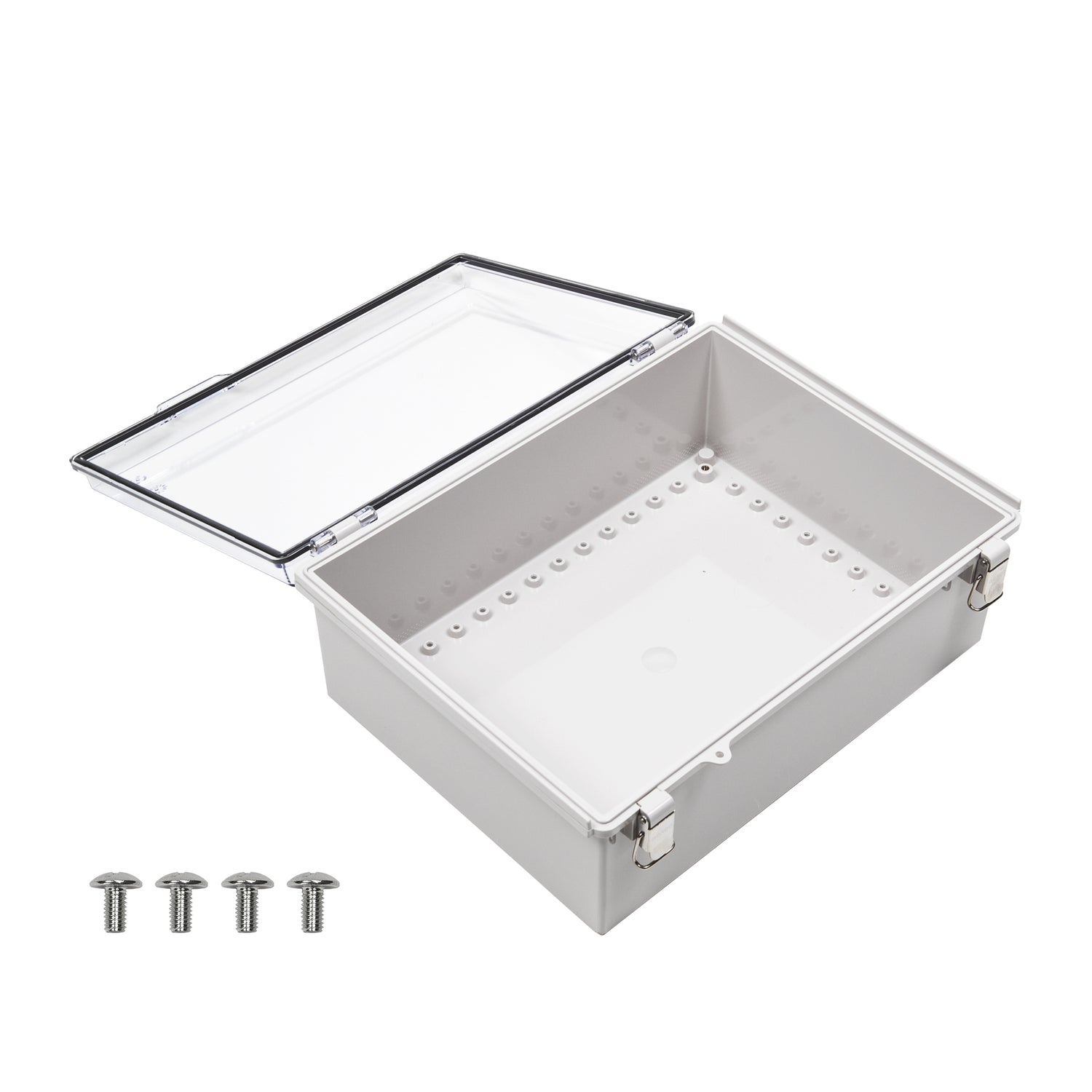

Yes. The product description states it has pre-molded mounting screw nuts for securing DIN rail or other equipment, and it also includes mounting plate attachment points with brass inserted injection molding for handling heavier internal assemblies. These features make it better suited for larger or more demanding component layouts than a basic empty box.

What are the key physical specifications of the BC-ATP-608028?

This model measures 24.80 x 32.68 x 11.22 inches, which Boxco also lists as 630 x 830 x 285 mm. It weighs 29.97 kg and includes a transparent cover with molded hinge and latch construction.

What kind of cover and access design does this enclosure use?

This model uses a transparent cover with integrated molded hinges and a latch-type closure. Boxco states the hinge is plastic and integrated with the enclosure, while the bearing is stainless steel to improve service life, and the main part of the draw latch is also stainless steel for added strength.
