Boxco

Boxco P-Series 400x600x180mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Molded Hinge and Latch Type

SKU BC-CTP-406018
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-CTP-406018 is a 400×600×180 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-CTP-406018Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
400×600×180 mm (15.75×23.62×7.09 in)
Mounting plate dimension M1 × M2
357 × 556 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
4060 P (Plastic, P type), 4060 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

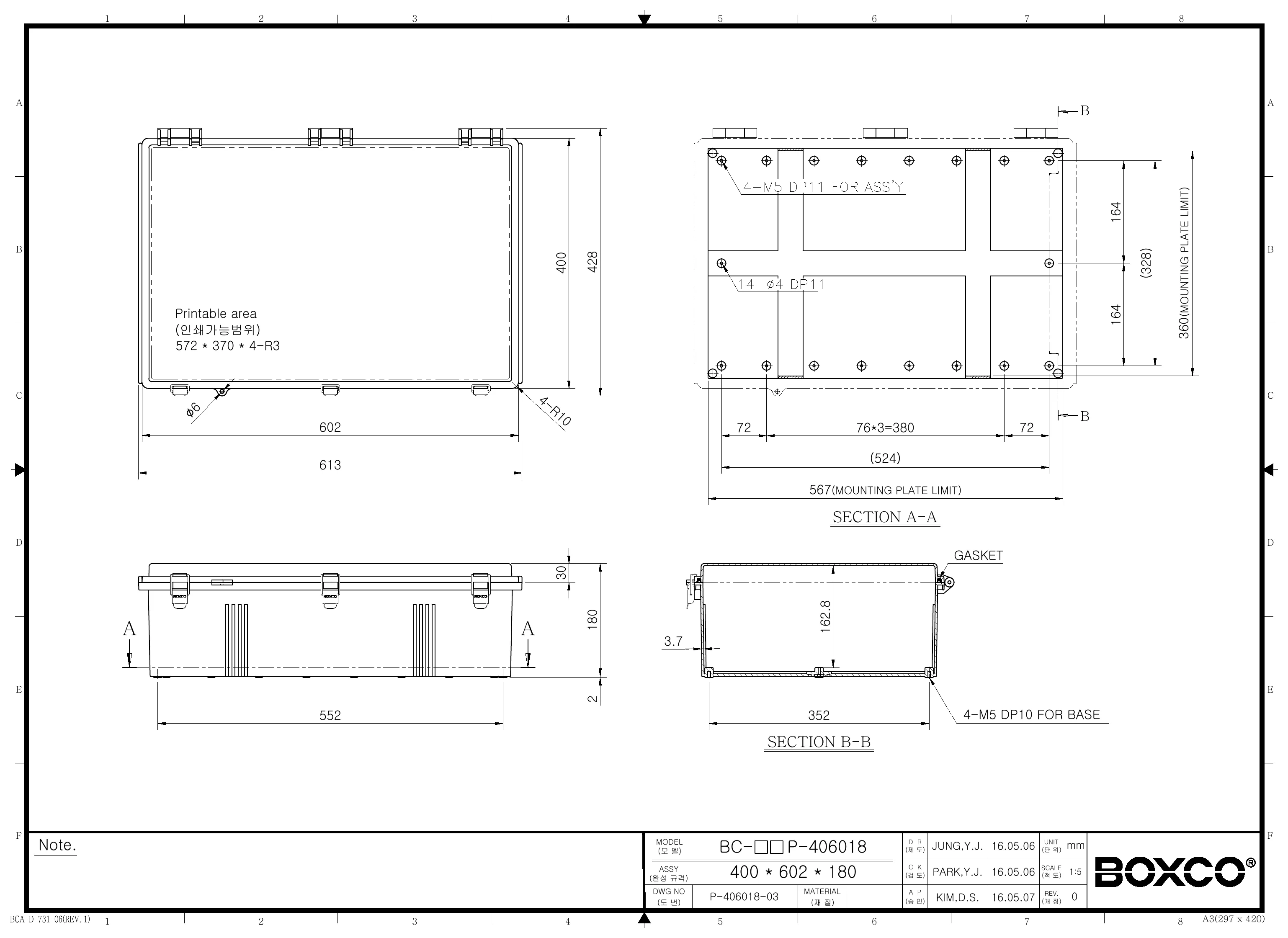

Technical drawings

BC-CTP-406018 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the dimensions of this Boxco P-Series enclosure?

This model measures 15.75 x 23.62 x 7.09 inches, which corresponds to 400 x 600 x 180 mm. It is one of the larger enclosures in the P-Series, making it suitable for applications that need more internal space than compact junction boxes.

Is this enclosure suitable for outdoor environments?

Yes. This P-Series enclosure includes an ultraviolet stabilizer to help protect it during outdoor use and reduce visible color change over time. The design also includes roof protection features that help limit water and dust intrusion around the cover area.

What do the IP67 and IK08 ratings mean for this enclosure?

The IP67 rating indicates strong protection against dust ingress and protection against temporary immersion in water under defined conditions. The IK08 rating indicates resistance to mechanical impact, which supports use in demanding industrial and commercial environments.

What material is this enclosure made from, and why does that matter?

This model is made from polycarbonate (PC) and has a transparent cover. The description highlights high impact resistance, anti-static material for sensitive electronic instruments, and durability during hole and press processing, which makes it a strong choice where toughness and visibility are important.

What temperature range can this enclosure handle?

This enclosure is rated for temperatures from -40 °C to 110 °C. That wide range supports use in both cold and hot operating environments where standard plastic enclosures may be less suitable.

What kinds of applications is this enclosure commonly used for?

This enclosure is intended for protecting electrical or electronic equipment in industrial and commercial settings where dust, water exposure, and impact resistance matter. Its transparent cover is useful when internal components need to be visually checked without opening the enclosure.

Does this enclosure support mounting internal components securely?

Yes. It includes pre-molded mounting screw nuts for fixing DIN rail or other equipment, and it also has internal mounting plate attachment points with brass-inserted injection molding. These features help support heavier internal equipment more securely than basic empty enclosures.
