Boxco

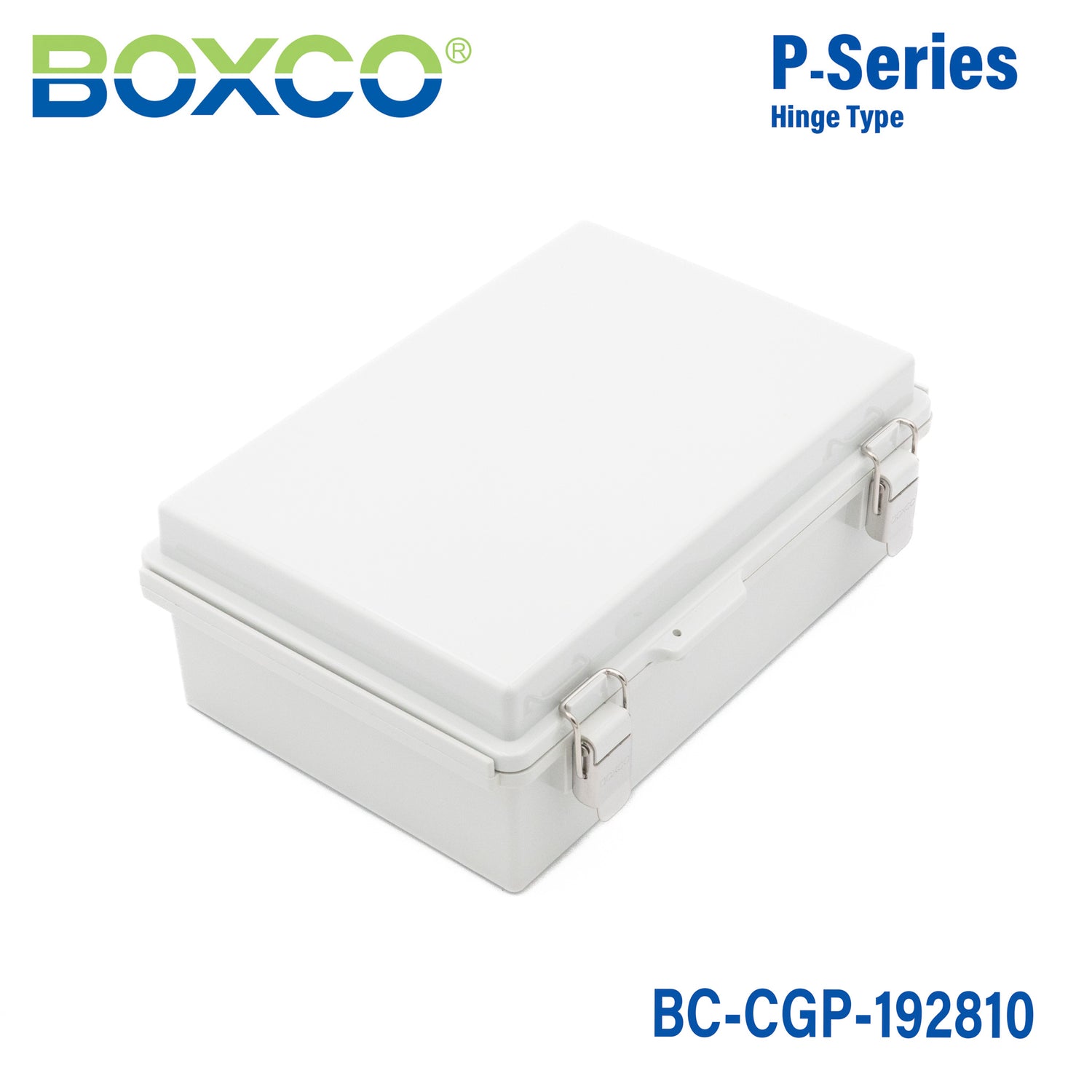

Boxco P-Series 190x280x100mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Molded Hinge and Latch Type

SKU BC-CGP-192810
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGP-192810 is a 190×280×100 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-CGP-192810Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
190×280×100 mm (7.48×11.02×3.94 in)
Mounting plate dimension M1 × M2
159 × 249 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
1928 PG (Plastic, PG type), 1928 P (Plastic, P type), 1928 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

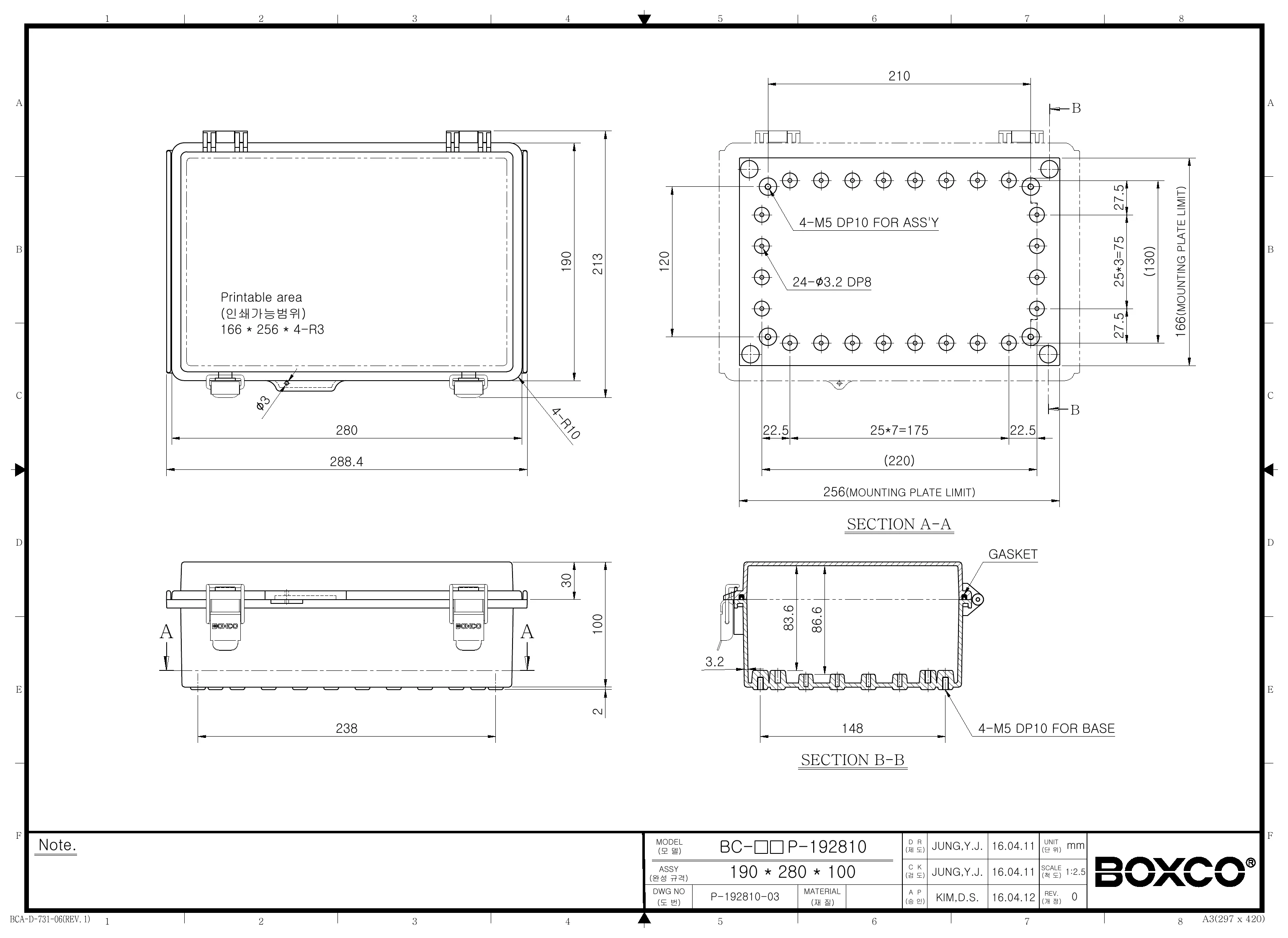

BC-CGP-192810 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco P-Series enclosure best suited for?

This enclosure is suited for protecting industrial controls, outdoor electronics, and other sensitive equipment that need a durable non-metallic housing. Its anti-static material, molded hinge and latch design, and support for internal equipment mounting make it a practical choice for commercial and industrial panel builds.

Is this enclosure suitable for outdoor or washdown environments?

Yes. This model is rated IP67 for protection against dust and water ingress, and the housing includes ultraviolet stabilizer for outdoor use. The roof-protection design and precision-injected gasket also help it maintain strong sealing performance in exposed environments.

What are the key size and material specifications for this model?

This Boxco P-Series enclosure measures 7.48 x 11.02 x 3.94 inches, which corresponds to 190 x 280 x 100 mm. It is made from polycarbonate (PC), has a grey cover, and weighs 0.844 kg.

How durable is this plastic enclosure against impact and harsh conditions?

This model carries an IK08 impact rating and is made from high impact resistant material designed to resist breakage during machining and processing. It is also rated for temperatures from -40 degrees C to 110 degrees C, which supports use in demanding industrial environments.

Does this enclosure support mounting internal components?

Yes. It includes pre-molded mounting screw nuts that can be used to secure DIN rail or other internal equipment, and it also has attachment points for an internal mounting plate. The mounting plate can be fixed to brass inserted injection-molded points to support heavier installed equipment.

What makes this hinged enclosure different from a basic plastic junction box?

This model adds several protective and durability features beyond a basic enclosure, including a molded integrated hinge with a stainless steel bearing, a stainless steel draw latch, UV stabilization, and anti-static material. It is designed for higher-performance industrial use where sealing, impact resistance, and long service life matter.
