Boxco P-Series 530x630x255mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Molded Hinge and Latch Type

SKU BC-CGP-506025
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-CGP-506025 is a 530×630×255 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-CGP-506025Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
530×630×255 mm (20.87×24.80×10.04 in)
Mounting plate dimension M1 × M2
460 × 560 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
5060 P (Plastic, P type), 5060 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

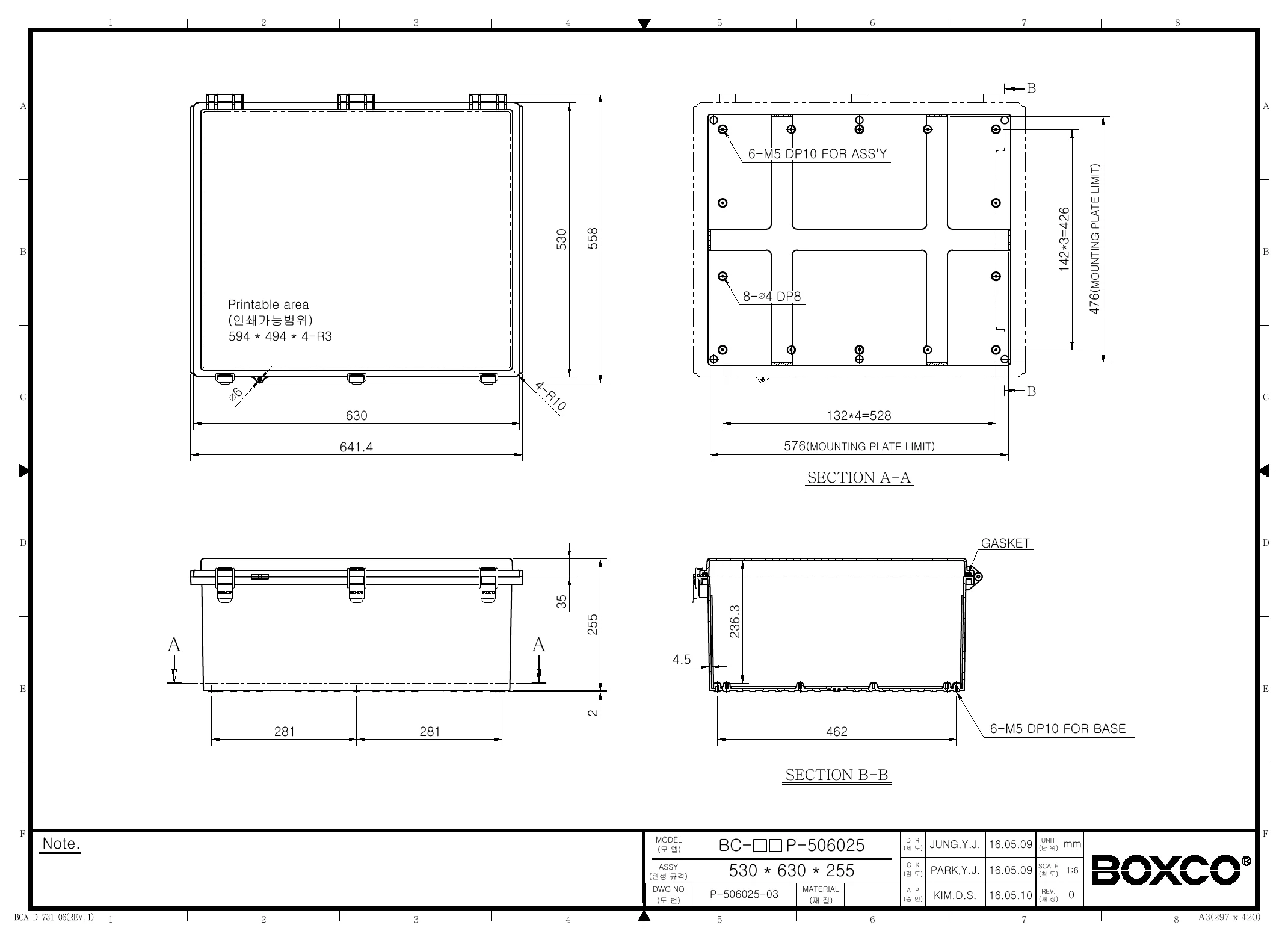

Technical drawings

BC-CGP-506025 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco P-Series BC-CGP-506025 best suited for?

This plastic enclosure is suited for protecting industrial and commercial equipment that needs a large sealed housing in indoor or outdoor environments. Its impact-resistant PC construction, molded hinge and latch design, and internal mounting features make it a practical choice for control, monitoring, and protection applications where durability and access are important.

Is this enclosure suitable for outdoor use?

Yes. The product description states that an ultraviolet stabilizer is added to help protect the enclosure during outdoor use and reduce visible color change over time. It also includes roof protection details intended to help reduce water penetration when used outdoors.

What does the IP67 rating mean for this model?

The BC-CGP-506025 is rated IP67, indicating strong protection against dust ingress and water exposure in demanding environments. For buyers comparing enclosure options, this makes it a higher-sealing choice than general-purpose indoor boxes that do not carry this level of ingress protection.

What material is this enclosure made from, and why does that matter?

This model is made from polycarbonate (PC), a high-impact resistant plastic. According to the product information, the material is designed to resist external impact, help prevent breakage during hole and press processing, and includes anti-static properties for protecting sensitive electronic instruments.

What size is the Boxco P-Series BC-CGP-506025?

This enclosure measures 20.87 x 24.80 x 10.04 inches, which is also listed as 530 x 630 x 255 mm. That larger form factor makes it suitable when your application needs substantial internal space for mounted equipment and accessories.

What temperature range can this enclosure handle?

The listed operating temperature range is -40 °C to 110 °C. That wide range makes this model appropriate for environments that experience both low and high temperatures, provided the rest of the installed equipment is also rated for those conditions.

Does this enclosure support internal mounting hardware or accessory plates?

Yes. The product description states that it includes pre-molded mounting screw nuts for securing DIN rail or other equipment, and it also has mounting plate attachment points for fixing an internal mounting plate tightly in place. These features are useful when a large enclosure must securely support heavier internal components.
