Boxco

Boxco P-Series 160x210x130mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Molded Hinge and Latch Type

SKU BC-ATP-162113
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-ATP-162113 is a 160×210×130 mm ABS enclosure with a transparent cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-ATP-162113Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
160×210×130 mm (6.30×8.27×5.12 in)
Mounting plate dimension M1 × M2
129 × 179 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
1520 G (Plastic, G type), 1520 P (Plastic, P type), 1520 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

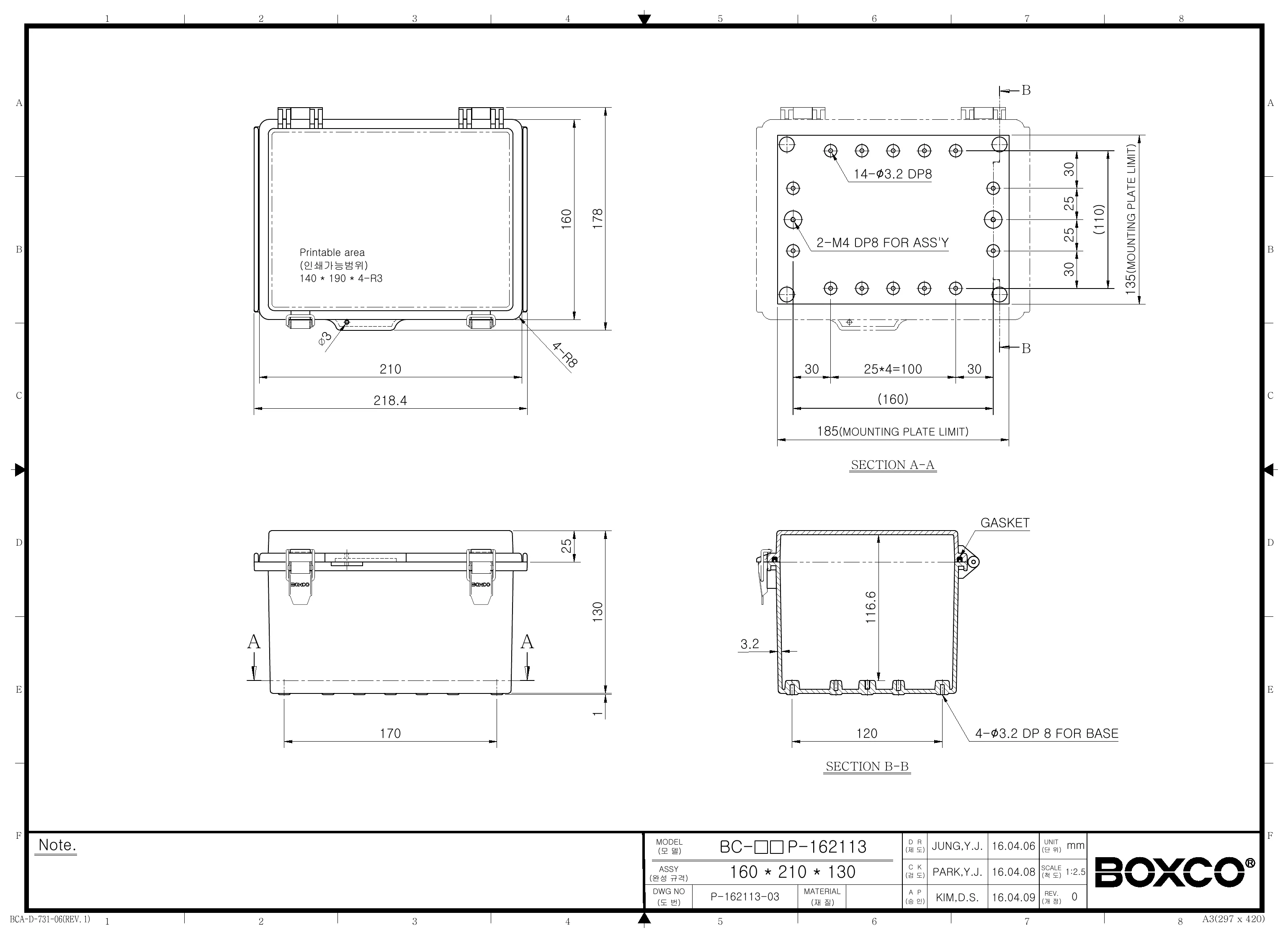

Technical drawings

BC-ATP-162113 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco P-Series 160 x 210 x 130 mm plastic enclosure best suited for?

This enclosure is designed for protecting electronic components and control equipment in industrial and commercial environments where dust and water resistance matter. Its transparent cover makes it useful when internal indicators or labels need to remain visible without opening the box.

Is this enclosure suitable for outdoor environments?

Yes, this model is intended for outdoor use and includes ultraviolet stabilizer material to help reduce color change over long periods of exposure. The product description also notes roof protection features that help limit water penetration during outdoor use.

How durable is this Boxco enclosure against water, dust, and impact?

This model is rated IP67 for protection against dust and water ingress and IK08 for impact resistance. It is made from high-impact ABS and includes a precision-injected gasket to support strong waterproof and dust-proof performance.

What makes this model different from a standard solid-cover enclosure?

This version includes a transparent cover, which allows visual inspection of internal components or status indicators without opening the enclosure. It also uses a molded hinge and latch-type design for repeated access while keeping the enclosure closed securely.

What temperature range can this enclosure handle?

The specified operating temperature range for this model is -40°C to 70°C. That range makes it suitable for a wide variety of indoor and outdoor industrial environments within those limits.

Does this enclosure support internal equipment mounting?

Yes, the enclosure includes pre-molded mounting screw nuts to help secure DIN rail or other internal equipment. It also has internal mounting plate attachment points with brass-inserted injection molding to better support heavier installed equipment.
