Boxco

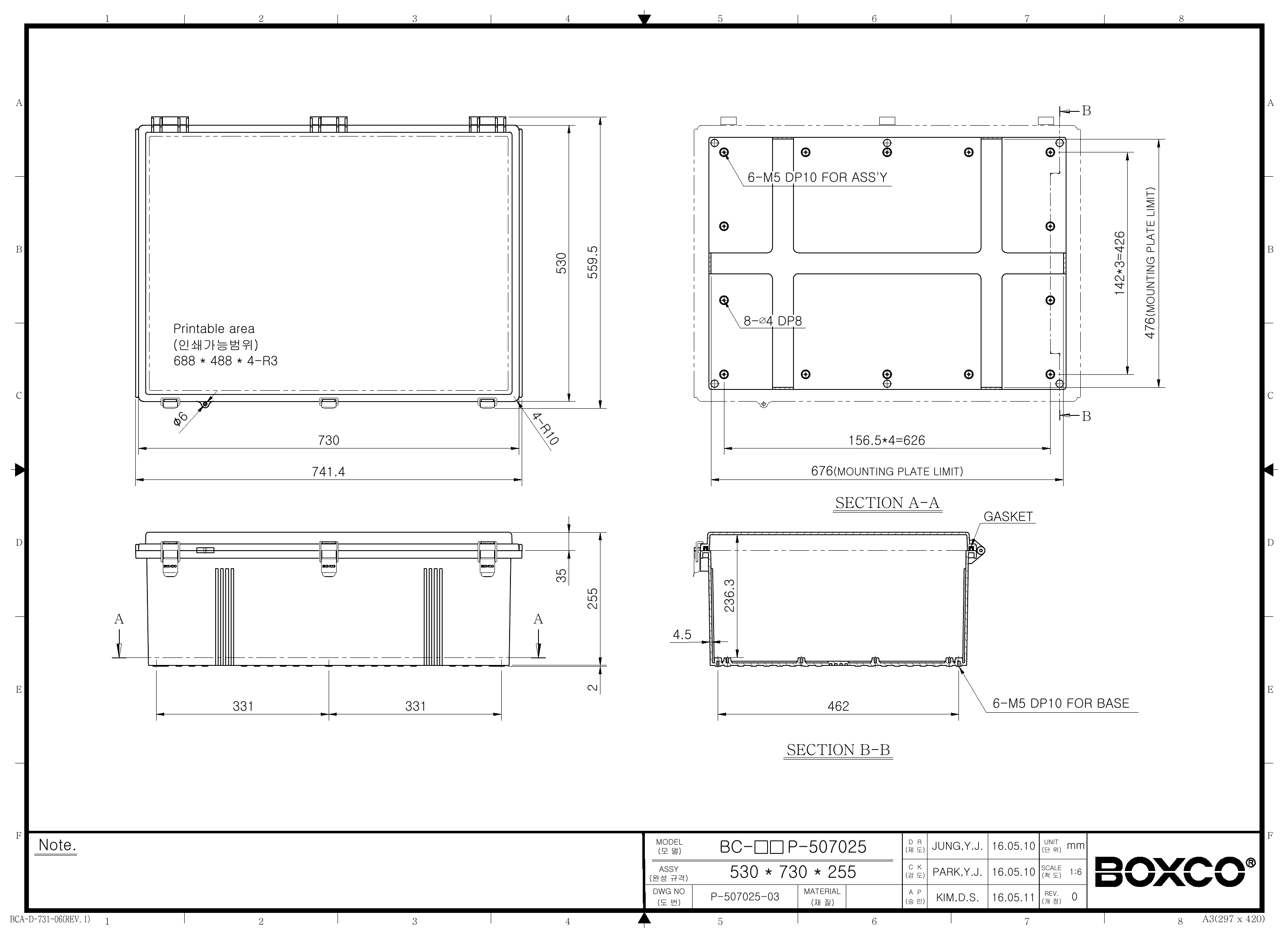

Boxco P-Series 530x730x255mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Molded Hinge and Latch Type

SKU:
BC-ATP-507025
Please for Pricing
|

Description

For Boxco P-Series,Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.

Features

  • Latch - Main part of the draw latch is made of stainless steel so it is very strong.
  • Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
  • Roof Protection – Both ends of the P series are protruded to protect against penetration of water when using it outdoor and penetration of dust when opening/closing the cover
  • Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
  • Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
  • Integrated Hinge – Hinge is made of plastic and is integrated with the enclosure. Bearing is made of stainless steel to increase the life span.

Specifications
  • Brand
    Boxco
  • Series
    Boxco P Series
  • Standards Met
    CE,TUV,UL
  • Operating Temperature
    -40°C~70°C
  • Warranty
    1 Year
  • Length
    53 cm
  • Width
    73 cm
  • Height
    25.5 cm
  • Weight
    21.6 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What applications is the Boxco P-Series BC-ATP-507025 best suited for?

This enclosure is suited for protecting industrial controls, instrumentation, and other sensitive electronic equipment in demanding indoor or outdoor environments. Its large format, transparent cover, and high-impact ABS construction make it a practical choice where visibility and physical protection are both important.

Is this plastic enclosure suitable for outdoor use?

Yes. The product description states that an ultraviolet stabilizer is added for outdoor usage, and the design includes roof protection features to help reduce water and dust penetration during cover opening and closing. It is also rated IP67 for dust-tight sealing and protection against temporary water immersion.

What are the key size and material specifications of this model?

The BC-ATP-507025 measures 20.87 x 28.74 x 10.04 inches, which corresponds to 530 x 730 x 255 mm. It is made from ABS plastic, has a transparent cover, and weighs 21.6 kg.

How does the transparent cover benefit this enclosure?

The transparent cover allows visual inspection of indicators, displays, or internal equipment without opening the enclosure. That can be useful in industrial settings where reducing unnecessary exposure to dust or moisture matters.

What environmental conditions can this enclosure handle?

This model is specified for operation from -40 degrees C to 70 degrees C. It also carries an IK08 impact rating and an IP67 ingress protection rating, supporting use in tough environments where impact resistance and sealing are important.

What design features help support heavier internal equipment?

The enclosure includes mounting plate attachment points with brass inserted injection molding to help secure an internal mounting plate. It also has pre-molded mounting screw nuts for fixing DIN rail or other equipment inside the enclosure.
