Boxco

Boxco P-Series 530x730x185mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Molded Hinge and Latch Type

SKU BC-AGP-507018
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-AGP-507018 is a 530×730×185 mm ABS enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-AGP-507018Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
530×730×185 mm (20.87×28.74×7.28 in)
Mounting plate dimension M1 × M2
460 × 660 mm

Material

Material
ABS
Cover
Grey
Mounting plates
5070 P (Plastic, P type), 5070 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

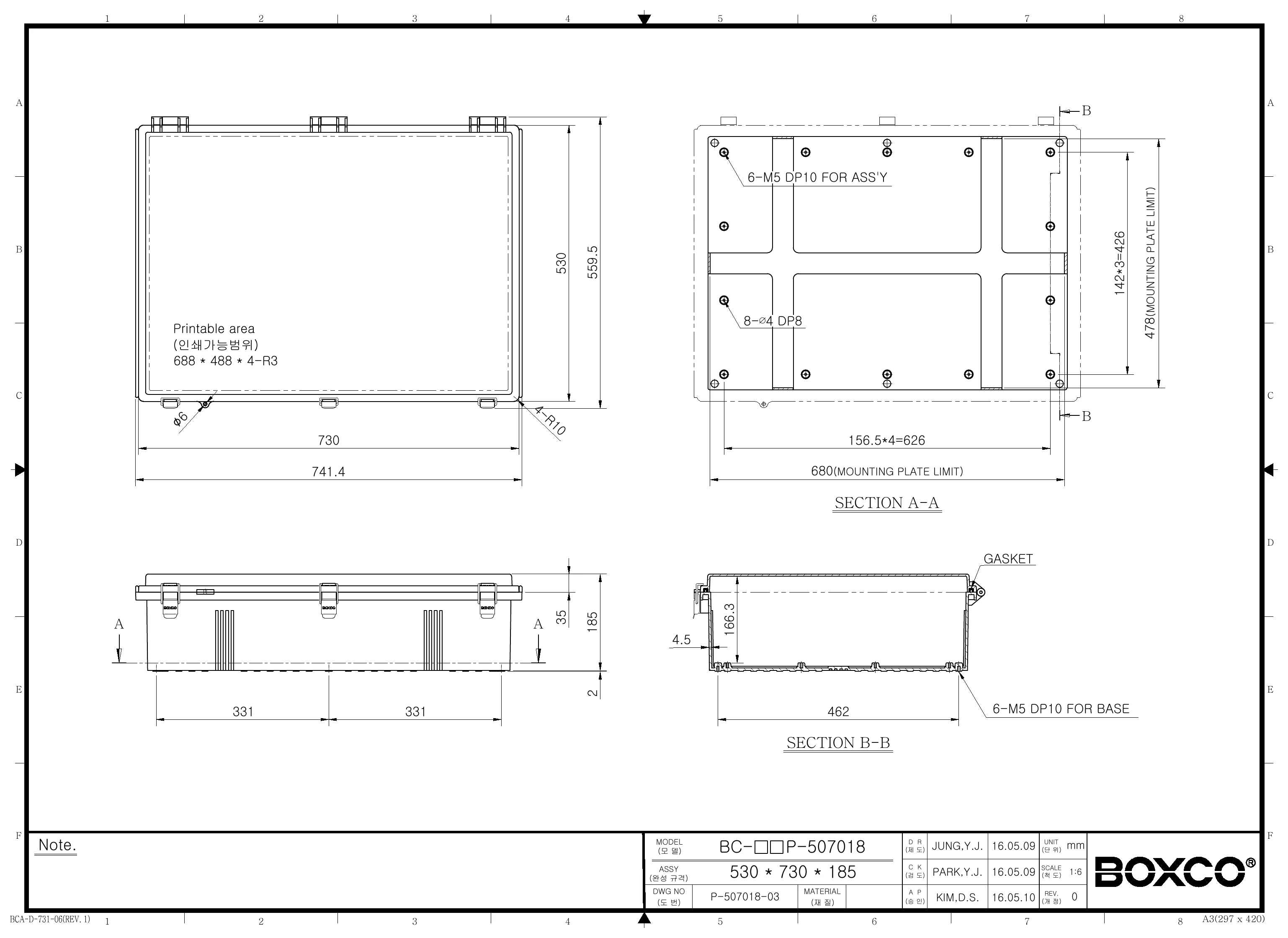

Technical drawings

BC-AGP-507018 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco P-Series BC-AGP-507018 enclosure best suited for?

This enclosure is suited for protecting industrial and commercial equipment that needs a large, durable housing in indoor or outdoor environments. Its large 530 x 730 x 185 mm size, IP67 sealing, and impact-resistant ABS construction make it a practical choice for control, monitoring, or protection applications where enclosure strength and weather resistance matter.

What are the key specifications of the BC-AGP-507018 enclosure?

This model measures 20.87 x 28.74 x 7.28 inches, or 530 x 730 x 185 mm, and weighs 18.783 kg. It is made from ABS, uses a grey cover, includes a molded hinge and latch design, and is rated IP67 and IK08.

Is this plastic enclosure suitable for outdoor use?

Yes. Boxco states that the P-Series includes an ultraviolet stabilizer to help protect the enclosure during outdoor use and reduce visible color change over time. The design also includes roof protection features intended to help limit water penetration and dust entry during cover operation.

How well does the BC-AGP-507018 protect against water, dust, and impact?

This enclosure carries an IP67 rating, indicating strong protection against dust ingress and temporary immersion conditions. It also has an IK08 impact rating, and the ABS body is described as high impact resistant for better durability against external impact.

What temperature range can this enclosure handle?

The specified operating temperature range is from -40 °C to 70 °C. That range makes it suitable for demanding environments where equipment may be exposed to both low and elevated temperatures.

What makes this model different from a basic plastic enclosure?

This model combines a molded hinge and latch-style closure with outdoor-focused and durability-focused features. Boxco also highlights stainless steel latch components, integrated hinge construction with a stainless steel bearing, injected gasket sealing, and pre-molded mounting screw nuts as differentiators from more basic enclosure designs.

Does the BC-AGP-507018 support internal mounting hardware or plates?

Yes. The product description states that it includes pre-molded mounting screw nuts for securing DIN rail or other equipment, and it also has internal mounting plate attachment points. Boxco notes that the mounting plate can be fixed to brass inserted injection molding to support heavier installed equipment.
