Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

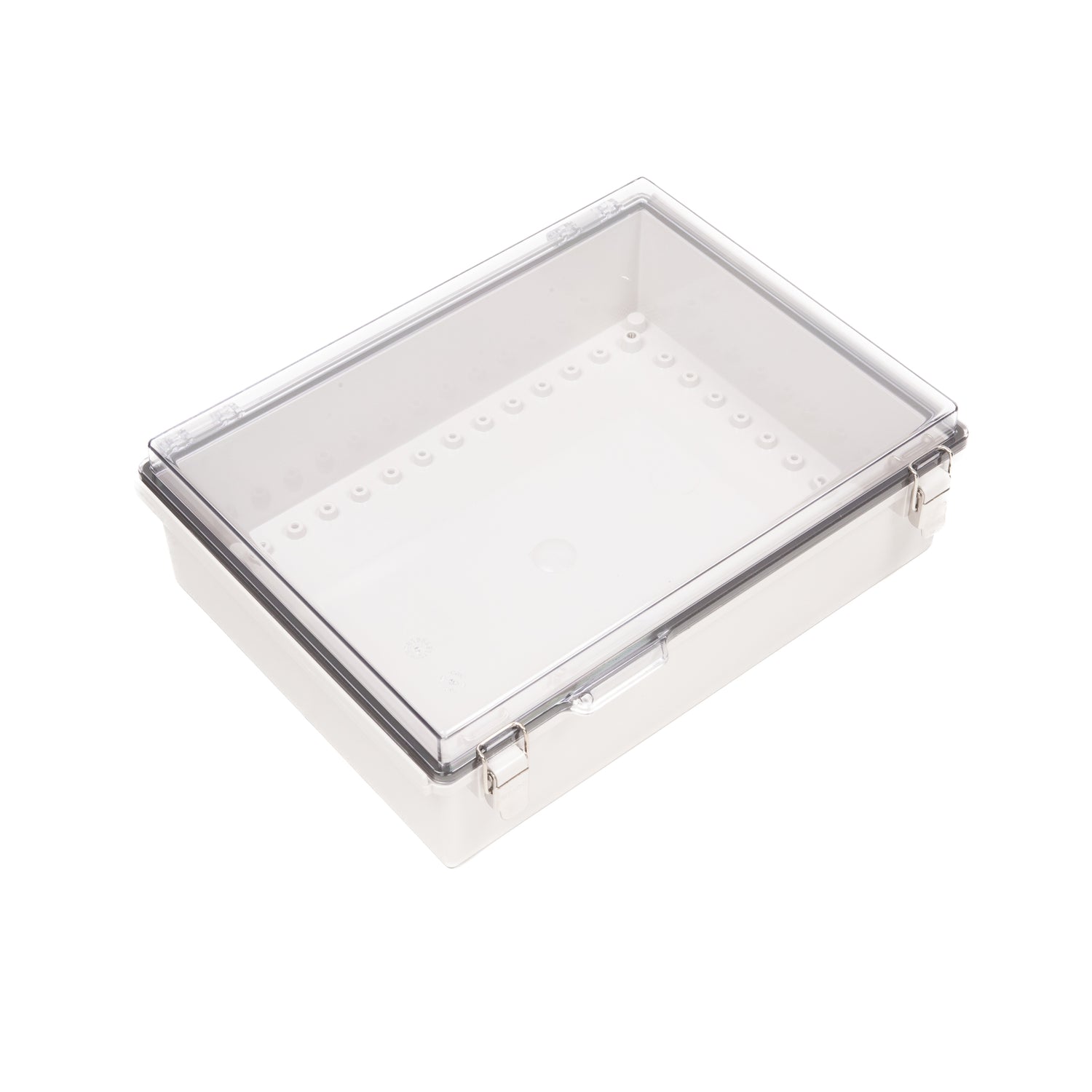

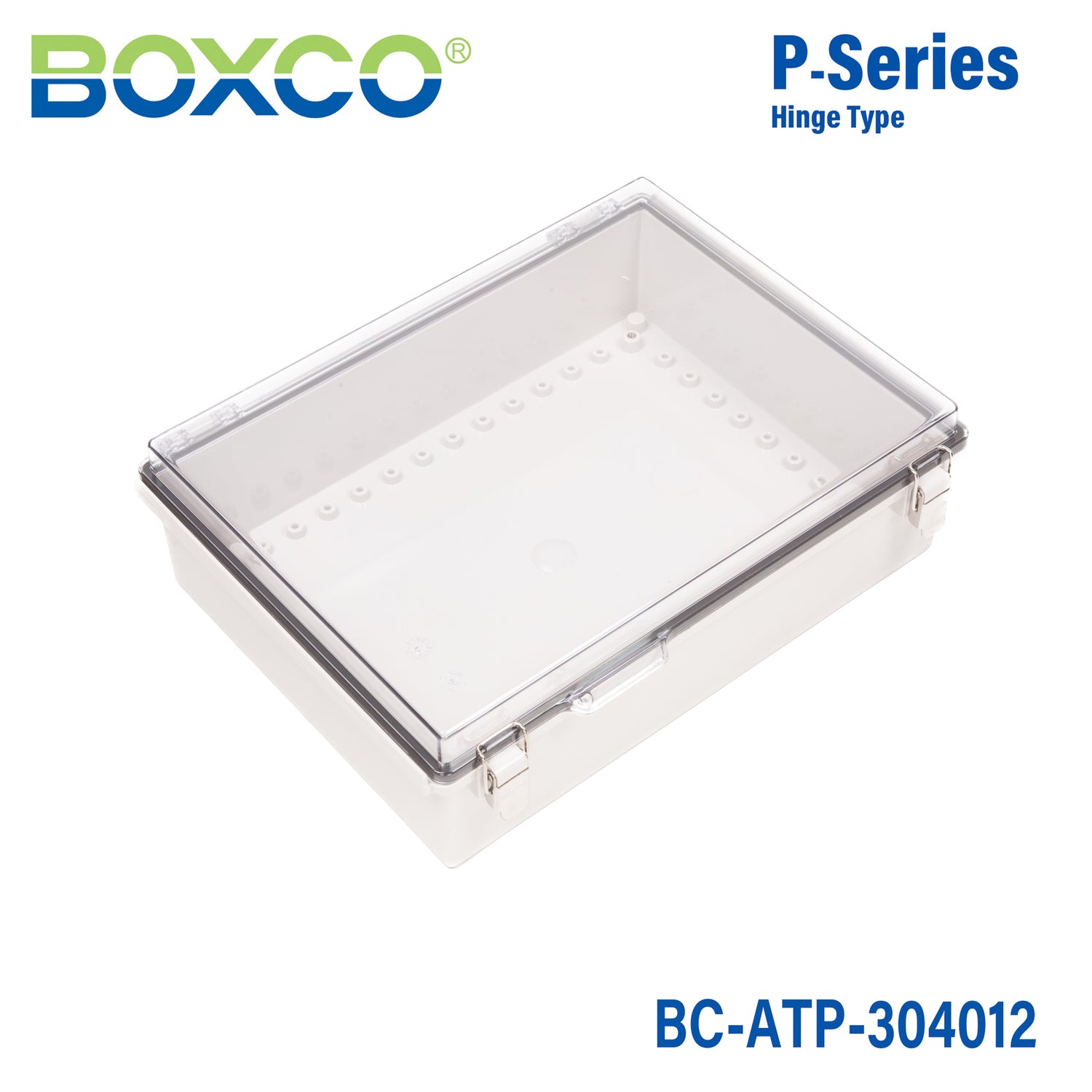

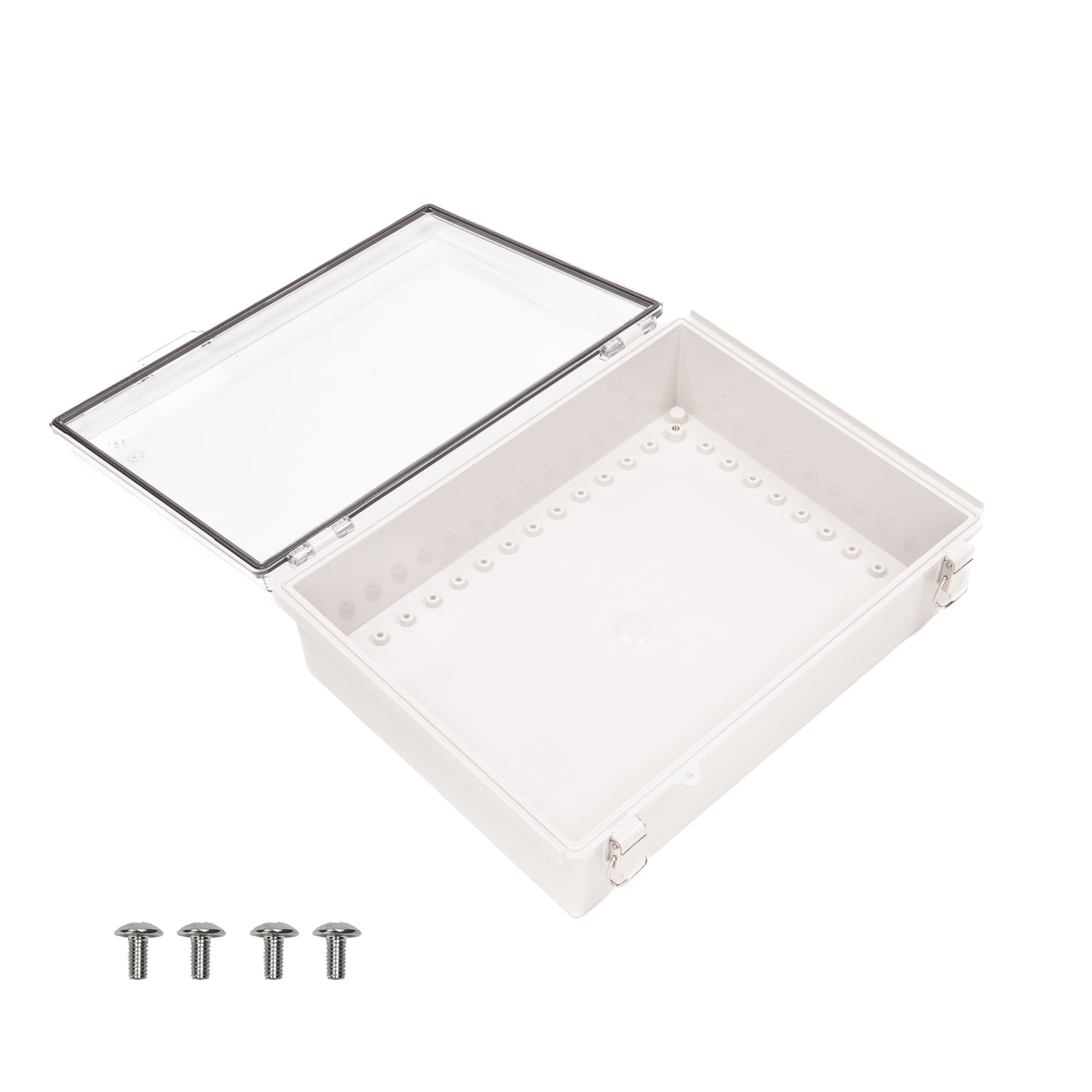

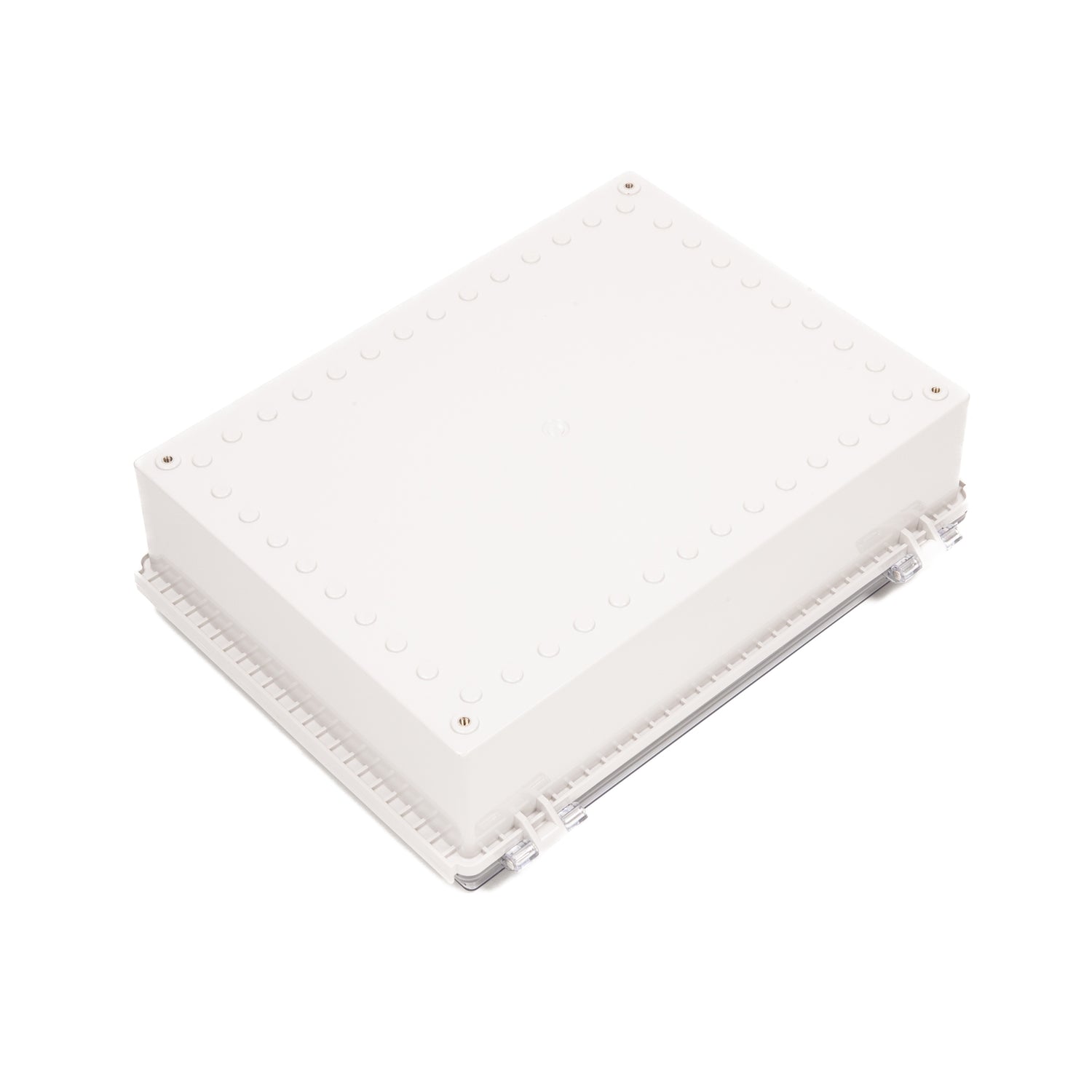

Boxco P-Series 300x400x120mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Molded Hinge and Latch Type

SKU:
BC-ATP-304012
Please for Pricing
|

Description

For Boxco P-Series,Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.

Features

  • Latch - Main part of the draw latch is made of stainless steel so it is very strong.
  • Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
  • Roof Protection – Both ends of the P series are protruded to protect against penetration of water when using it outdoor and penetration of dust when opening/closing the cover
  • Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
  • Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
  • Integrated Hinge – Hinge is made of plastic and is integrated with the enclosure. Bearing is made of stainless steel to increase the life span.

Specifications
  • Brand
    Boxco
  • Series
    Boxco P Series
  • Standards Met
    CE,TUV,UL
  • Operating Temperature
    -40°C~70°C
  • Warranty
    1 Year
  • Length
    30 cm
  • Width
    40 cm
  • Height
    12 cm
  • Weight
    1.71 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What is this Boxco P-Series enclosure designed for?

This model is a hinged plastic enclosure used to protect electrical or electronic components in industrial and commercial environments. Its transparent cover allows visual inspection without opening the enclosure, which is useful when equipment status needs to be checked while maintaining protection.

What are the dimensions of this enclosure?

This Boxco P-Series enclosure measures 11.81 x 15.75 x 4.72 inches, which corresponds to 300 x 400 x 120 mm. That size provides a relatively large internal housing for control, monitoring, or protection applications that need more room than compact junction boxes.

Is this enclosure suitable for outdoor or washdown environments?

Yes, this model is rated IP67, which means it is built to resist dust ingress and temporary water exposure when properly closed. The product description also notes an ultraviolet stabilizer and roof protection features intended to improve outdoor durability.

How durable is the enclosure against impact?

This enclosure carries an IK08 impact rating and is made from high impact resistant ABS. That combination makes it a strong choice for applications where the housing may be exposed to routine mechanical contact or demanding industrial conditions.

What makes this model different from a standard opaque enclosure?

This version includes a transparent cover along with a molded hinge and latch-type closure, which distinguishes it from simpler opaque screw-cover boxes. It is designed for users who want enclosed protection while still being able to visually inspect the contents from the outside.

What temperature range can this enclosure handle?

This model is specified for use from -40 °C to 70 °C. That range supports use in both cold and warm operating environments, provided the rest of the installed equipment is also rated for those conditions.

Does this enclosure support internal mounting hardware or equipment plates?

Yes, the product description states that it includes pre-molded mounting screw nuts and internal mounting plate attachment points. Those features are intended to help secure internal components or mounting plates inside the enclosure body.
