Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

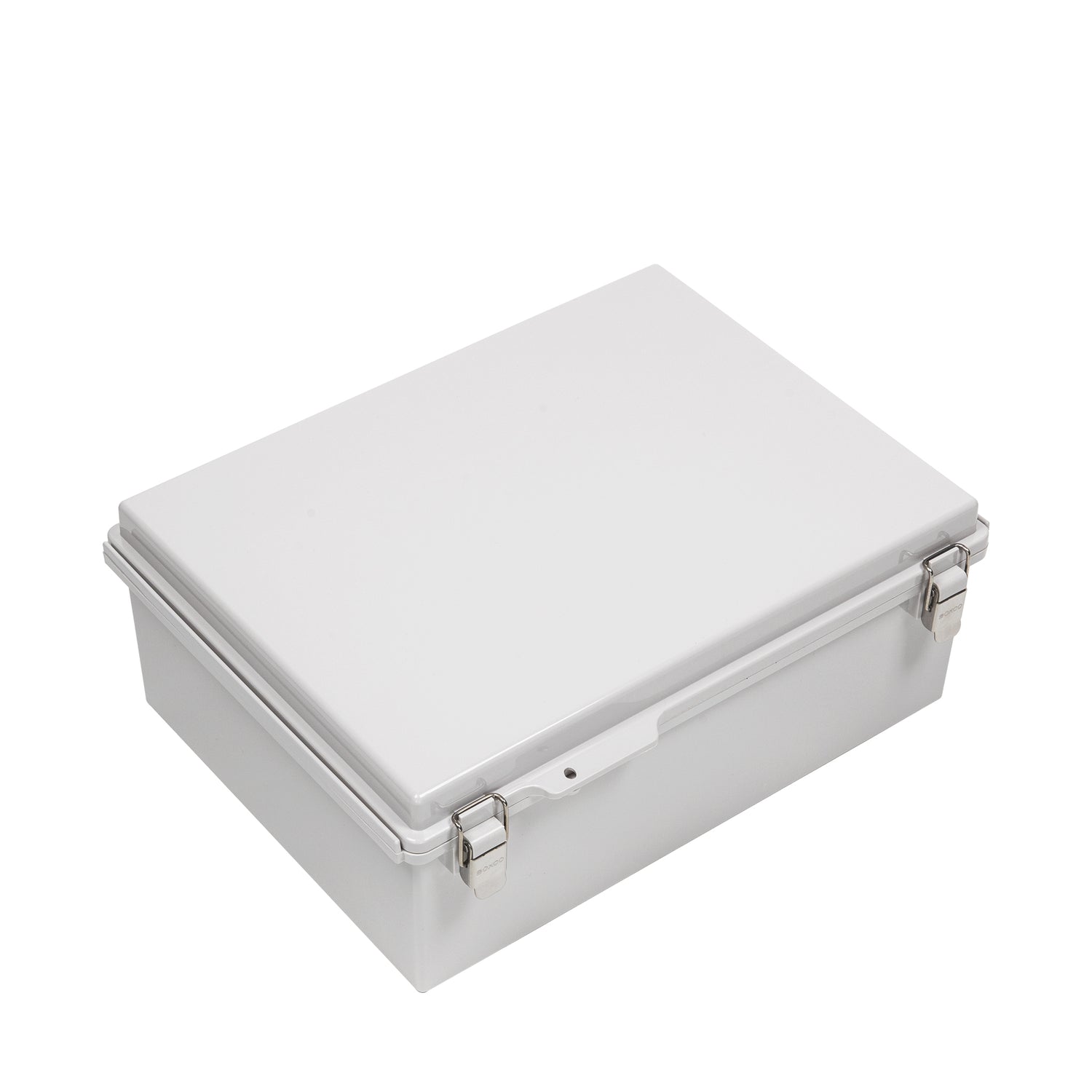

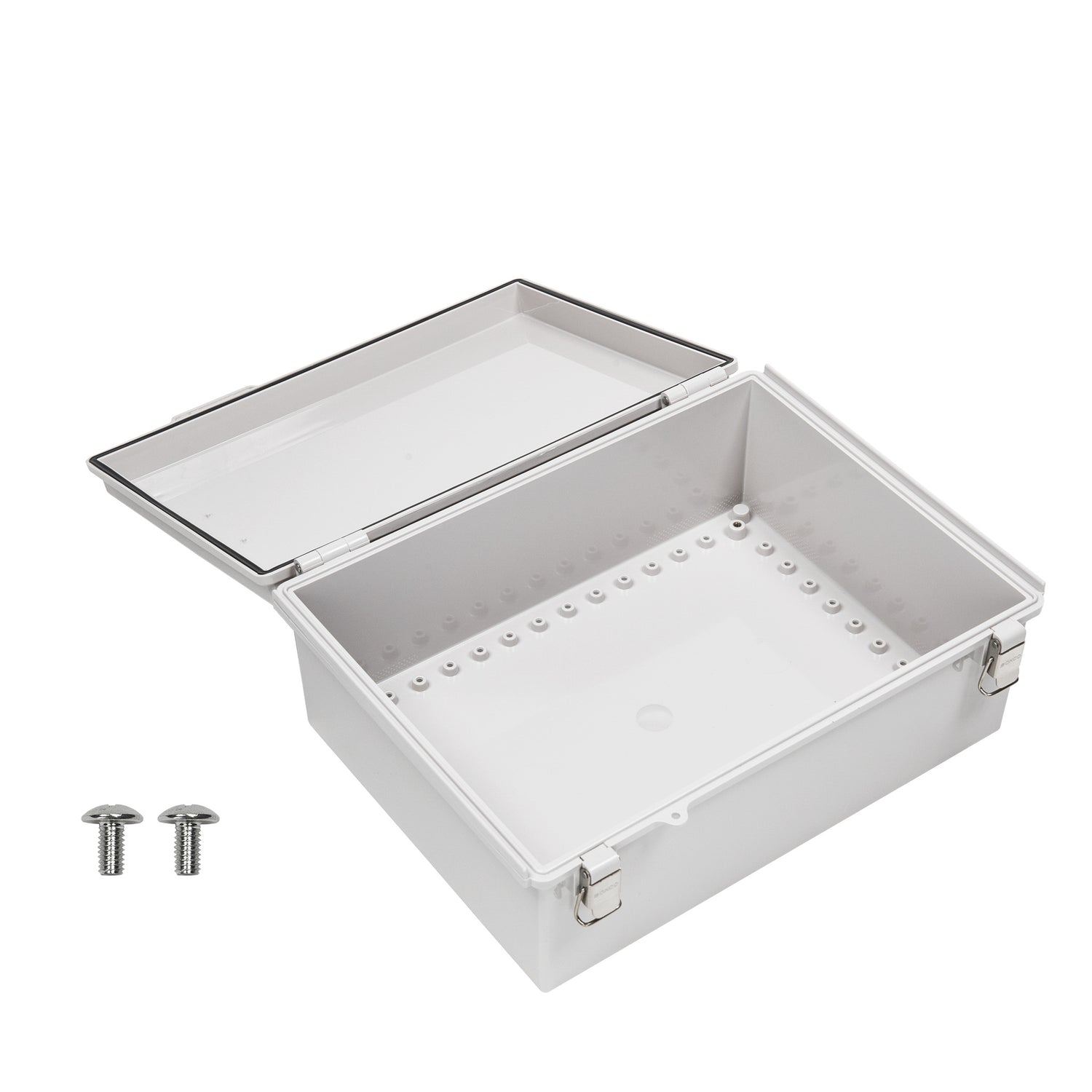

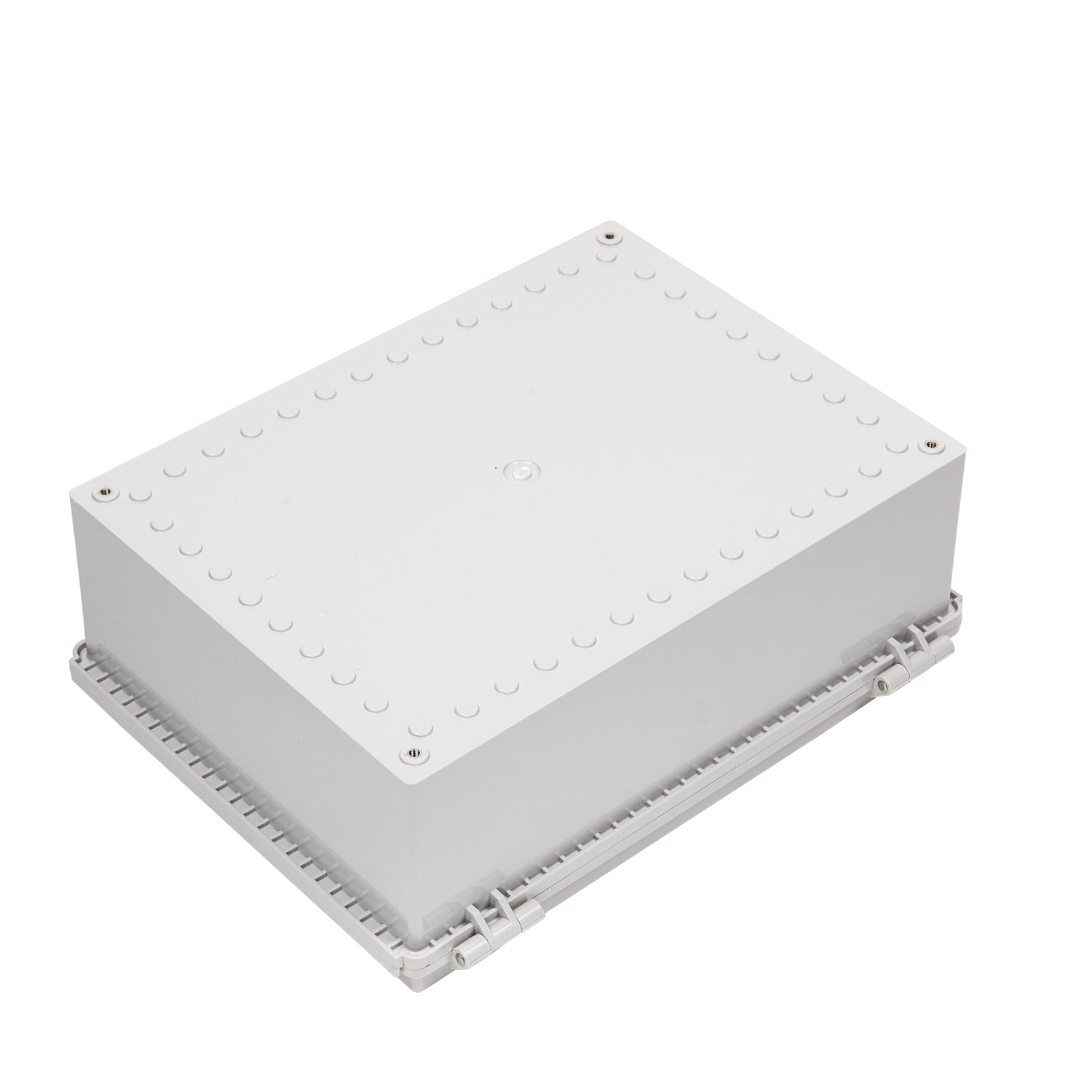

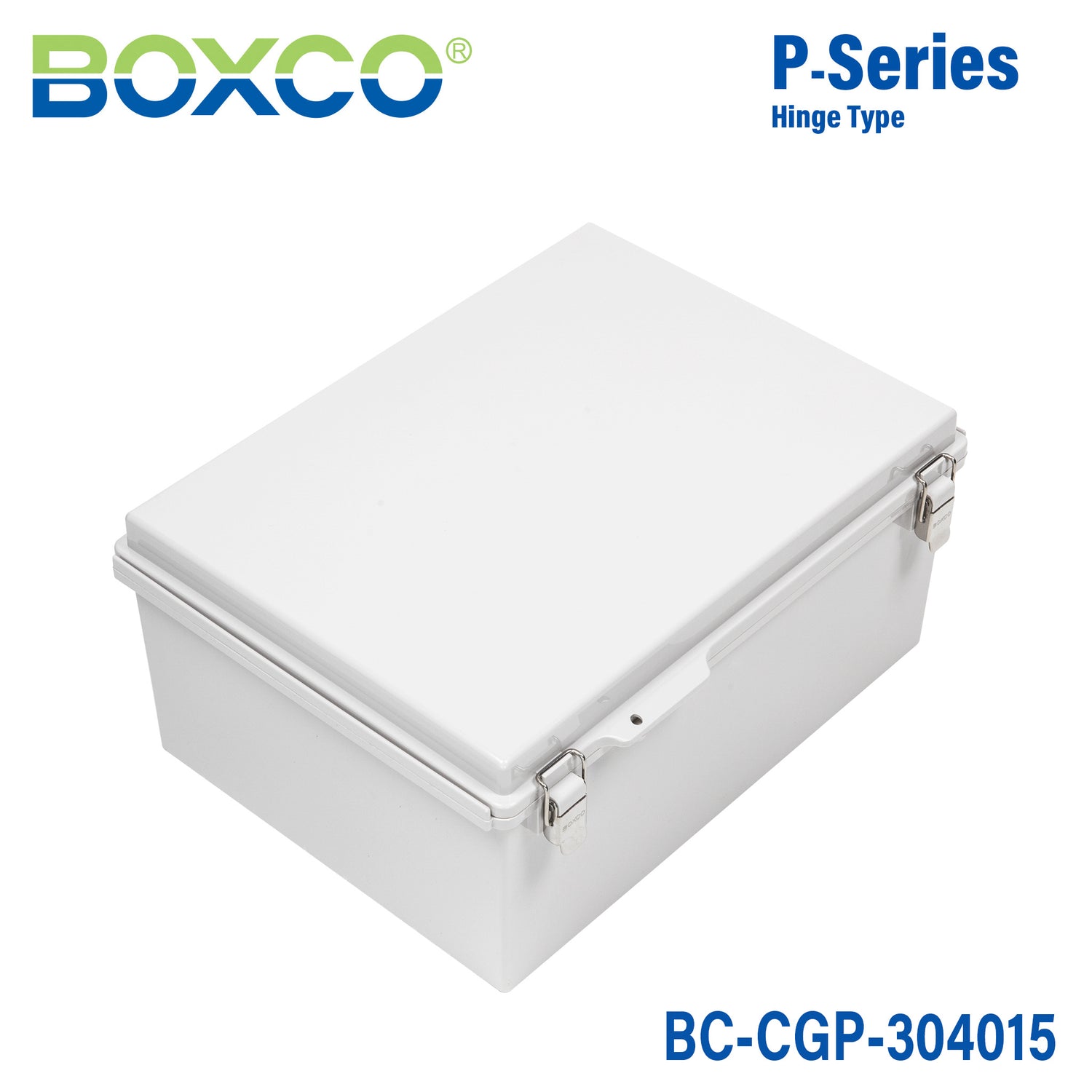

Boxco P-Series 300x400x150mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Molded Hinge and Latch Type

SKU BC-CGP-304015
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-CGP-304015 is a 300×400×150 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-CGP-304015Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
300×400×150 mm (11.81×15.75×5.91 in)
Mounting plate dimension M1 × M2
264 × 364 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
3040 P (Plastic, P type), 3040 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

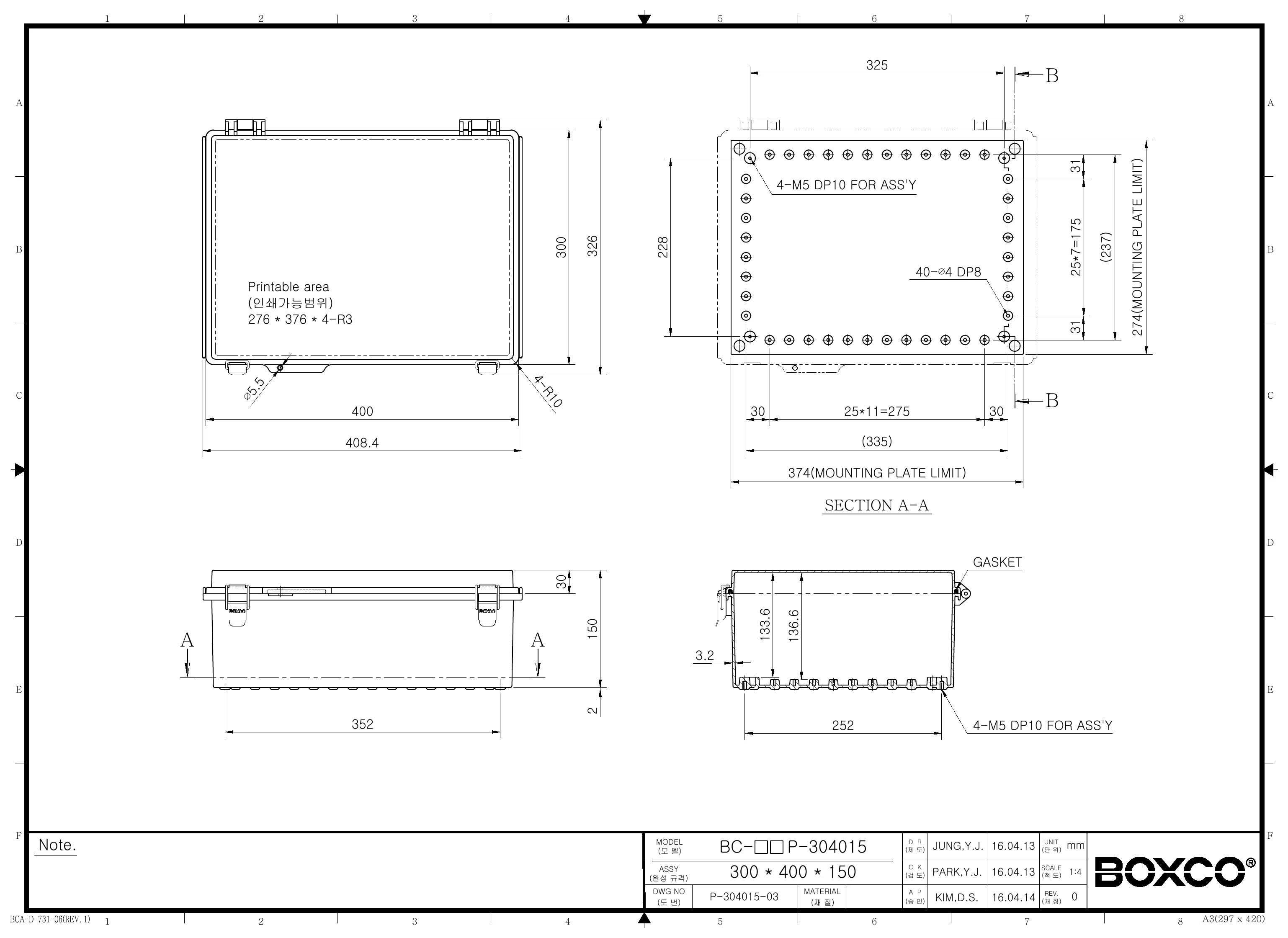

Technical drawings

BC-CGP-304015 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the main specifications of the Boxco P-Series BC-CGP-304015 enclosure?

This model measures 11.81 x 15.75 x 5.91 inches, which corresponds to 300 x 400 x 150 mm. It is a polycarbonate plastic enclosure with a grey cover, molded hinge and latch design, IP67 protection, and IK08 impact rating. The listed weight is 1.836 kg.

Is the BC-CGP-304015 suitable for outdoor environments?

Yes, this enclosure is designed for demanding indoor and outdoor use. The product description states that an ultraviolet stabilizer is added to help protect the enclosure outdoors, and the roof-protection design helps reduce water and dust intrusion during cover operation. Its IP67 rating also supports use in harsh environments where dust and water resistance matter.

What temperature range can this Boxco enclosure handle?

The specified operating temperature range is -40 °C to 110 °C. That makes this model appropriate for applications exposed to both very low and high ambient temperatures. Buyers should still confirm the full assembly's temperature limits based on the components placed inside the enclosure.

What kinds of applications is this enclosure commonly used for?

This model is suited for protecting electrical and industrial control equipment that needs a durable non-metallic enclosure. The description also notes anti-static material for sensitive electronic instruments and high-impact-resistant construction for demanding environments. Its size and internal mounting provisions make it a practical choice for larger enclosed assemblies.

How does the molded hinge and latch design benefit this enclosure?

The enclosure uses an integrated plastic hinge with a stainless steel bearing to improve service life. Its draw latch includes a stainless steel main part for added strength. Together, these features support repeated access while maintaining the enclosure's protective design.

Does this enclosure support mounting internal components?

Yes, the product description states that it includes pre-molded mounting screw nuts for fixing DIN rail or other equipment. It also has internal mounting plate attachment points with brass-inserted injection molding to secure heavier equipment inside the enclosure. These features make it easier to configure the interior for industrial or control applications.

What protection level does the BC-CGP-304015 provide against dust, water, and impact?

This model is rated IP67 and IK08. IP67 indicates strong resistance to dust ingress and water exposure, while IK08 identifies a defined level of impact resistance. The injected gasket and high-impact-resistant material further support the enclosure's protective performance.
