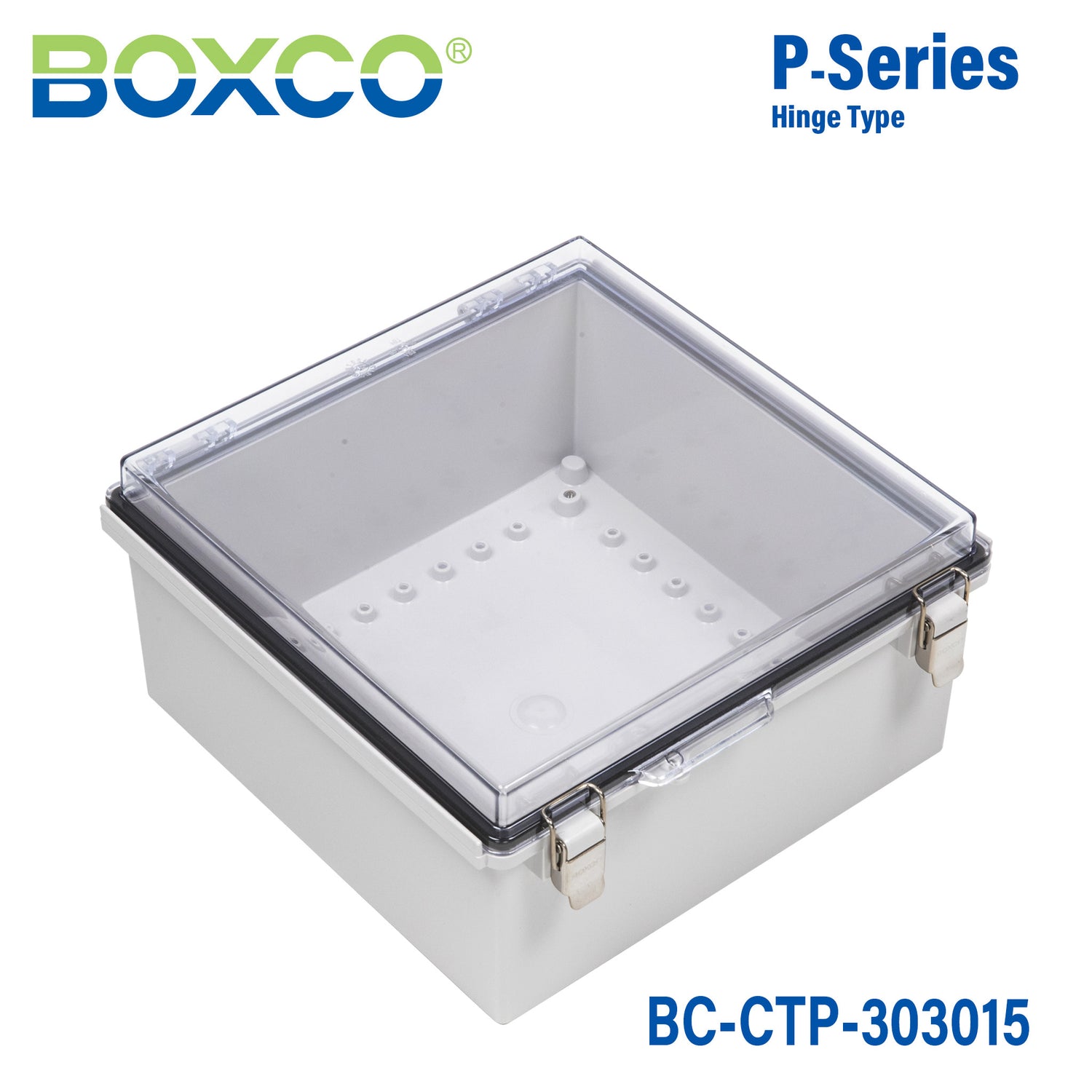

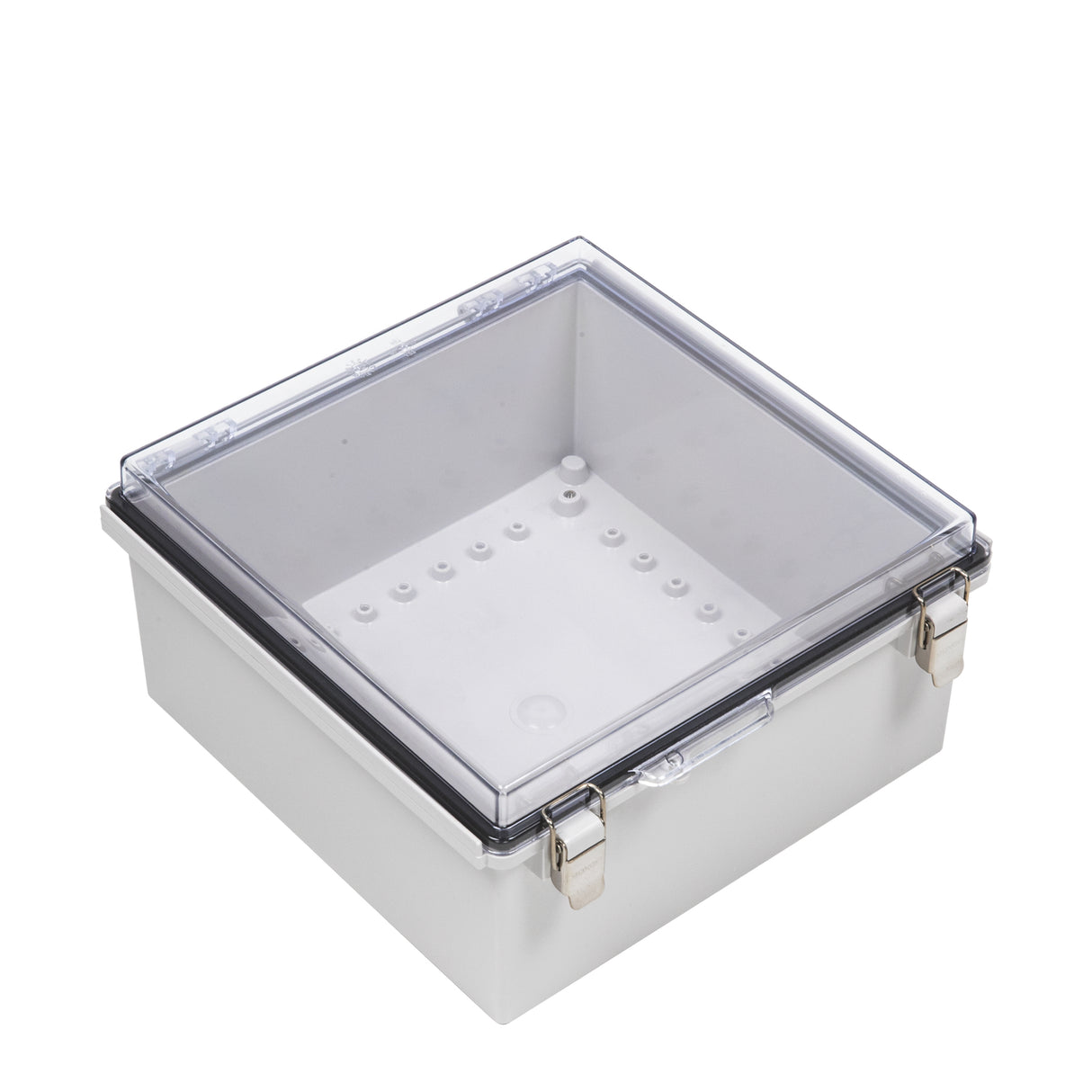

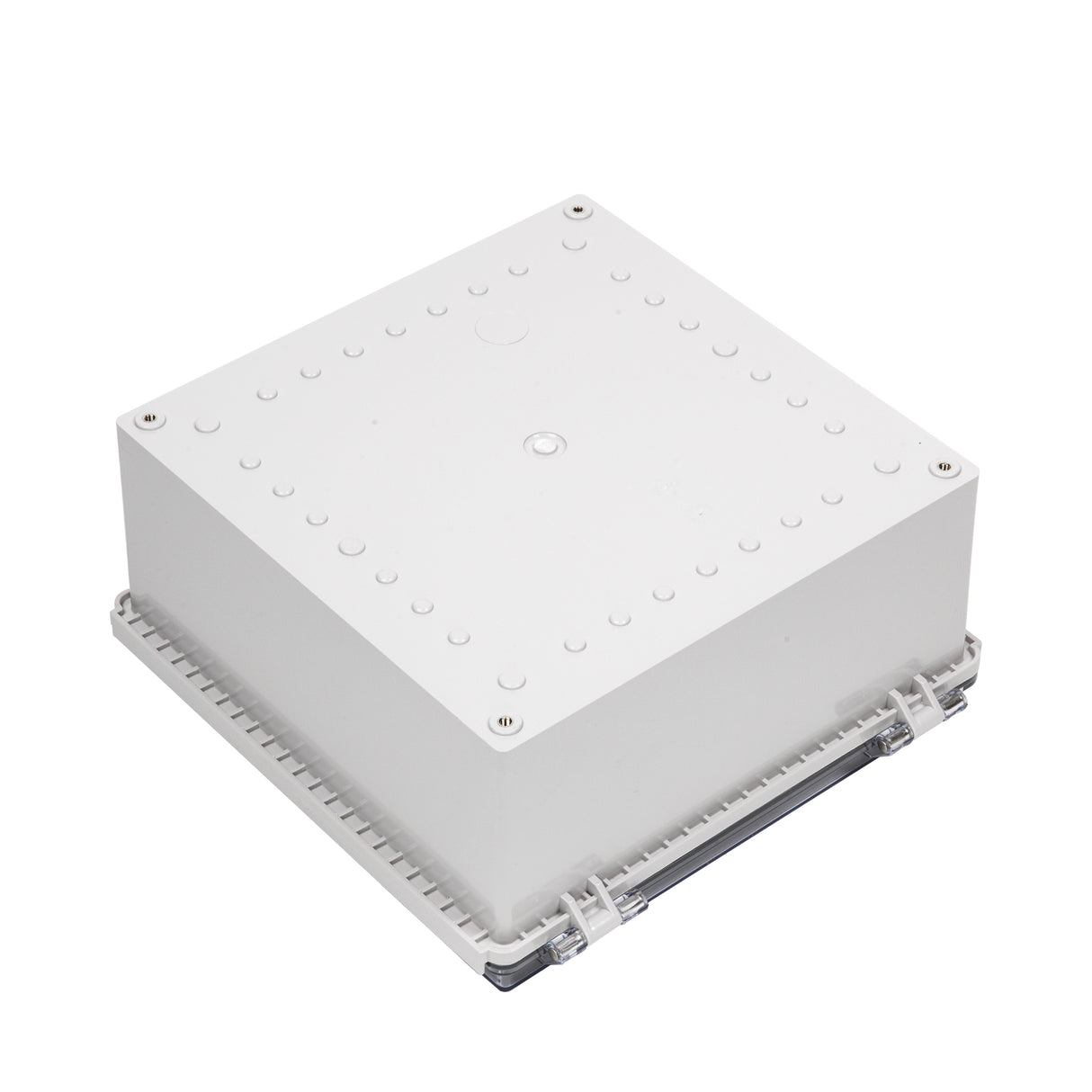

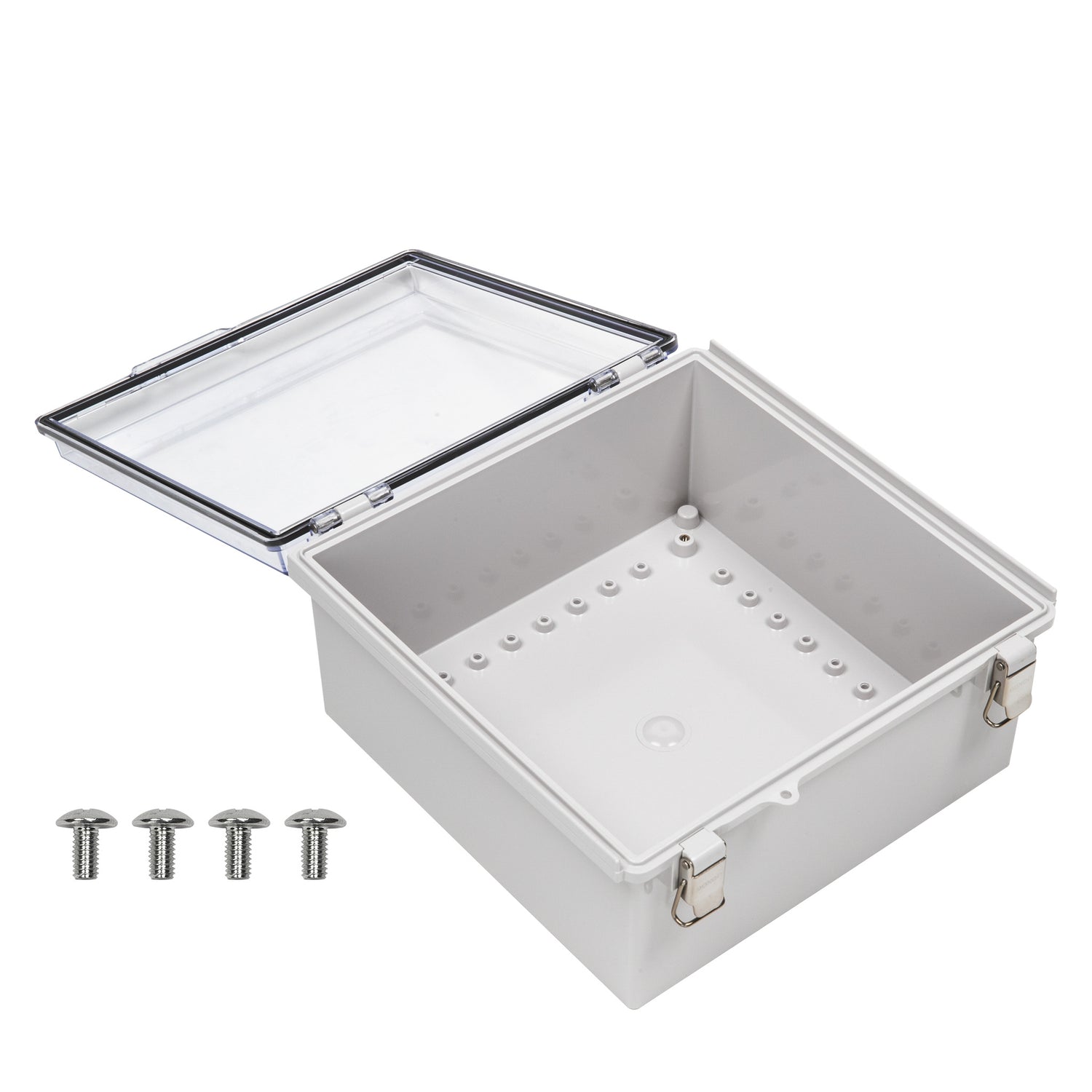

Boxco P-Series 300x300x150mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Molded Hinge and Latch Type

SKU BC-CTP-303015
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-CTP-303015 is a 300×300×150 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-CTP-303015Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
300×300×150 mm (11.81×11.81×5.91 in)
Mounting plate dimension M1 × M2
262 × 262 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
3030 P (Plastic, P type), 3030 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

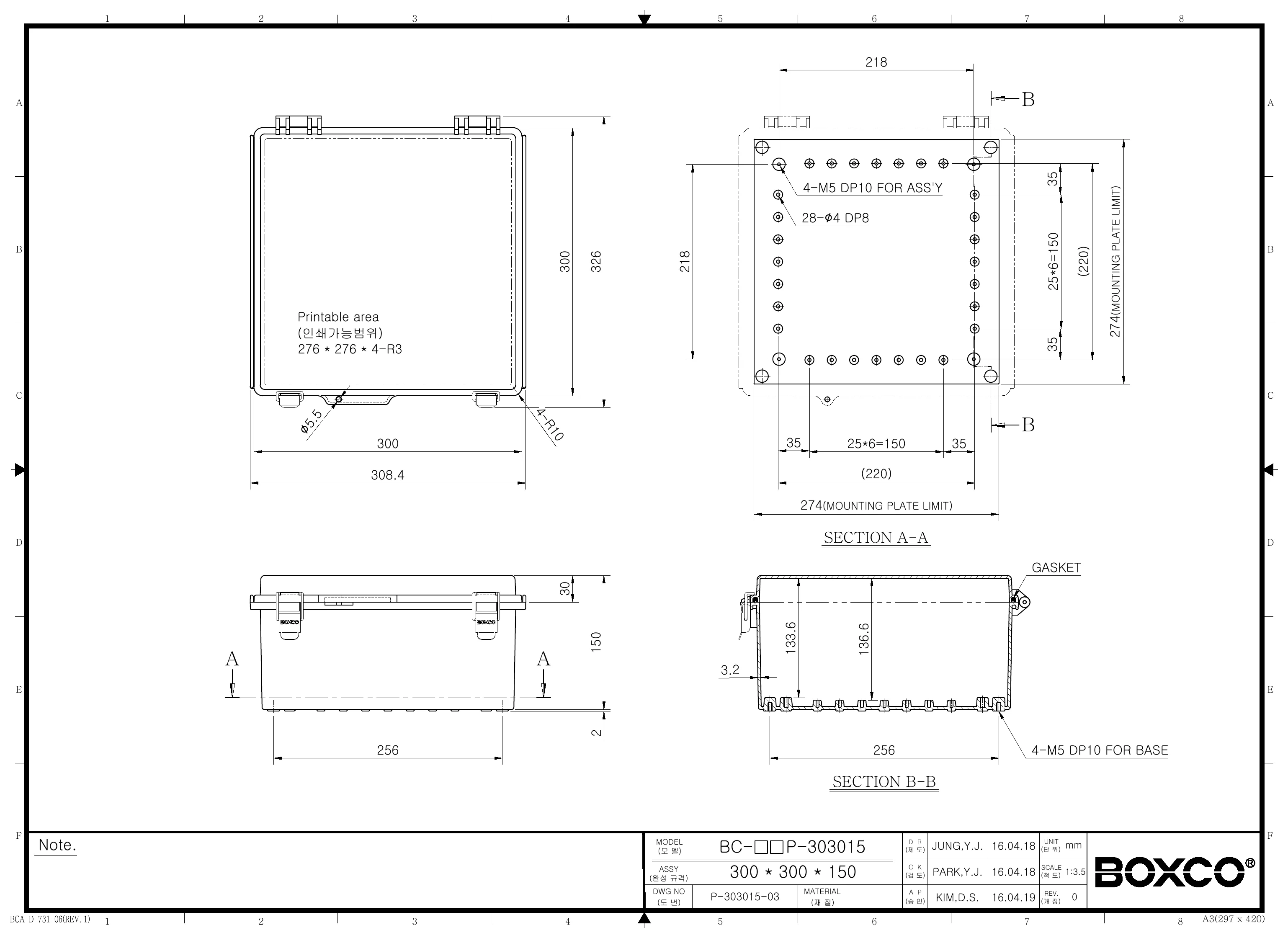

Technical drawings

BC-CTP-303015 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is this enclosure typically used for?

This Boxco P-Series enclosure is designed to protect electronic and control components in industrial or commercial environments where dust, water, and impact resistance matter. Its transparent cover also makes it suitable for applications where internal status indicators or components need to remain visible without opening the box.

What are the key size and material details for this model?

This model measures 11.81 x 11.81 x 5.91 inches, which is 300 x 300 x 150 mm. It is made from polycarbonate (PC) and includes a transparent cover with a molded hinge and latch design.

Is this enclosure suitable for outdoor or washdown environments?

Yes, this enclosure is built for demanding environments with an IP67 rating for protection against dust and water ingress. The product description also states it includes UV stabilizer for outdoor use and roof protection features to help reduce water penetration when used outside.

How durable is this enclosure against physical impact?

This model is rated IK08, indicating it is designed to handle a meaningful level of mechanical impact. The description also notes that the enclosure uses high impact resistant material to improve durability and reduce breakage during processing.

What temperature range can this enclosure handle?

The rated operating temperature range for this model is -40°C to 110°C. That makes it a strong choice for applications exposed to both low-temperature and high-heat conditions within that range.

Does this enclosure support internal mounting hardware or panels?

Yes, the enclosure includes pre-molded mounting screw nuts for securing DIN rail or other internal equipment. It also has mounting plate attachment points with brass inserted injection molding to help support heavier internal components.

What distinguishes this P-Series enclosure from a basic plastic box?

This model combines several higher-end features including a transparent polycarbonate cover, molded hinge and latch construction, IP67 sealing, IK08 impact resistance, UV-stabilized material, and anti-static material properties. It is positioned for more demanding industrial protection needs than a basic general-purpose plastic enclosure.
