Boxco

Boxco P-Series 530x630x185mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Molded Hinge and Latch Type

SKU BC-AGP-506018
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-AGP-506018 is a 530×630×185 mm ABS enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-AGP-506018Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
530×630×185 mm (20.87×24.80×7.28 in)
Mounting plate dimension M1 × M2
460 × 560 mm

Material

Material
ABS
Cover
Grey
Mounting plates
5060 P (Plastic, P type), 5060 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

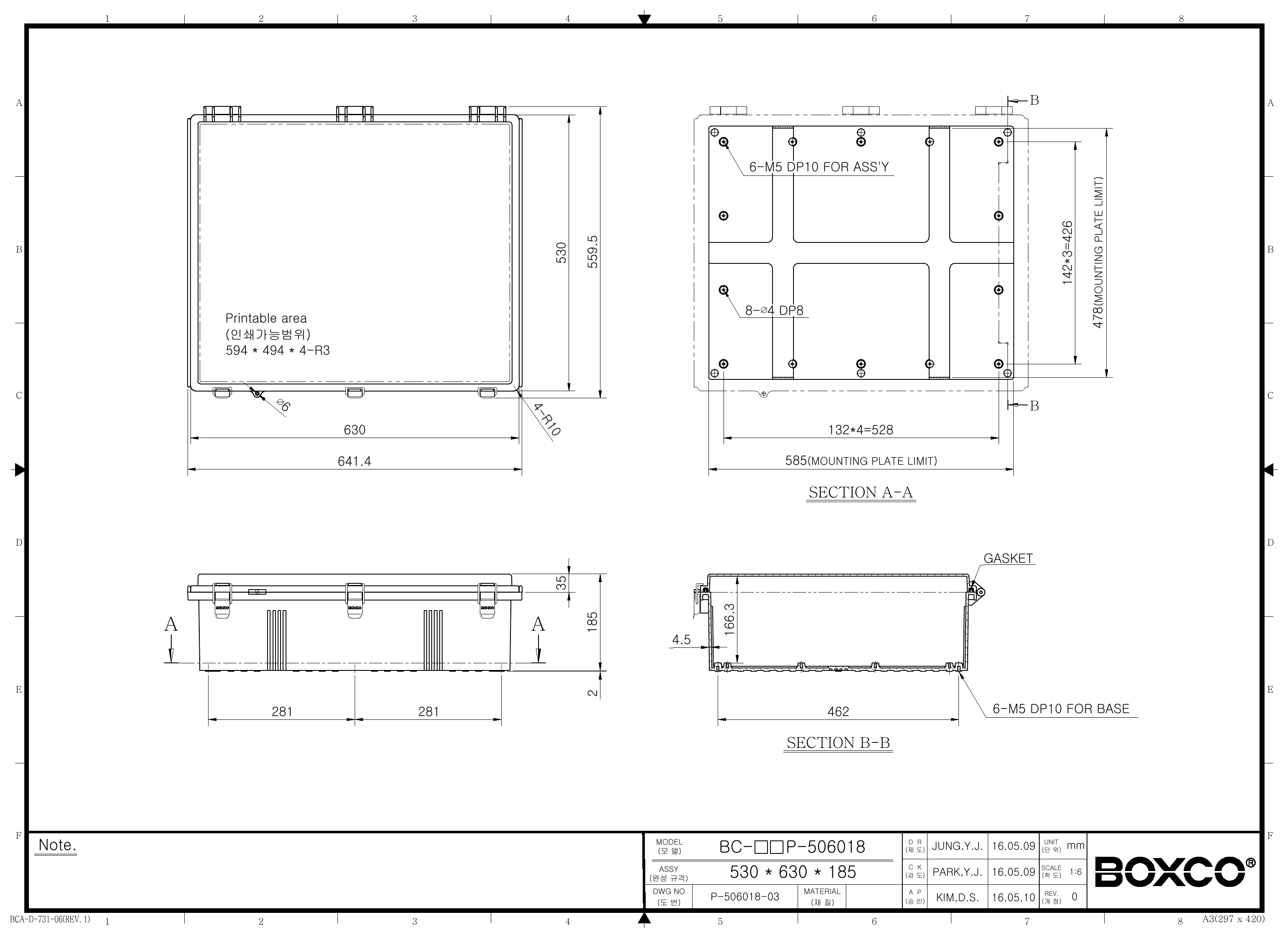

Technical drawings

BC-AGP-506018 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What kind of applications is this Boxco P-Series enclosure best suited for?

This model is suited to industrial and commercial equipment that needs a large non-metallic enclosure with strong environmental protection. Its IP67 sealing, IK08 impact rating, UV-stabilized ABS construction, and anti-static material make it a practical choice for housing sensitive electronics in indoor or outdoor control and protection applications.

Is this enclosure suitable for outdoor use?

Yes. Boxco states that this P-Series enclosure uses a UV stabilizer to support outdoor use and reduce visible color change over time. The design also includes roof protection features and a precision-injected gasket to help maintain waterproof and dust-proof performance.

How durable is this enclosure in demanding environments?

This specific model is rated IP67 for dust-tight and water-resistant protection and IK08 for impact resistance. It is made from high-impact ABS, and the latch uses stainless steel in its main draw-latch section for added durability.

What are the size, weight, and operating temperature range of this enclosure?

This model measures 20.87 x 24.80 x 7.28 inches, which is 530 x 630 x 185 mm. It weighs 16.416 kg and is rated for use from -40 C to 70 C.

Does this enclosure support mounting internal equipment securely?

Yes. The enclosure includes pre-molded mounting screw nuts so internal hardware such as a DIN rail or other equipment can be fixed inside more easily. It also has internal mounting plate attachment points with brass inserted molding to help secure heavier internal assemblies.

What makes this hinged P-Series model different from a basic plastic enclosure box?

This version combines a molded integrated hinge, latch-style closure, roof-protection geometry, and anti-static, UV-stabilized ABS material in one enclosure. It is designed for buyers who need repeated access, outdoor suitability, and stronger protection for sensitive equipment than a plain general-purpose plastic box.
