Boxco

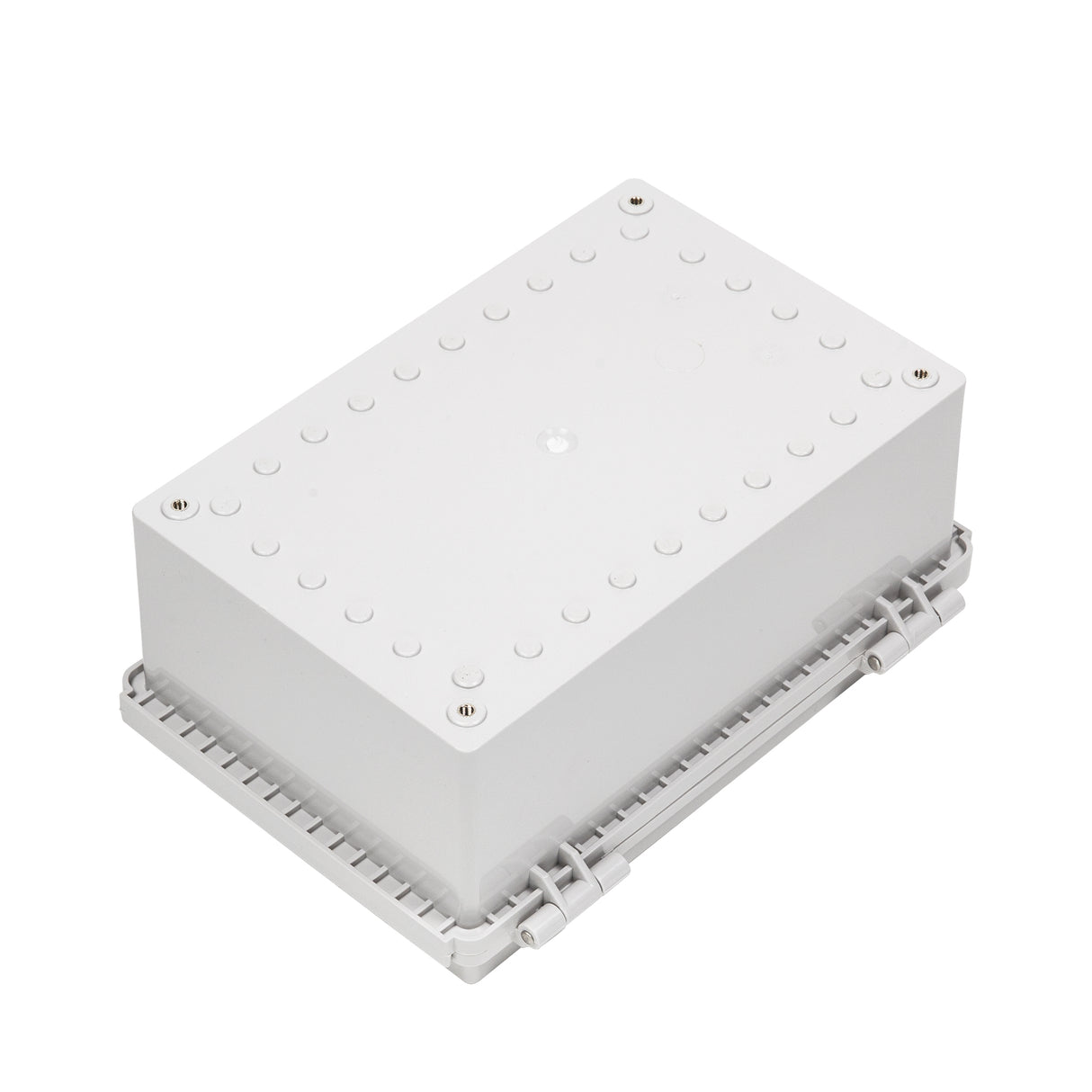

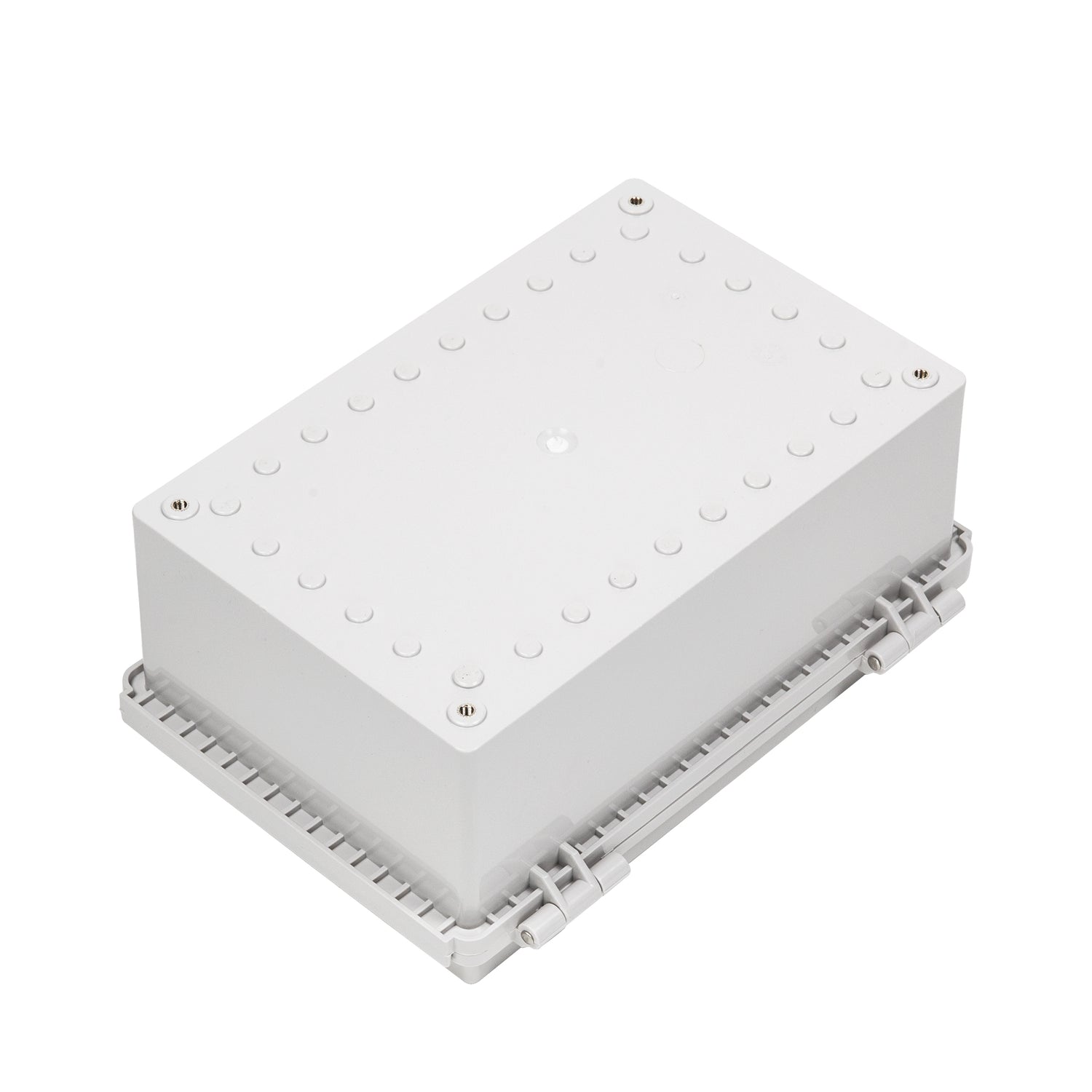

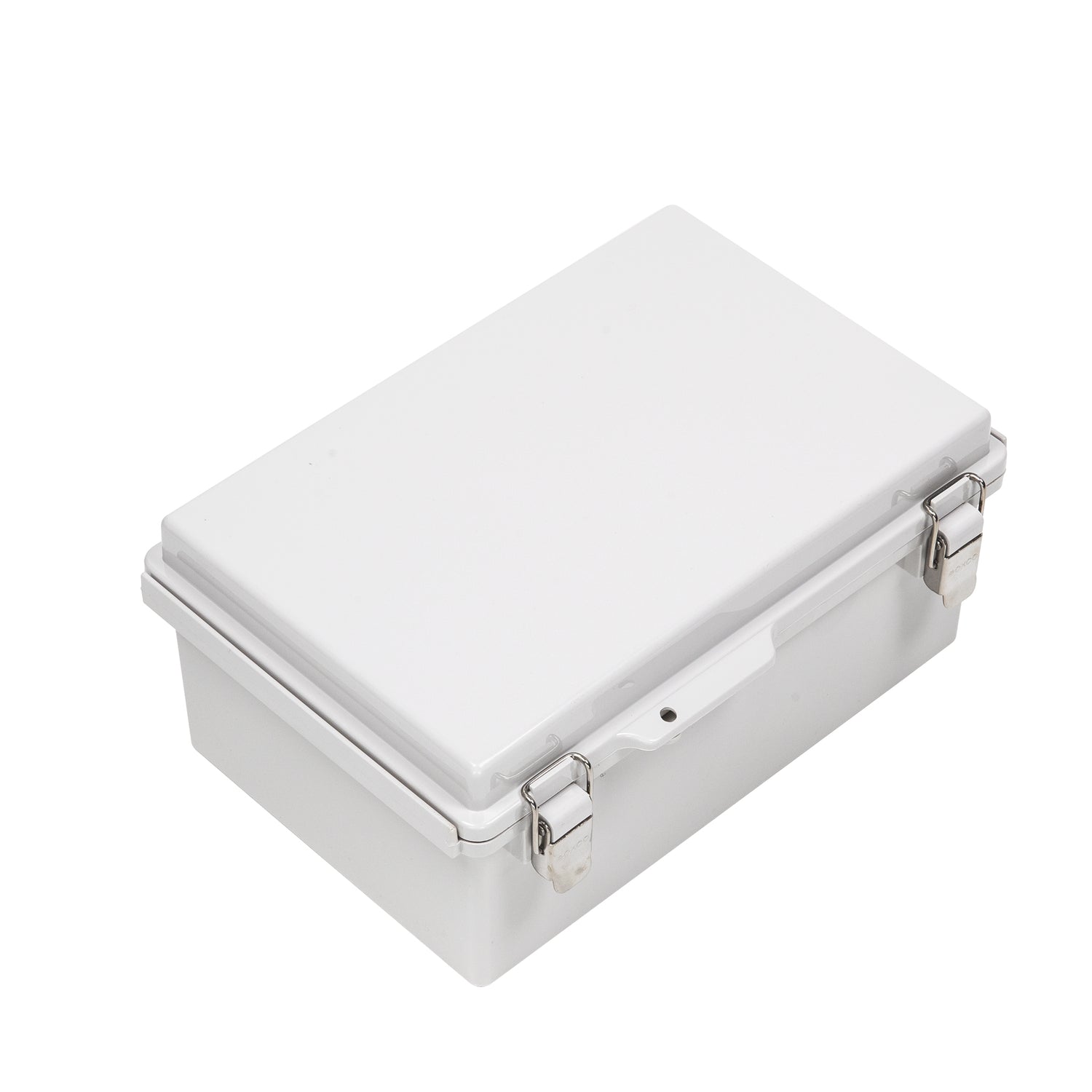

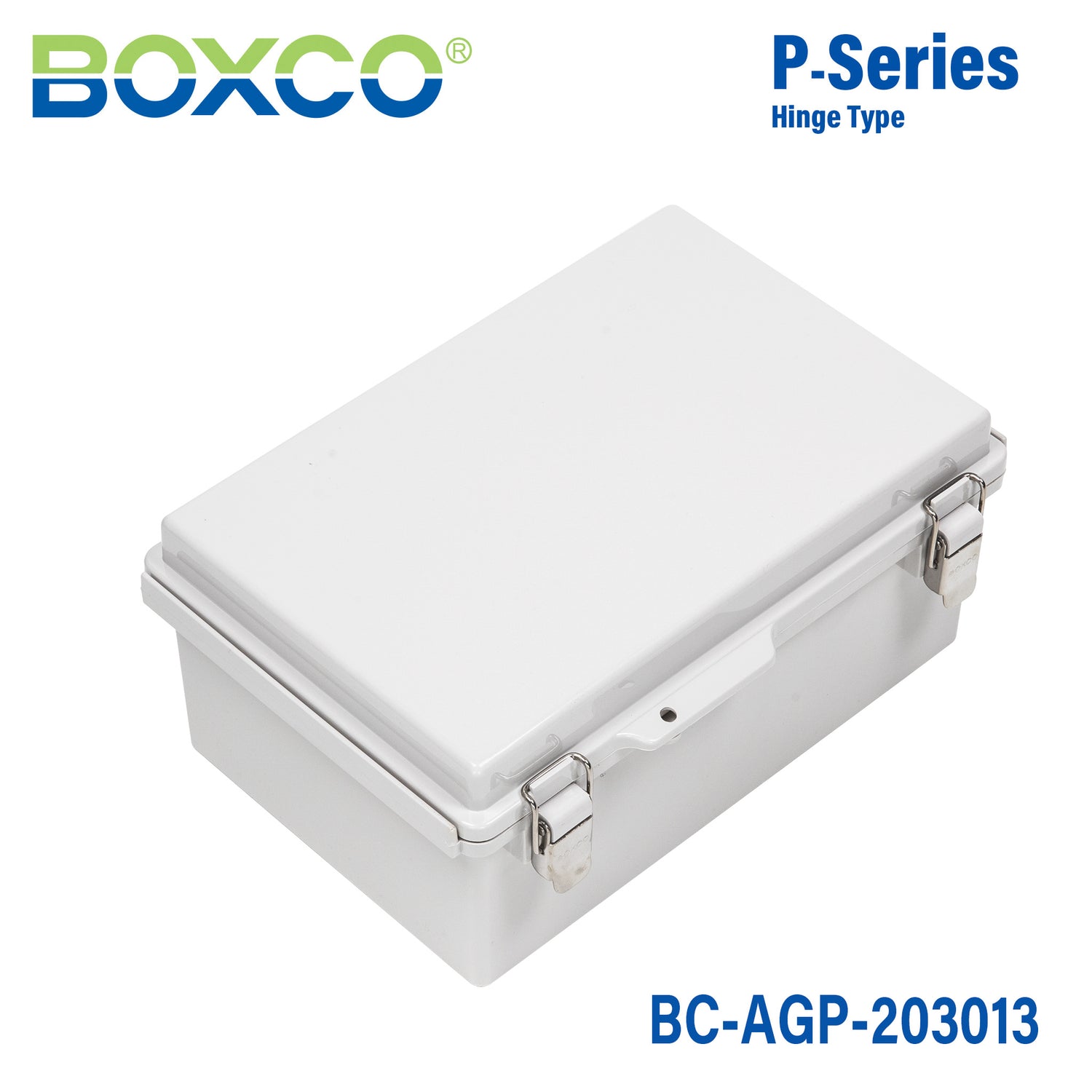

Boxco P-Series 200x300x130mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Molded Hinge and Latch Type

SKU BC-AGP-203013
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-AGP-203013 is a 200×300×130 mm ABS enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.

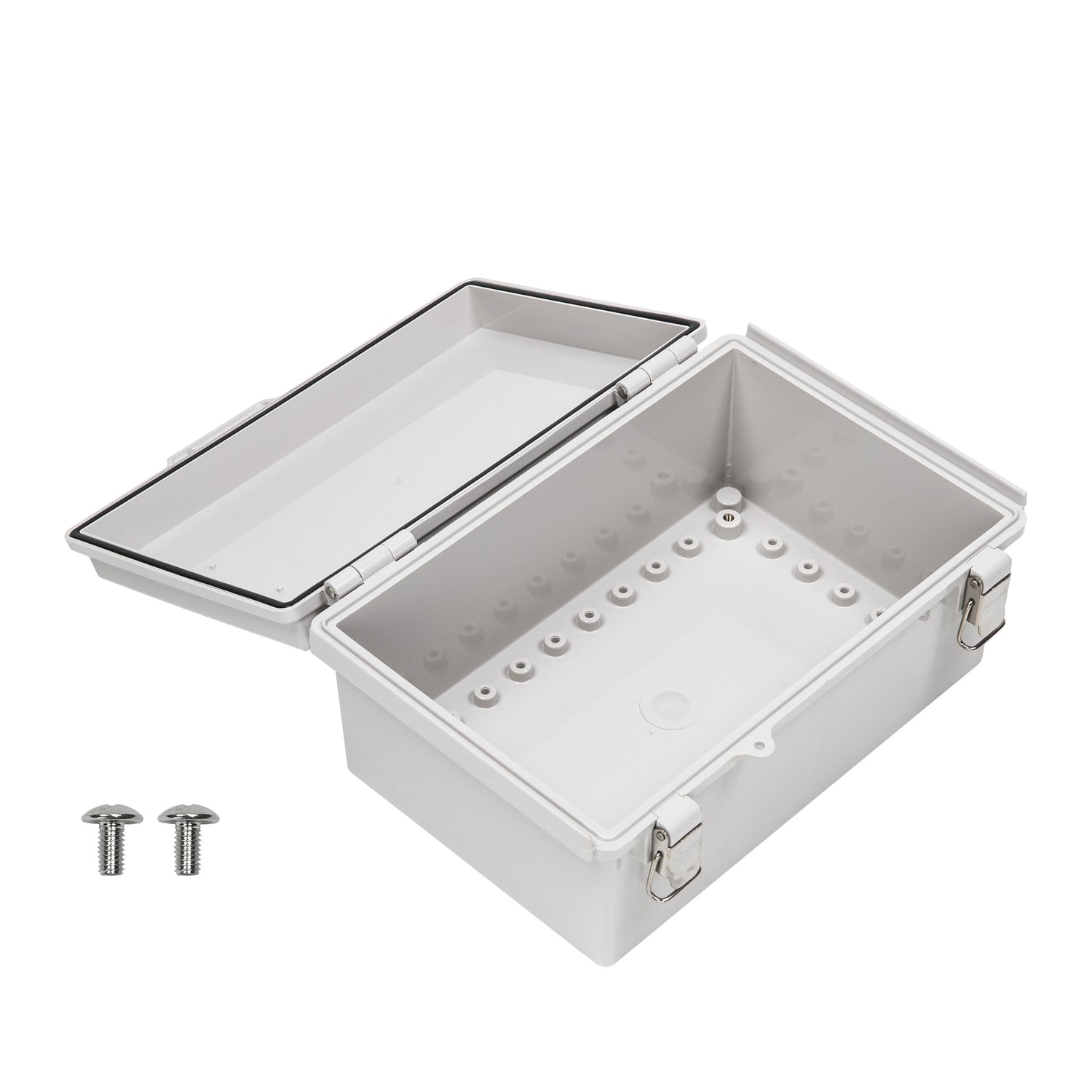

  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-AGP-203013Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
200×300×130 mm (7.87×11.81×5.12 in)
Mounting plate dimension M1 × M2
167 × 267 mm

Material

Material
ABS
Cover
Grey
Mounting plates
2030 P (Plastic, P type), 2030 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

BC-AGP-203013 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco P-Series 200 x 300 x 130mm plastic enclosure suited for?

This enclosure is suited for protecting industrial and commercial electronics that need a sealed non-metallic housing. Its IP67 sealing, IK08 impact rating, and integrated hinged cover make it a practical choice for equipment that may be exposed to dust, water, and regular access.

Is this enclosure suitable for outdoor environments?

Yes. Boxco states that an ultraviolet stabilizer is added to the P-Series to support outdoor use and help limit visible color change over time. The design also includes roof protection features at both ends to help reduce water penetration in outdoor conditions.

What are the key protection ratings for this model?

This model is rated IP67 for protection against dust and water ingress and IK08 for impact resistance. The enclosure body is made from high impact resistant ABS, and the gasket is designed to support strong waterproof and dust-proof performance.

What size is this Boxco P-Series enclosure?

The enclosure measures 7.87 x 11.81 x 5.12 inches, which is 200 x 300 x 130 mm. That size provides more internal room than small junction-style boxes while keeping the benefits of a hinged plastic enclosure.

What makes this model different from a standard non-hinged enclosure box?

This version uses a molded hinge and latch-type cover, so the lid stays attached during access instead of being fully removed. It also includes stainless steel elements in the latch and hinge bearing, which helps improve durability over repeated opening and closing.

Can this enclosure be used around sensitive electronic equipment?

Yes. The product description states that anti-static material is used to help protect sensitive electronic instruments from static electricity. That makes it a better fit for applications where electrostatic concerns matter than a generic plastic box without that stated feature.

What operating temperature range does this enclosure support?

The listed operating temperature range is -40 degrees C to 70 degrees C. This allows the enclosure to be used in both low-temperature and moderately high-temperature environments within that stated range.
