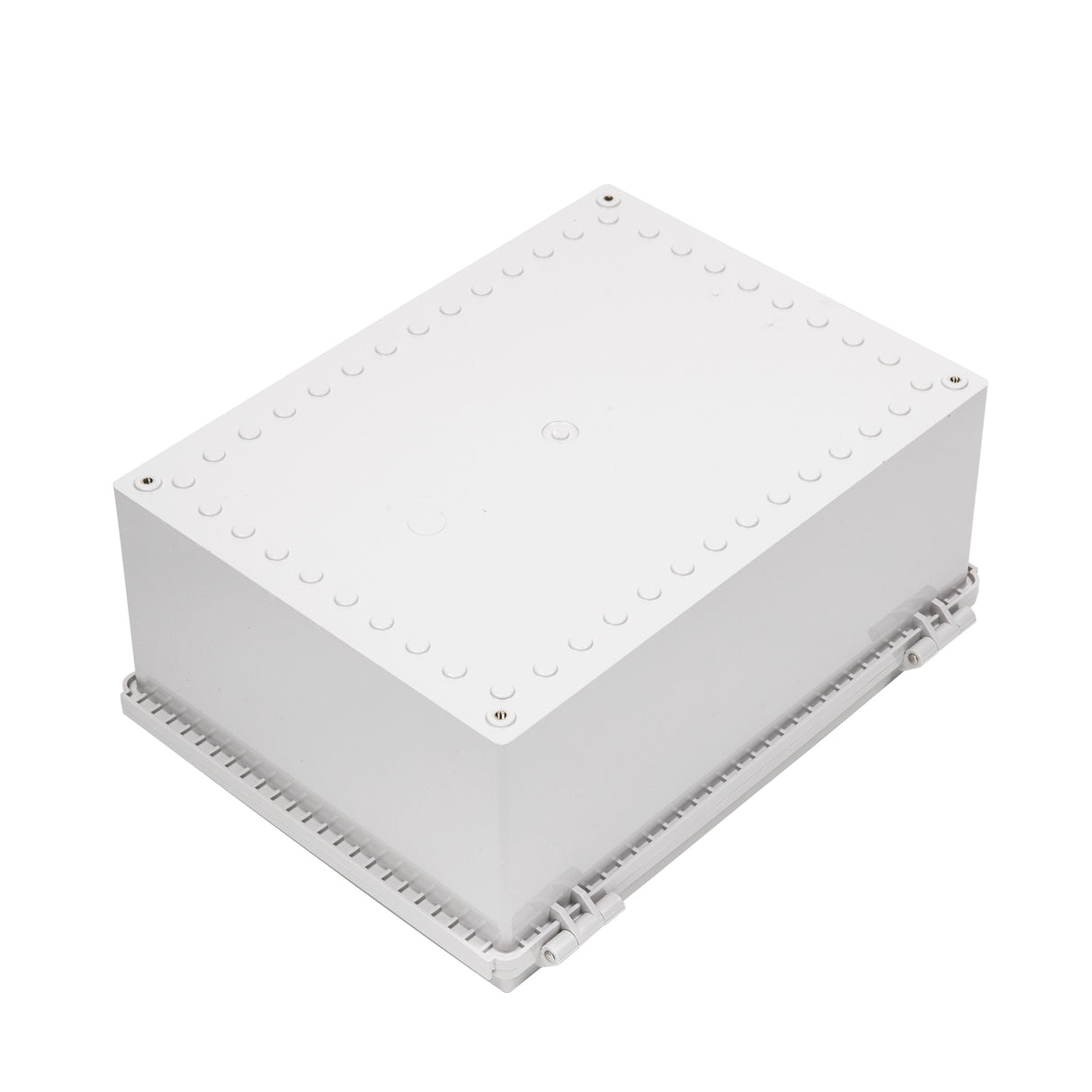

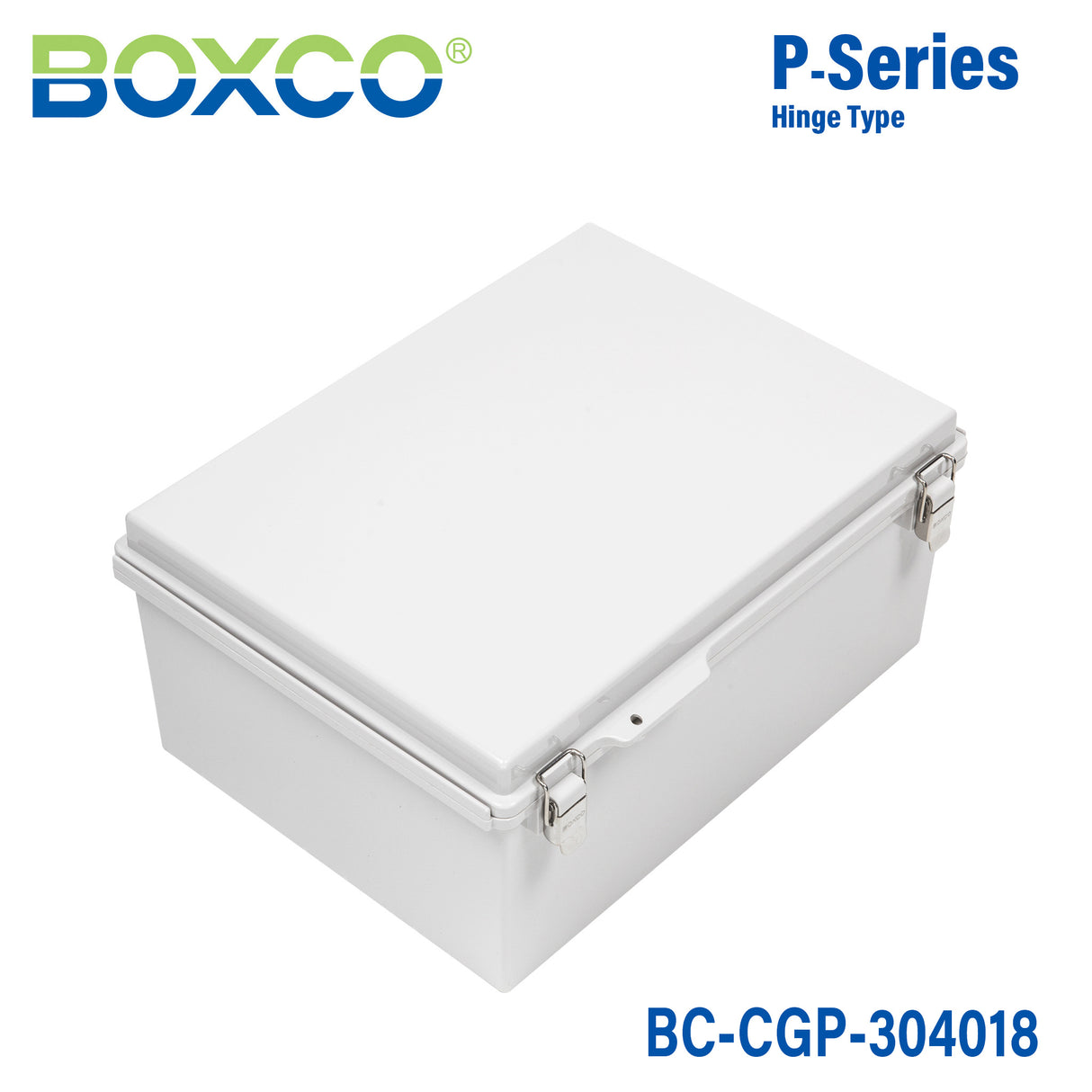

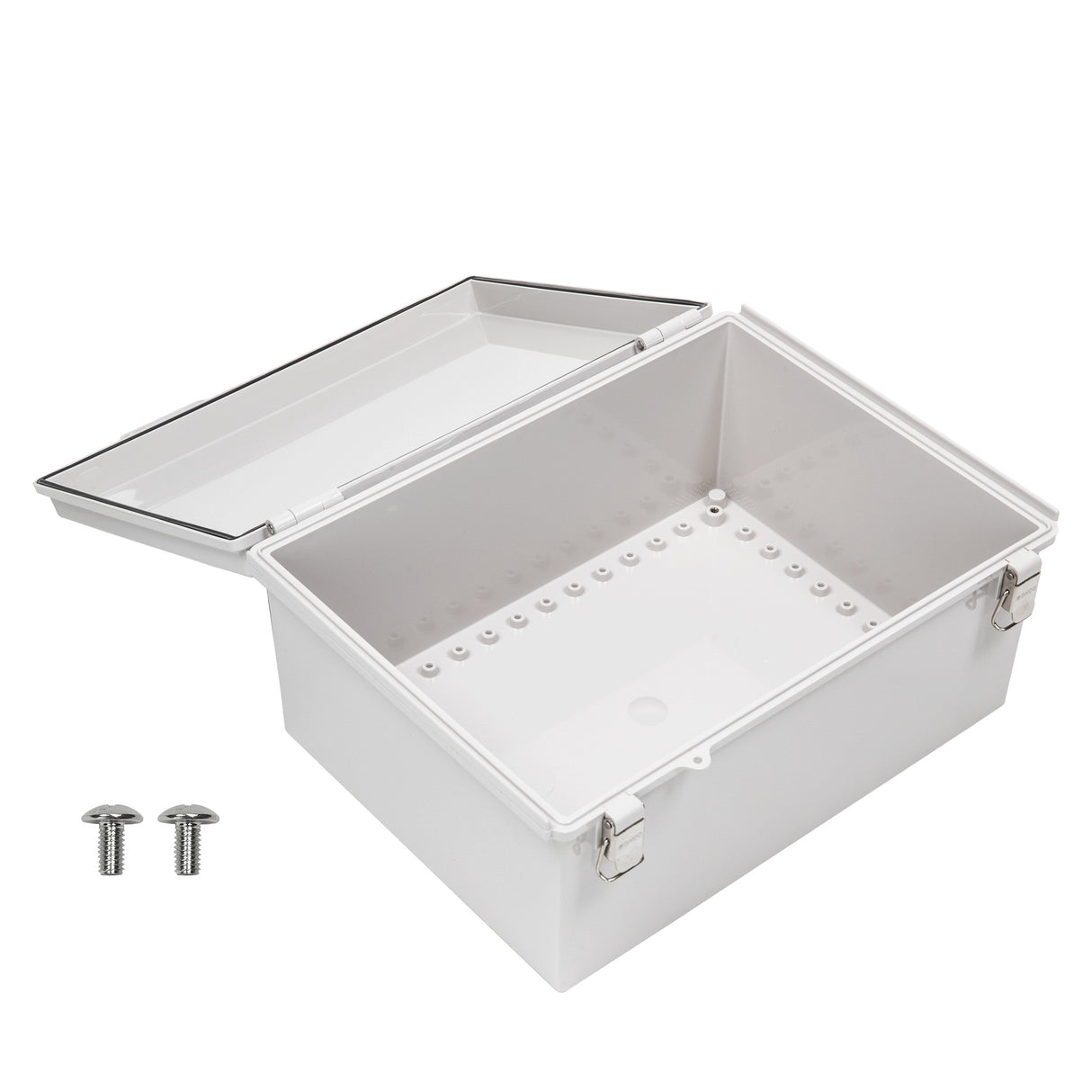

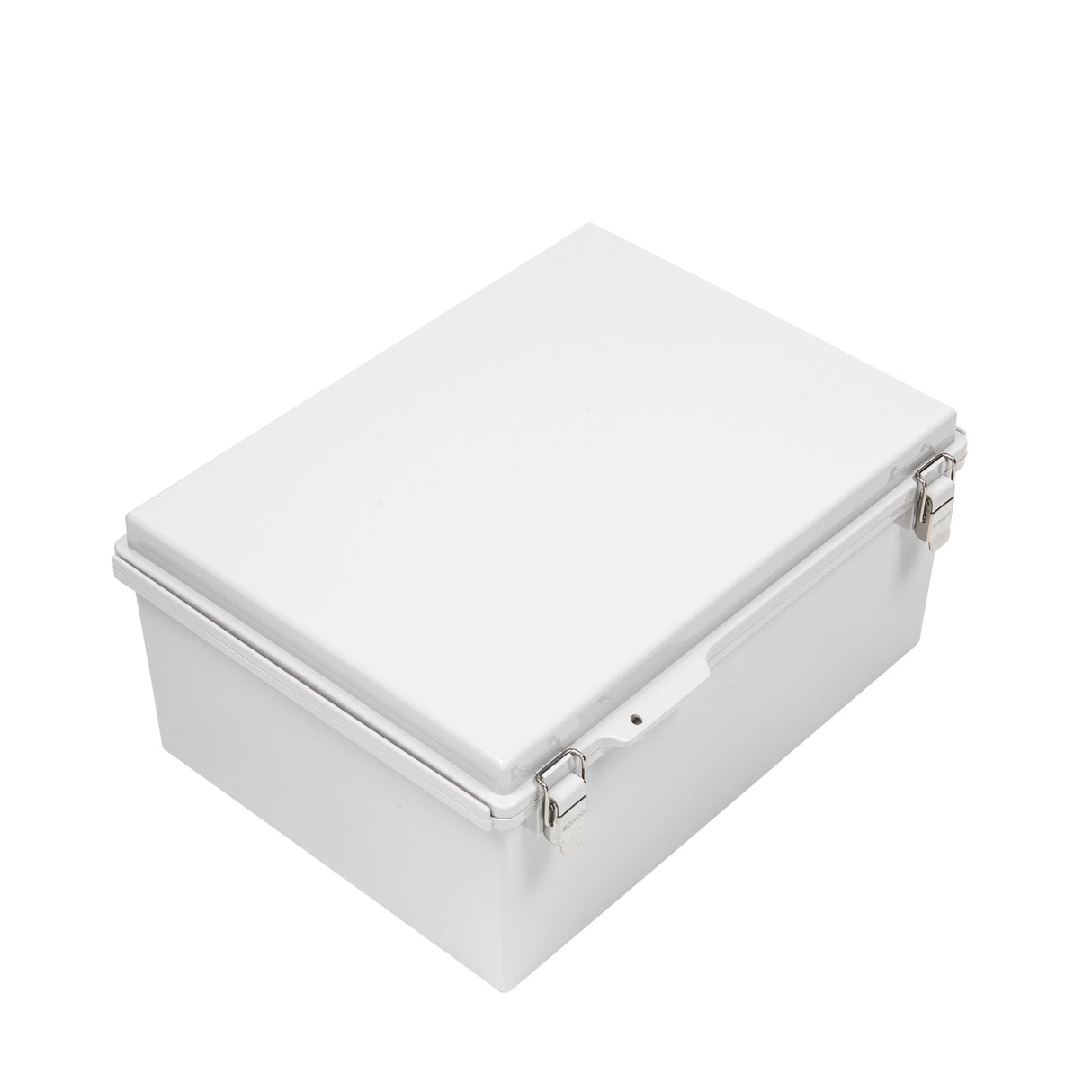

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco P-Series 300x400x180mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Molded Hinge and Latch Type

SKU BC-CGP-304018
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-CGP-304018 is a 300×400×180 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-CGP-304018Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
300×400×180 mm (11.81×15.75×7.09 in)
Mounting plate dimension M1 × M2
264 × 364 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
3040 P (Plastic, P type), 3040 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

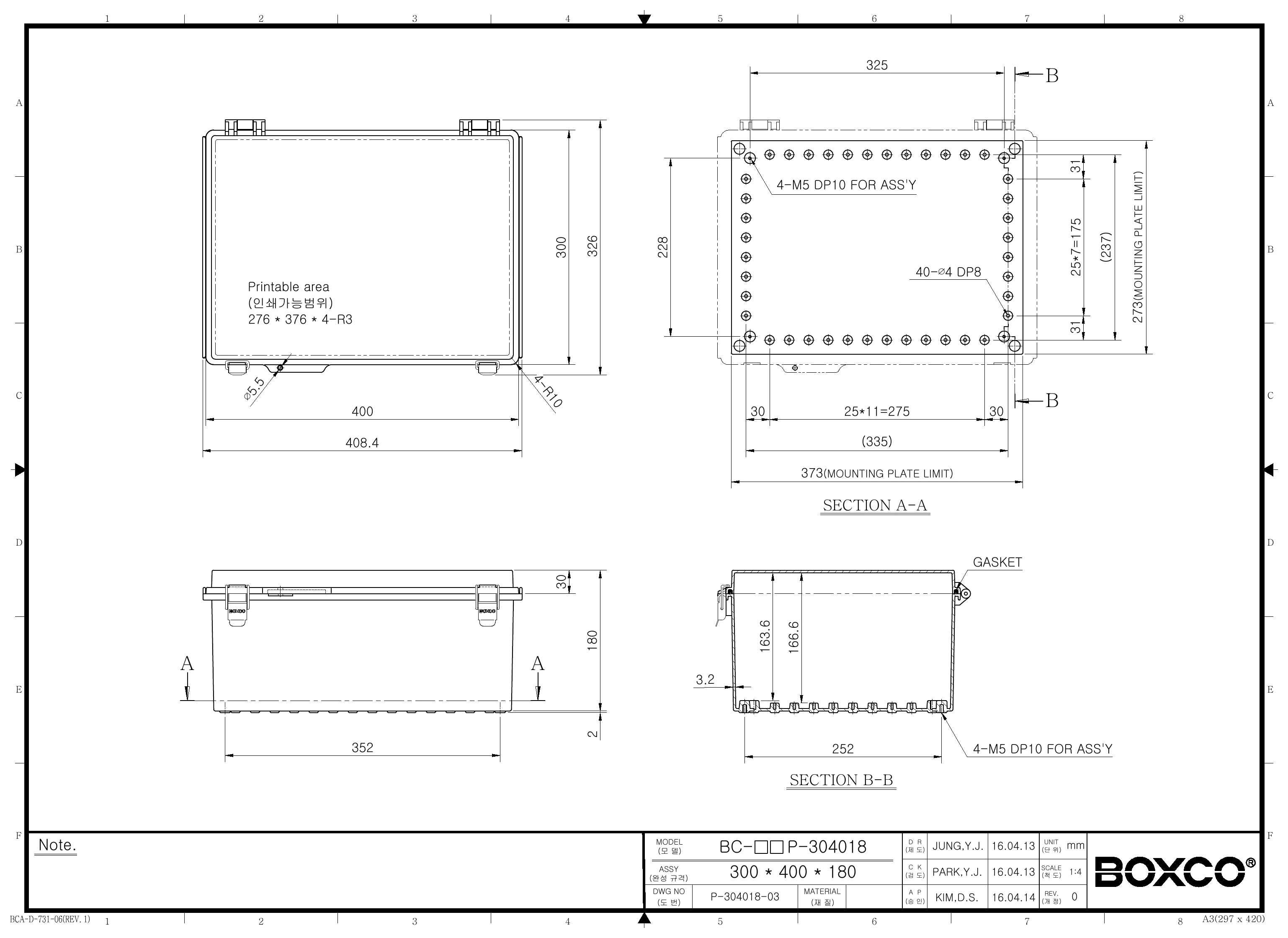

Technical drawings

BC-CGP-304018 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What material is this enclosure made from?

This Boxco P-Series enclosure is made from polycarbonate (PC). The product description also notes UV-stabilized, anti-static, high-impact-resistant construction for outdoor use and protection of sensitive electronic equipment.

Is this enclosure suitable for outdoor environments?

Yes. This model is described as UV-stabilized for outdoor usage, and the P-Series roof protection is designed to help reduce water and dust penetration when the cover is opened or closed. Its IP67 rating also indicates strong protection against dust and water ingress in demanding environments.

What size is this Boxco P-Series enclosure?

This enclosure measures 11.81 x 15.75 x 7.09 inches, which corresponds to 300 x 400 x 180 mm. That larger format makes it a fit for applications that need more internal space than compact junction-style boxes.

What do the IP67 and IK08 ratings mean for this model?

For this specific enclosure, IP67 indicates a high level of protection against dust and water ingress, while IK08 identifies resistance to external mechanical impact. Combined with the high-impact-resistant PC body, those ratings make it suitable for tougher industrial and outdoor settings.

What temperature range can this enclosure handle?

The listed operating temperature range for this model is -40 degrees C to 110 degrees C. That wide range supports use in both cold and high-heat environments where standard plastic enclosures may be less suitable.

What applications is this enclosure commonly used for?

This model is suited to protecting control components, instrumentation, and other electronics that need a sealed non-metallic enclosure. Its anti-static material, molded hinge and latch design, and internal mounting features make it a practical choice for industrial and outdoor equipment housings.

Does this enclosure support internal mounting hardware or plates?

Yes. The product description states that it includes pre-molded mounting screw nuts for fixing DIN rail or other equipment, and dedicated attachment points for securing an internal mounting plate. Those features help support heavier internal equipment more securely.
