Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

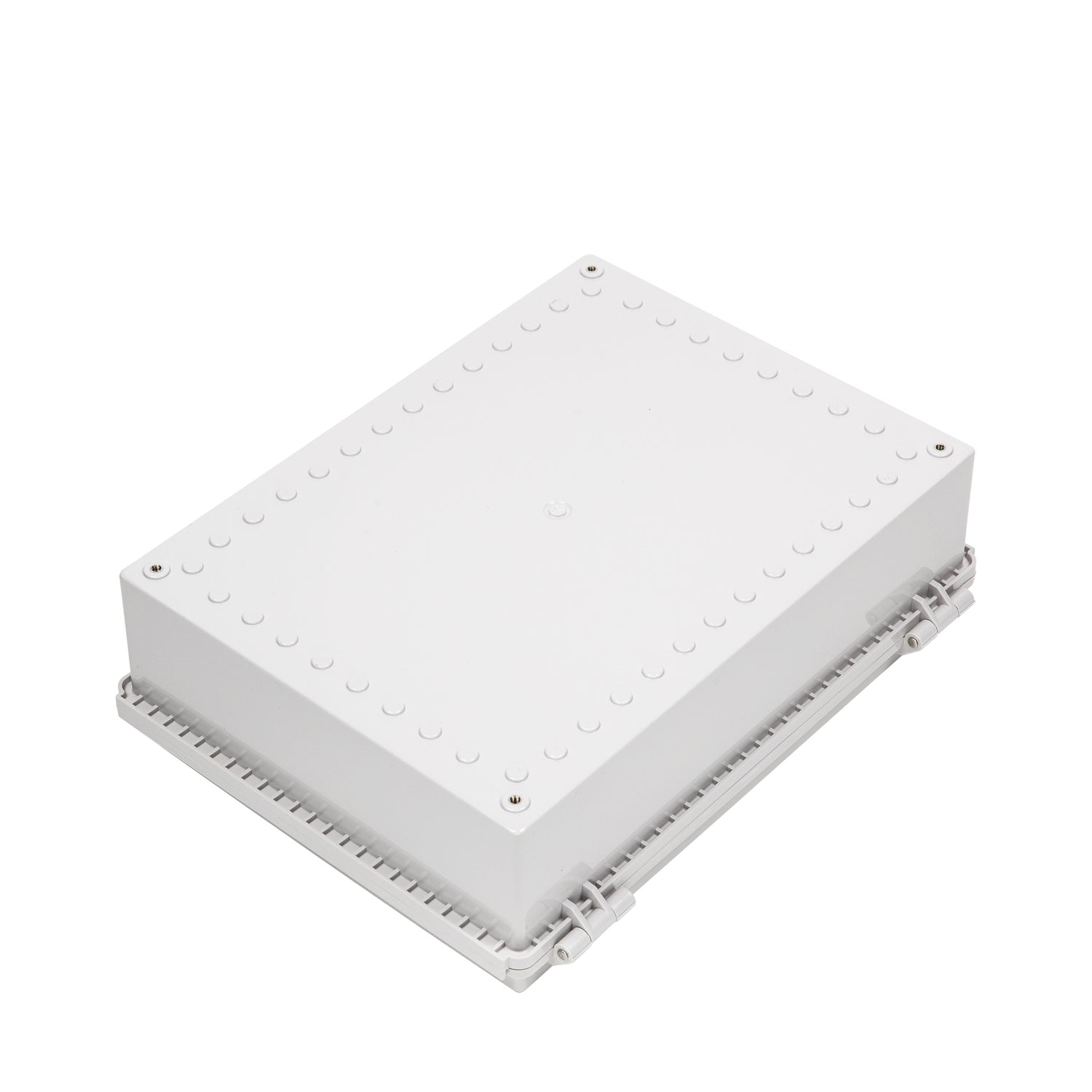

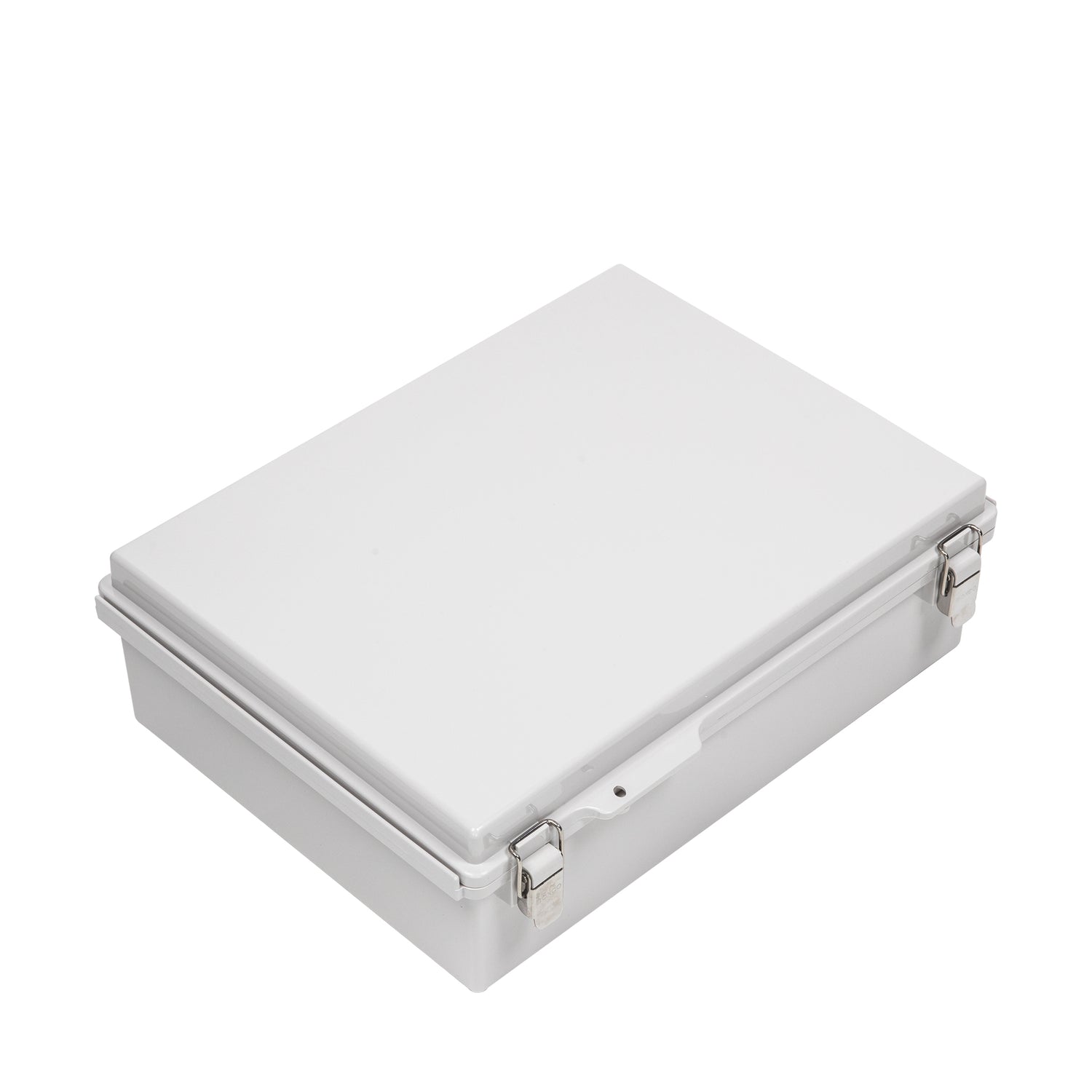

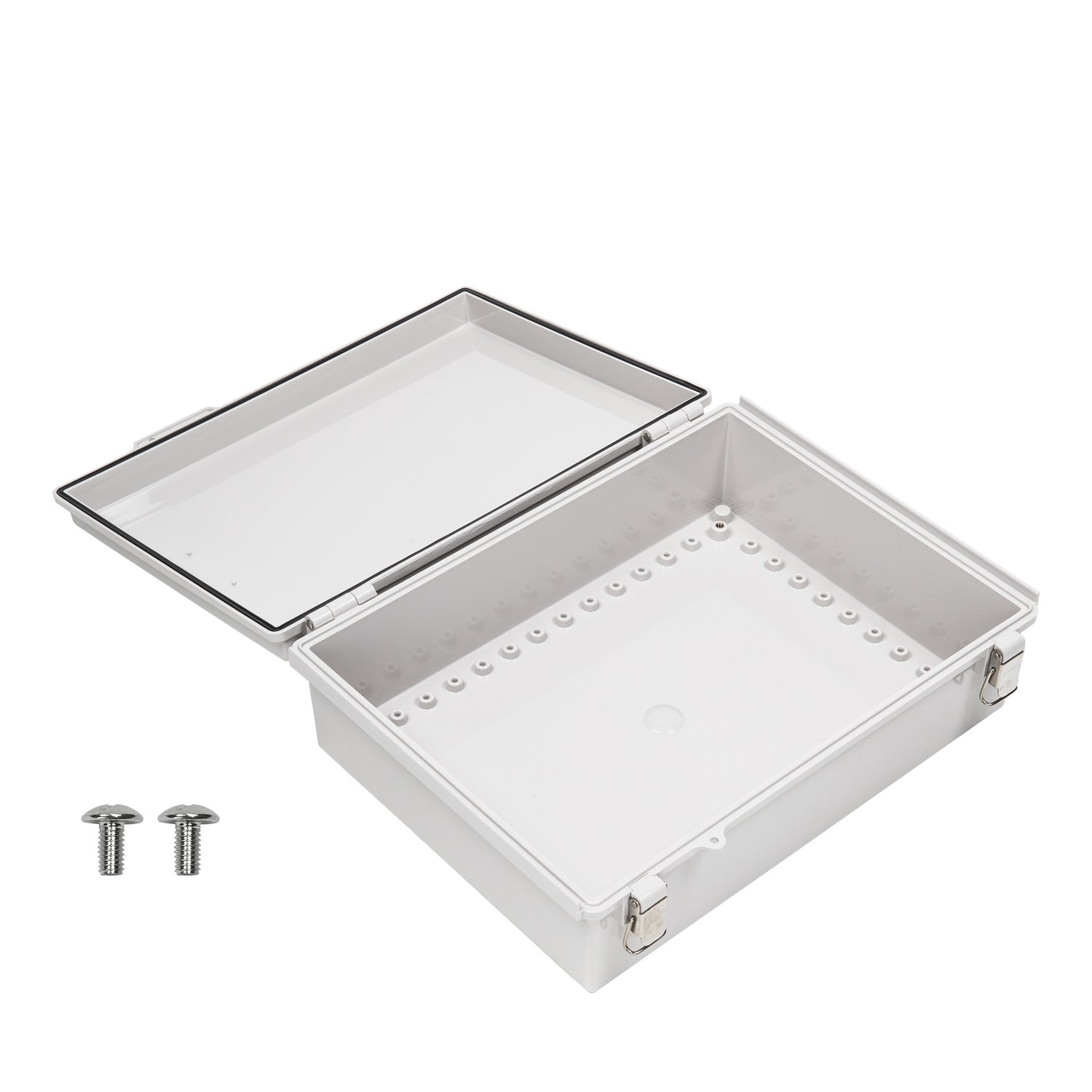

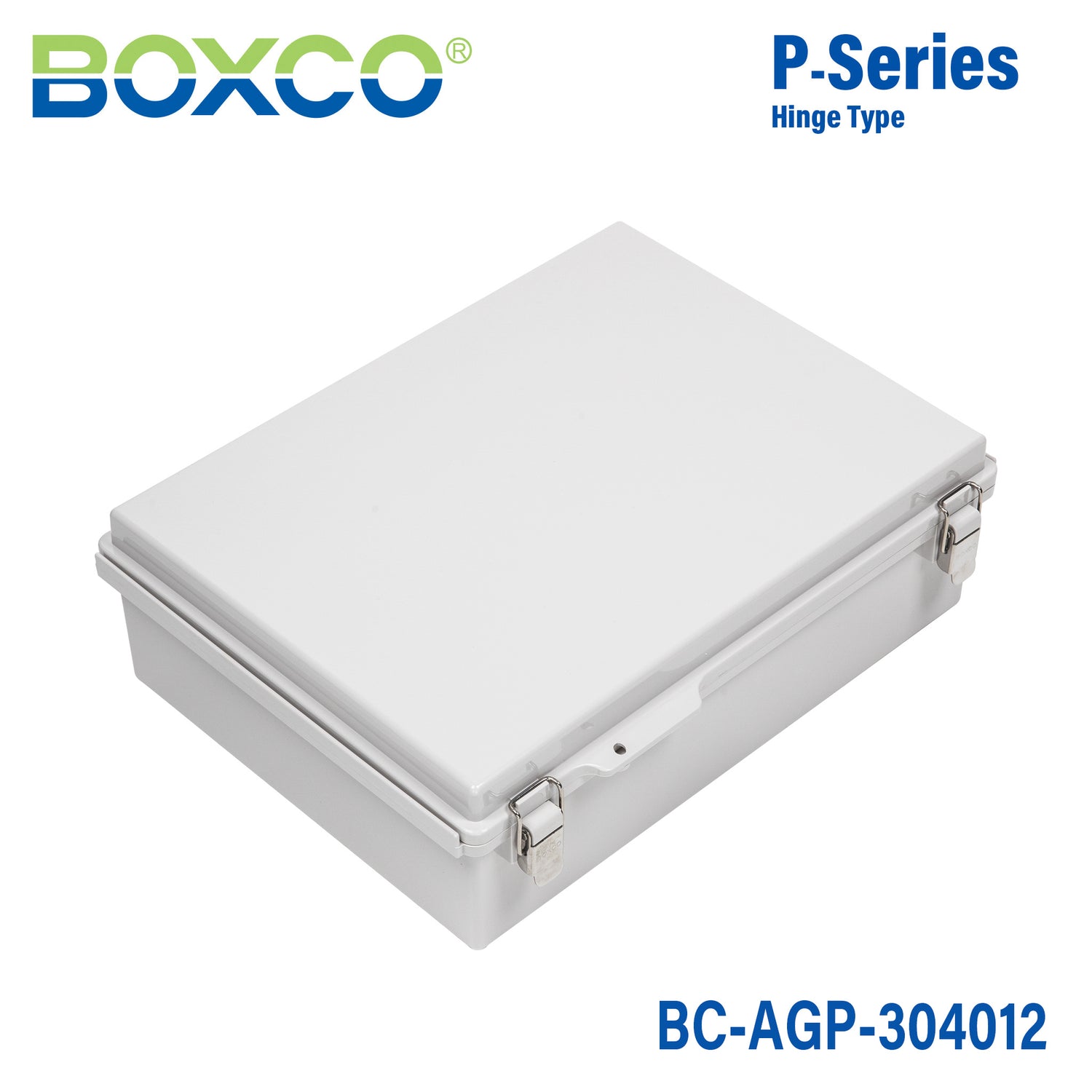

Boxco P-Series 300x400x120mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Molded Hinge and Latch Type

SKU BC-AGP-304012
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-AGP-304012 is a 300×400×120 mm ABS enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-AGP-304012Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
300×400×120 mm (11.81×15.75×4.72 in)
Mounting plate dimension M1 × M2
264 × 364 mm

Material

Material
ABS
Cover
Grey
Mounting plates
3040 P (Plastic, P type), 3040 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

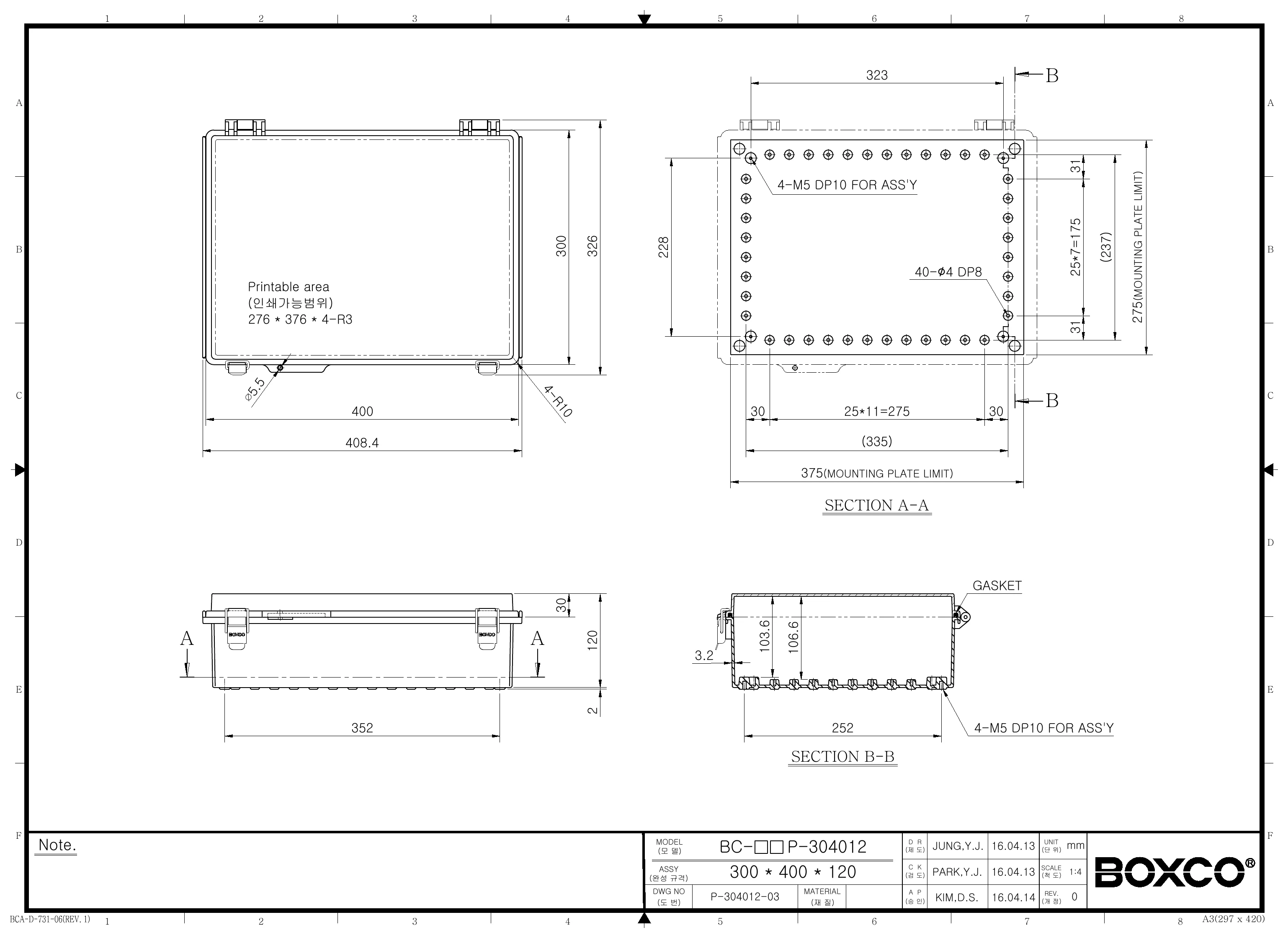

BC-AGP-304012 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is this enclosure best suited for?

This Boxco P-Series enclosure is designed for protecting electrical or electronic equipment that needs a durable non-metallic housing. Its molded hinge and latch design makes it a practical choice for industrial, commercial, and outdoor equipment enclosures where repeated access is needed.

What are the dimensions of this enclosure?

This model measures 11.81 x 15.75 x 4.72 inches, which corresponds to 300 x 400 x 120 mm. That size provides a relatively large internal enclosure format for components that need more mounting space than compact junction-style boxes.

Is this enclosure suitable for outdoor environments?

Yes, this model is intended for outdoor use. The product description states that an ultraviolet stabilizer is added to help protect the enclosure outdoors, and the design includes roof protection features to help reduce water and dust penetration when the cover is opened or closed.

How resistant is this enclosure to water, dust, and impact?

This enclosure is rated IP67 and IK08. That means it is built for strong dust and water resistance and also provides solid impact resistance for demanding environments.

What material is this Boxco enclosure made from?

This model is made from ABS and includes anti-static material to help protect sensitive electronic instruments from static electricity. The description also notes that it uses high impact resistant material to improve durability during use and processing.

What temperature range can this enclosure handle?

This enclosure is specified for use from -40 degrees C to 70 degrees C. That range makes it suitable for many indoor and outdoor industrial environments where equipment may be exposed to cold or moderately high temperatures.

What makes this P-Series model different from a basic plastic enclosure?

This model includes molded hinges and a latch-style cover, along with features such as pre-molded mounting screw nuts, gasket sealing, roof protection, and mounting plate attachment points. Compared with a simpler plastic box, it is built for more secure closure, easier equipment mounting, and better protection in demanding conditions.
