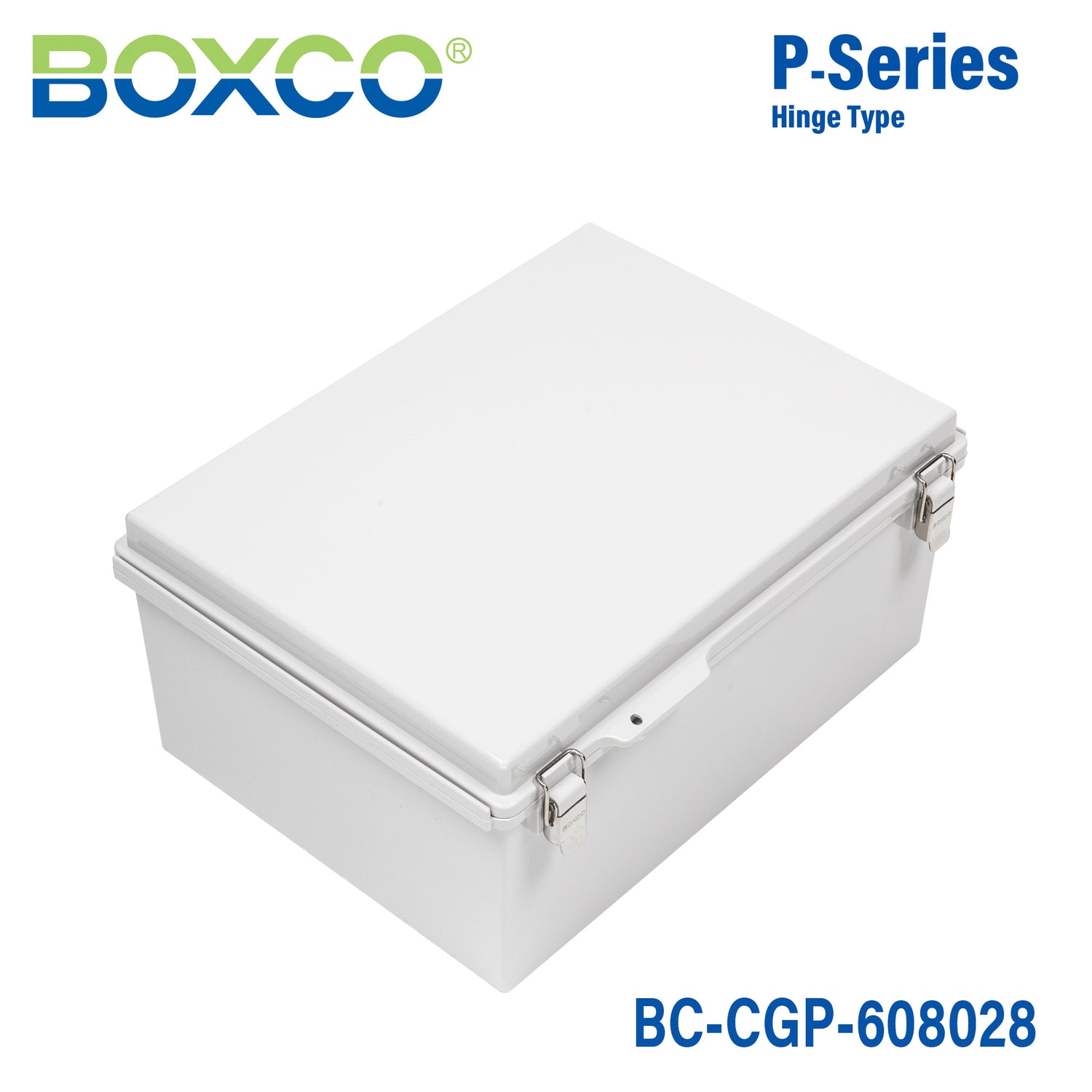

Boxco P-Series 630x830x285mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Molded Hinge and Latch Type

SKU BC-CGP-608028
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-CGP-608028 is a 630×830×285 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-CGP-608028Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
630×830×285 mm (24.80×32.68×11.22 in)
Mounting plate dimension M1 × M2
560 × 752 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
6080 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

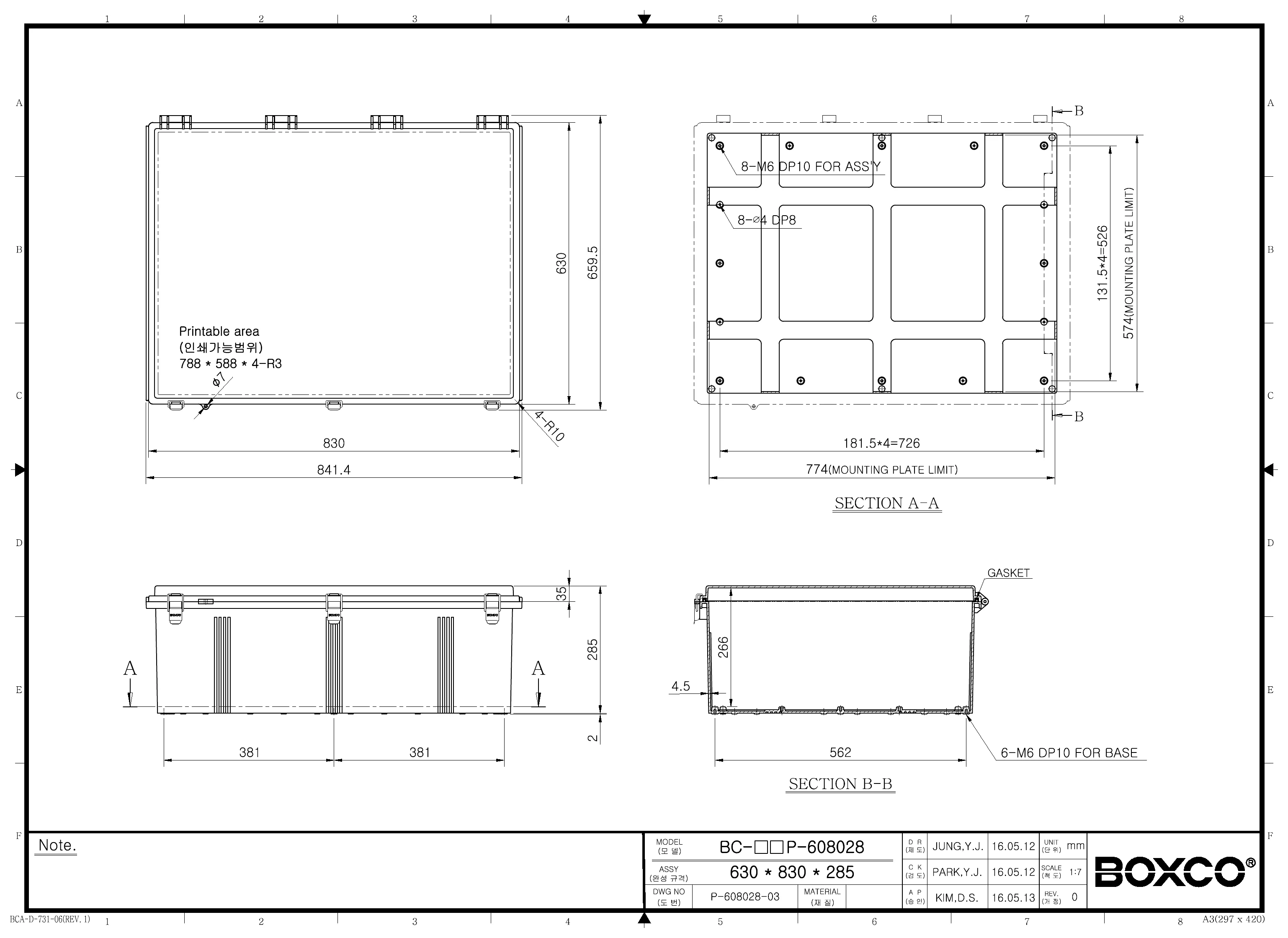

Technical drawings

BC-CGP-608028 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is the size of the Boxco P-Series BC-CGP-608028 enclosure?

This model measures 24.80 x 32.68 x 11.22 inches, which is 630 x 830 x 285 mm. It is a large plastic enclosure intended for applications that need substantial internal space and a durable hinged cover design.

Is the BC-CGP-608028 enclosure suitable for outdoor use?

Yes. The product description states that an ultraviolet stabilizer is added for outdoor usage, and the enclosure includes roof protection features to help reduce water and dust penetration during cover operation. Its IP67 rating also supports use in demanding environments where moisture and dust protection matter.

What level of environmental protection does this enclosure provide?

This enclosure is rated IP67 and IK08. That means it is built for strong protection against dust and water ingress and offers solid impact resistance for industrial and commercial environments.

What material is this Boxco P-Series enclosure made from?

The BC-CGP-608028 is made from polycarbonate (PC) and has a grey cover. The description also notes high impact resistance, anti-static material for sensitive electronic instruments, and integrated plastic hinges with a stainless steel bearing for longer service life.

What temperature range can this enclosure handle?

This model is specified for temperatures from -40 degrees C to 110 degrees C. That wide operating range makes it a practical choice for applications exposed to both cold outdoor conditions and elevated internal or ambient heat.

What kinds of applications is the BC-CGP-608028 best suited for?

This enclosure is well suited for protecting industrial controls, instrumentation, and other equipment that need a large non-metallic housing with strong sealing and impact resistance. Its anti-static material and heavy-duty enclosure design make it especially relevant for sensitive electronic equipment in harsh indoor or outdoor environments.

Does this enclosure support mounting internal components?

Yes. The product description states that it includes pre-molded mounting screw nuts for securing items such as DIN rail or other equipment, and it also has mounting plate attachment points designed to hold internal plates tightly. These features support organized internal equipment mounting in larger enclosure builds.
