Boxco

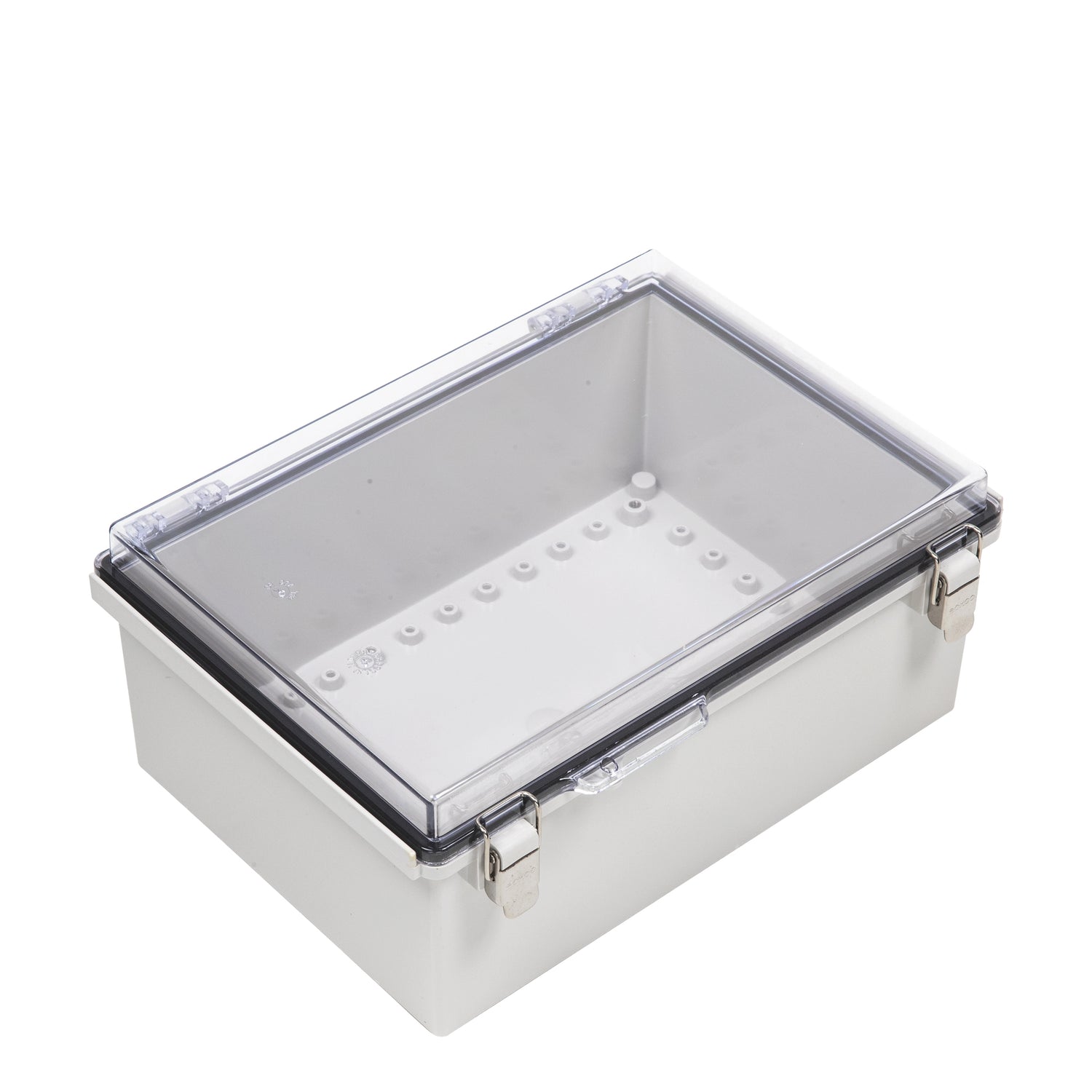

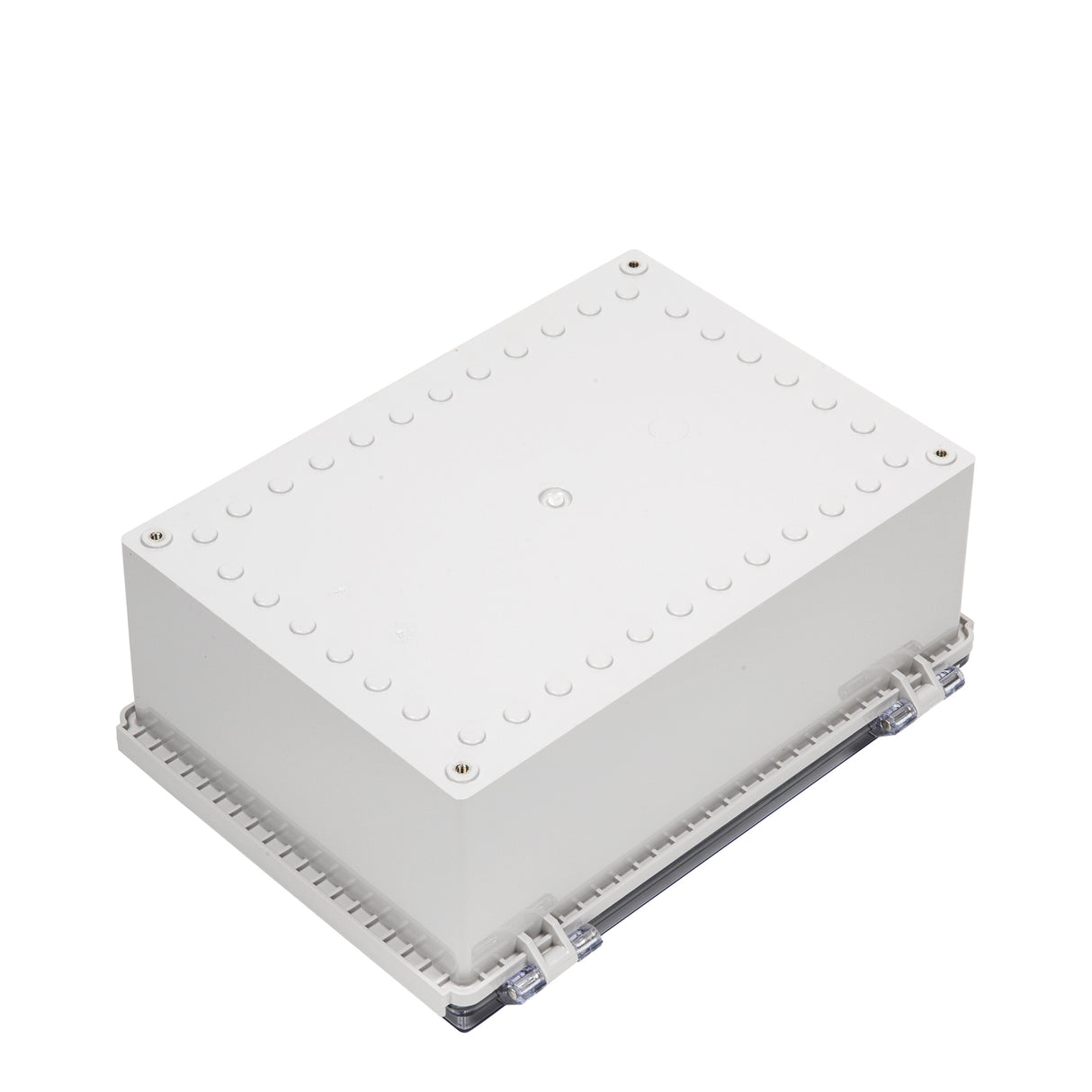

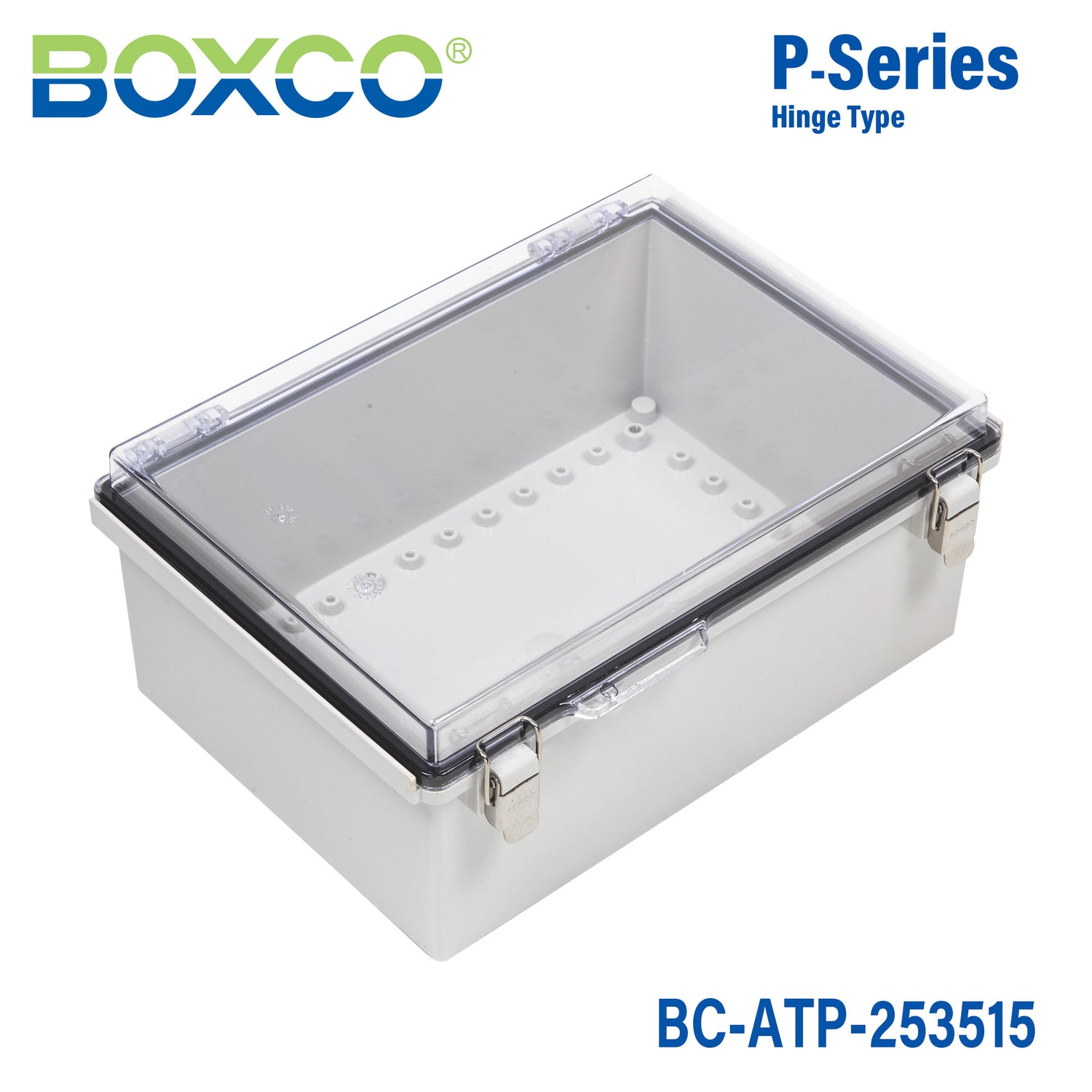

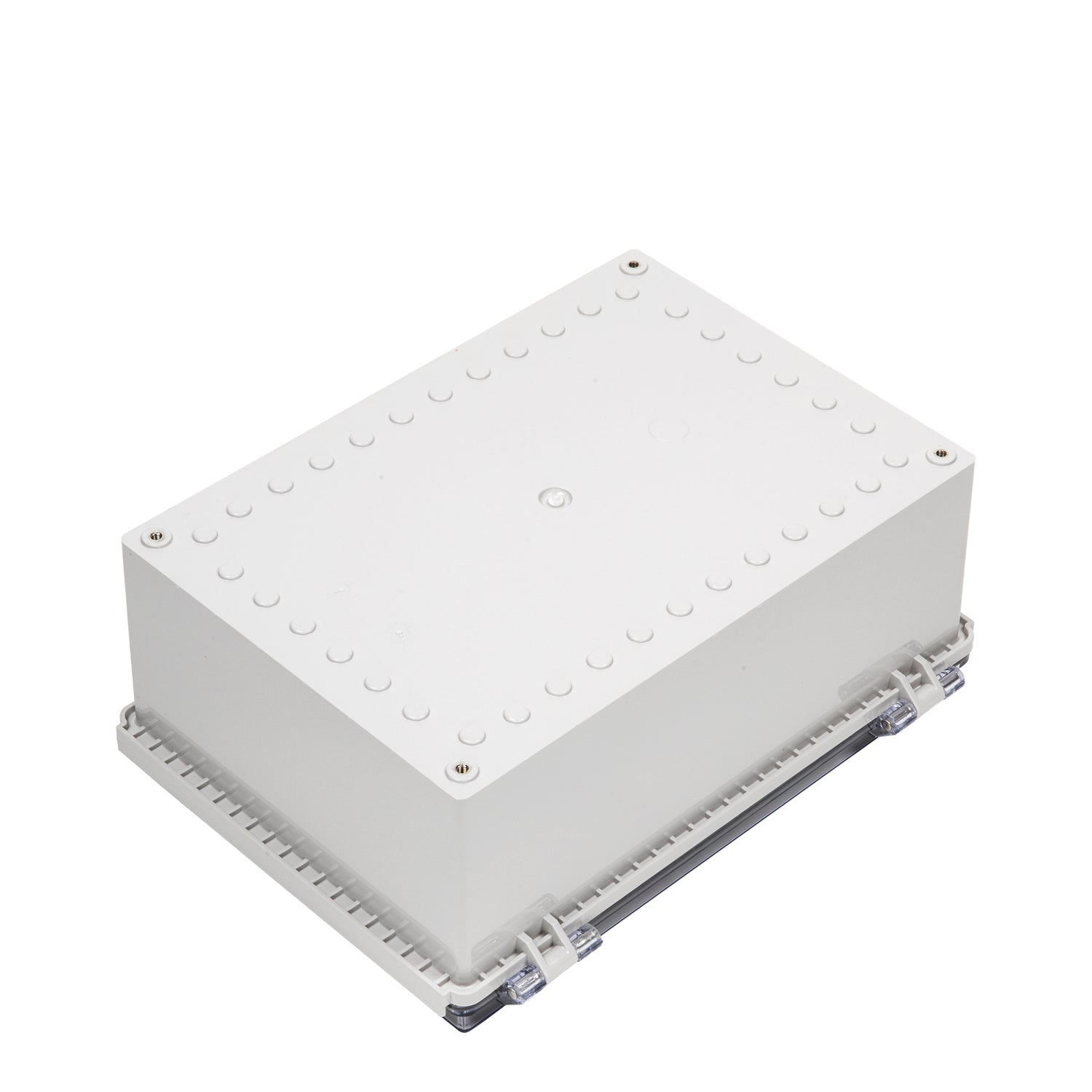

Boxco P-Series 250x350x150mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Molded Hinge and Latch Type

SKU BC-ATP-253515
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-ATP-253515 is a 250×350×150 mm ABS enclosure with a transparent cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-ATP-253515Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
250×350×150 mm (9.84×13.78×5.91 in)
Mounting plate dimension M1 × M2
216 × 316 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
2535 P (Plastic, P type), 2535 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

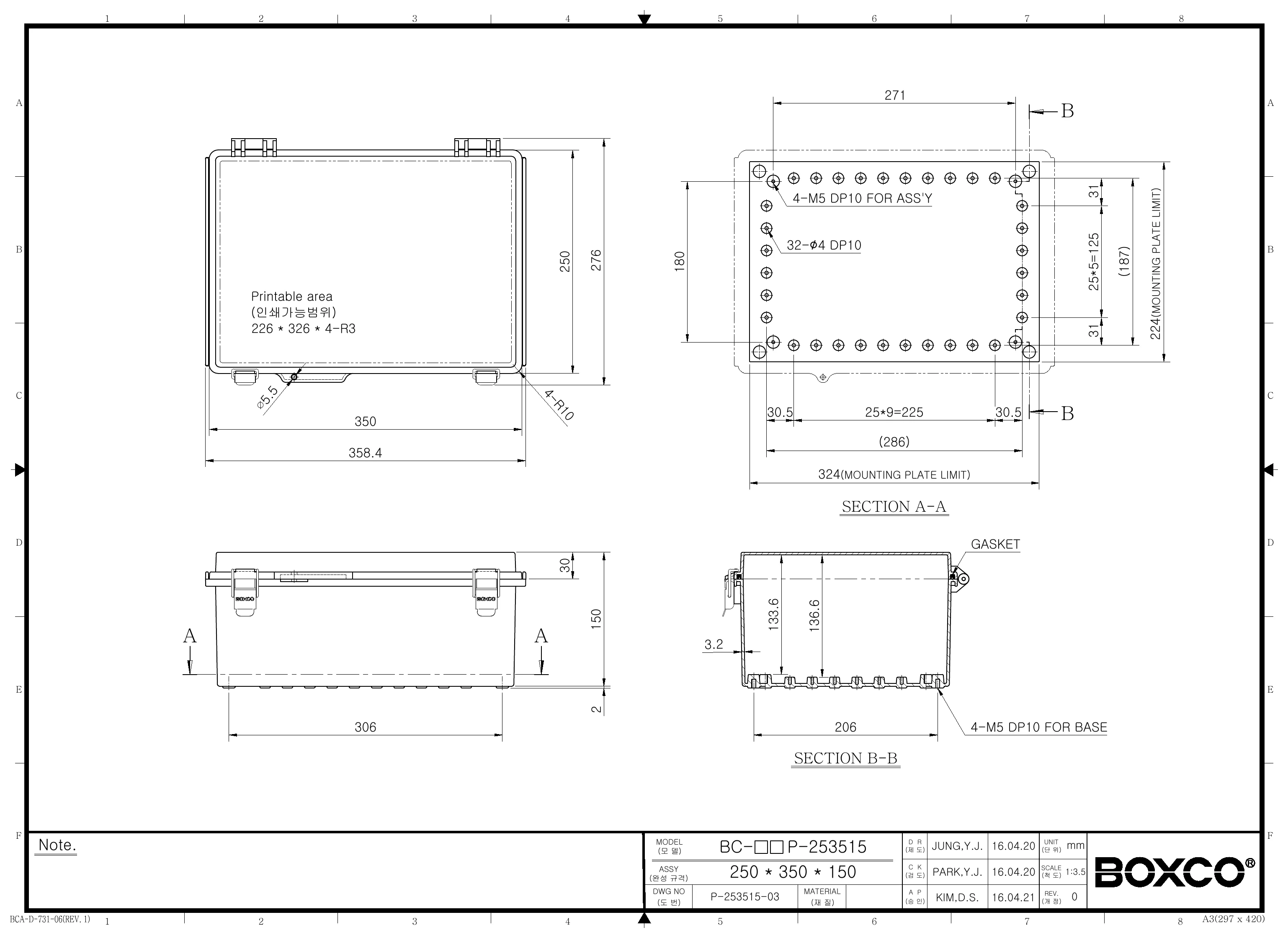

Technical drawings

BC-ATP-253515 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco P-Series BC-ATP-253515 enclosure best suited for?

This enclosure is designed for protecting electrical or electronic equipment in industrial and outdoor environments where dust and water resistance matter. Its ABS body, transparent cover, molded hinge, and latch design make it a practical choice for control, monitoring, or instrumentation housings that benefit from visible inspection without opening the cover.

What are the key protection ratings for this enclosure?

The BC-ATP-253515 is rated IP67 for resistance to dust ingress and temporary water exposure, and IK08 for impact resistance. The product description also notes UV stabilizer material for outdoor use and a gasket designed for strong waterproof and dust-proof performance.

Is this plastic enclosure suitable for outdoor use?

Yes, this model is intended for outdoor use. The enclosure includes ultraviolet stabilizer to reduce long-term color change, and the roof protection design at both ends helps limit water penetration when the cover is opened or closed outdoors.

What are the size and material details of this enclosure?

This model measures 9.84 x 13.78 x 5.91 inches, which corresponds to 250 x 350 x 150 mm. It is made from ABS plastic and uses a transparent cover, giving users visibility into the enclosure interior while maintaining environmental protection.

What temperature range can the BC-ATP-253515 handle?

The stated operating temperature range for this enclosure is -40°C to 70°C. That range supports use in both cold and hot industrial environments, provided the overall application stays within the enclosure's published limits.

Does this enclosure support internal mounting of components?

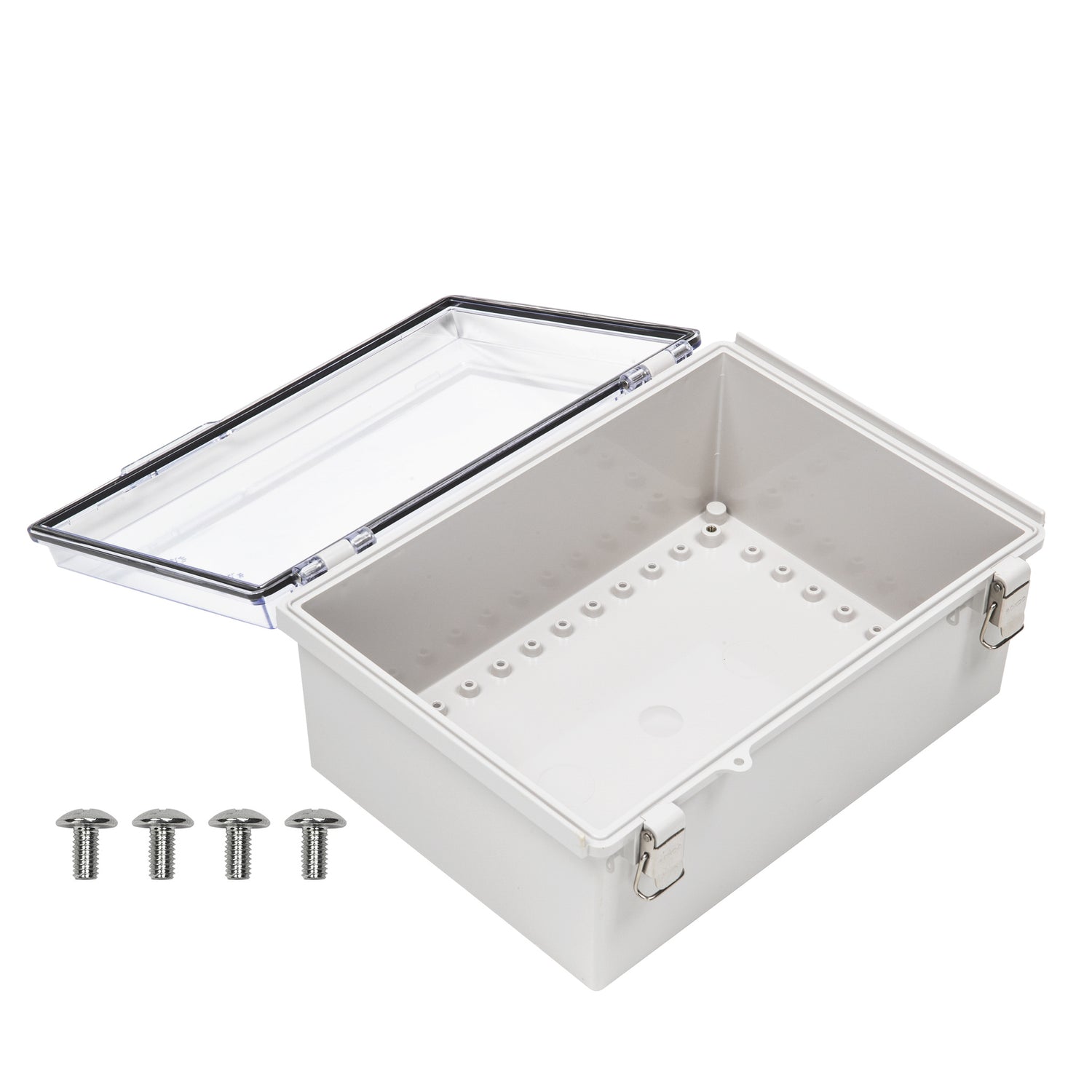

Yes, the product description states that it includes pre-molded mounting screw nuts and internal mounting plate attachment points with brass inserted injection molding. These features are intended to help secure DIN rail or other internal equipment more firmly inside the enclosure.
