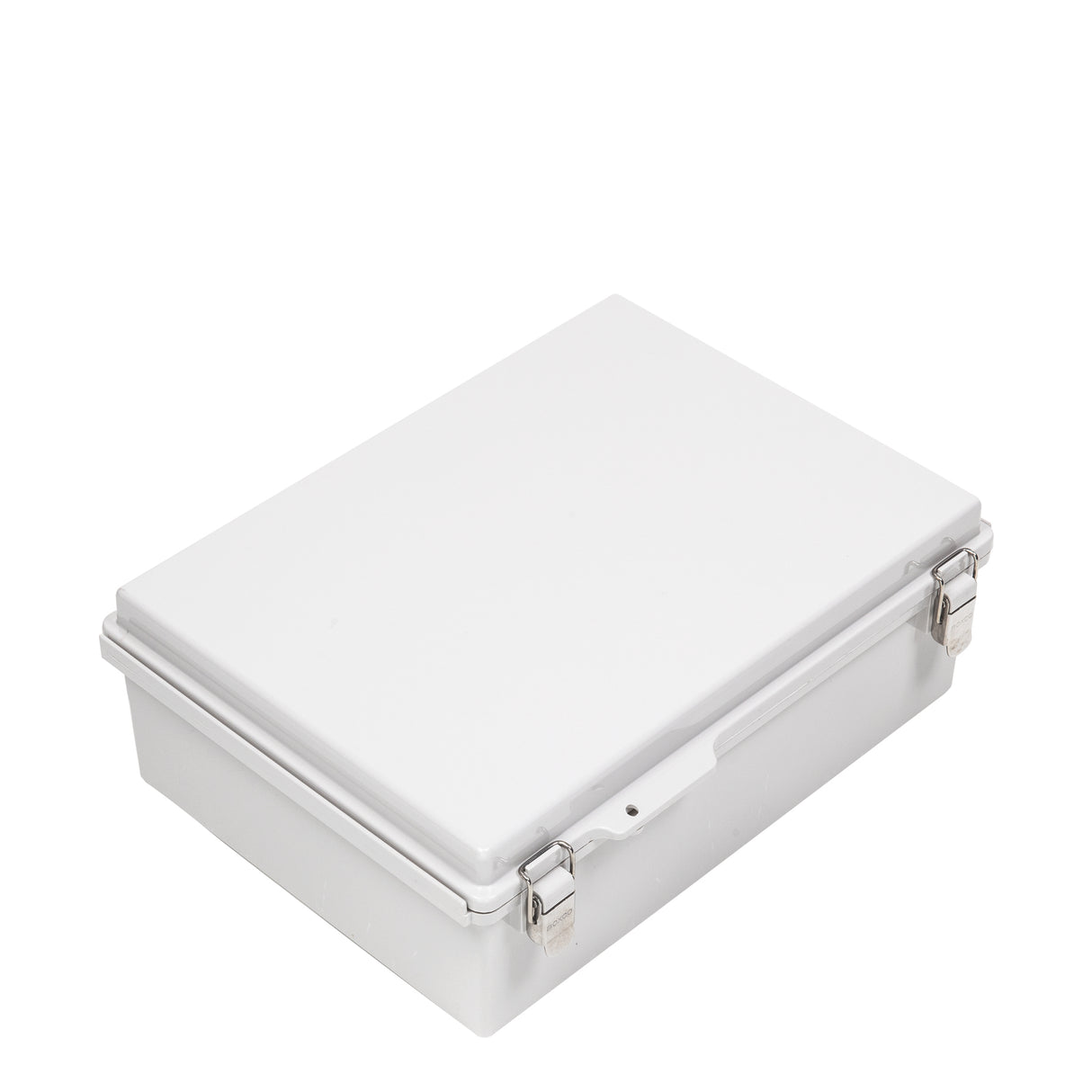

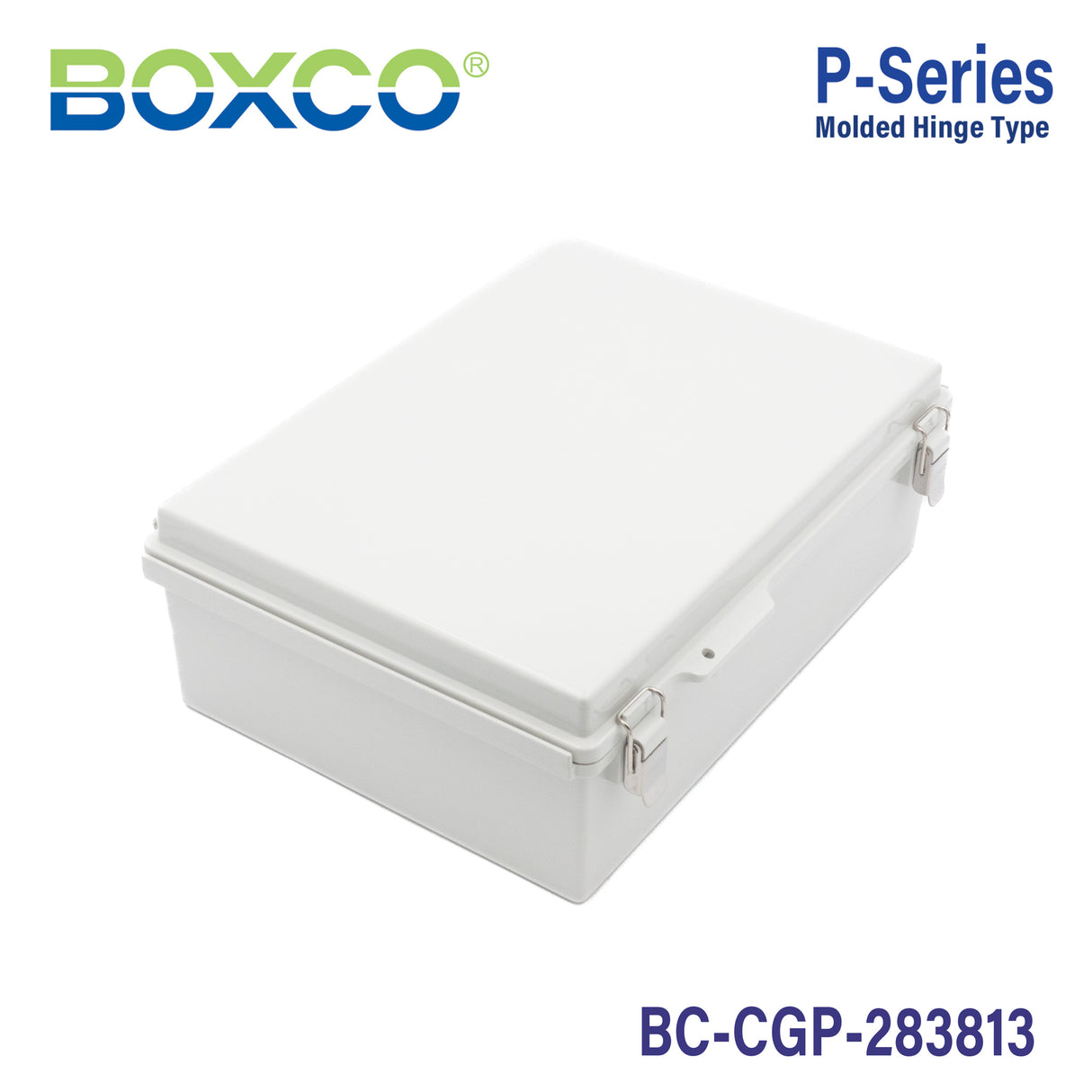

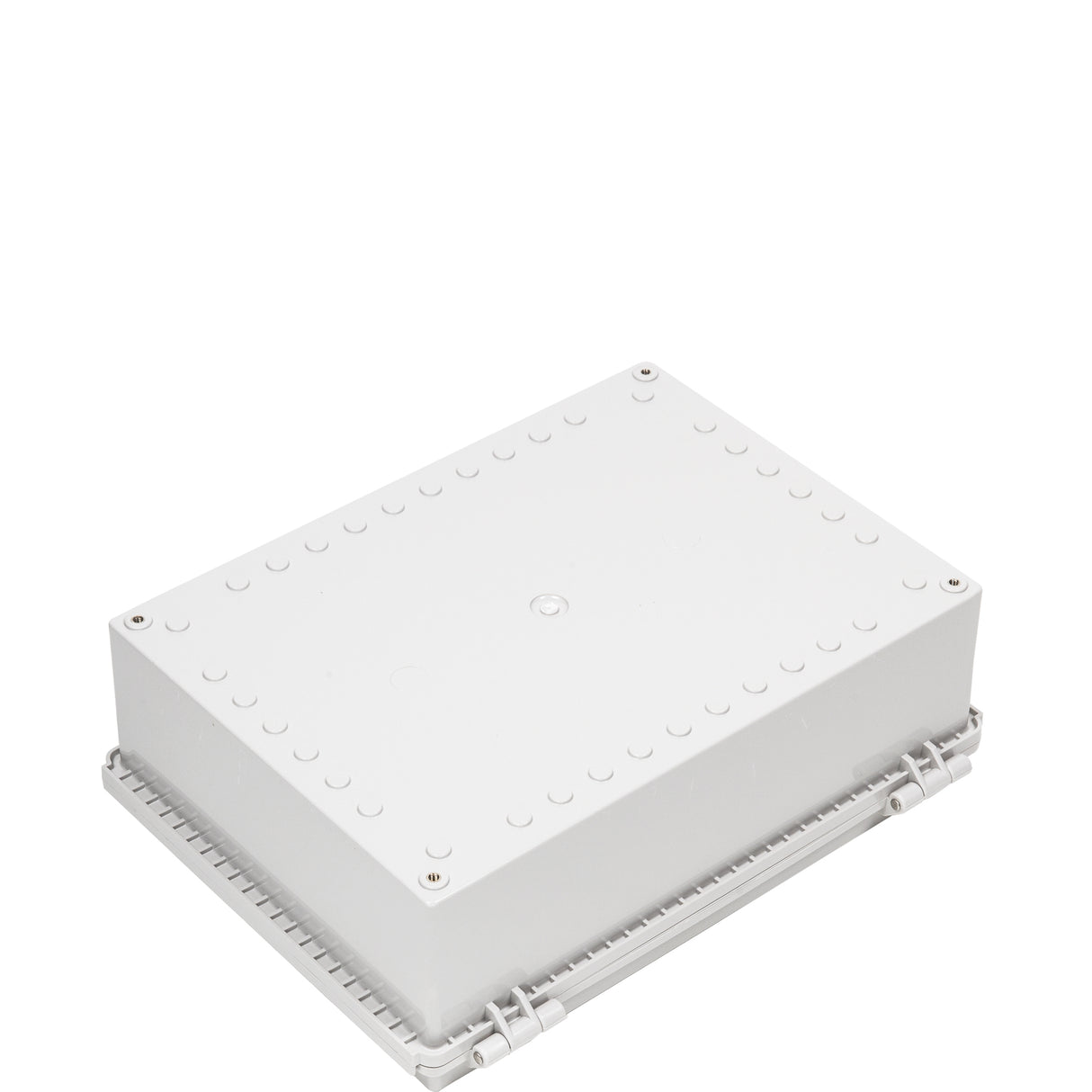

Boxco P-Series 280x380x130mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Molded Hinge and Latch Type

SKU BC-CGP-283813
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-CGP-283813 is a 280×380×130 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-CGP-283813Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
280×380×130 mm (11.02×14.96×5.12 in)
Mounting plate dimension M1 × M2
249 × 348 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
2838 PG (Plastic, PG type), 2838 P (Plastic, P type), 2838 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

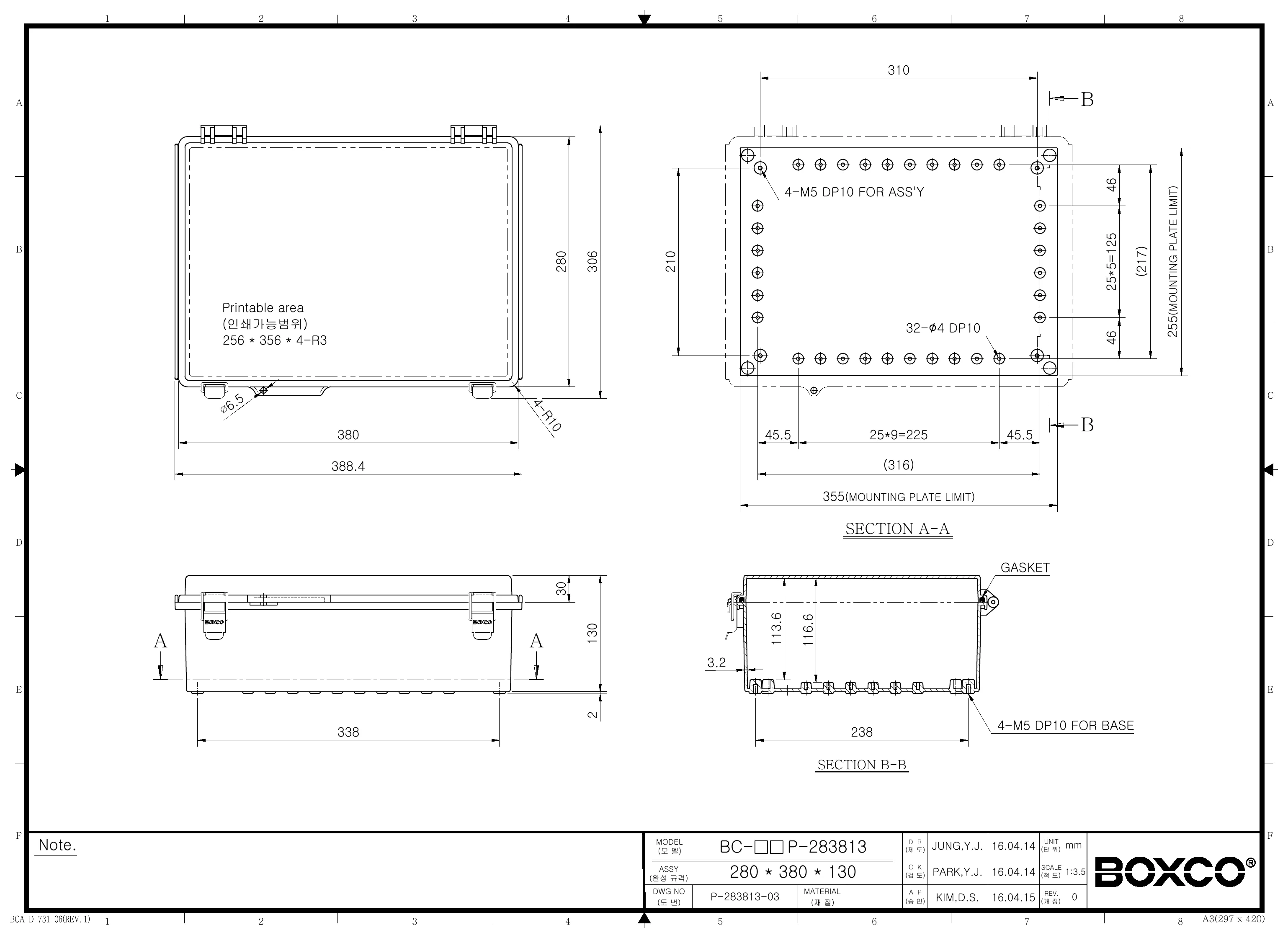

Technical drawings

BC-CGP-283813 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is this Boxco P-Series enclosure typically used for?

This model is a plastic enclosure designed to protect electrical or electronic equipment in demanding industrial and commercial environments. Its IP67 sealing, IK08 impact rating, and UV-stabilized construction make it a practical choice for indoor or outdoor protection where dust, water, and physical exposure are concerns.

Is this enclosure suitable for outdoor use?

Yes. The product description states that an ultraviolet stabilizer is added for outdoor usage, and the enclosure is designed to resist noticeable color change over long periods. It also includes roof protection features that help reduce water and dust penetration when the cover is opened or closed outdoors.

What are the size and material details for this enclosure?

This Boxco P-Series enclosure measures 11.02 x 14.96 x 5.12 inches, which is 280 x 380 x 130 mm. It is made from polycarbonate (PC) and comes with a grey cover in a molded hinge and latch configuration.

How much environmental protection does this enclosure provide?

This model is rated IP67, which indicates strong protection against dust ingress and water exposure. It also carries an IK08 impact rating, showing that the enclosure is built to handle meaningful external impact better than lighter-duty housings.

What temperature range can this enclosure handle?

The stated operating temperature range is from -40 degrees C to 110 degrees C. That makes this model suitable for applications exposed to both low-temperature and elevated-heat environments within that range.

What makes this model different from a basic plastic enclosure?

This enclosure includes several upgraded design features beyond a basic box, including a molded integrated hinge, stainless steel latch components, CNC-injected gasket sealing, and pre-molded mounting screw nuts. It is also built from high-impact-resistant material and includes anti-static material for protecting sensitive electronic instruments.

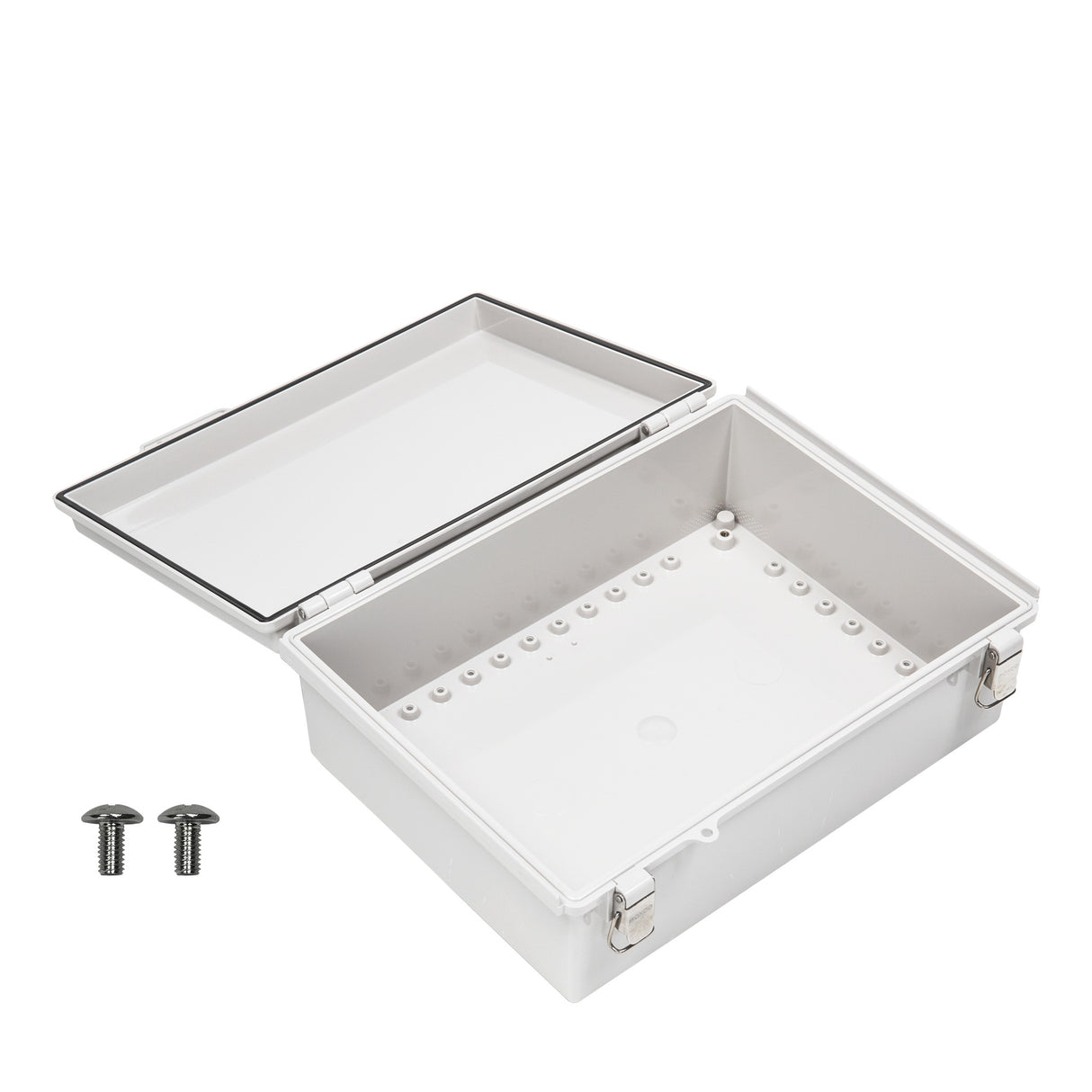

Does this enclosure support internal component mounting?

Yes. The enclosure includes pre-molded mounting screw nuts that can be used for DIN rail or other internal equipment mounting. It also has mounting plate attachment points with brass-inserted injection molding to support heavier internal equipment securely.

What is the weight and warranty for this enclosure?

This model has a listed weight of 1.6900 kg. The stated warranty period is 1 year.
