Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

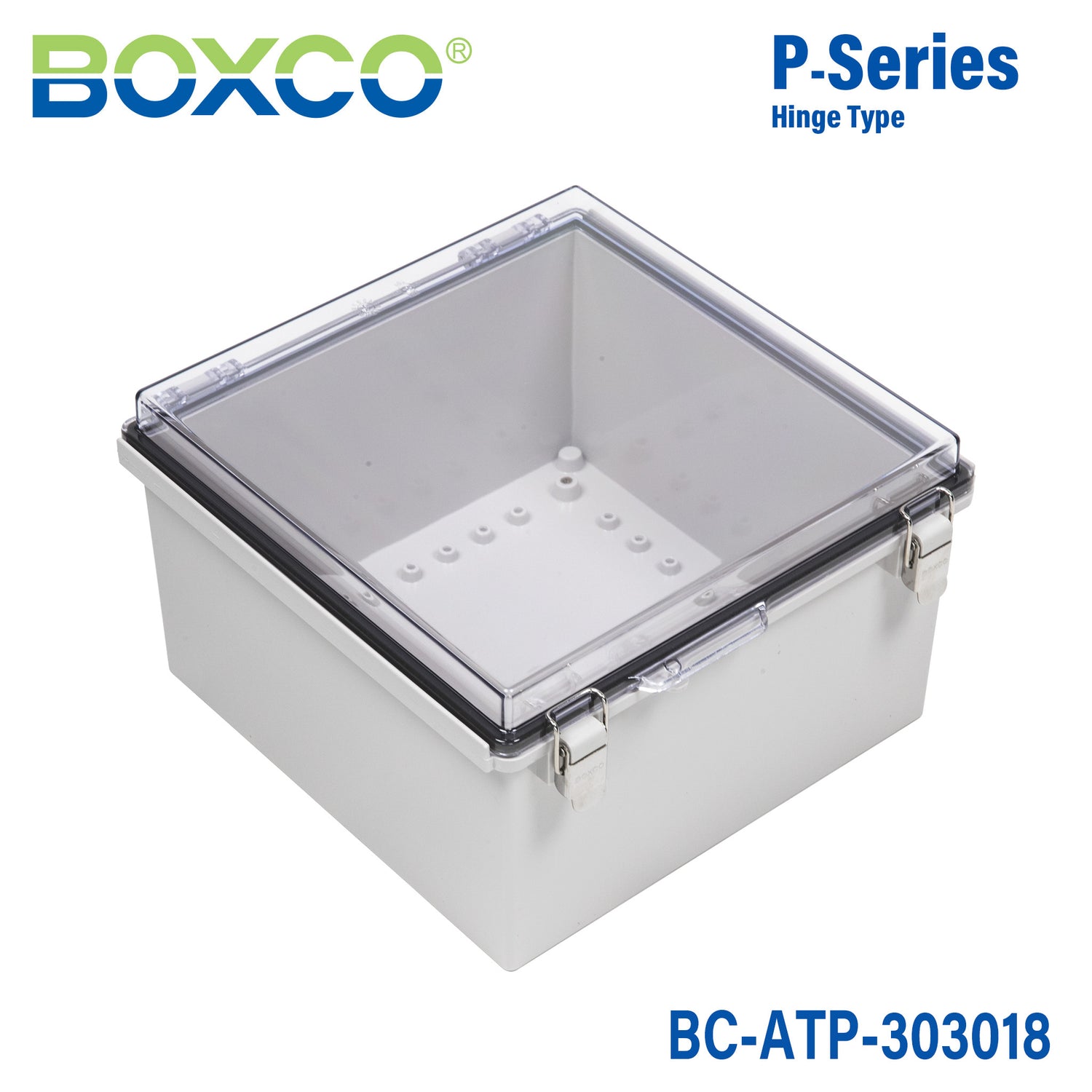

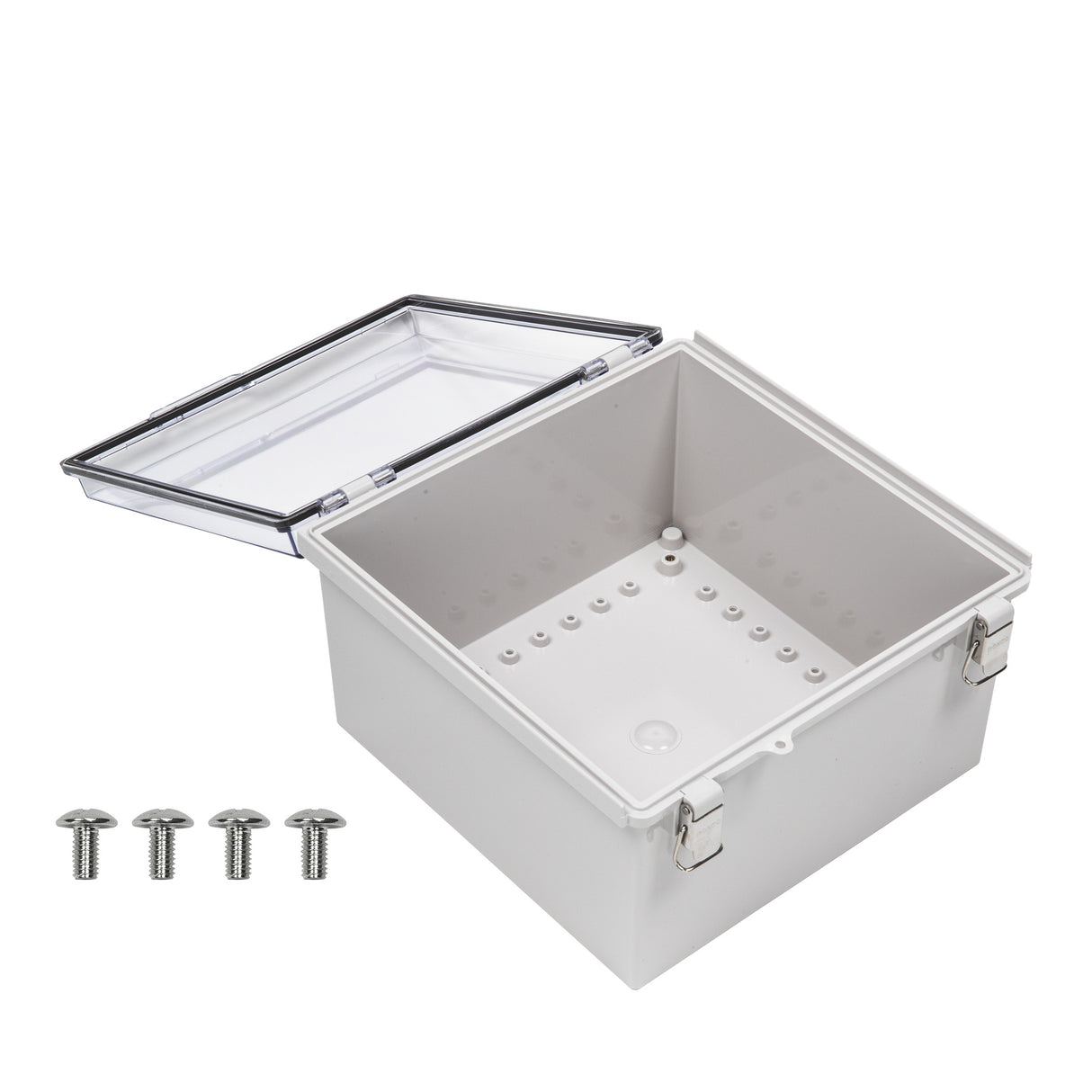

Boxco P-Series 300x300x180mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Molded Hinge and Latch Type

SKU BC-ATP-303018
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-ATP-303018 is a 300×300×180 mm ABS enclosure with a transparent cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-ATP-303018Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
300×300×180 mm (11.81×11.81×7.09 in)
Mounting plate dimension M1 × M2
262 × 262 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
3030 P (Plastic, P type), 3030 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

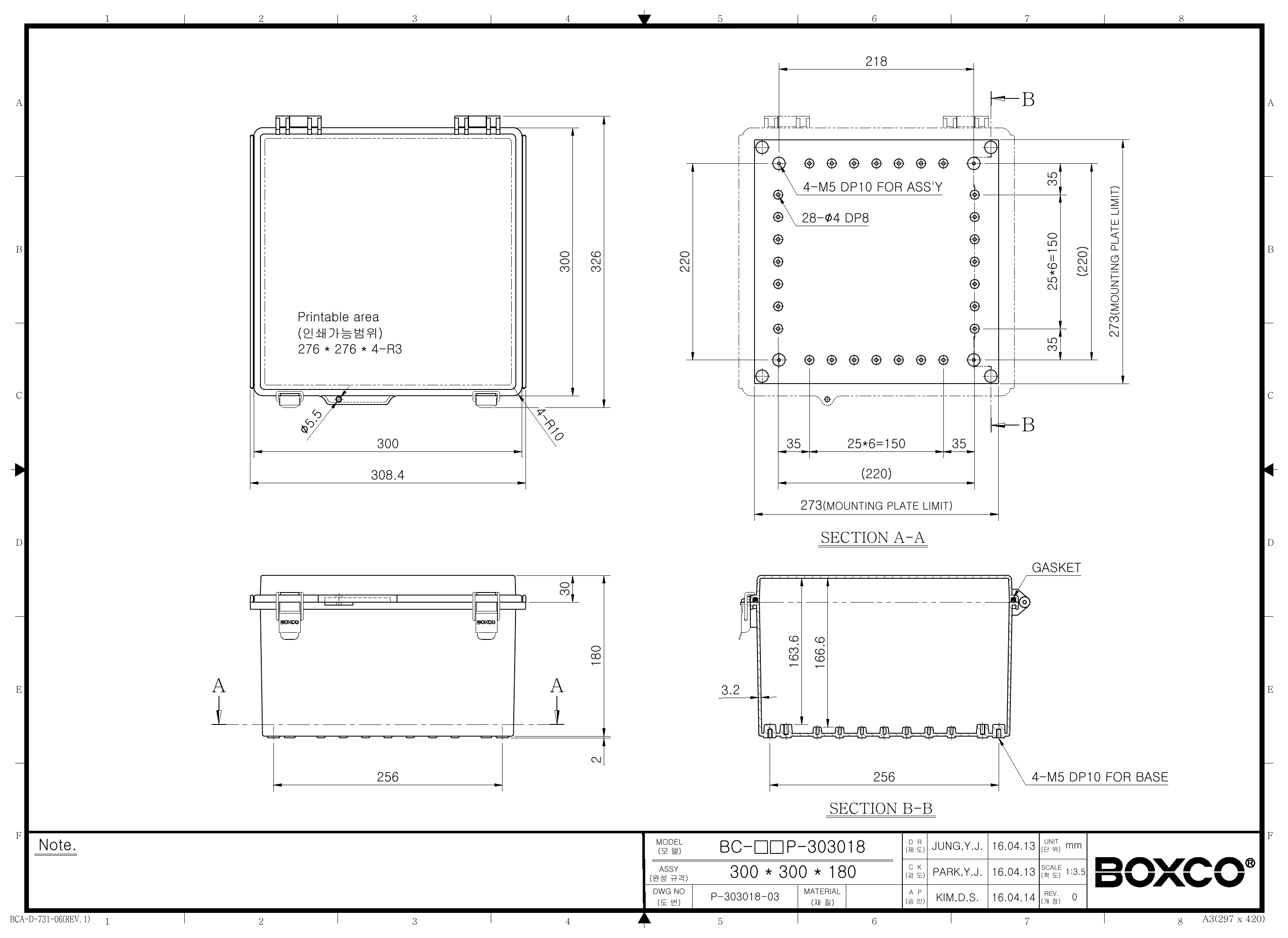

Technical drawings

BC-ATP-303018 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

Is the Boxco BC-ATP-303018 suitable for outdoor electrical and control enclosure use?

This model is built for demanding indoor or outdoor enclosure applications where dust and water resistance matter. It is rated IP67, uses a gasket designed for strong waterproof and dust-proof performance, and includes UV stabilizer protection to help limit visible color change over time. The operating temperature range is -40 to 70 degrees C.

What are the main specifications of the BC-ATP-303018 enclosure?

The BC-ATP-303018 measures 11.81 x 11.81 x 7.09 inches, which corresponds to 300 x 300 x 180 mm. It is an ABS plastic enclosure with a transparent cover, molded hinge and latch-style closure, IP67 ingress protection, IK08 impact resistance, and a listed weight of 1.548 kg. The stated warranty period is 1 year.

Why would a buyer choose the transparent cover version of this enclosure?

The transparent cover allows visual inspection of enclosed indicators, labels, or displays without opening the box. That can help in applications where quick status checks are useful while still maintaining the enclosure's sealed design. This model keeps the same IP67 and IK08 ratings while adding that viewing convenience.

Can this enclosure support internal mounting hardware or equipment panels?

Yes. The product description states that it includes pre-molded mounting screw nuts so DIN rail or other equipment can be fixed inside more easily. It also has internal mounting plate attachment points with brass inserted injection molding to better support heavier installed equipment.

What kinds of applications is this Boxco P-Series enclosure typically suited for?

This enclosure is well suited to industrial control, automation, instrumentation, and general-purpose equipment protection where a sealed non-metallic housing is needed. Its ABS construction, transparent cover, IP67 sealing, and IK08 impact rating make it a practical choice for protecting sensitive electronics in washdown-prone or dusty environments. The anti-static material noted in the product description also supports use around sensitive electronic instruments.

How durable is the latch and hinge system on this model?

The enclosure uses an integrated plastic hinge, and the hinge bearing is stainless steel to help improve service life. The draw latch's main part is also made of stainless steel for added strength. This combination is intended to give the enclosure a more durable open-close mechanism than a basic all-plastic latch design.
