Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco P-Series 300x300x180mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Molded Hinge and Latch Type

SKU BC-AGP-303018
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-AGP-303018 is a 300×300×180 mm ABS enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-AGP-303018Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
300×300×180 mm (11.81×11.81×7.09 in)
Mounting plate dimension M1 × M2
262 × 262 mm

Material

Material
ABS
Cover
Grey
Mounting plates
3030 P (Plastic, P type), 3030 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

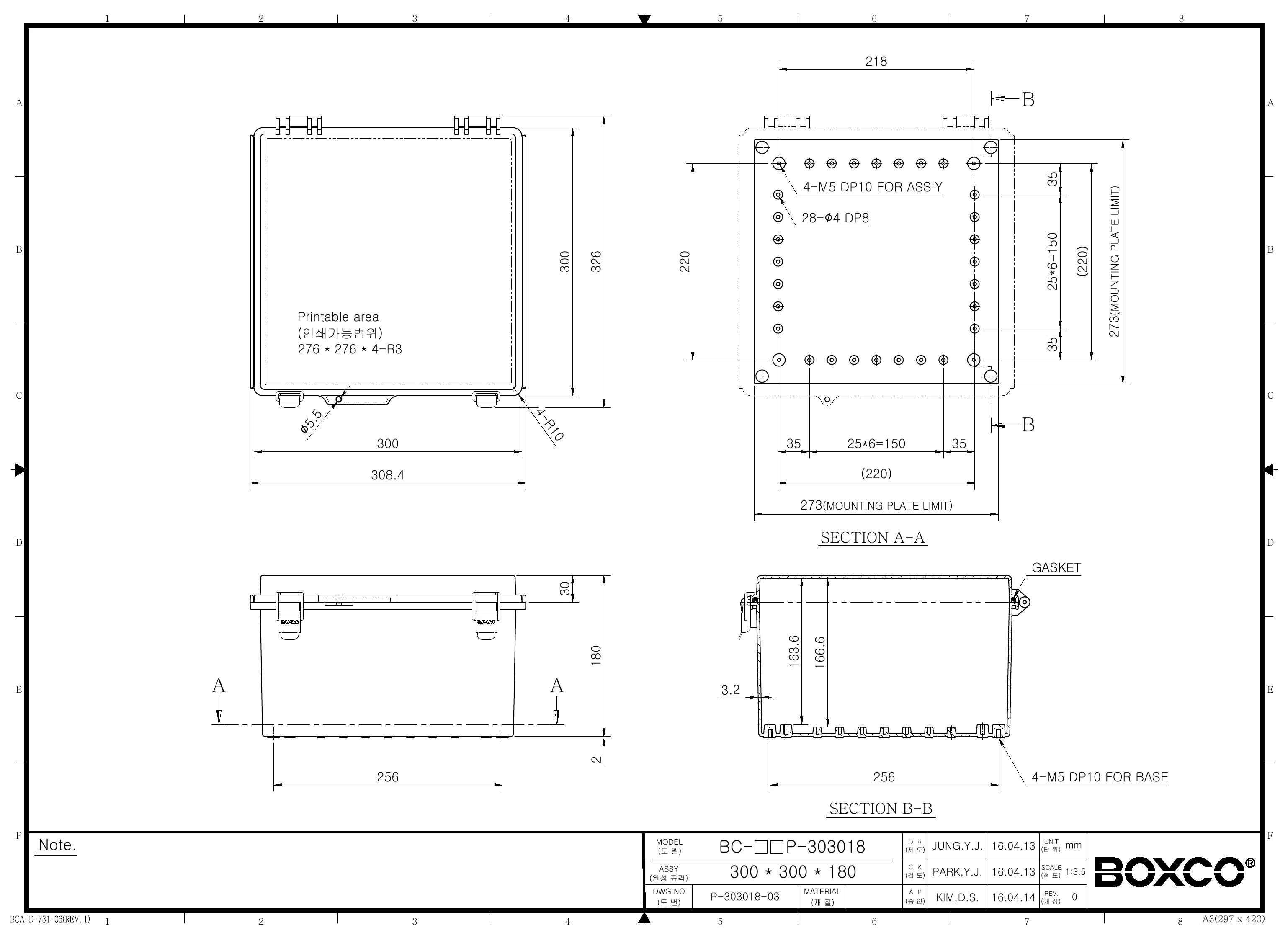

BC-AGP-303018 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco P-Series 300 x 300 x 180 mm plastic enclosure suited for?

This enclosure is suited for protecting industrial and commercial electrical or electronic components that need a sealed non-metallic housing. Its large 300 x 300 x 180 mm format, molded hinge, and latch-style cover make it a practical choice for control, monitoring, or protection equipment housed indoors or outdoors.

Is this enclosure suitable for outdoor environments?

Yes. This model includes ultraviolet stabilizer material for outdoor use, and the product description notes that color change is minimized over long exposure. It also has IP67 protection and roof-protection design features intended to help resist water and dust ingress.

What does the IP67 and IK08 rating mean for this enclosure?

The IP67 rating indicates this enclosure is designed for strong protection against dust and water ingress. The IK08 impact rating indicates resistance to mechanical impact, which aligns with the high-impact ABS construction described for this model.

What material is this Boxco enclosure made from?

This model is made from ABS and has a grey cover. The product description also states that anti-static material is used and that the enclosure is made from high impact resistant material to help protect sensitive instruments and reduce breakage during processing.

What are the main access and mounting features of this enclosure?

This model uses an integrated molded hinge with a stainless steel bearing and a latch whose main draw-latch part is stainless steel. It also includes pre-molded mounting screw nuts and internal mounting plate attachment points to support equipment mounting inside the enclosure.

What temperature range can this enclosure handle?

This model is rated for use from -40 °C to 70 °C. That range supports use in demanding ambient conditions where both low-temperature and elevated-temperature performance matter.
