Boxco

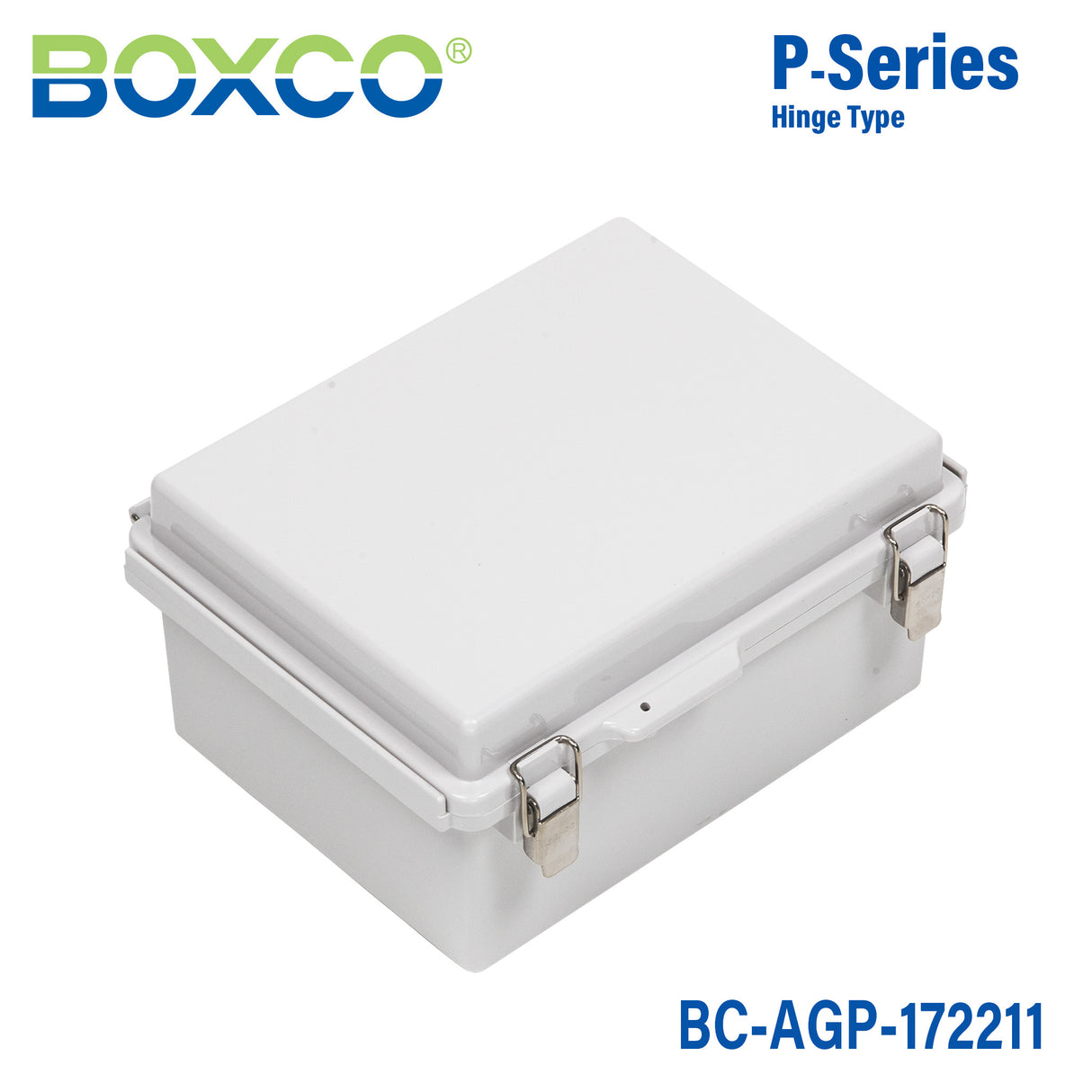

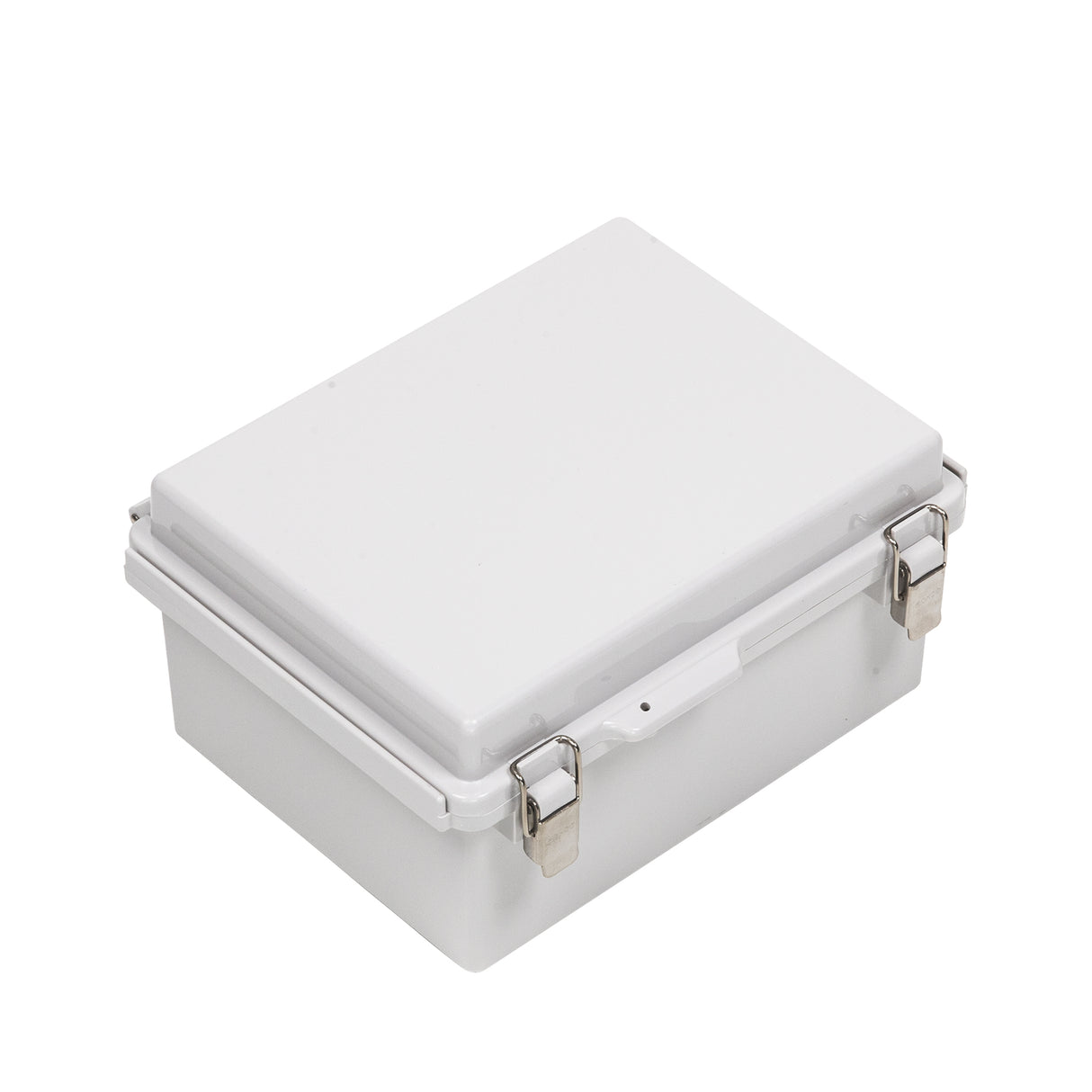

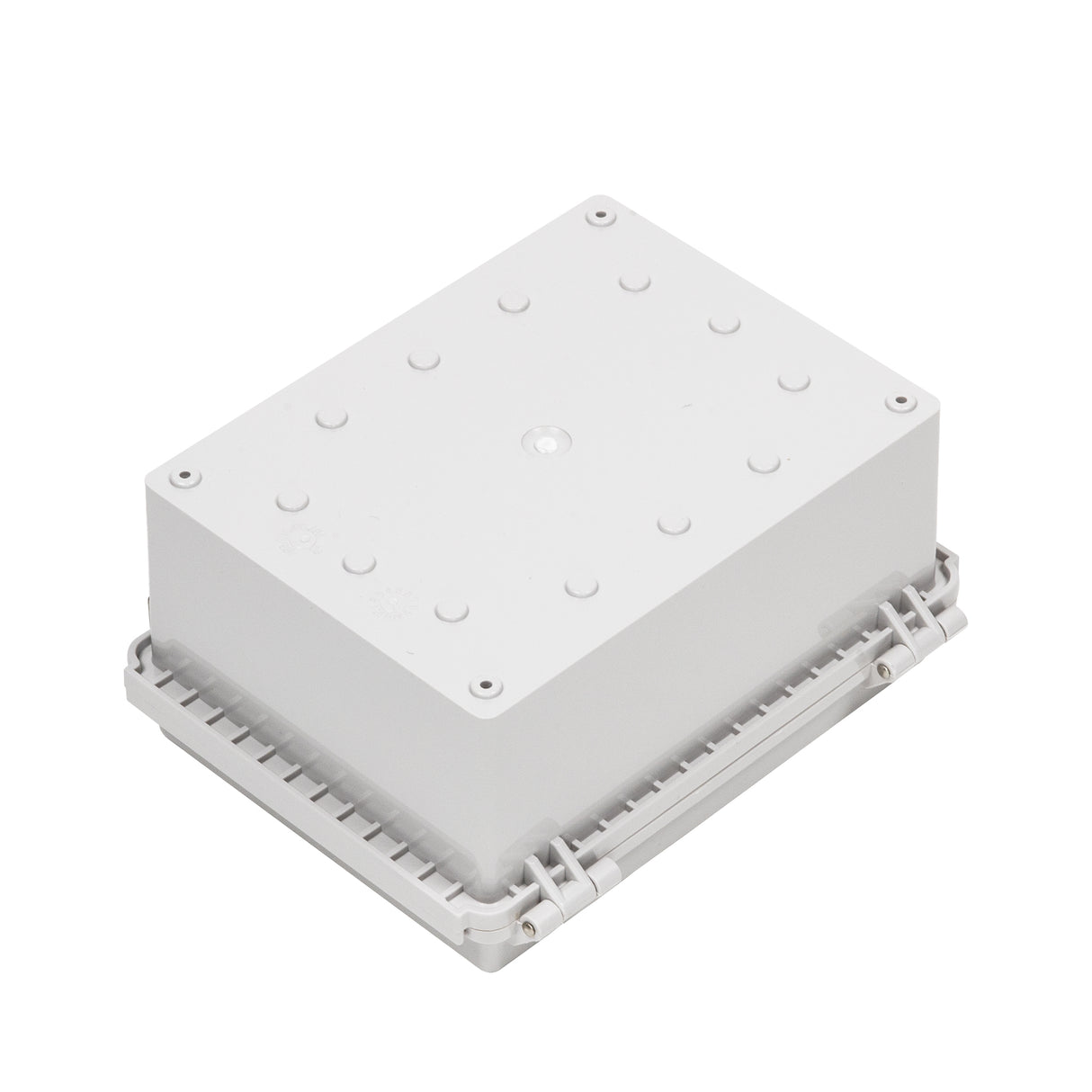

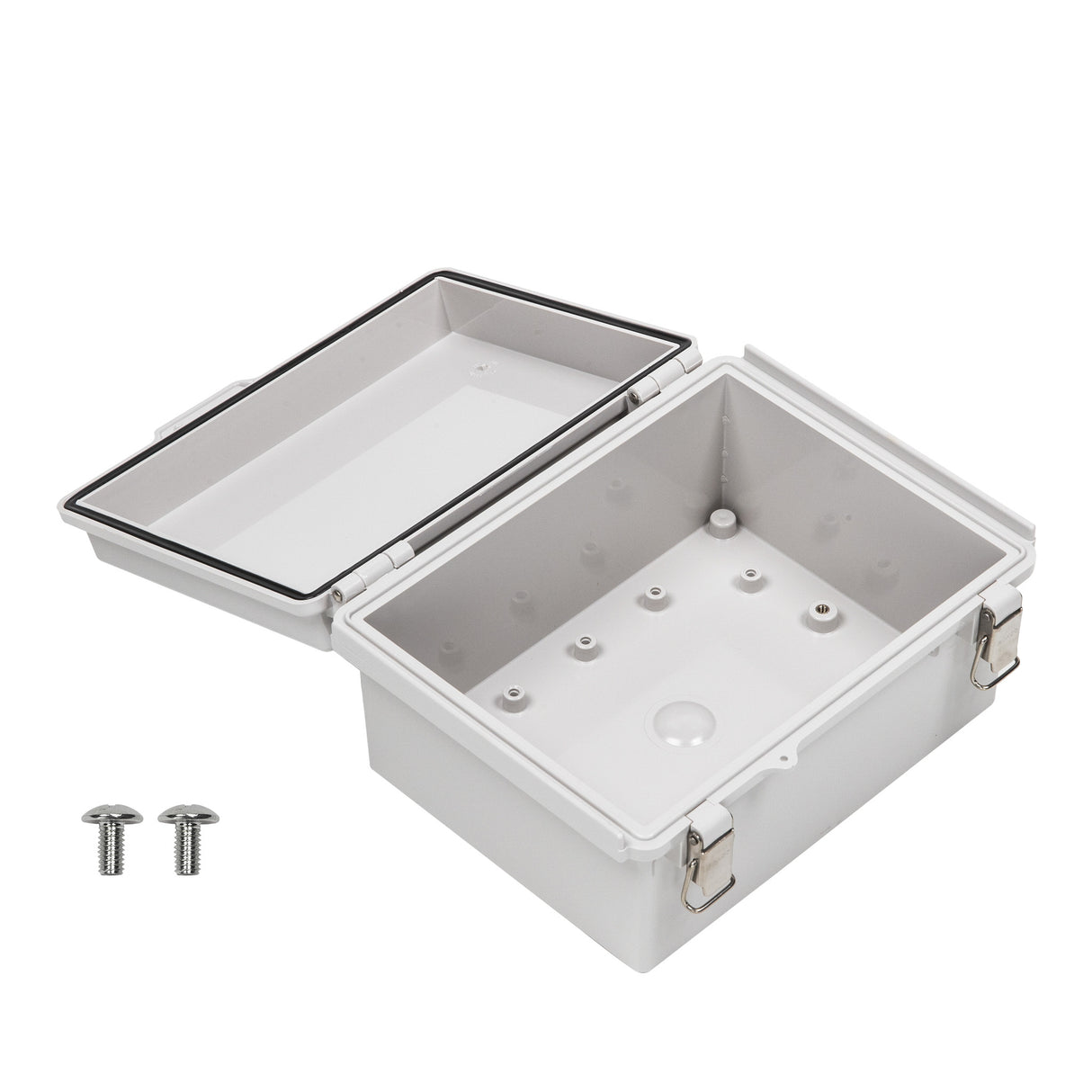

Boxco P-Series 170x220x110mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Molded Hinge and Latch Type

SKU BC-AGP-172211
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-AGP-172211 is a 170×220×110 mm ABS enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-AGP-172211Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
170×220×110 mm (6.69×8.66×4.33 in)
Mounting plate dimension M1 × M2
129 × 179 mm

Material

Material
ABS
Cover
Grey
Mounting plates
1520 G (Plastic, G type), 1520 P (Plastic, P type), 1520 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

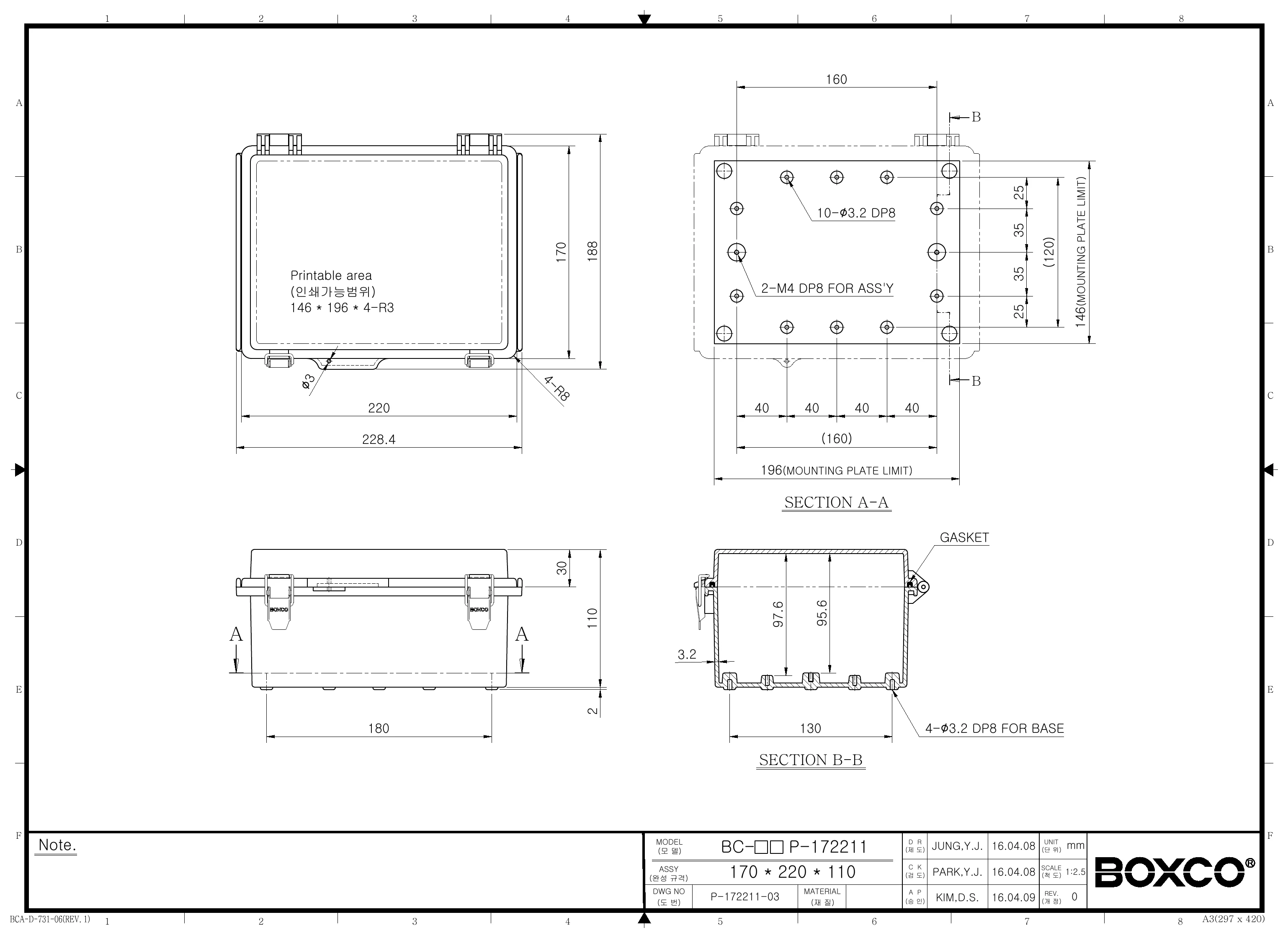

BC-AGP-172211 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco P-Series 170 x 220 x 110 mm enclosure suited for?

This enclosure is suited for protecting industrial and commercial electronics that need a sealed housing in indoor or outdoor environments. Its ABS construction, molded hinge and latch design, and IP67 dust and water resistance make it a practical choice for control, monitoring, and instrumentation enclosures.

How well does this enclosure hold up outdoors?

This model is designed for outdoor use with an ultraviolet stabilizer added to help reduce visible color change over time. It also includes roof protection features at both ends to help limit water penetration during outdoor use and dust entry when the cover is opened and closed.

What protection ratings does this plastic enclosure have?

This enclosure is rated IP67 and IK08. IP67 indicates strong protection against dust ingress and temporary water exposure, while IK08 indicates resistance to external mechanical impact for tougher operating environments.

What are the size, material, and cover style of this enclosure?

This Boxco P-Series enclosure measures 6.69 x 8.66 x 4.33 inches, which corresponds to 170 x 220 x 110 mm. It is made from ABS and comes with a grey cover, plus an integrated molded hinge and latch-type closure.

Can this enclosure be used for sensitive electronic equipment?

Yes, the product description states that anti-static material is used to help protect sensitive electronic instruments from static electricity. That makes this model a better fit for applications where electrostatic protection is a consideration.

What makes this model different from a basic plastic enclosure box?

This model adds several features beyond a basic box, including a molded hinge, latch closure with a stainless steel main latch part, pre-molded mounting screw nuts, and defined attachment points for an internal mounting plate. It is also built for outdoor durability with UV stabilization, roof protection, and a precision-injected gasket for waterproof and dust-proof performance.

What operating temperature range does this enclosure support?

This enclosure is specified for use from -40 °C to 70 °C. That range supports applications exposed to cold outdoor conditions as well as warmer industrial environments, provided the overall system is designed within those limits.
