Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco P-Series 400x600x230mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Molded Hinge and Latch Type

SKU:
BC-AGP-406023
Please for Pricing
|

Description

For Boxco P-Series,Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.

Features

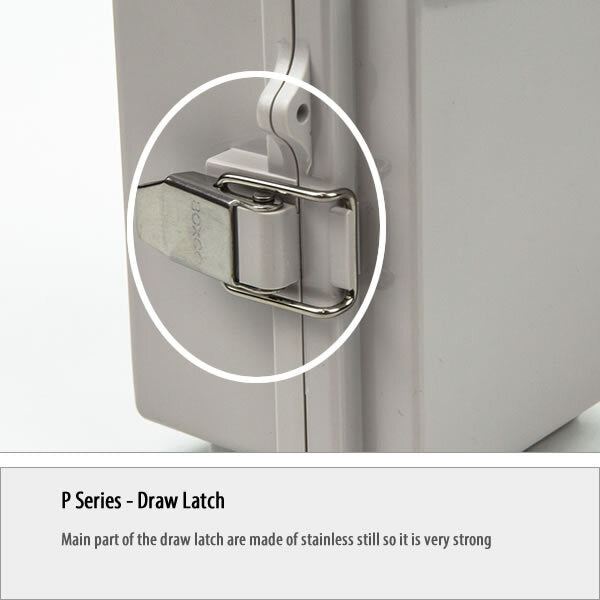

  • Latch - Main part of the draw latch is made of stainless steel so it is very strong.

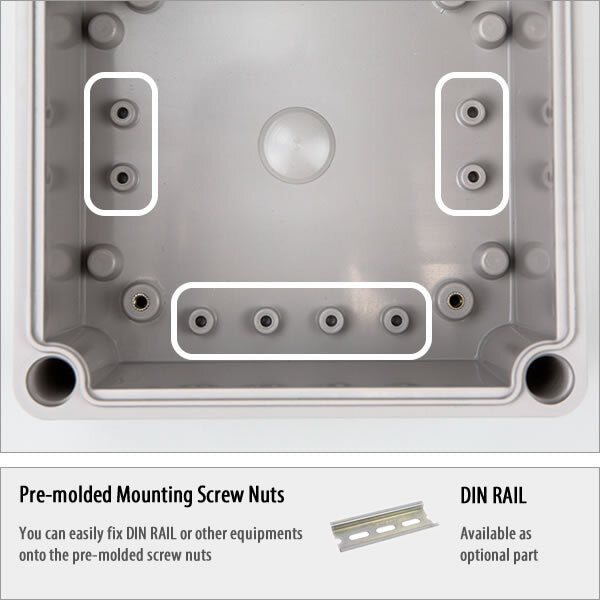

  • Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts

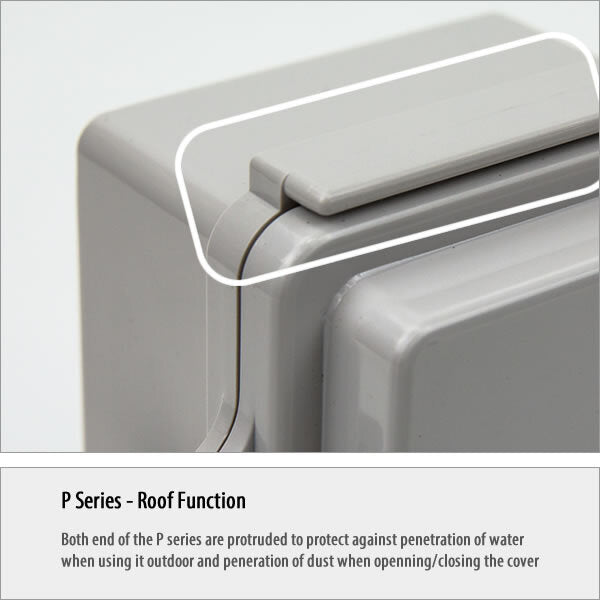

  • Roof Protection – Both ends of the P series are protruded to protect against penetration of water when using it outdoor and penetration of dust when opening/closing the cover

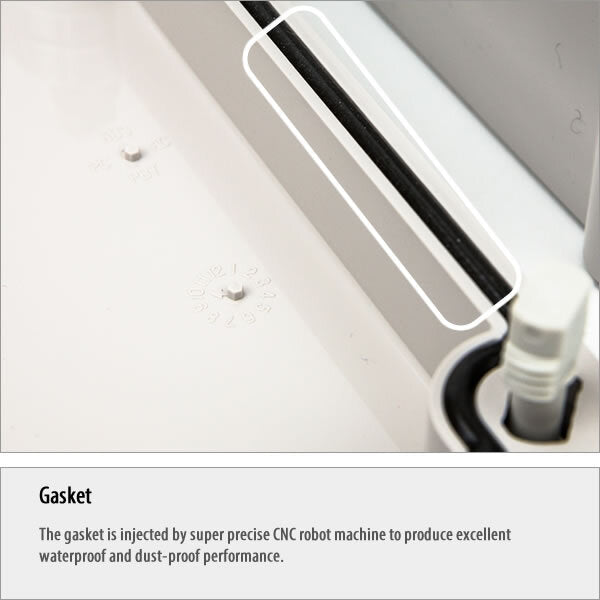

  • Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance

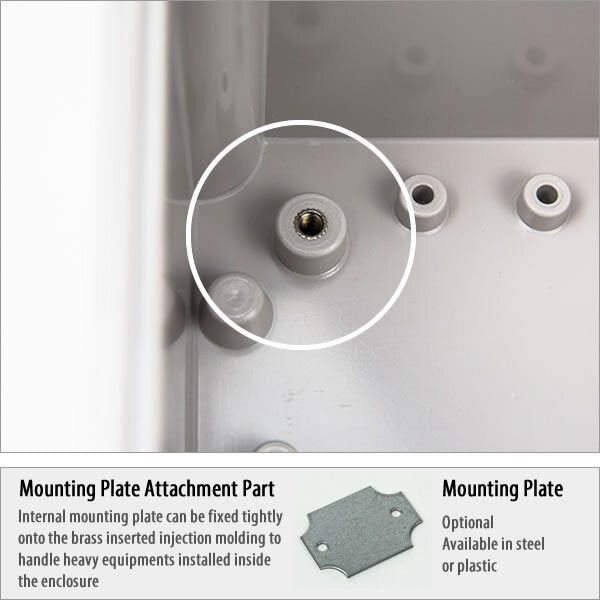

  • Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure

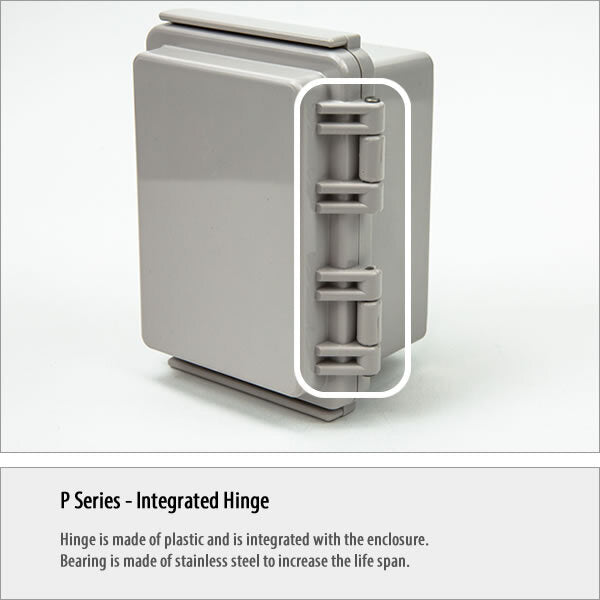

  • Integrated Hinge – Hinge is made of plastic and is integrated with the enclosure. Bearing is made of stainless steel to increase the life span.

Specifications
  • Brand
    Boxco
  • Series
    Boxco P Series
  • Standards Met
    CE,TUV,UL
  • Operating Temperature
    -40°C~70°C
  • Warranty
    1 Year
  • Length
    40 cm
  • Width
    60 cm
  • Height
    23 cm
  • Weight
    11.68 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What environments is this Boxco P-Series plastic enclosure designed for?

This model is built for demanding indoor or outdoor industrial environments where dust, water exposure, and impact resistance matter. It has an IP67 rating for dust-tight and water-resistant protection, and the ABS enclosure includes ultraviolet stabilizer material to help maintain performance during outdoor use.

What are the exact dimensions of this enclosure?

The enclosure measures 15.75 x 23.62 x 9.06 inches, which corresponds to 400 x 600 x 230 mm. That size makes it suitable for larger control, instrumentation, or protection applications that need more internal space than compact boxes.

How durable is this enclosure for industrial use?

This Boxco P-Series enclosure is made from high impact resistant ABS and carries an IK08 impact rating. It also uses a molded hinge with a stainless steel bearing and a stainless steel draw latch main part for added durability over repeated use.

What temperature range can this enclosure handle?

This model is rated for use from -40 degrees C to 70 degrees C. That range supports use in both cold and warm operating environments where the enclosure must protect sensitive equipment from external conditions.

Is this enclosure suitable for protecting sensitive electronic equipment?

Yes. The product description states that anti-static material is used to help protect sensitive electronic instruments from static electricity, making it a strong fit for applications where electrostatic protection is a concern.

What features help this enclosure resist water and dust ingress?

This enclosure combines several protective design elements, including an injected gasket for waterproof and dust-proof performance and roof protection at both ends to reduce water and dust penetration when the cover is opened or closed. These features support the model's IP67 protection rating.

Can this enclosure support internal hardware or mounting accessories?

Yes. It includes pre-molded mounting screw nuts for securing compatible internal components, and it has internal mounting plate attachment points with brass inserted injection molding to help hold heavier equipment more securely.
