Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

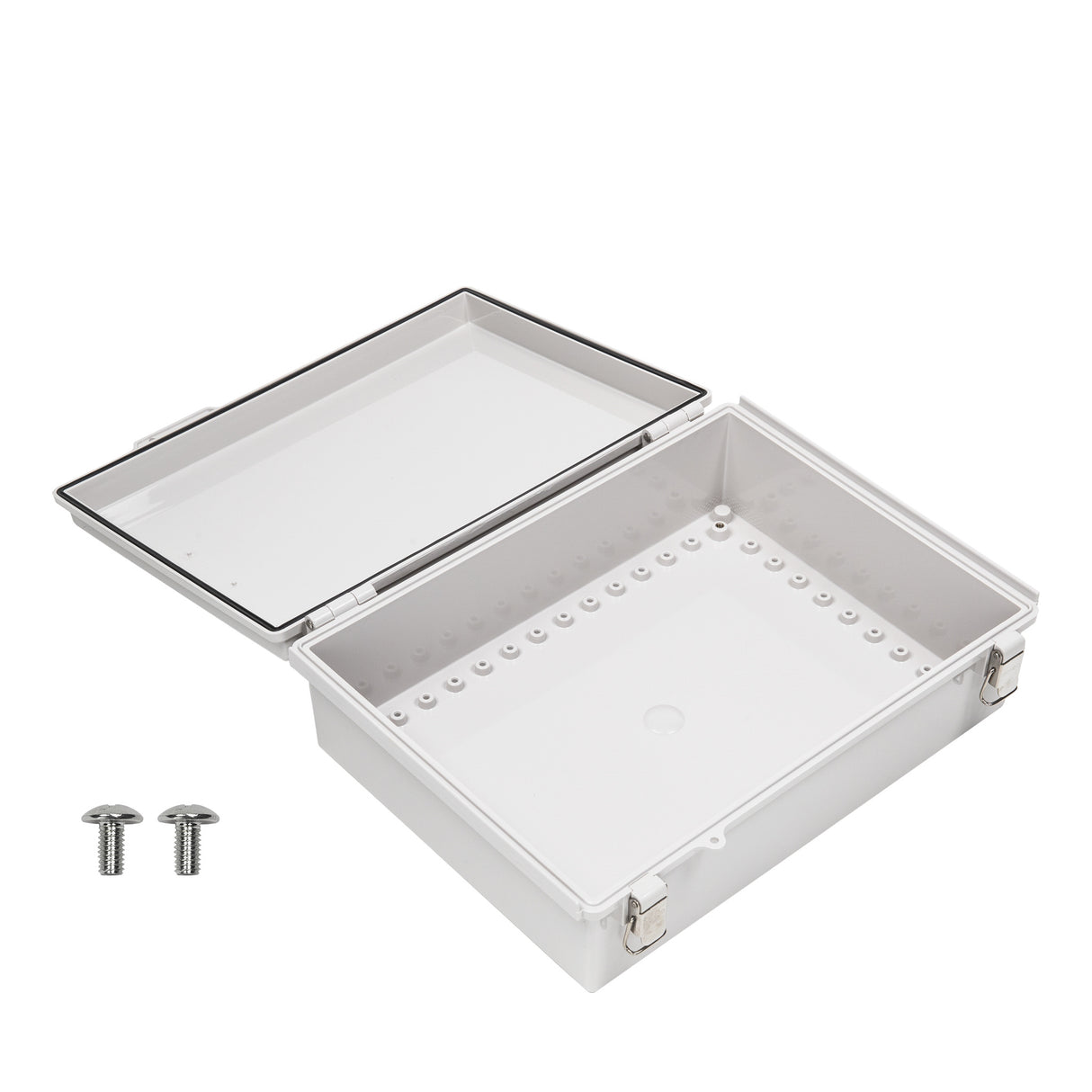

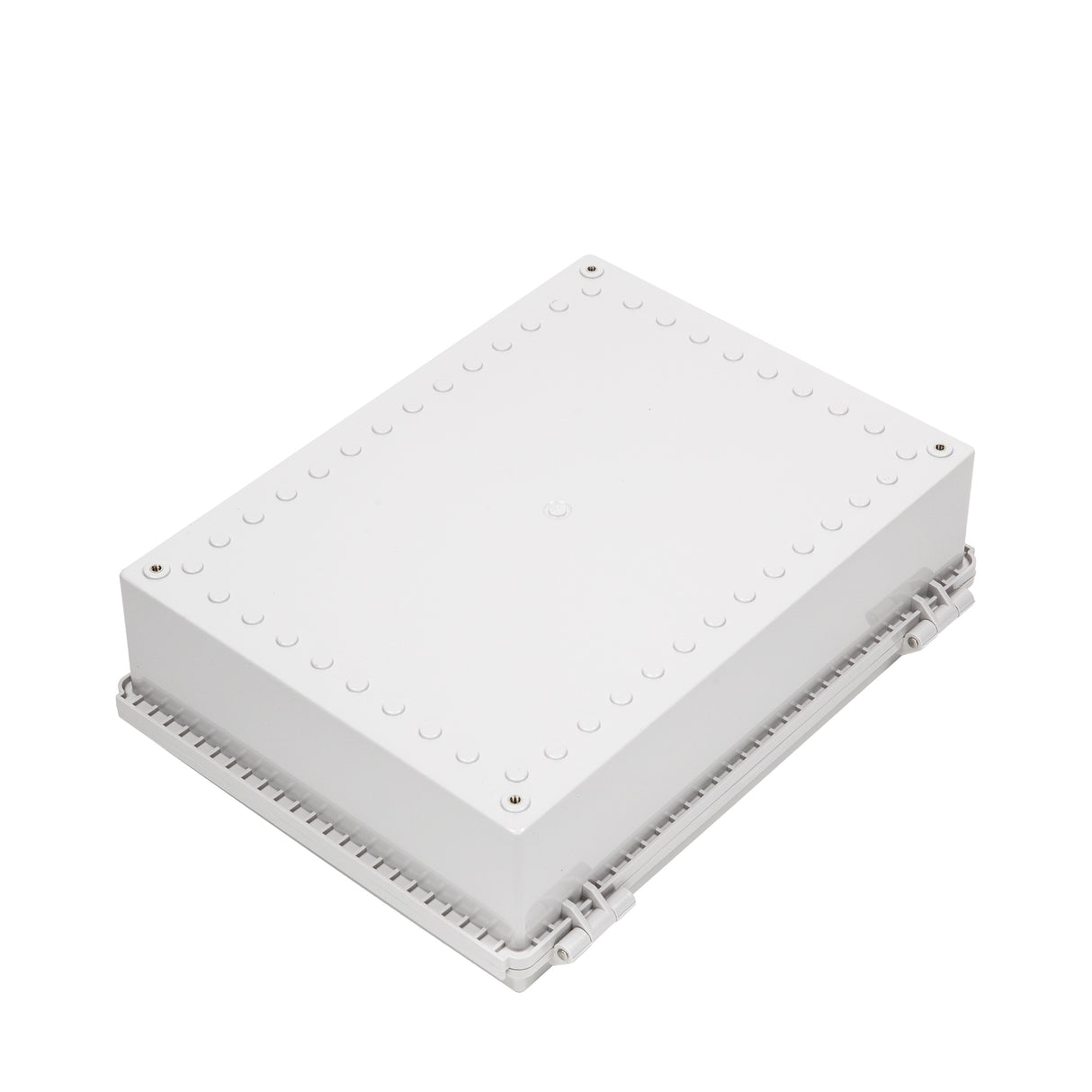

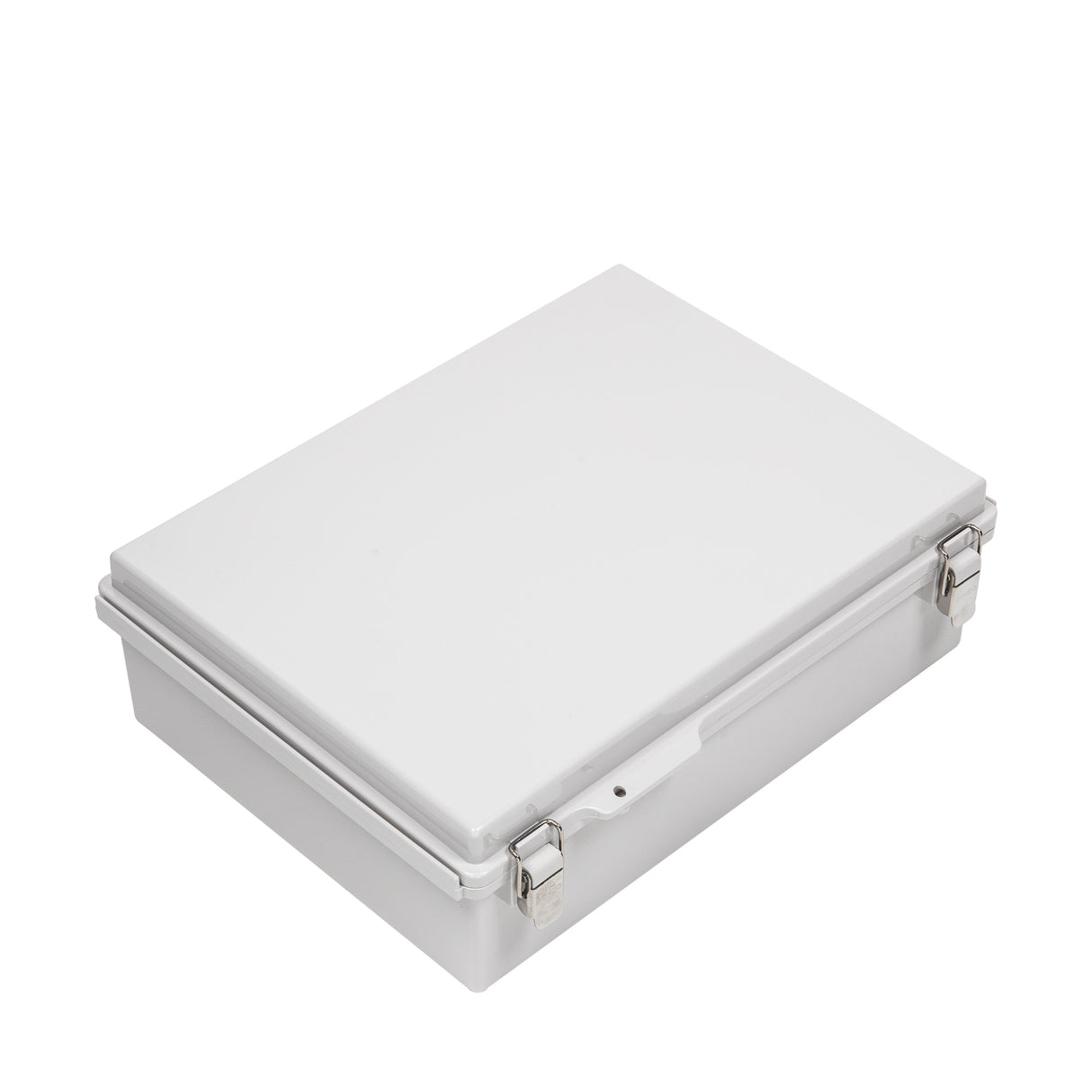

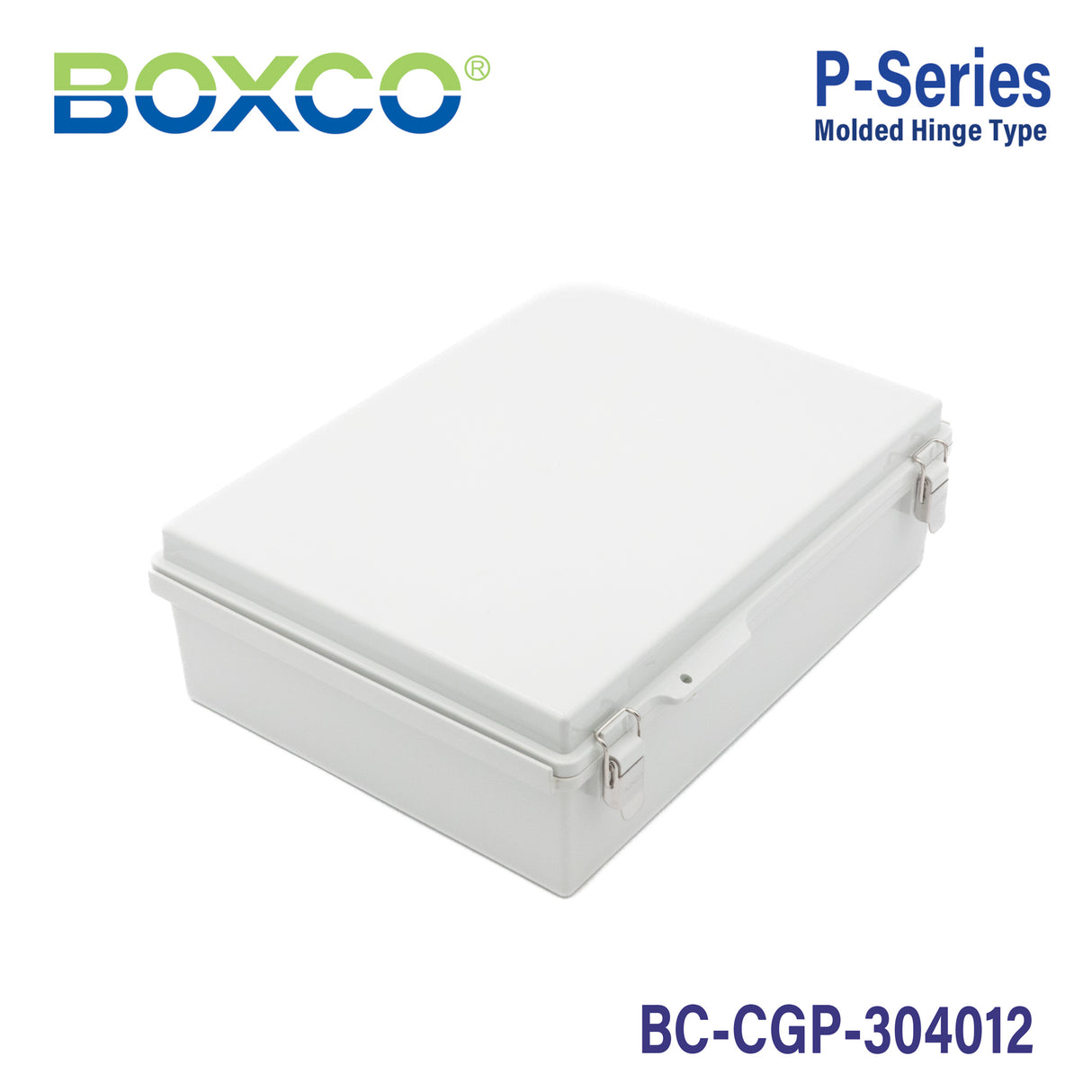

Boxco P-Series 300x400x120mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Molded Hinge and Latch Type

SKU:
BC-CGP-304012
Please for Pricing
|

Description

For Boxco P-Series,Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.

Features

  • Latch - Main part of the draw latch is made of stainless steel so it is very strong.
  • Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
  • Roof Protection – Both ends of the P series are protruded to protect against penetration of water when using it outdoor and penetration of dust when opening/closing the cover
  • Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
  • Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
  • Integrated Hinge – Hinge is made of plastic and is integrated with the enclosure. Bearing is made of stainless steel to increase the life span.

Specifications
  • Brand
    Boxco
  • Series
    Boxco P Series
  • Standards Met
    CE,TUV,UL
  • Operating Temperature
    -40°C~110°C
  • Warranty
    1 Year
  • Length
    30 cm
  • Width
    40 cm
  • Height
    12 cm
  • Weight
    1.71 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What is this Boxco P-Series enclosure typically used for?

This model is suited to protecting electrical or control components that need a sealed non-metallic enclosure in industrial or outdoor environments. Its IP67 sealing, IK08 impact rating, UV-stabilized polycarbonate construction, and anti-static material make it a practical choice where dust, water, impact resistance, and sensitive electronics protection all matter.

What are the size and material details for BC-CGP-304012?

The enclosure measures 11.81 x 15.75 x 4.72 inches, which corresponds to 300 x 400 x 120 mm. It is made from polycarbonate and comes with a grey cover in Boxco's molded hinge and latch style.

Is this enclosure suitable for outdoor use?

Yes. Boxco states that ultraviolet stabilizer is added to the P-Series to support outdoor use and reduce visible color change over time. The design also includes roof protection features and an IP67 rating to help resist water and dust exposure.

How durable is this plastic enclosure in harsh conditions?

This model is rated IP67 for dust-tight and water-resistant performance and IK08 for impact resistance. Boxco also describes the body material as high-impact resistant, and the integrated hinge uses a stainless steel bearing to improve service life.

What makes this enclosure different from a basic plastic junction box?

This Boxco P-Series model goes beyond a basic box by combining molded hinge-and-latch access, IP67 sealing, IK08 impact resistance, UV stabilization, anti-static material, and pre-molded mounting screw nuts. Those features make it better suited for more demanding industrial or outdoor protection needs than a simple general-purpose enclosure.

What operating temperature range does this enclosure support?

The specified operating temperature range is -40 C to 110 C. That wide range makes it suitable for applications exposed to both low and high ambient temperatures, provided the installed internal components are also rated appropriately.
