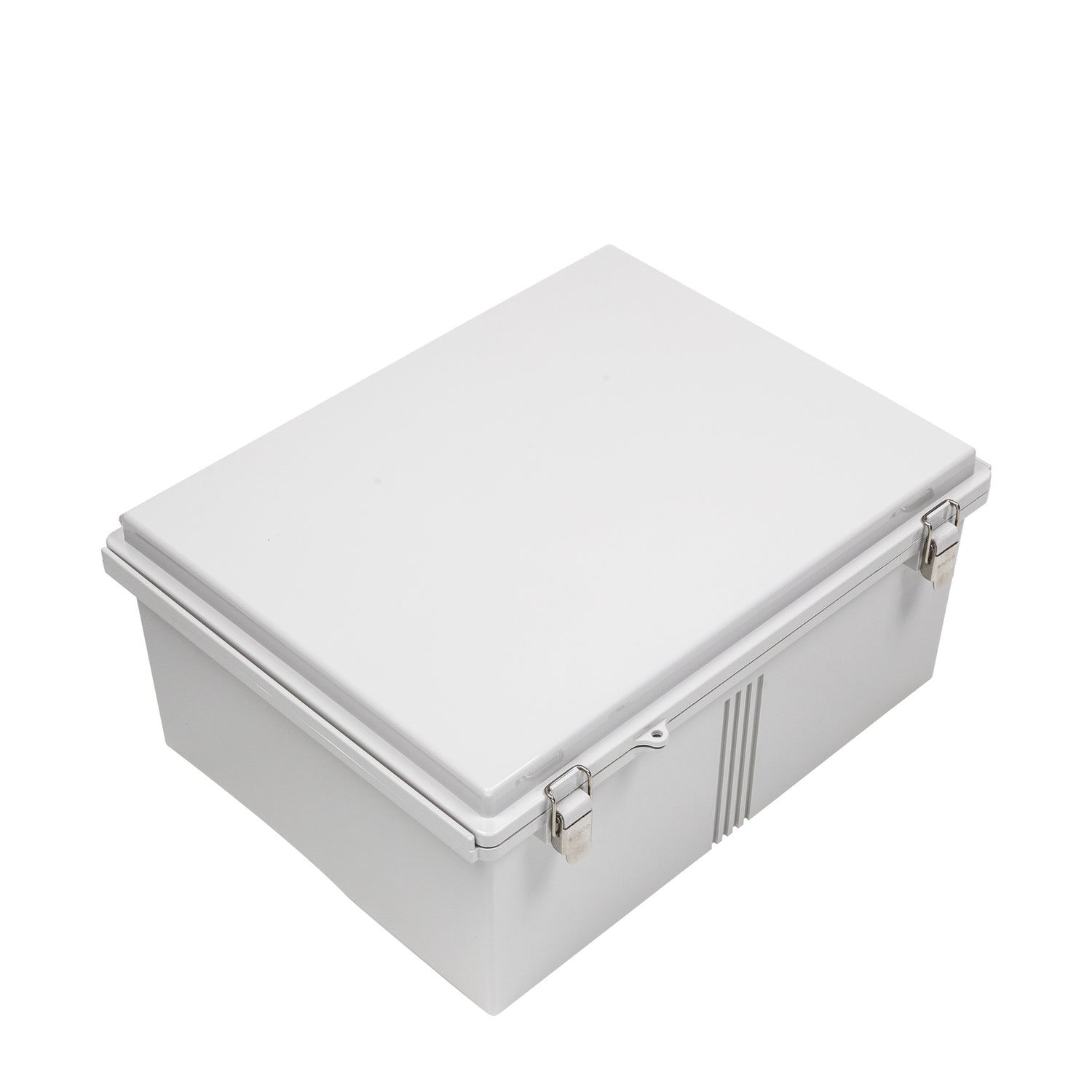

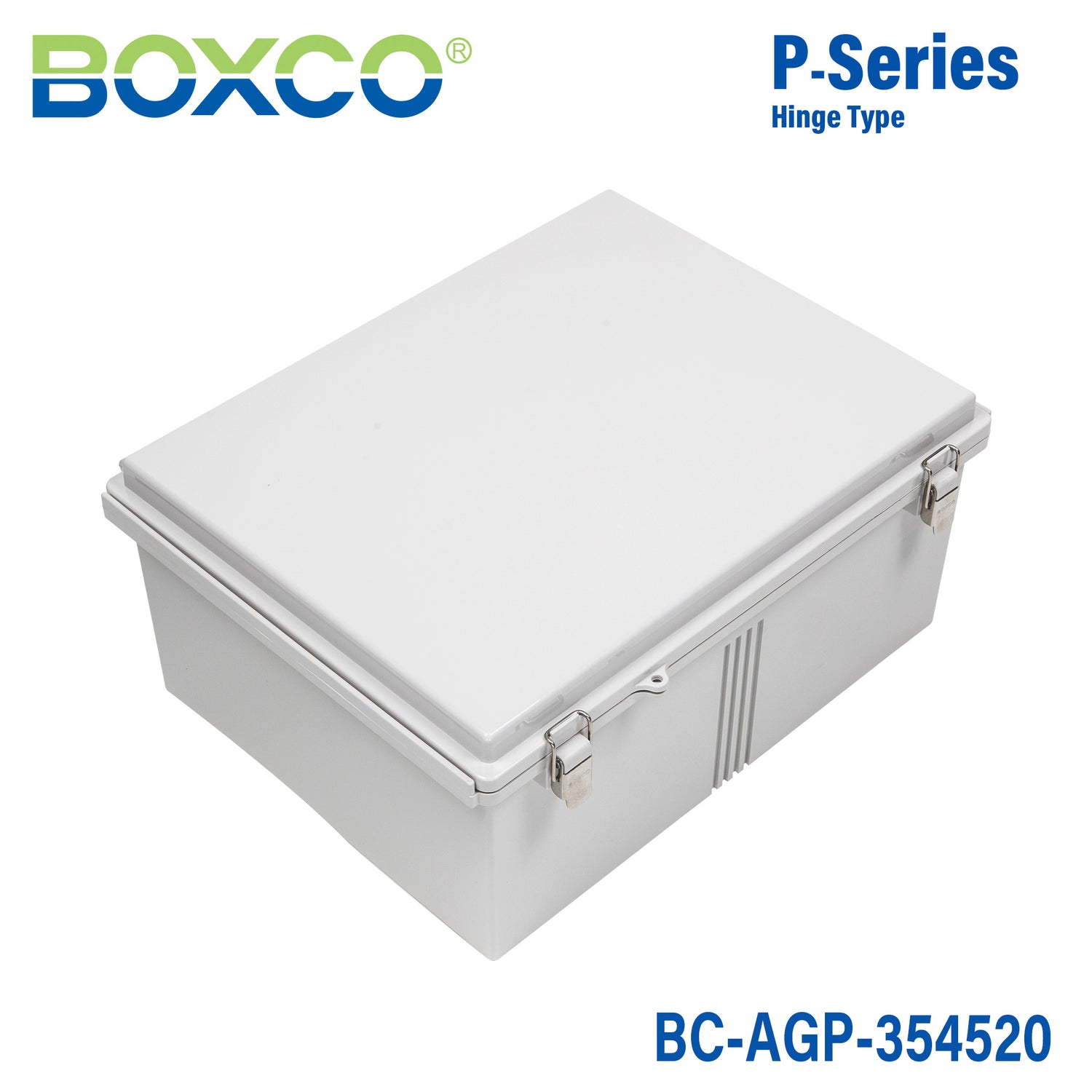

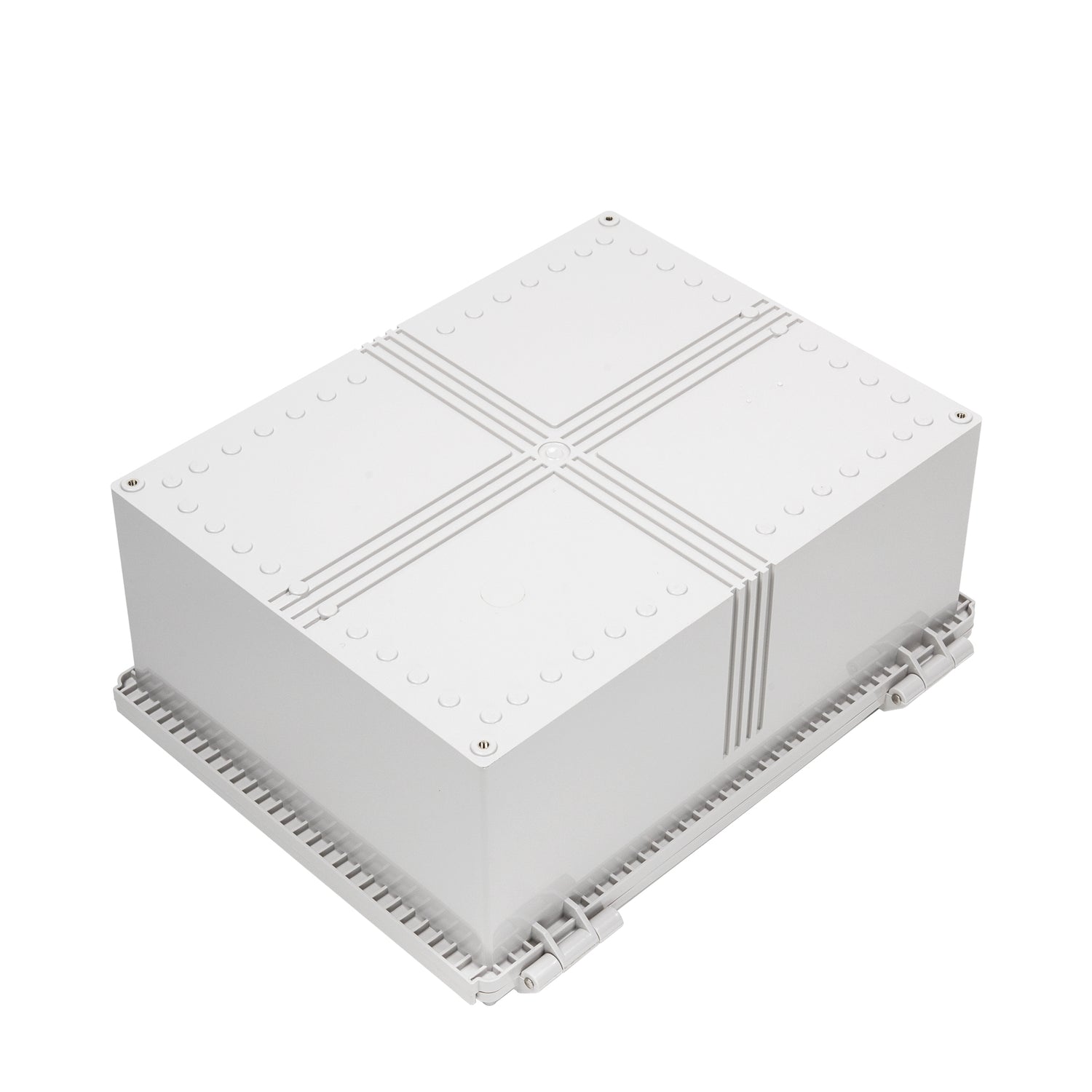

Boxco P-Series 350x450x200mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Molded Hinge and Latch Type

SKU:

BC-AGP-354520

Notify me when it's back in stock

Description

For Boxco P-Series,Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.

Features

Latch - Main part of the draw latch is made of stainless steel so it is very strong.
Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
Roof Protection – Both ends of the P series are protruded to protect against penetration of water when using it outdoor and penetration of dust when opening/closing the cover
Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance

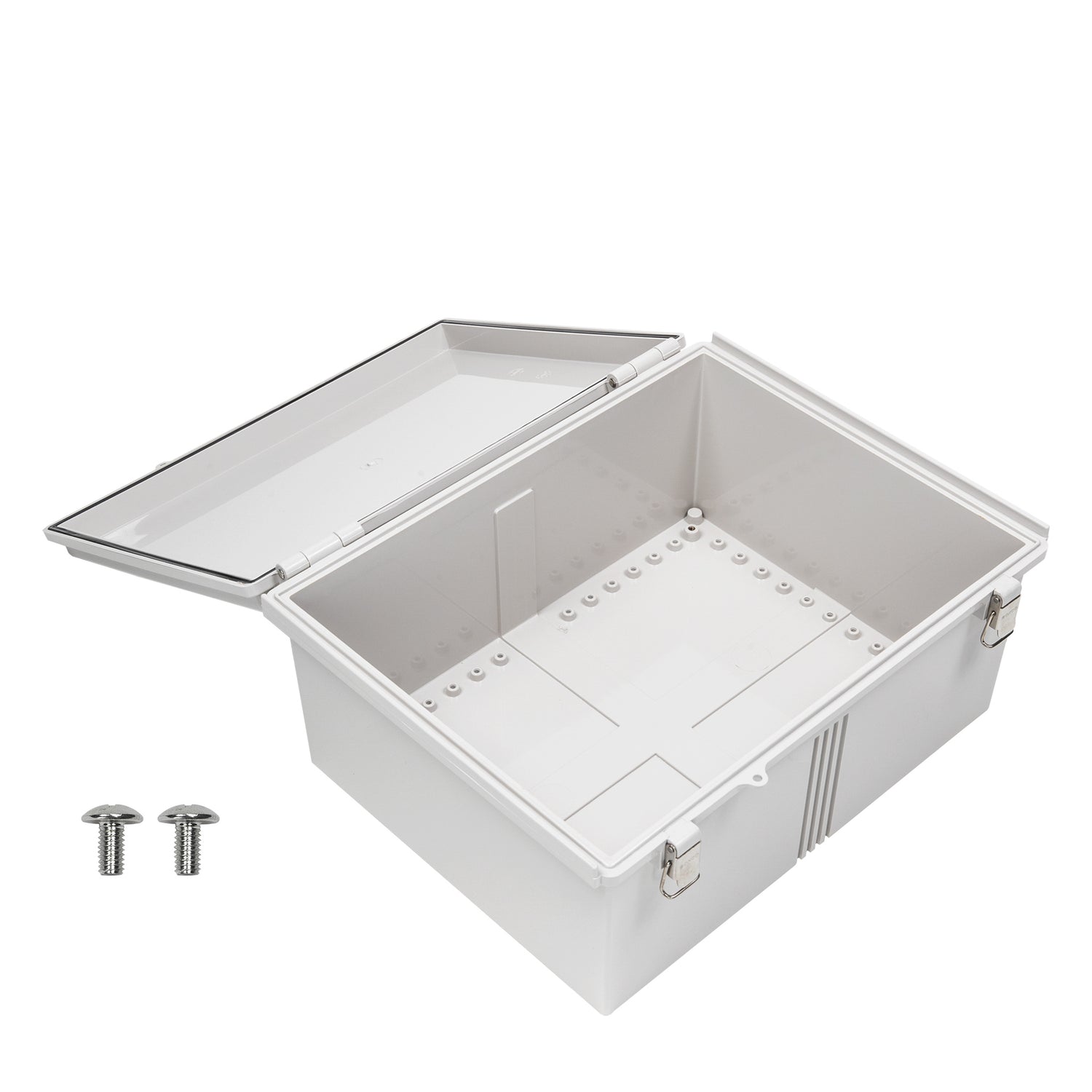

Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
Integrated Hinge – Hinge is made of plastic and is integrated with the enclosure. Bearing is made of stainless steel to increase the life span.

Specifications

Brand

Boxco
Series

Boxco P Series
Standards Met

CE,TUV,UL
Operating Temperature

-40°C~70°C
Warranty

1 Year
Length

35 cm
Width

45 cm
Height

20 cm
Weight

2.73 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What are the dimensions of Boxco P-Series BC-AGP-354520?

This enclosure measures 13.78 x 17.72 x 7.87 inches, which corresponds to 350 x 450 x 200 mm. It is a larger plastic enclosure intended for applications that need more internal space than compact junction-style boxes.

What material is this enclosure made from?

BC-AGP-354520 is made from ABS plastic and has a grey cover. The product description also notes anti-static material use and high impact resistance for protecting sensitive electronic instruments and improving durability during processing.

Is this plastic enclosure suitable for outdoor use?

Yes. The P-Series description states that an ultraviolet stabilizer is added to help protect the enclosure for outdoor usage, and the design includes roof protection features to reduce water and dust penetration when the cover is opened or closed.

What do the IP67 and IK08 ratings mean for this model?

This model is rated IP67 for dust-tight sealing and protection against temporary water exposure under rated conditions. It is also rated IK08 for impact resistance, which aligns with the product's high impact resistant construction.

What temperature range can this enclosure handle?

Boxco BC-AGP-354520 is specified for use from -40 °C to 70 °C. That range makes it suitable for demanding indoor and outdoor industrial environments where temperatures can vary significantly.

What kind of closure system does this enclosure use?

This model uses a molded hinge and latch type design. The integrated hinge is plastic with a stainless steel bearing to help improve lifespan, and the main part of the draw latch is made of stainless steel for added strength.

What types of applications is this enclosure commonly used for?

This enclosure is suited for protecting electrical or electronic equipment that needs a sealed plastic housing with strong environmental protection. Its anti-static material, impact-resistant body, and internal mounting plate attachment points make it a practical choice for industrial control and instrumentation enclosures.

Does this enclosure support internal equipment mounting?

Yes. The product includes pre-molded mounting screw nuts for securing DIN rail or other equipment, and it also has internal mounting plate attachment points with brass inserted injection molding for handling heavier installed equipment.
