Boxco

Boxco P-Series 100x150x70mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Molded Hinge and Latch Type

SKU BC-ATP-101507
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-ATP-101507 is a 100×150×70 mm ABS enclosure with a transparent cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-ATP-101507Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
100×150×70 mm (3.94×5.91×2.76 in)
Mounting plate dimension M1 × M2
65 × 115 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
0813 P (Plastic, P type), 0813 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

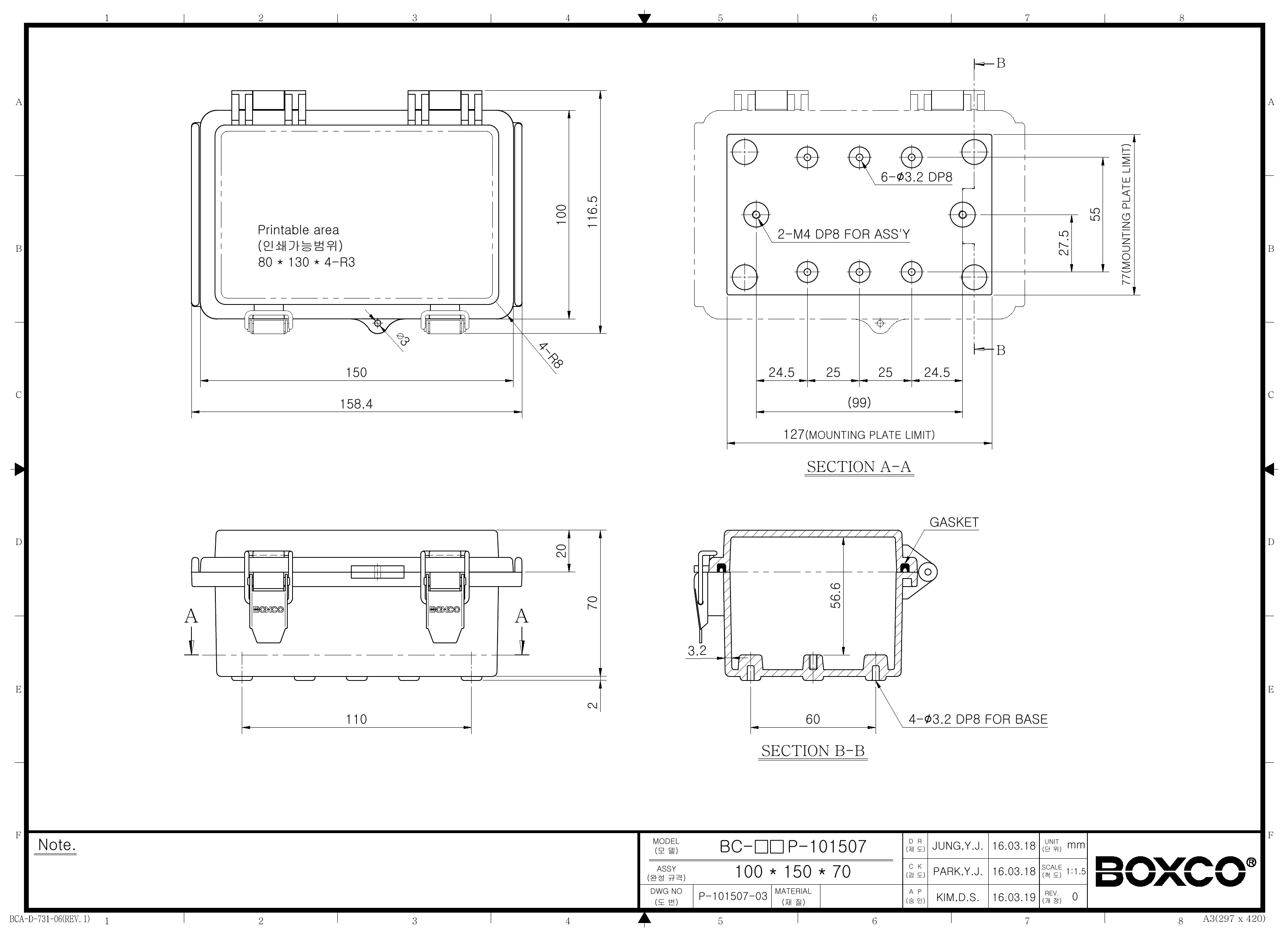

BC-ATP-101507 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

Is this Boxco P-Series enclosure suitable for outdoor environments?

Yes. This model is rated IP67 for dust-tight and water-resistant protection, and the P-Series includes an ultraviolet stabilizer to help reduce color change during long-term outdoor use. The roof protection design at both ends also helps limit water penetration when the cover is opened or closed outdoors.

What are the key material and durability features of this enclosure?

This enclosure is made from ABS and is described as high impact resistant, with an IK08 impact rating. It also uses anti-static material to help protect sensitive electronic instruments from static electricity. The transparent cover, molded hinge, and latch-style closure are specific to this model configuration.

What size is this enclosure?

This Boxco P-Series enclosure measures 3.94 x 5.91 x 2.76 inches, which corresponds to 100 x 150 x 70 mm. That makes it a compact enclosure for applications that need environmental protection without a large footprint.

Can I see inside the enclosure without opening it?

Yes. This version includes a transparent cover, which allows internal components or indicators to remain visible while the enclosure stays closed. That can be useful when visual inspection is needed without compromising the sealed cover.

Does this enclosure support internal mounting hardware or equipment plates?

Yes. The product description states that it includes pre-molded mounting screw nuts for fixing DIN rail or other equipment, and it also has internal mounting plate attachment points. Those built-in mounting features make it better suited for equipment layouts that need secure internal support.

What temperature range is this enclosure rated for?

This model is rated for use from -40 °C to 70 °C. That range supports use in both low-temperature and moderately high-temperature environments, provided the rest of the system is also rated for those conditions.
