Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco P-Series 100x150x85mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Molded Hinge and Latch Type

SKU BC-AGP-101508
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-AGP-101508 is a 100×150×85 mm ABS enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-AGP-101508Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
100×150×85 mm (3.94×5.91×3.35 in)
Mounting plate dimension M1 × M2
65 × 115 mm

Material

Material
ABS
Cover
Grey
Mounting plates
0813 P (Plastic, P type), 0813 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

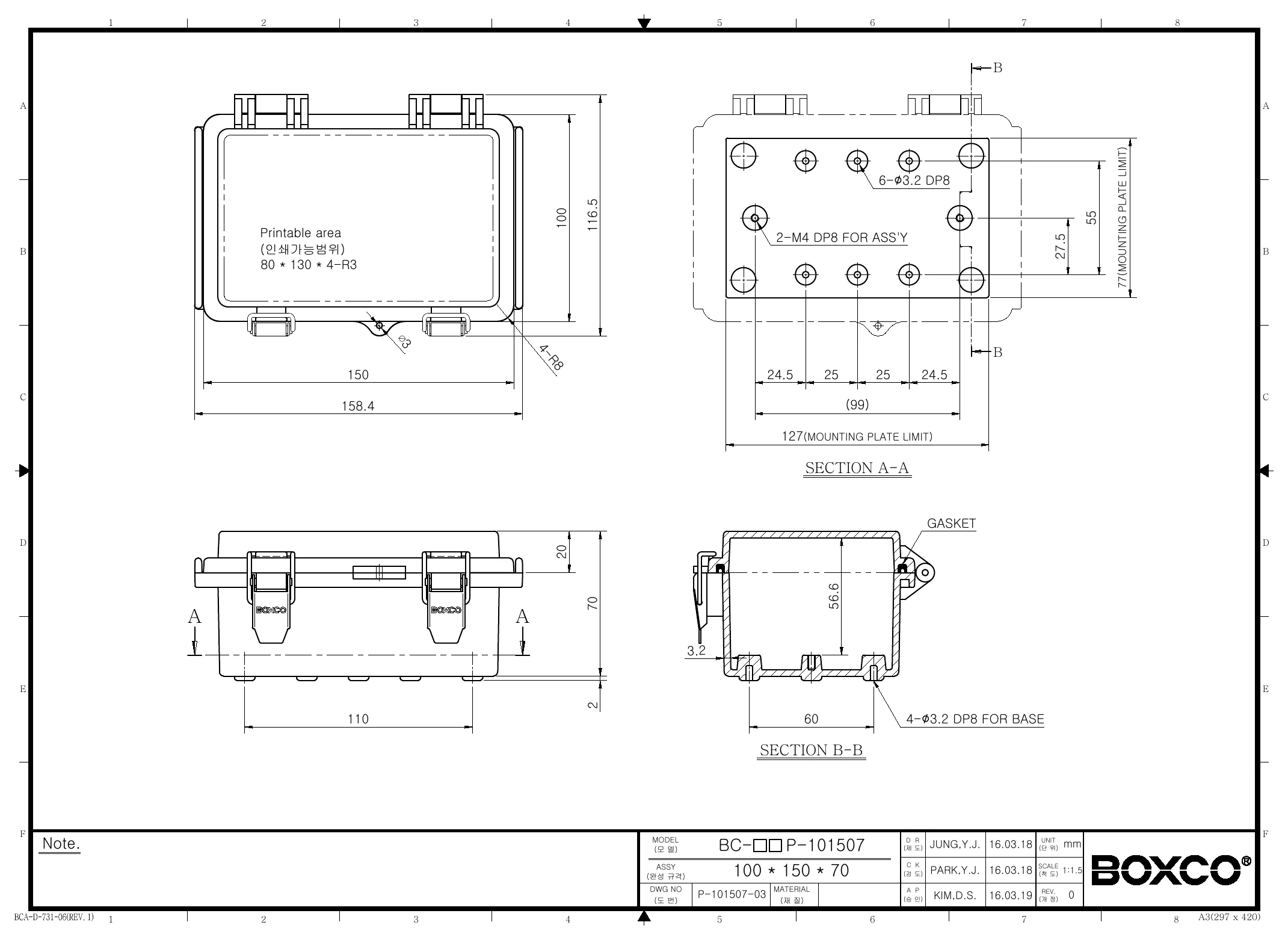

Technical drawings

BC-AGP-101508 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco P-Series enclosure best suited for?

This model is suited for protecting electronic components and control devices in industrial, commercial, and outdoor environments where dust and water resistance matter. Its ABS construction, molded hinge, and latch-style cover make it a practical choice for equipment that needs frequent access while staying protected.

Is this enclosure suitable for outdoor use?

Yes. The product description states that an ultraviolet stabilizer is added for outdoor usage, helping reduce visible color change over time. It also includes roof protection features and a precision-injected gasket to support waterproof and dust-proof performance.

What level of ingress and impact protection does this enclosure provide?

This enclosure is rated IP67 and IK08. That means it is designed for strong protection against dust and water ingress, while also offering good resistance to external mechanical impact for demanding environments.

What are the dimensions and material of this enclosure?

This model measures 3.94 x 5.91 x 3.35 inches, which corresponds to 100 x 150 x 85 mm. It is made from ABS and comes with a grey cover in Boxco's molded hinge and latch-type design.

What makes this P-Series enclosure different from a basic plastic box?

Compared with a basic plastic enclosure, this model includes a molded integrated hinge, latch hardware with stainless steel main parts, roof protection geometry, and pre-molded mounting screw nuts. It is also described as using high impact resistant material and anti-static material for added durability and protection of sensitive instruments.

What temperature range can this enclosure handle?

The listed operating temperature range is -40 degrees C to 70 degrees C. That range makes it suitable for use in both cold and hot environments where standard indoor-only enclosures may not be appropriate.
