Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco P-Series 110x210x100mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Molded Hinge and Latch Type

SKU BC-AGP-112110
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-AGP-112110 is a 110×210×100 mm ABS enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-AGP-112110Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
110×210×100 mm (4.33×8.27×3.94 in)
Mounting plate dimension M1 × M2
77 × 176 mm

Material

Material
ABS
Cover
Grey
Mounting plates
1121 P (Plastic, P type), 1020 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

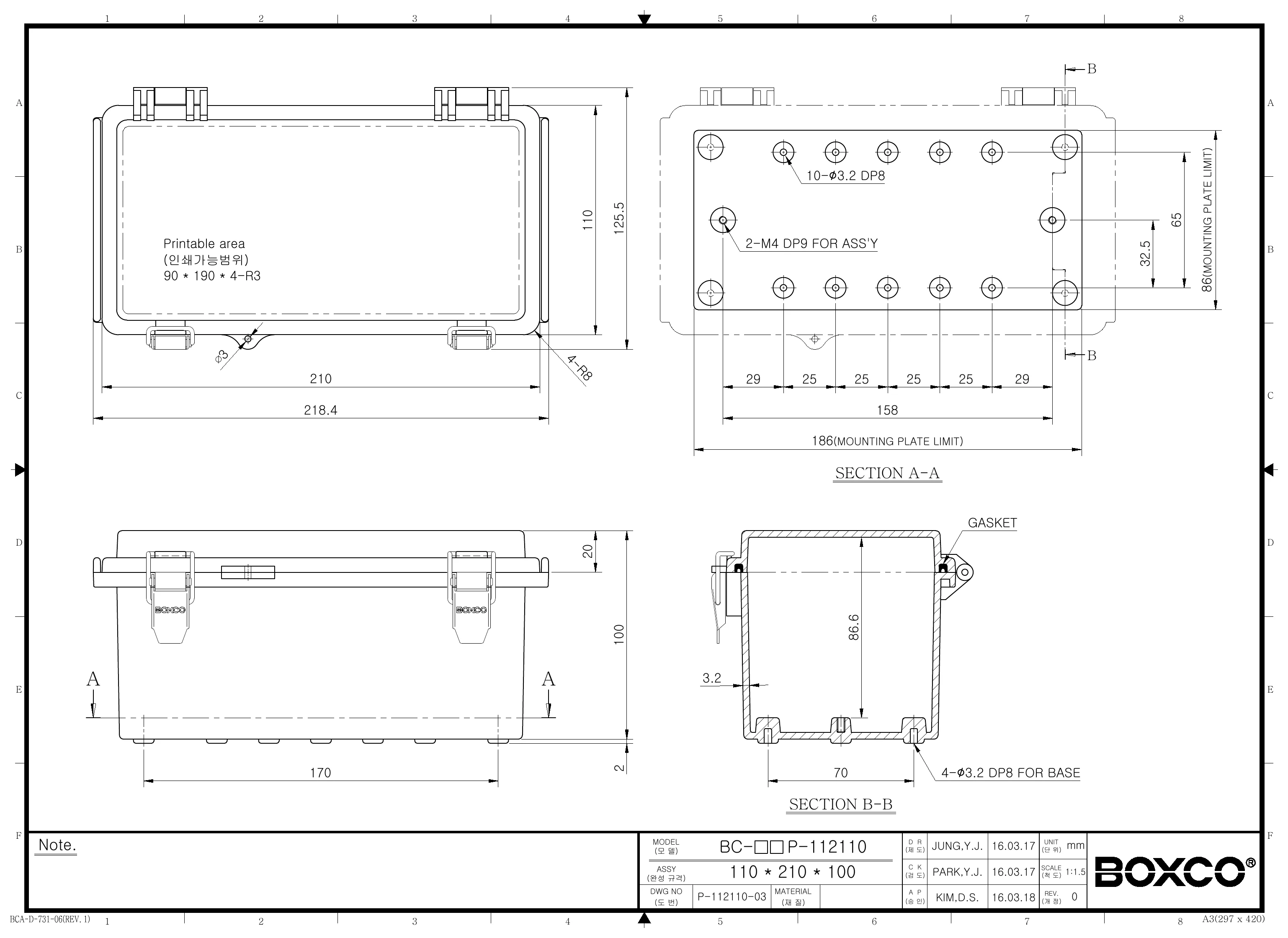

Technical drawings

BC-AGP-112110 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco P-Series 110 x 210 x 100 mm enclosure suited for?

This enclosure is suited for protecting electronic components and control hardware that need a sealed non-metallic housing. Its molded hinge and latch design makes it a practical choice for applications that require repeated access while maintaining enclosure protection.

Is this plastic enclosure suitable for outdoor environments?

Yes. This Boxco P-Series model uses ultraviolet-stabilized material to help protect the enclosure during outdoor use and reduce visible color change over time. The design also includes roof protection features intended to help reduce water and dust penetration during cover operation.

What protection ratings does this enclosure have?

This model is rated IP67 for dust-tight and water-resistant enclosure performance and IK08 for impact resistance. It is made from high-impact ABS and is intended for applications that need both environmental sealing and mechanical durability.

What are the dimensions and material of this enclosure?

The enclosure measures 4.33 x 8.27 x 3.94 inches, which corresponds to 110 x 210 x 100 mm. It is made of ABS and comes with a grey cover in Boxco's molded hinge and latch style.

What temperature range can this enclosure handle?

This model is specified for use from -40 degrees C to 70 degrees C. That range makes it suitable for many industrial and commercial environments where equipment may be exposed to cold or moderately elevated temperatures.

What design features distinguish this Boxco P-Series enclosure from a basic plastic box?

This model includes an integrated plastic hinge with a stainless steel bearing, a latch with a stainless steel main part, pre-molded mounting screw nuts, and internal mounting plate attachment points. It also uses a precision-injected gasket to support waterproof and dust-proof performance.
