Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco P-Series 110x210x100mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Molded Hinge and Latch Type

SKU BC-ATP-112110
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-ATP-112110 is a 110×210×100 mm ABS enclosure with a transparent cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-ATP-112110Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
110×210×100 mm (4.33×8.27×3.94 in)
Mounting plate dimension M1 × M2
77 × 176 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
1121 P (Plastic, P type), 1020 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

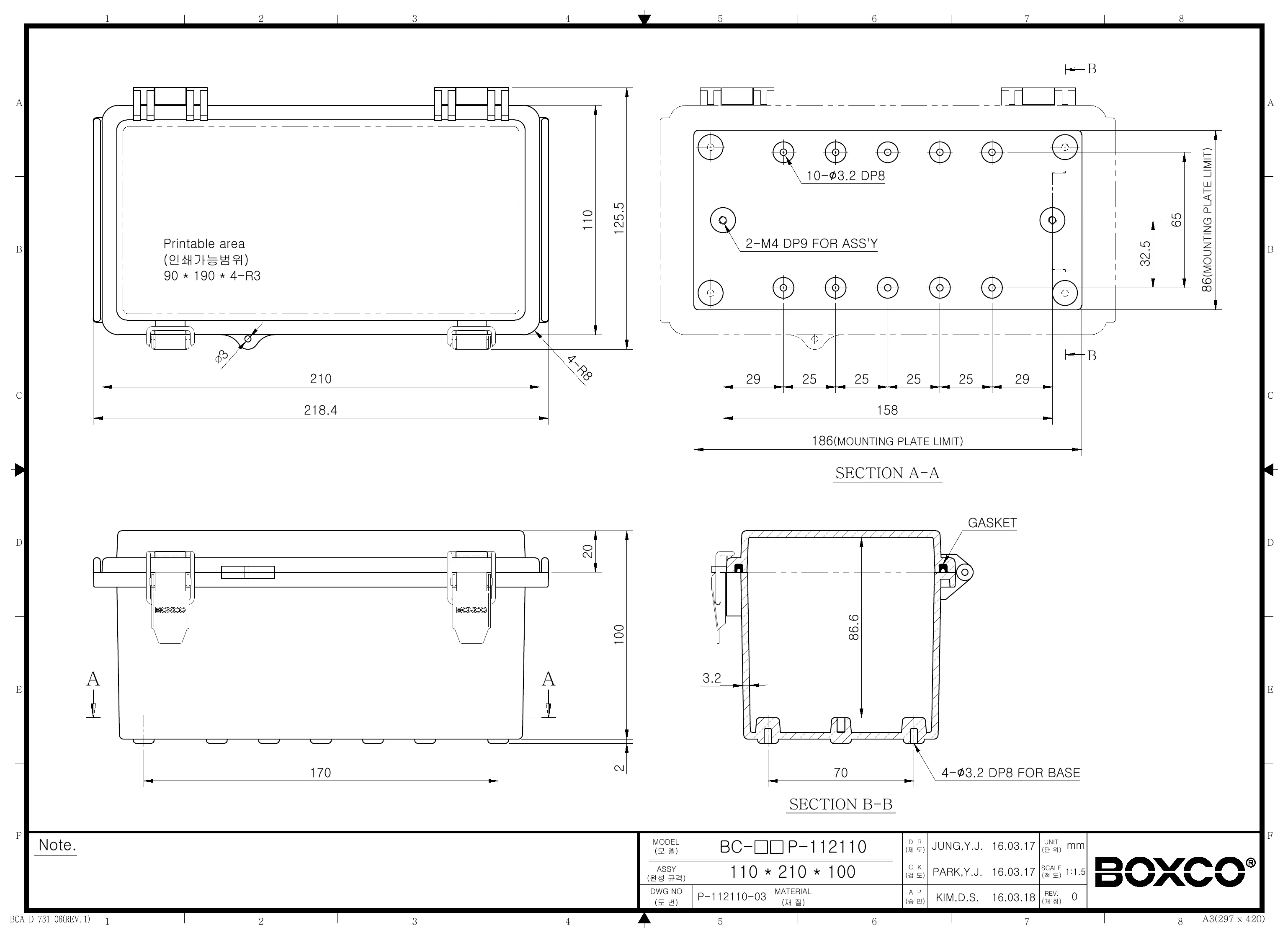

Technical drawings

BC-ATP-112110 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What kinds of applications is the Boxco P-Series BC-ATP-112110 typically used for?

This enclosure is suited for protecting industrial and commercial electronics that need a sealed plastic housing with a hinged transparent cover. Its IP67 and IK08 ratings, molded hinge and latch design, and ABS construction make it a practical choice for control, monitoring, and protection applications where durability and visibility are important.

Is this enclosure suitable for outdoor environments?

Yes. The product description states that an ultraviolet stabilizer is added to help protect the enclosure for outdoor use, with only limited color change over long periods. The design also includes roof protection features to help reduce water penetration and dust entry during cover operation.

What protection ratings does this model provide?

This model is rated IP67 and IK08. That means it is built for strong resistance to dust and water ingress and also offers solid impact resistance for demanding environments.

What are the size, material, and weight of the BC-ATP-112110 enclosure?

This Boxco P-Series enclosure measures 4.33 x 8.27 x 3.94 inches, which is 110 x 210 x 100 mm. It is made from ABS and weighs 0.426 kg. This model also uses a transparent cover with a molded hinge and latch type closure.

What makes the transparent cover version different from a standard opaque enclosure?

The transparent cover allows visual inspection of internal components or indicators without opening the enclosure. On this model, that visibility is combined with the P-Series hinged and latched design, so buyers can get both access convenience and a sealed protective housing.

What temperature range can this enclosure handle?

The specified operating temperature range is -40 °C to 70 °C. That makes it suitable for use in both low-temperature and elevated-temperature environments within that stated range.

Does this enclosure support internal equipment mounting?

Yes. The product description notes pre-molded mounting screw nuts for securing DIN rail or other equipment, as well as mounting plate attachment points with brass-inserted injection molding. Those features are intended to help support internal equipment more securely, including heavier components.
