Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco P-Series 110x210x75mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Molded Hinge and Latch Type

SKU BC-AGP-112107
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-AGP-112107 is a 110×210×75 mm ABS enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-AGP-112107Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
110×210×75 mm (4.33×8.27×2.95 in)
Mounting plate dimension M1 × M2
77 × 176 mm

Material

Material
ABS
Cover
Grey
Mounting plates
1121 P (Plastic, P type), 1020 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

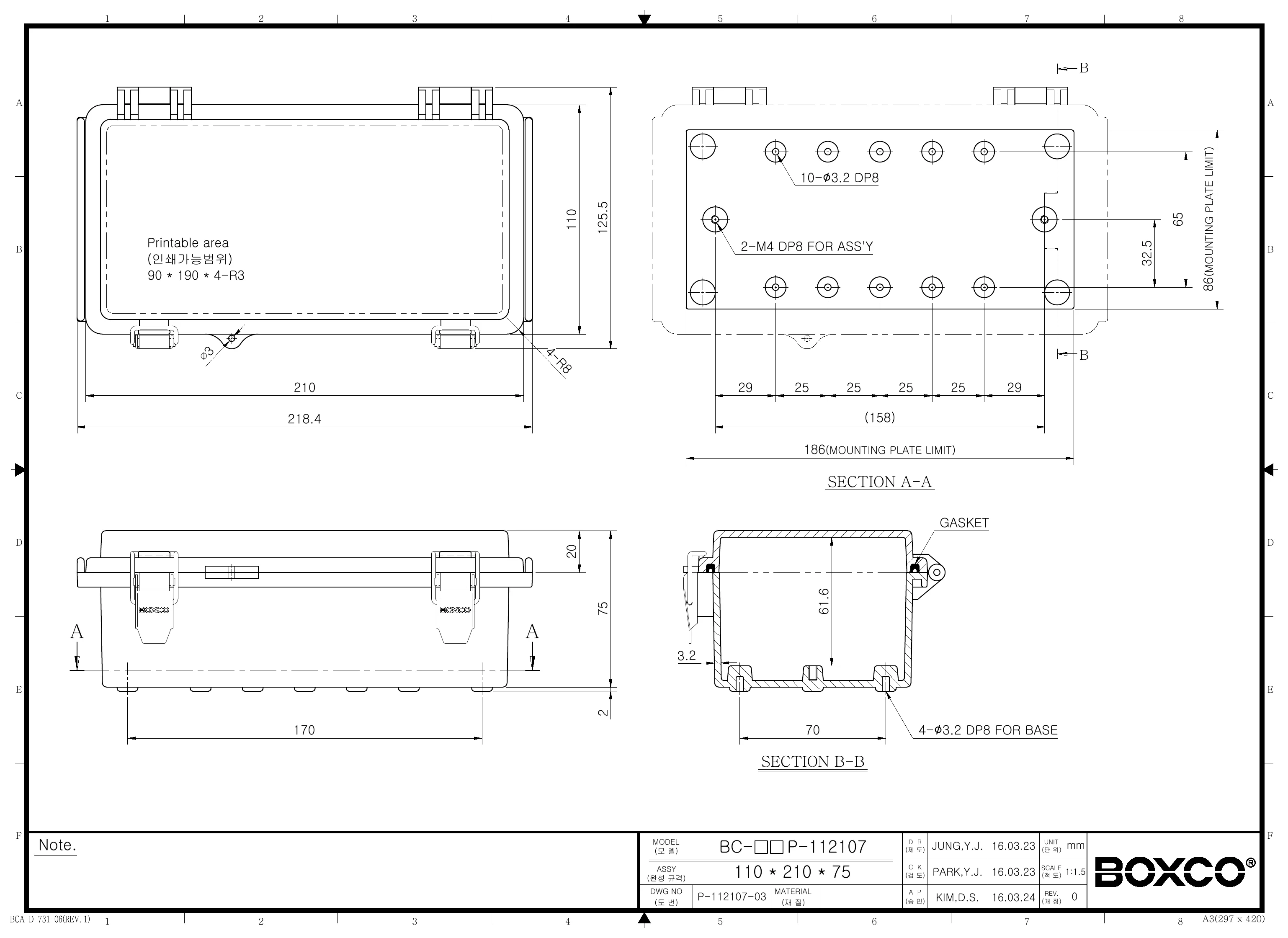

Technical drawings

BC-AGP-112107 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco P-Series 110 x 210 x 75 mm plastic enclosure best suited for?

This enclosure is suited for protecting industrial controls, instrumentation, and other sensitive electronics that need a sealed non-metallic housing. Its molded hinge and latch design makes it useful where repeated access is needed without sacrificing dust and water resistance.

Is this enclosure suitable for outdoor or washdown environments?

Yes. This model is rated IP67 and includes ultraviolet stabilizer material for outdoor exposure, helping reduce visible color change over time. The design also includes roof protection features and a precision-injected gasket to improve resistance to water and dust.

What are the main specifications of this Boxco enclosure?

This model measures 4.33 x 8.27 x 2.95 inches (110 x 210 x 75 mm) and is made from ABS with a grey cover. It carries IP67 and IK08 ratings, weighs 0.3600 kg, and is rated for use from -40 degrees C to 70 degrees C.

How does this model differ from a basic screw-cover enclosure?

Unlike a basic screw-cover box, this model uses an integrated molded hinge and latch for faster repeated access. It also includes pre-molded mounting screw nuts and reinforced attachment points for an internal mounting plate, which can be useful in more demanding enclosure applications.

Can this enclosure help protect sensitive electronic equipment from static and impact?

Yes. The product description states that anti-static material is used to help protect sensitive electronic instruments from static electricity. It is also made from high impact resistant material and carries an IK08 impact rating.

What accessories or internal components is this enclosure compatible with?

This enclosure includes pre-molded mounting screw nuts that allow internal equipment such as a DIN rail or other mounted components to be secured inside. It also has dedicated attachment points for fixing an internal mounting plate tightly within the enclosure.
