Boxco P-Series 110x260x100mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Molded Hinge and Latch Type

SKU BC-ATP-112610
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-ATP-112610 is a 110×260×100 mm ABS enclosure with a transparent cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-ATP-112610Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
110×260×100 mm (4.33×10.24×3.94 in)
Mounting plate dimension M1 × M2
76 × 225 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
1126 P (Plastic, P type), 1126 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

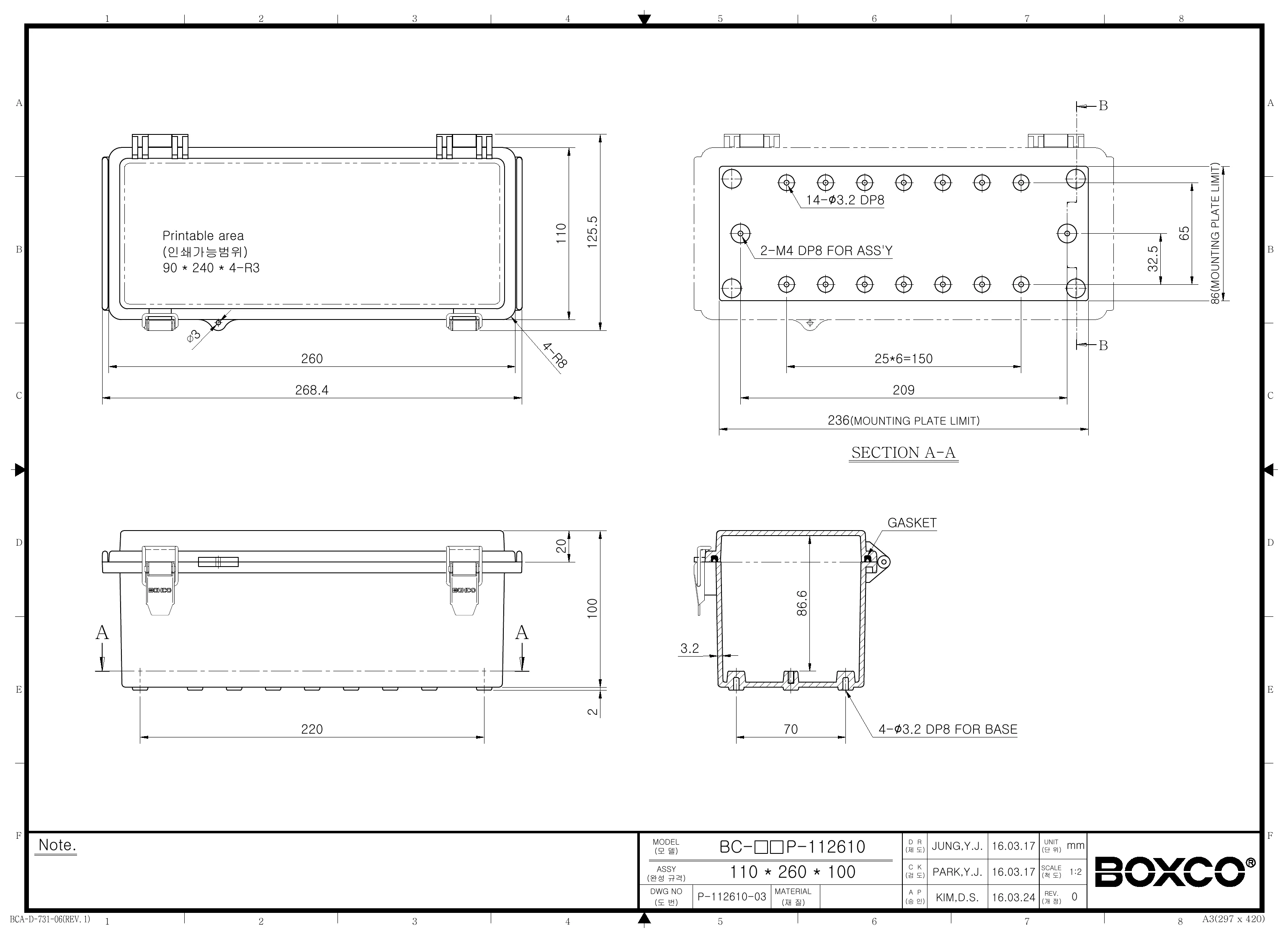

Technical drawings

BC-ATP-112610 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the main specifications of the Boxco P-Series BC-ATP-112610 enclosure?

This model is a plastic enclosure made from ABS with a transparent cover and molded hinge and latch design. It measures 4.33 x 10.24 x 3.94 inches (110 x 260 x 100 mm) and carries IP67 and IK08 ratings. The listed product weight is 0.5080 kg.

Is this enclosure suitable for outdoor environments?

Yes, this Boxco P-Series enclosure is described as having ultraviolet stabilizer added for outdoor usage. It also includes roof protection features at both ends to help reduce water penetration outdoors and dust entry during cover opening and closing. Its IP67 rating also supports use in demanding environmental conditions.

What does the transparent cover offer on this model?

The transparent cover allows visibility into the enclosure without changing the enclosure style or protection format of this specific model. That can be useful when components or indicators need to remain visible while housed inside the box. This version combines that clear cover with the molded hinge and latch construction.

What kinds of applications is this enclosure intended for?

This enclosure is intended for protecting electronic equipment in industrial and commercial settings where dust, water resistance, and impact resistance matter. The product description also notes anti-static material for protecting sensitive electronic instruments from static electricity. Its hinged, latched design makes it appropriate for applications needing repeated access to enclosed equipment.

What temperature range can the BC-ATP-112610 handle?

The listed operating temperature range for this model is -40 °C to 70 °C. That range supports use across both low-temperature and elevated-temperature environments within the specified limits. Buyers should match their operating environment to that stated range.

Does this enclosure support internal equipment mounting?

Yes, the product description states that it includes pre-molded mounting screw nuts for securing DIN rail or other equipment inside the enclosure. It also includes internal mounting plate attachment points with brass inserted injection molding to help support heavier installed equipment. These features make it more suitable for organized internal component mounting than a plain empty box.
