Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco P-Series 110x260x75mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Molded Hinge and Latch Type

SKU BC-AGP-112607
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-AGP-112607 is a 110×260×75 mm ABS enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-AGP-112607Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
110×260×75 mm (4.33×10.24×2.95 in)
Mounting plate dimension M1 × M2
76 × 225 mm

Material

Material
ABS
Cover
Grey
Mounting plates
1126 P (Plastic, P type), 1126 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

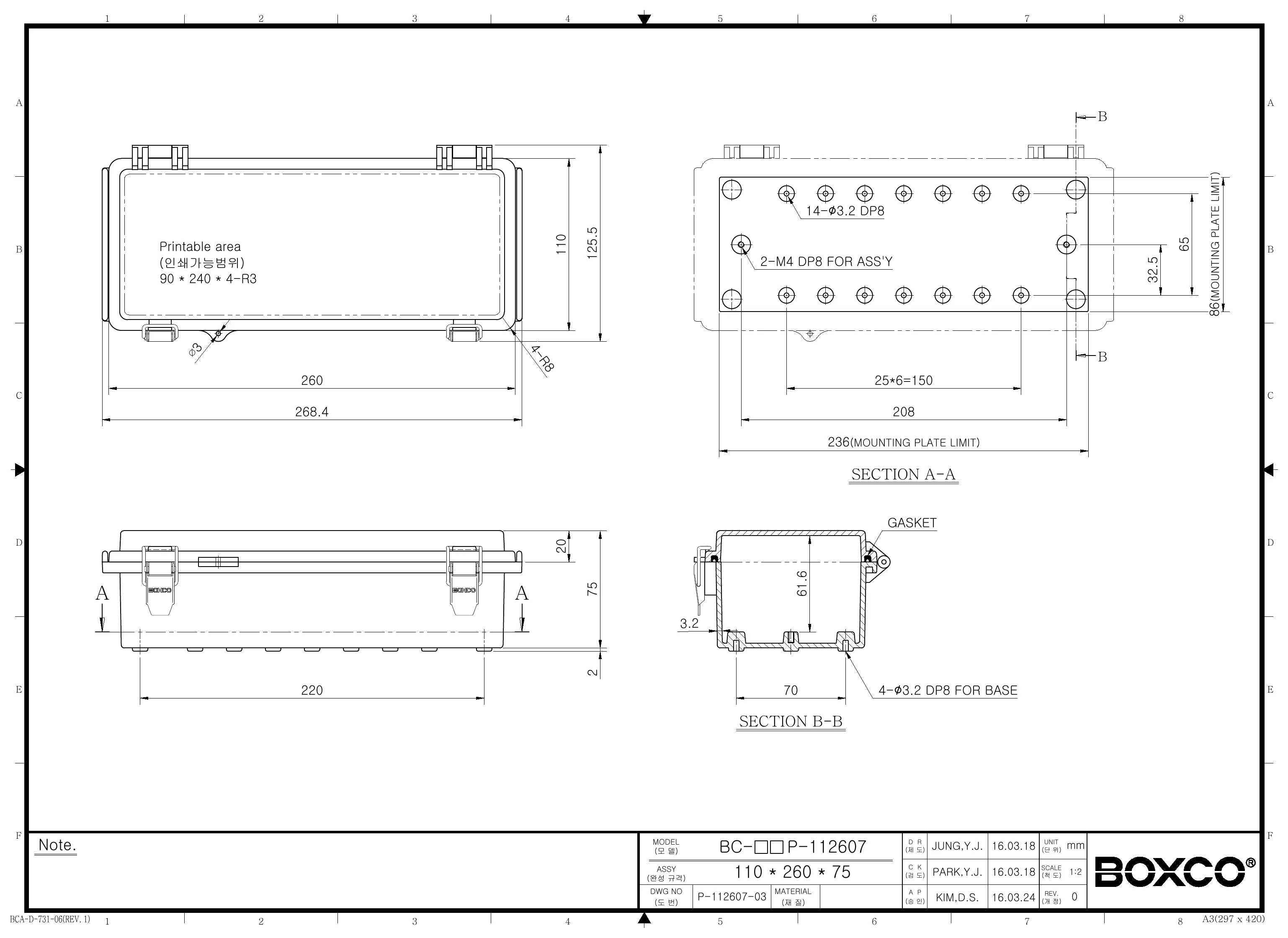

Technical drawings

BC-AGP-112607 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is this Boxco P-Series enclosure used for?

This enclosure is designed to protect electronic components and instruments in industrial or commercial environments. Its molded hinge-and-latch design, impact resistance, and sealed construction make it a practical choice for applications that need durable housing with repeated access.

Is this enclosure suitable for outdoor use?

Yes. The product description states that ultraviolet stabilizer is added for outdoor usage, helping reduce visible color change over time. Its IP67 rating and roof-protection design also support use where moisture and dust exposure are concerns.

How well does this enclosure resist dust and water?

This model is rated IP67, which indicates strong protection against dust ingress and temporary water exposure. The enclosure also uses an injected gasket and raised roof-protection ends to support waterproof and dust-proof performance.

How durable is the Boxco P-Series molded hinge and latch enclosure?

This enclosure is made from high-impact resistant ABS and carries an IK08 impact rating. The integrated plastic hinge uses a stainless steel bearing, and the main part of the draw latch is stainless steel for added durability during repeated opening and closing.

What are the size and material details for this model?

This specific model measures 4.33 x 10.24 x 2.95 inches, or 110 x 260 x 75 mm. It is made of ABS and comes with a grey cover in Boxco's P-Series molded hinge and latch format.

What temperature range can this enclosure handle?

This model is specified for use from -40 degrees C to 70 degrees C. That range supports demanding indoor and outdoor environments where electronics may face low or elevated ambient temperatures.

Does this enclosure support internal mounting hardware or plates?

Yes. The description notes pre-molded mounting screw nuts for securing DIN rail or other equipment, along with internal mounting plate attachment points using brass-inserted injection molding. These features help support heavier internal components compared with a plain empty box.
