Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco P-Series 110x260x75mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Molded Hinge and Latch Type

SKU BC-ATP-112607
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-ATP-112607 is a 110×260×75 mm ABS enclosure with a transparent cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-ATP-112607Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
110×260×75 mm (4.33×10.24×2.95 in)
Mounting plate dimension M1 × M2
76 × 225 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
1126 P (Plastic, P type), 1126 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

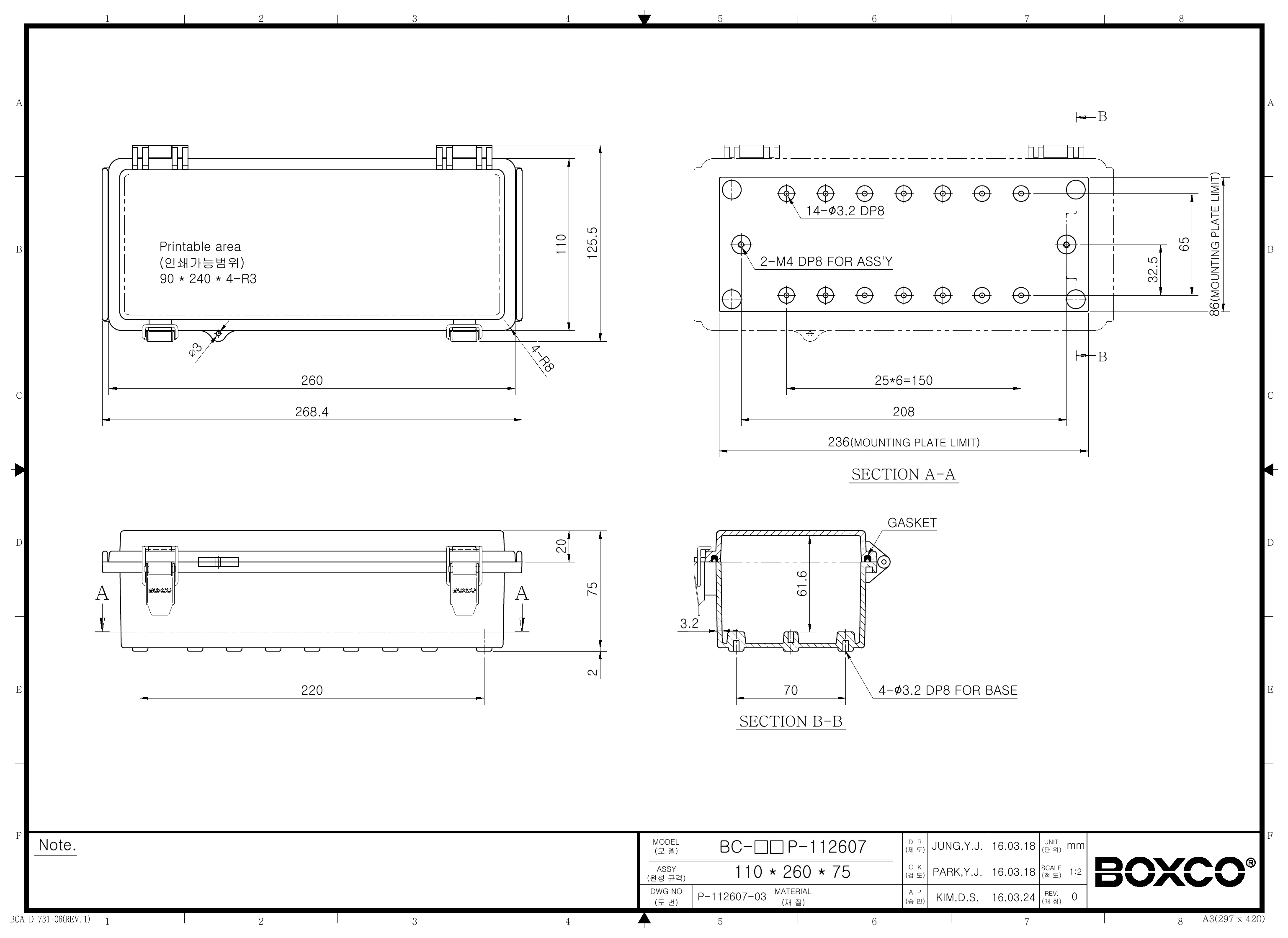

Technical drawings

BC-ATP-112607 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco P-Series BC-ATP-112607 plastic enclosure best suited for?

This model is a good fit for protecting industrial controls, monitoring devices, and other electronics that need a sealed non-metallic enclosure. Its ABS construction, transparent cover, and molded hinge-and-latch design make it useful where equipment needs protection while still allowing visual inspection without opening the box.

Is this enclosure suitable for outdoor or washdown environments?

This enclosure is rated IP67, which indicates strong protection against dust ingress and temporary immersion in water. The product description also notes an ultraviolet stabilizer for outdoor use and roof protection features intended to help reduce water and dust intrusion during cover operation.

How durable is this enclosure against impact and harsh handling?

The BC-ATP-112607 carries an IK08 impact rating and is described as being made from high impact resistant material. The design also includes a stainless-steel-bearing integrated hinge and a stainless-steel main latch component to support long service life in demanding environments.

What are the size and material specifications for this model?

This enclosure measures 4.33 x 10.24 x 2.95 inches, which corresponds to 110 x 260 x 75 mm. It is made of ABS and uses a transparent cover, with a listed product weight of 0.4520 kg.

What temperature range can this enclosure handle?

The specified operating temperature range is -40 degrees C to 70 degrees C. That range makes it suitable for many indoor and outdoor industrial environments where temperature exposure is a concern.

Does this enclosure support internal mounting hardware or accessories?

Yes, the product description states that it includes pre-molded mounting screw nuts for securing items such as DIN rail or other equipment inside the enclosure. It also includes mounting plate attachment points with brass inserted injection molding to help support heavier internal components.
