Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco P-Series 135x155x85mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Molded Hinge and Latch Type

SKU BC-AGP-131508
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-AGP-131508 is a 135×155×85 mm ABS enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-AGP-131508Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
135×155×85 mm (5.31×6.10×3.35 in)
Mounting plate dimension M1 × M2
102 × 122 mm

Material

Material
ABS
Cover
Grey
Mounting plates
1315 P (Plastic, P type), 1315 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

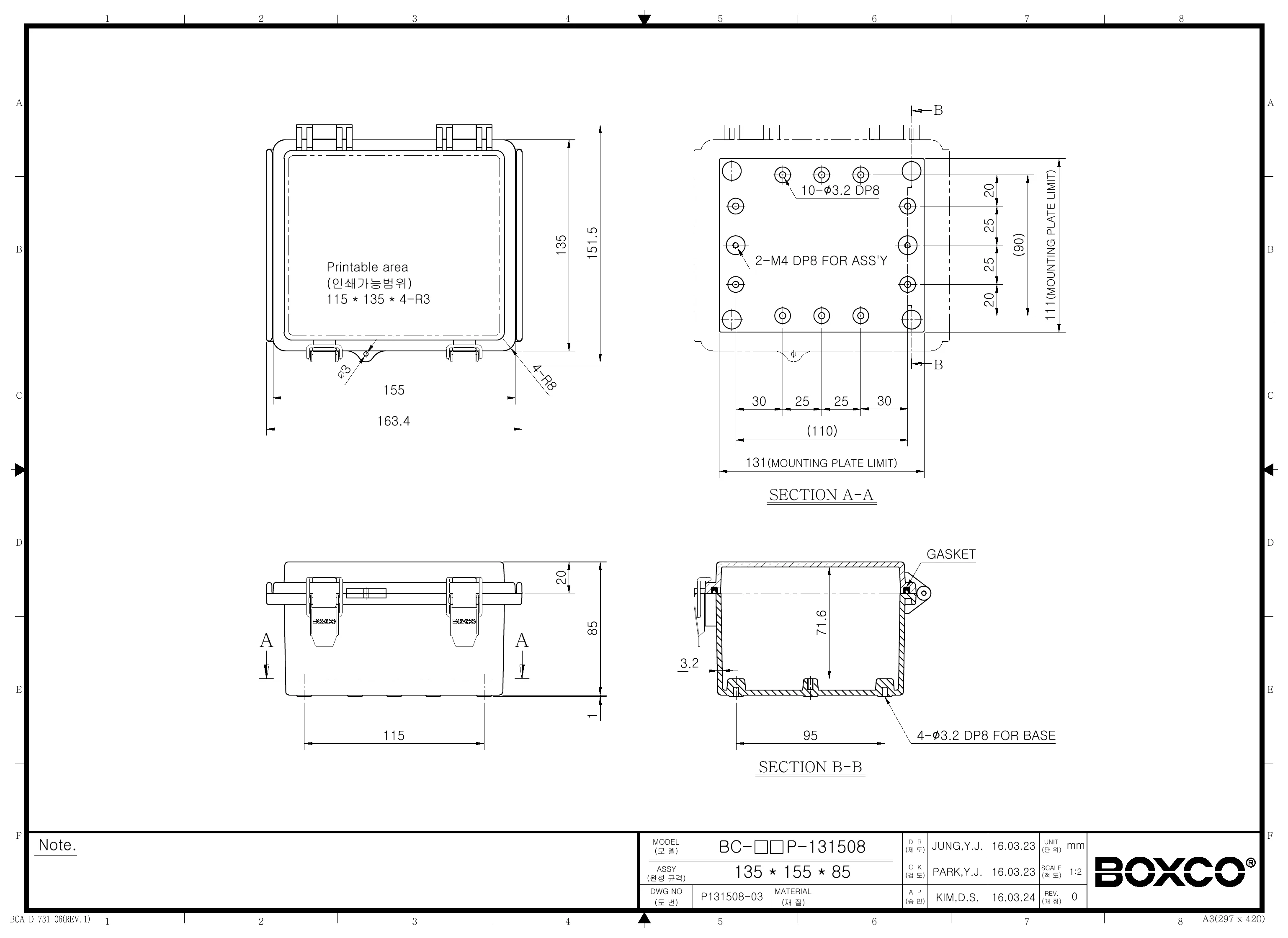

Technical drawings

BC-AGP-131508 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the dimensions of the Boxco P-Series BC-AGP-131508 enclosure?

This enclosure measures 5.31 x 6.10 x 3.35 inches, which is 135 x 155 x 85 mm. It is sized for protecting electronics and control components in a compact enclosure format. The listed product weight is 0.351 kg.

Is this plastic enclosure suitable for outdoor use?

Yes. The product description states that an ultraviolet stabilizer is added to help protect the enclosure during outdoor use. It also includes roof protection features designed to help reduce water penetration and dust entry when the cover is opened or closed.

What protection ratings does this enclosure have?

This model is rated IP67 and IK08. IP67 indicates strong protection against dust and temporary water immersion, while IK08 indicates resistance to mechanical impact. These ratings make it a good fit for demanding industrial and commercial environments.

What material is the BC-AGP-131508 enclosure made from?

This model is made from ABS and has a grey cover. The description also notes high impact resistance and anti-static material properties to help protect sensitive electronic instruments. These features support durability in a range of enclosure applications.

What kinds of applications is this enclosure commonly used for?

This enclosure is suited for protecting sensitive electronic instruments and other enclosed components in industrial or commercial settings. Its IP67 rating, IK08 impact resistance, anti-static material, and outdoor-oriented UV stabilization make it appropriate where dust, moisture, or impact resistance matter. Buyers often consider this style of enclosure for equipment protection rather than general-purpose indoor-only use.

What temperature range can this enclosure handle?

The specified operating temperature range is -40 °C to 70 °C. That range supports use in both cold and hot environments within the stated limits. Buyers should confirm their application stays inside that temperature window.

Does this model include features for mounting internal components?

Yes. The product description states that it has pre-molded mounting screw nuts for securing DIN rail or other equipment, along with internal mounting plate attachment points. These built-in features help support organized component placement inside the enclosure.
