Boxco

Boxco P-Series 135x185x100mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Molded Hinge and Latch Type

SKU BC-AGP-131810
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-AGP-131810 is a 135×185×100 mm ABS enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-AGP-131810Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
135×185×100 mm (5.31×7.28×3.94 in)
Mounting plate dimension M1 × M2
110 × 159 mm

Material

Material
ABS
Cover
Grey
Mounting plates
1217 G (Plastic, G type), 1217 P (Plastic, P type), 1217 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

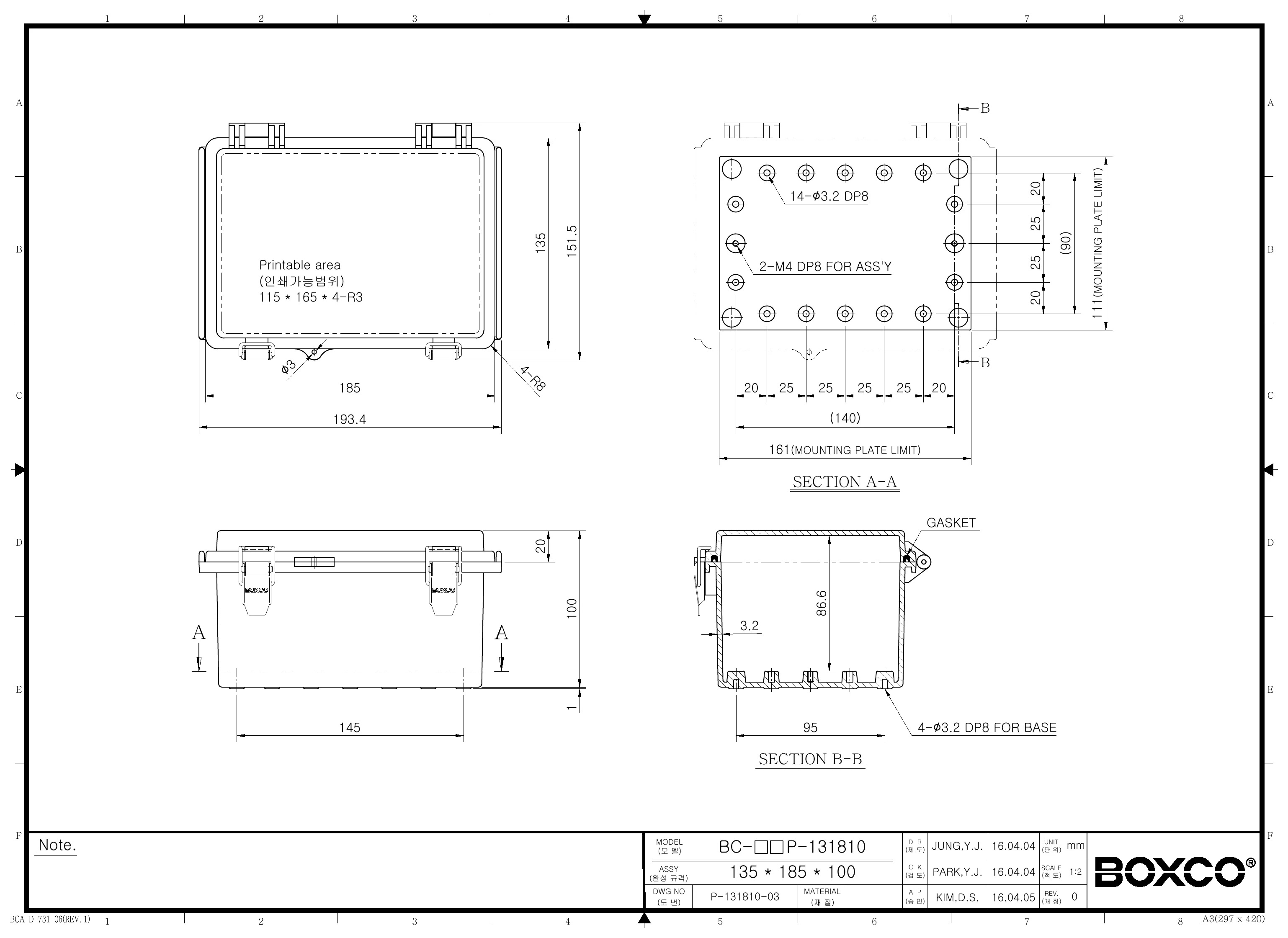

Technical drawings

BC-AGP-131810 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco P-Series BC-AGP-131810 enclosure suited for?

This model is suited for protecting electronic controls, instruments, and other equipment that need a sealed plastic enclosure in industrial or outdoor environments. Its IP67 rating, UV-stabilized ABS body, anti-static material, and hinged latch design make it a practical option where dust, water, and routine exposure are concerns.

Is the BC-AGP-131810 suitable for outdoor use?

Yes. Boxco states that an ultraviolet stabilizer is added to this P-Series enclosure to support outdoor use and reduce visible color change over time. The design also includes roof protection features and a robot-injected gasket to support its IP67 water- and dust-resistant rating.

What are the key size and material specifications of this enclosure?

The BC-AGP-131810 measures 5.31 x 7.28 x 3.94 inches, which is 135 x 185 x 100 mm. It is made from ABS and has a grey cover, with a listed product weight of 0.388 kg.

How durable is this Boxco enclosure against impact and harsh handling?

This model is rated IK08 for impact resistance and is described as using high-impact-resistant material to reduce breakage during machining such as hole or press processing. The draw latch main part is stainless steel, and the integrated plastic hinge uses a stainless steel bearing to improve service life.

What design features distinguish this molded hinge and latch enclosure from a basic plastic box?

This P-Series model combines an integrated molded hinge, latch-style access, pre-molded mounting screw nuts, gasket sealing, and mounting plate attachment points in one enclosure design. Compared with a basic non-hinged box, it is built for repeated access, stronger closure hardware, and more secure internal equipment mounting.

What operating temperature range is specified for the BC-AGP-131810?

The specified operating temperature range is -40°C to 70°C. That range supports use in both cold and warm industrial environments, provided the rest of the installed equipment is also rated for those conditions.
