Boxco P-Series 135x185x100mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Molded Hinge and Latch Type

SKU BC-ATP-131810
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-ATP-131810 is a 135×185×100 mm ABS enclosure with a transparent cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-ATP-131810Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
135×185×100 mm (5.31×7.28×3.94 in)
Mounting plate dimension M1 × M2
110 × 159 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
1217 G (Plastic, G type), 1217 P (Plastic, P type), 1217 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

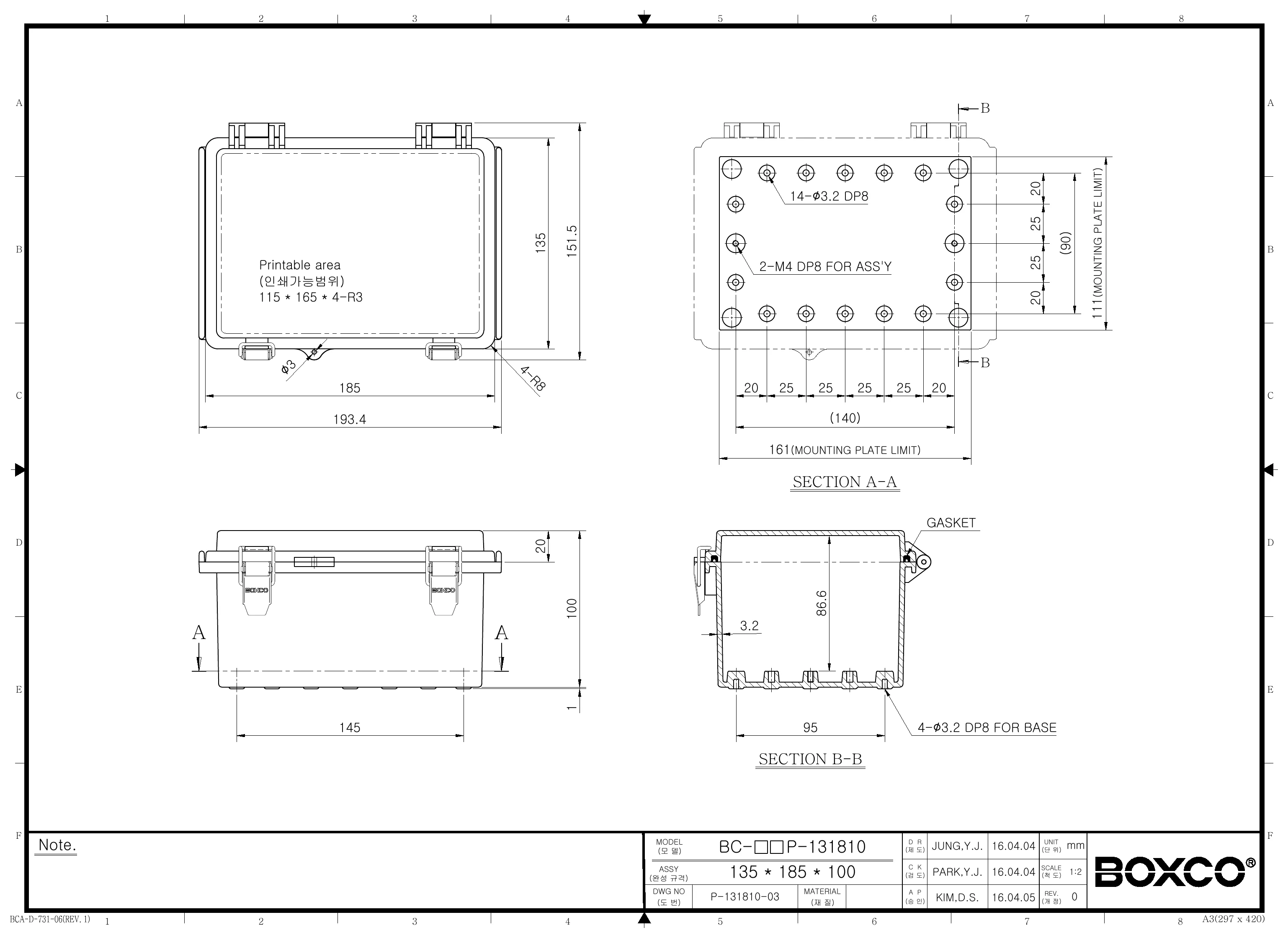

Technical drawings

BC-ATP-131810 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

Is this enclosure suitable for outdoor use?

This Boxco P-Series enclosure is built for outdoor exposure with an IP67 rating and added ultraviolet stabilizer. The housing is designed to resist water and dust ingress, and the temperature range is -40°C to 70°C. Boxco also notes that only minor color change should be expected over long-term outdoor use.

What does the transparent cover help with on this model?

The transparent cover allows visual inspection of indicators, displays, or internal status without opening the enclosure. That can help reduce unnecessary exposure to dust or moisture during routine checks. On this model, the cover is paired with a molded hinge and latch design for repeated access.

How durable is the BC-ATP-131810 enclosure in industrial environments?

This model is rated IK08 for impact resistance and is made from high impact resistant ABS. Boxco also describes the enclosure as designed to resist breakage during machining such as hole or press processing. The stainless steel elements in the latch and hinge bearing also support durability over repeated use.

What size equipment can fit inside this enclosure?

The enclosure size is 5.31 x 7.28 x 3.94 inches, or 135 x 185 x 100 mm. Buyers should use those external dimensions as the starting point, then allow room for internal components, mounting hardware, and cover clearance. This model also includes pre-molded mounting screw nut points for securing internal equipment.

How does this hinged enclosure compare with a standard screw-cover box?

This version uses a molded hinge and latch-type cover, which is better suited for applications that need frequent access than a basic screw-fastened cover. It also includes a transparent lid, which adds visibility that many standard opaque boxes do not provide. For buyers comparing options, the main differentiators here are access convenience, visibility, and the IP67 / IK08 protection levels.

Is this enclosure a good choice for protecting sensitive electronic equipment?

Yes, Boxco states that anti-static material is used in this P-Series enclosure to help protect sensitive electronic instruments from static electricity. The IP67 sealing and gasket design also support protection against dust and water ingress. That makes this model a practical option where environmental protection and electrostatic control both matter.
