Boxco

Boxco P-Series 135x185x85mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Molded Hinge and Latch Type

SKU BC-AGP-131808
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-AGP-131808 is a 135×185×85 mm ABS enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-AGP-131808Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
135×185×85 mm (5.31×7.28×3.35 in)
Mounting plate dimension M1 × M2
110 × 159 mm

Material

Material
ABS
Cover
Grey
Mounting plates
1217 G (Plastic, G type), 1217 P (Plastic, P type), 1217 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

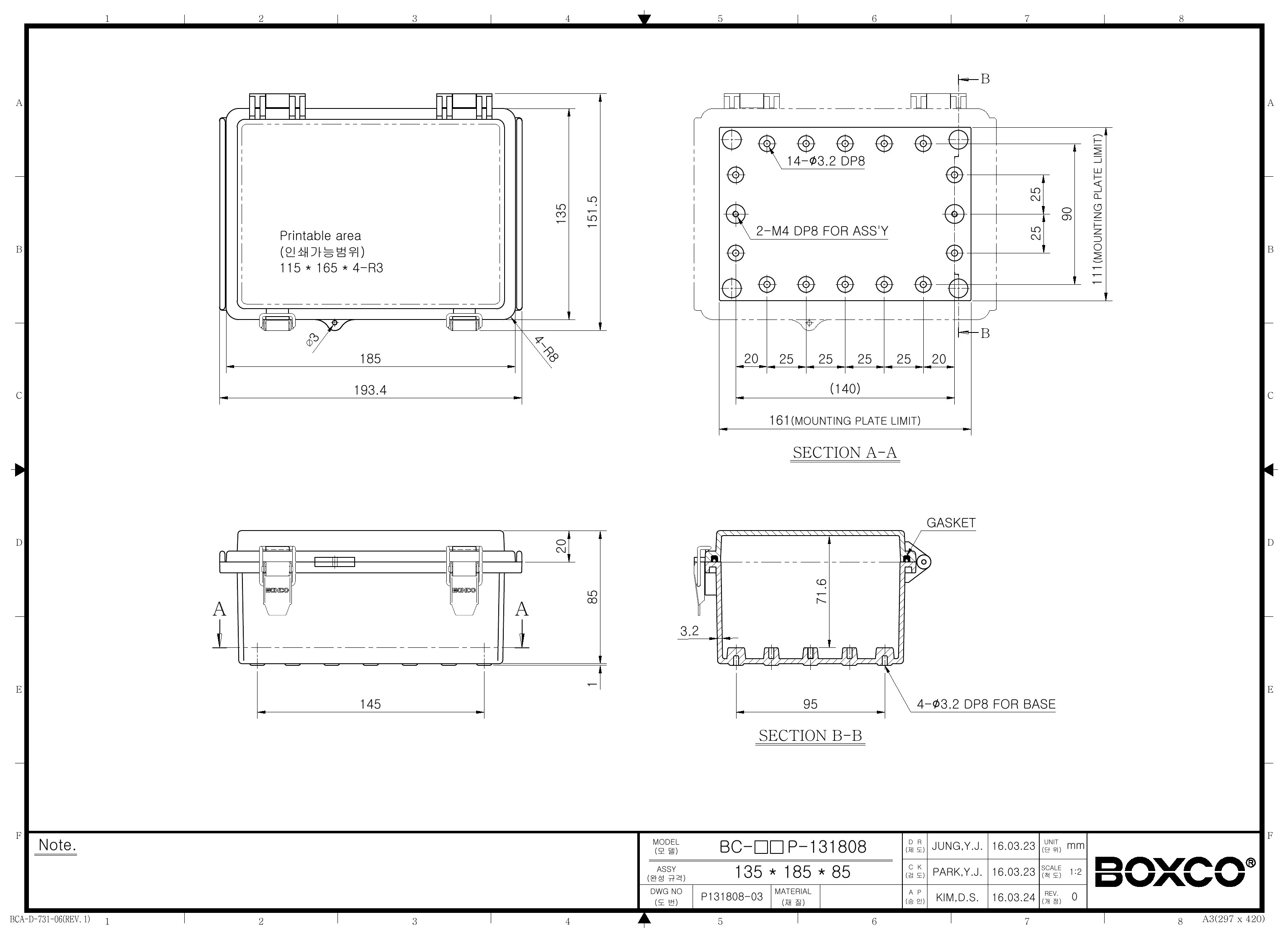

Technical drawings

BC-AGP-131808 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is this Boxco P-Series enclosure typically used for?

This enclosure is suited for protecting control, monitoring, and other sensitive electronic equipment in industrial or commercial environments. Its molded hinge and latch design makes it a practical choice where repeated access to enclosed components is needed while maintaining protection against dust and water.

What are the dimensions of this enclosure?

This model measures 5.31 x 7.28 x 3.35 inches, which is 135 x 185 x 85 mm. That size makes it a mid-range enclosure option for applications needing more interior space than compact boxes without moving into a large cabinet format.

Is this enclosure suitable for outdoor or washdown environments?

Yes, this model is rated IP67, which indicates strong protection against dust ingress and temporary water exposure. The product description also notes UV stabilizer material and roof protection features intended to improve outdoor durability.

How durable is the housing material on this model?

The enclosure body is made from ABS and carries an IK08 impact rating. The description also states it uses high impact resistant material, which helps it resist external impact and reduce breakage during machining or modification.

What cover and access style does this enclosure use?

This version has a grey cover and uses an integrated molded hinge with a latch-type closure. The hinge is plastic and integrated into the enclosure, while the hinge bearing is stainless steel to improve service life.

What temperature range can this enclosure handle?

This model is specified for use from -40 degrees C to 70 degrees C. That range supports use in both cold and hot industrial environments, provided the overall application stays within those limits.

Does this enclosure support mounting internal equipment?

Yes, the description states it includes pre-molded mounting screw nuts and mounting plate attachment points. These features are intended to help secure DIN rail or other internal equipment more firmly inside the enclosure.
