Boxco

Boxco P-Series 135x185x85mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Molded Hinge and Latch Type

SKU BC-ATP-131808
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-ATP-131808 is a 135×185×85 mm ABS enclosure with a transparent cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-ATP-131808Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
135×185×85 mm (5.31×7.28×3.35 in)
Mounting plate dimension M1 × M2
110 × 159 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
1217 G (Plastic, G type), 1217 P (Plastic, P type), 1217 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

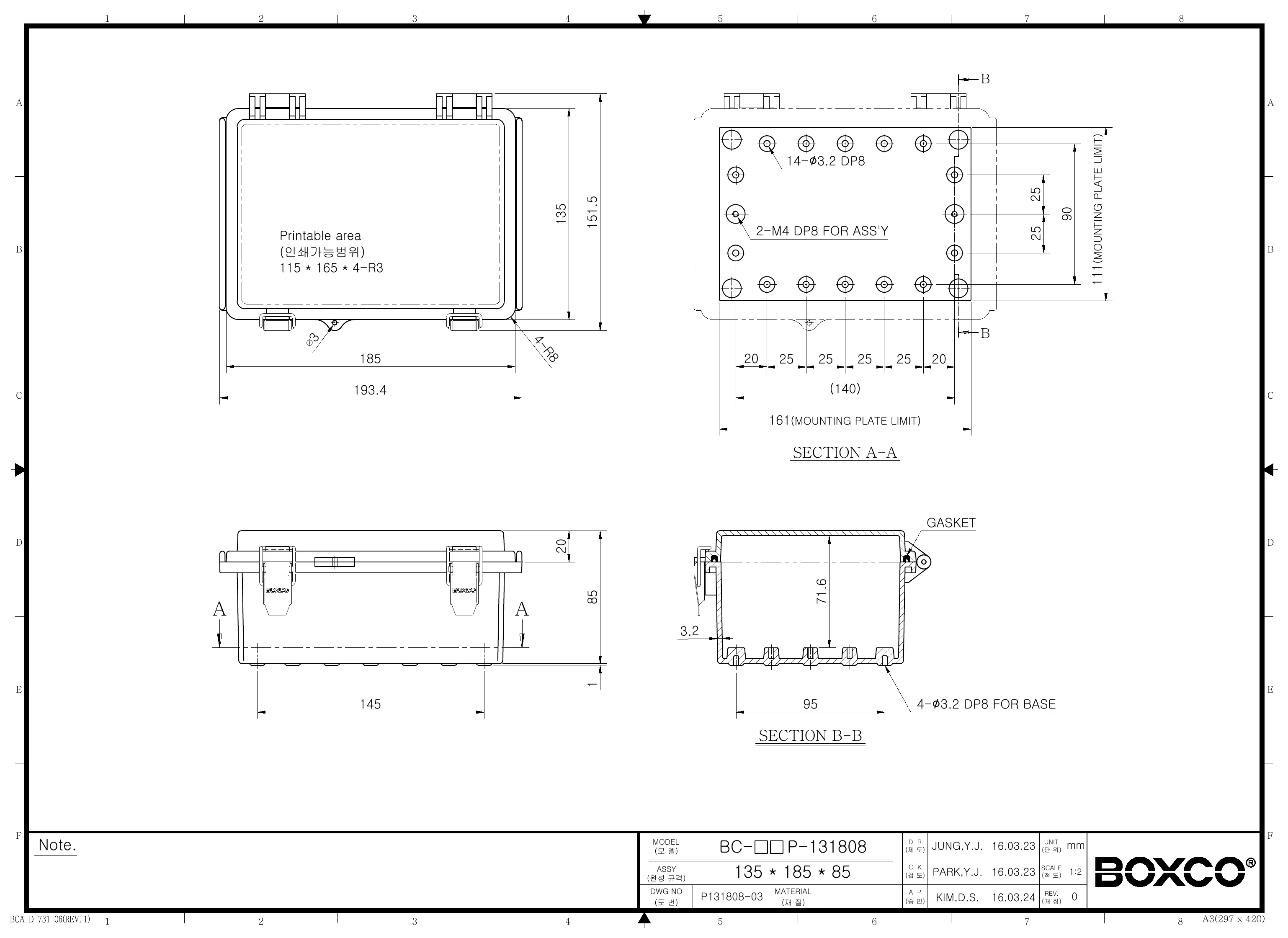

BC-ATP-131808 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is this Boxco P-Series enclosure used for?

This model is designed to protect electrical or electronic components in industrial and outdoor applications where dust, water, and impact resistance matter. Its transparent cover also makes it practical for applications where internal components need to be visually checked without opening the enclosure.

What are the dimensions of this enclosure?

This Boxco P-Series enclosure measures 5.31 x 7.28 x 3.35 inches, which is 135 x 185 x 85 mm. That size makes it suitable for housing medium-sized control, monitoring, or protection components in a compact sealed box.

Is this enclosure suitable for outdoor environments?

Yes, this model is built for outdoor use and includes ultraviolet stabilizer protection to help reduce visible color change over time. It also has roof protection features and a gasketed design to help resist water and dust exposure.

How durable is this plastic enclosure?

This enclosure is made from high impact resistant ABS and is rated IP67 and IK08. That means it is designed for strong protection against dust and water ingress as well as solid resistance to external mechanical impact.

What kind of cover and access design does this model have?

This version has a transparent cover along with a molded hinge and latch type closure. The integrated hinge uses a plastic hinge body with a stainless steel bearing, while the latch includes a stainless steel main part for added durability.

What temperature range can this enclosure handle?

This model is specified for use from -40°C to 70°C. That range supports use in both cold and hot operating environments, depending on the requirements of the equipment placed inside.
