Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco P-Series 150x150x120mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Molded Hinge and Latch Type

SKU BC-AGP-151512
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-AGP-151512 is a 150×150×120 mm ABS enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-AGP-151512Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
150×150×120 mm (5.91×5.91×4.72 in)
Mounting plate dimension M1 × M2
123 × 123 mm

Material

Material
ABS
Cover
Grey
Mounting plates
1515 G (Plastic, G type), 1515 P (Plastic, P type), 1515 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

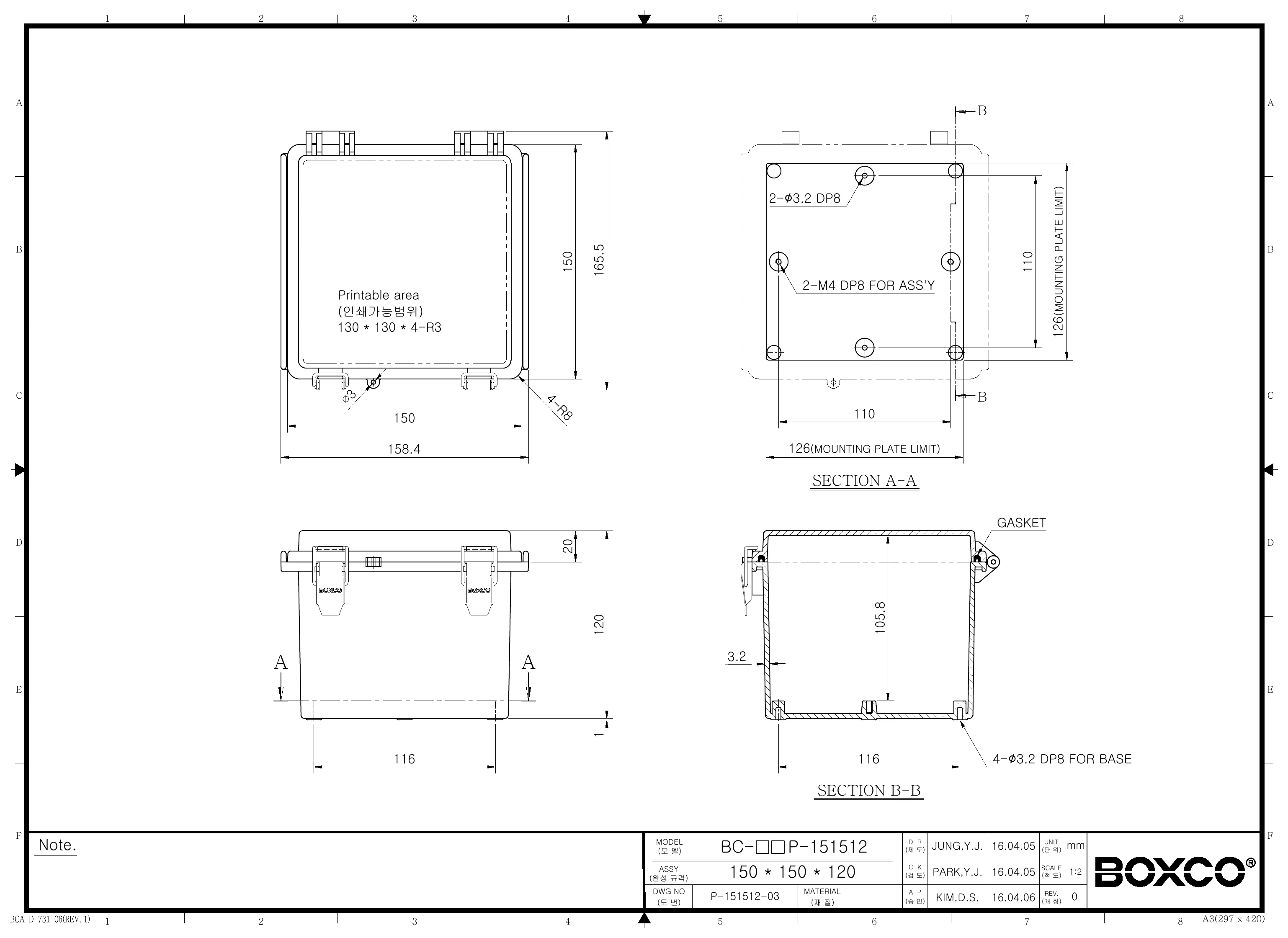

Technical drawings

BC-AGP-151512 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is this Boxco P-Series enclosure typically used for?

This model is designed to house and protect electrical or electronic components in industrial and commercial environments. Its molded hinge and latch-style cover make it well suited for applications that need repeated access while maintaining enclosure protection.

What are the size and material details for BC-AGP-151512?

This enclosure measures 5.91 x 5.91 x 4.72 inches, which corresponds to 150 x 150 x 120 mm. It is made from ABS and features a grey cover in Boxco's P-Series hinged enclosure design.

Is this enclosure suitable for outdoor or demanding environments?

Yes, this model includes ultraviolet stabilizer material intended to support outdoor use over time. It is also rated IP67 for dust and water protection and IK08 for impact resistance, making it appropriate for harsh environments.

How does this enclosure help protect sensitive equipment?

The enclosure uses anti-static material to help protect sensitive electronic instruments from static electricity. Its gasket system and roof protection design also help resist water and dust intrusion during normal cover operation.

What features distinguish this hinged plastic enclosure from a basic junction box?

This model includes a molded integrated hinge with a stainless steel bearing, a latch with a stainless steel main part, and pre-molded mounting screw nuts for internal equipment mounting. It also provides internal mounting plate attachment points and a design intended for strong waterproof and dust-proof performance.

What temperature range is this enclosure rated for?

BC-AGP-151512 is specified for use from -40 °C to 70 °C. That range makes it suitable for a wide variety of indoor and outdoor industrial conditions within those limits.
