Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco P-Series 150x150x120mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Molded Hinge and Latch Type

SKU BC-ATP-151512
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-ATP-151512 is a 150×150×120 mm ABS enclosure with a transparent cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-ATP-151512Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
150×150×120 mm (5.91×5.91×4.72 in)
Mounting plate dimension M1 × M2
123 × 123 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
1515 G (Plastic, G type), 1515 P (Plastic, P type), 1515 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

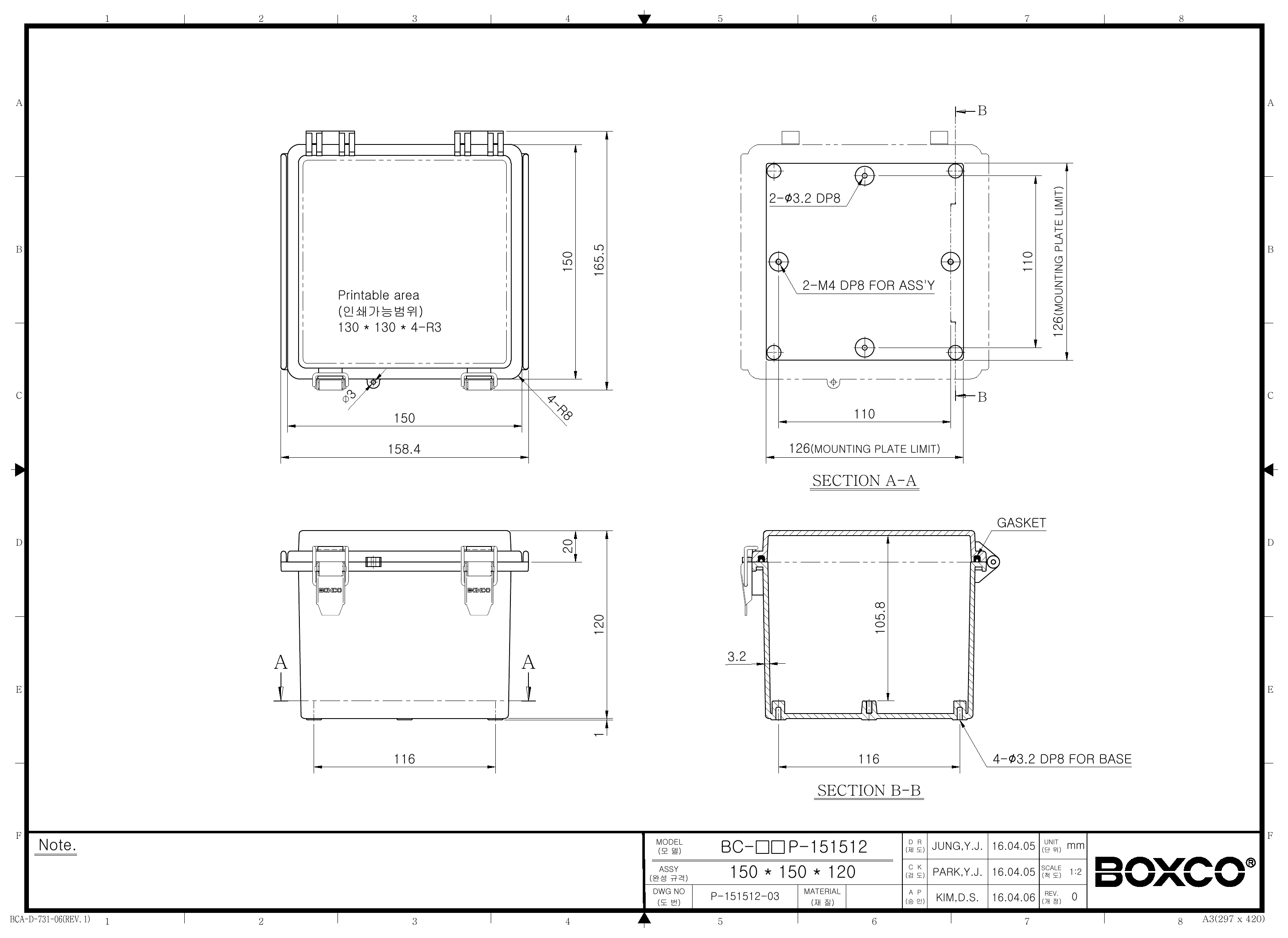

Technical drawings

BC-ATP-151512 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What kinds of applications is the Boxco BC-ATP-151512 enclosure suited for?

This model is intended for protecting electronic equipment that needs a sealed plastic enclosure with hinged access. Its IP67 rating, transparent cover, and molded hinge-and-latch design make it a practical fit for outdoor control, monitoring, or instrumentation housings where visibility and repeated access are important.

Is this enclosure suitable for outdoor or washdown environments?

This enclosure is built for demanding environments, with an IP67 ingress rating and a stated operating range of -40°C to 70°C. The product description also notes an ultraviolet stabilizer for outdoor usage and roof protection features intended to reduce water and dust intrusion during cover operation.

What are the key material and impact-resistance specs of this model?

The BC-ATP-151512 uses ABS construction and is rated IK08 for impact resistance. Boxco also describes the material as high impact resistant and notes anti-static material use for protecting sensitive electronic instruments from static electricity.

What makes this hinged transparent-cover version different from a basic solid-cover enclosure?

This version combines a transparent cover with an integrated molded hinge and latch, so internal indicators or components can be viewed without opening the box. It also includes stainless steel in the latch and hinge bearing areas for durability, which is a more access-oriented design than a simple screw-fastened cover enclosure.

What internal mounting features does the Boxco BC-ATP-151512 include?

The enclosure includes pre-molded mounting screw nuts for securing items such as DIN rail or other internal equipment. It also has dedicated mounting plate attachment points with brass-inserted injection molding so an internal mounting plate can be fixed more securely for heavier components.

What are the main size and physical specifications for this enclosure?

This Boxco P-Series model measures 5.91 x 5.91 x 4.72 inches, which corresponds to 150 x 150 x 120 mm. The listed product weight is 0.426 kg, and the warranty period is 1 year.
