Boxco

Boxco P-Series 150x150x90mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Molded Hinge and Latch Type

SKU BC-AGP-151509
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-AGP-151509 is a 150×150×90 mm ABS enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-AGP-151509Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
150×150×90 mm (5.91×5.91×3.54 in)
Mounting plate dimension M1 × M2
123 × 123 mm

Material

Material
ABS
Cover
Grey
Mounting plates
1515 G (Plastic, G type), 1515 P (Plastic, P type), 1515 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

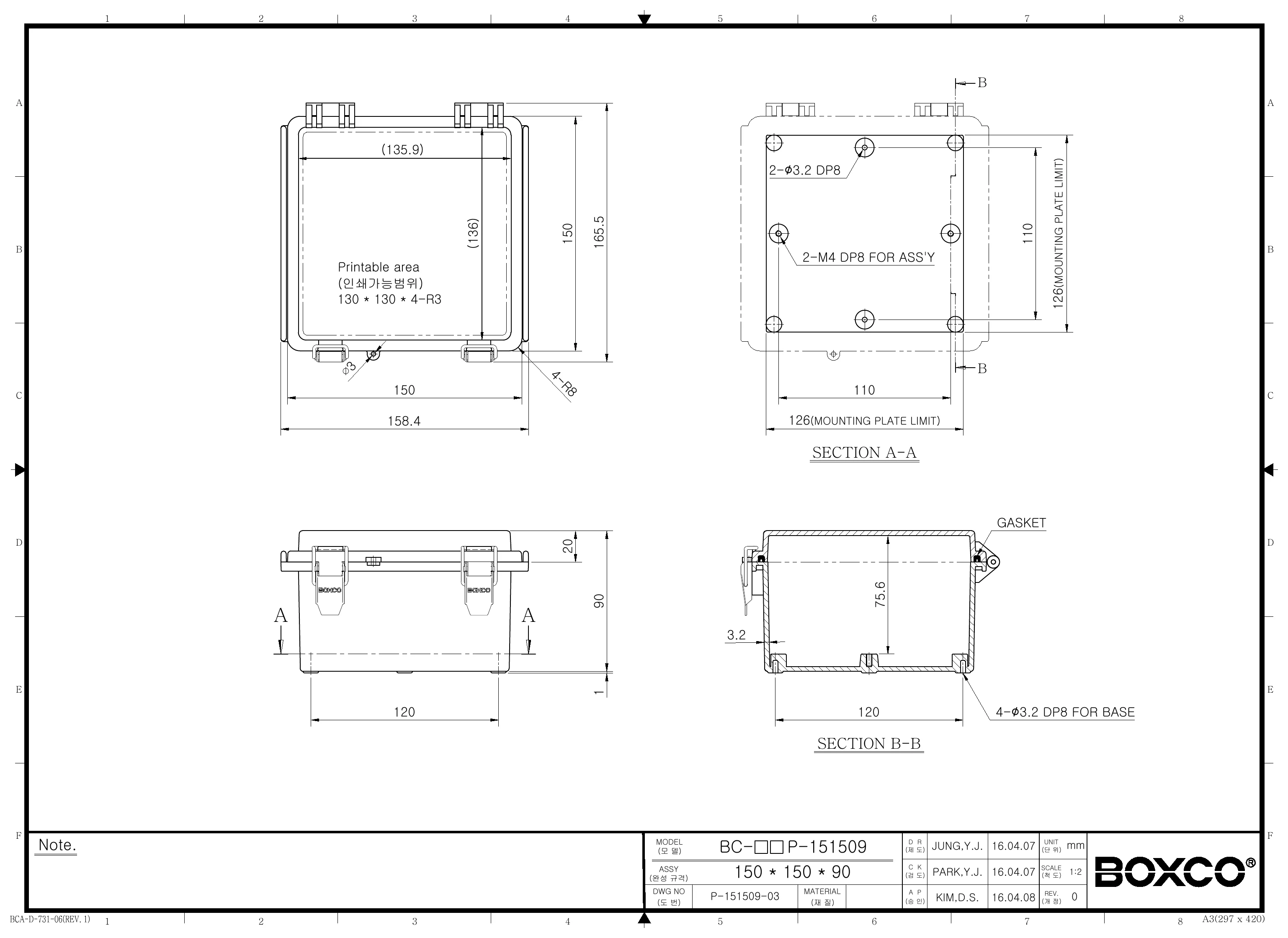

Technical drawings

BC-AGP-151509 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco P-Series enclosure suited for?

This model is suited for protecting electronic controls and instruments that need a sealed non-metallic enclosure in indoor or outdoor settings. Its IP67 sealing, IK08 impact rating, UV-stabilized ABS body, and anti-static material make it a practical fit for general industrial and commercial equipment housings.

Is this enclosure suitable for outdoor use?

Yes. Boxco states that an ultraviolet stabilizer is added for outdoor usage, and the design includes roof protection to help reduce water and dust penetration during cover opening and closing. The enclosure is also rated IP67 for dust-tight and water-resistant protection when properly closed.

What are the key specifications of this enclosure?

This enclosure measures 5.91 x 5.91 x 3.54 inches, or 150 x 150 x 90 mm, and weighs 0.344 kg. It is made from ABS, uses a grey cover, carries IP67 and IK08 ratings, and is rated for use from -40 C to 70 C.

How does the molded hinge and latch design benefit this model?

This version uses an integrated molded hinge with a stainless steel bearing to support longer service life. The latch assembly uses stainless steel in the main draw-latch portion, which helps provide a more durable closure for repeated access compared with simpler plastic-only closure designs.

Can this enclosure support internal mounting hardware or equipment plates?

Yes. Boxco includes pre-molded mounting screw nuts so DIN rail or other equipment can be secured inside, and it also provides mounting plate attachment points with brass inserted injection molding. That design helps the enclosure support heavier internal equipment more securely.

What environmental protection does the gasket provide on this model?

Boxco states the gasket is injected by a CNC robot process to improve waterproof and dust-proof performance. Combined with the enclosure's IP67 rating, this helps the box resist dust ingress and water exposure in demanding environments.
