Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco P-Series 150x150x90mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Molded Hinge and Latch Type

SKU BC-ATP-151509
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-ATP-151509 is a 150×150×90 mm ABS enclosure with a transparent cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-ATP-151509Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
150×150×90 mm (5.91×5.91×3.54 in)
Mounting plate dimension M1 × M2
123 × 123 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
1515 G (Plastic, G type), 1515 P (Plastic, P type), 1515 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

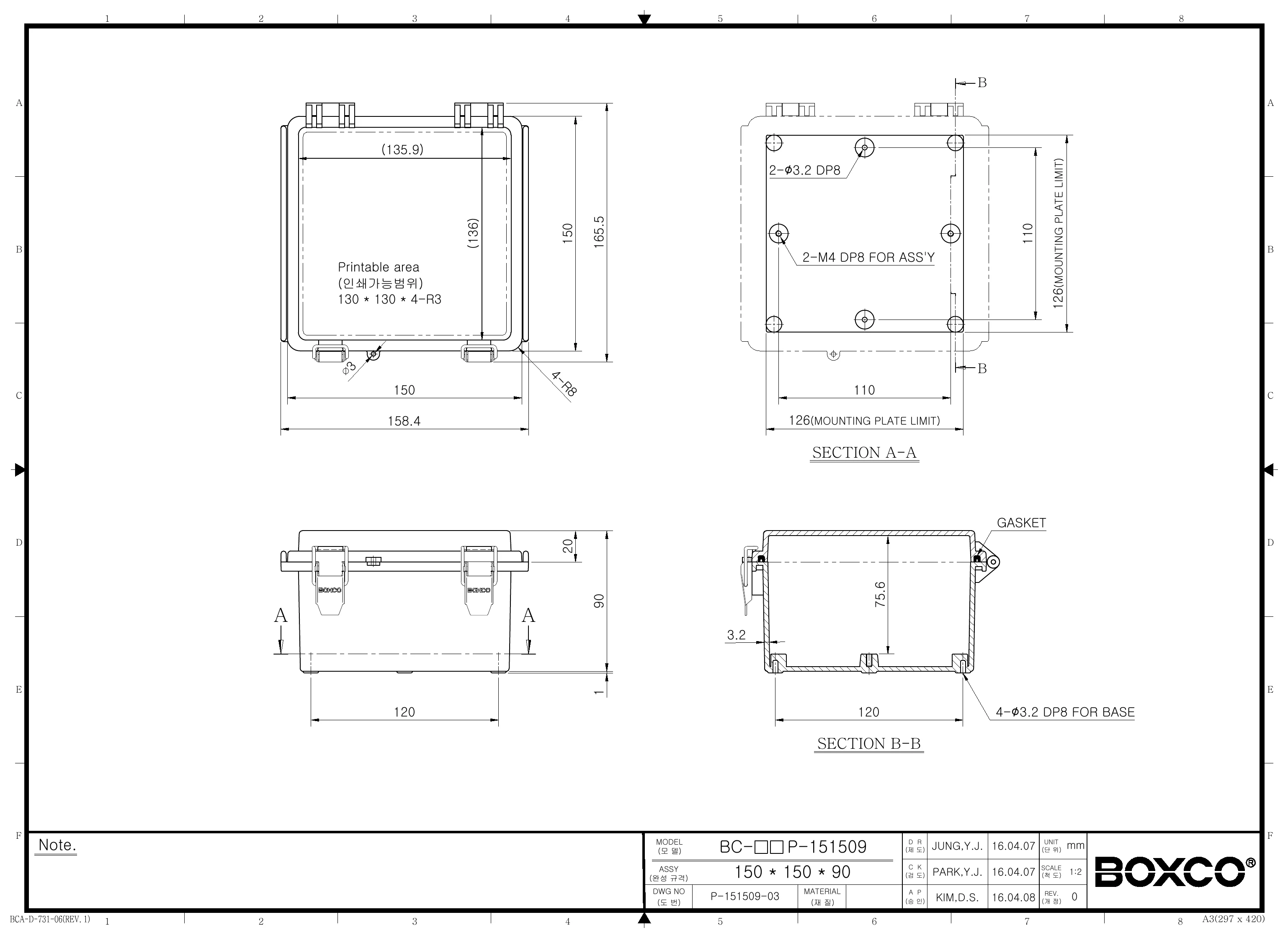

Technical drawings

BC-ATP-151509 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

Is this enclosure suitable for outdoor use?

Yes. This Boxco P-Series enclosure includes an ultraviolet stabilizer to help it withstand outdoor exposure with only limited color change over time. Its IP67 rating and roof-protection design also help resist water and dust in demanding environments.

What are the size and material details for this enclosure?

This model measures 5.91 x 5.91 x 3.54 inches, which is 150 x 150 x 90 mm. It is made from ABS and has a transparent cover, giving you visibility inside the enclosure while maintaining a durable plastic housing.

What temperature range can this enclosure handle?

This enclosure is rated for use from -40 degrees C to 70 degrees C. That makes it suitable for a wide range of industrial and outdoor conditions where both low-temperature and elevated-temperature performance matter.

How durable is this enclosure against water, dust, and impact?

This model is rated IP67 for protection against dust ingress and water exposure, and IK08 for impact resistance. The enclosure also uses high-impact-resistant material, a precision-injected gasket, and a molded hinge-and-latch design to support long service life.

Can this enclosure support internal mounting plates or DIN rail accessories?

Yes. It includes pre-molded mounting screw nuts for fixing DIN rail or other equipment, and it has dedicated attachment points for an internal mounting plate. Those built-in features make it easier to support heavier internal components within the enclosure.

What kinds of applications is this enclosure best suited for?

This model is a good fit for protecting control electronics, monitoring devices, and other equipment that need a sealed non-metallic enclosure. Its anti-static material, transparent cover, outdoor-ready construction, and molded hinge/latch design make it especially useful where inspection access and environmental protection are both important.
