Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco P-Series 160x210x100mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Molded Hinge and Latch Type

SKU BC-AGP-162110
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-AGP-162110 is a 160×210×100 mm ABS enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-AGP-162110Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
160×210×100 mm (6.30×8.27×3.94 in)
Mounting plate dimension M1 × M2
129 × 179 mm

Material

Material
ABS
Cover
Grey
Mounting plates
1520 G (Plastic, G type), 1520 P (Plastic, P type), 1520 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

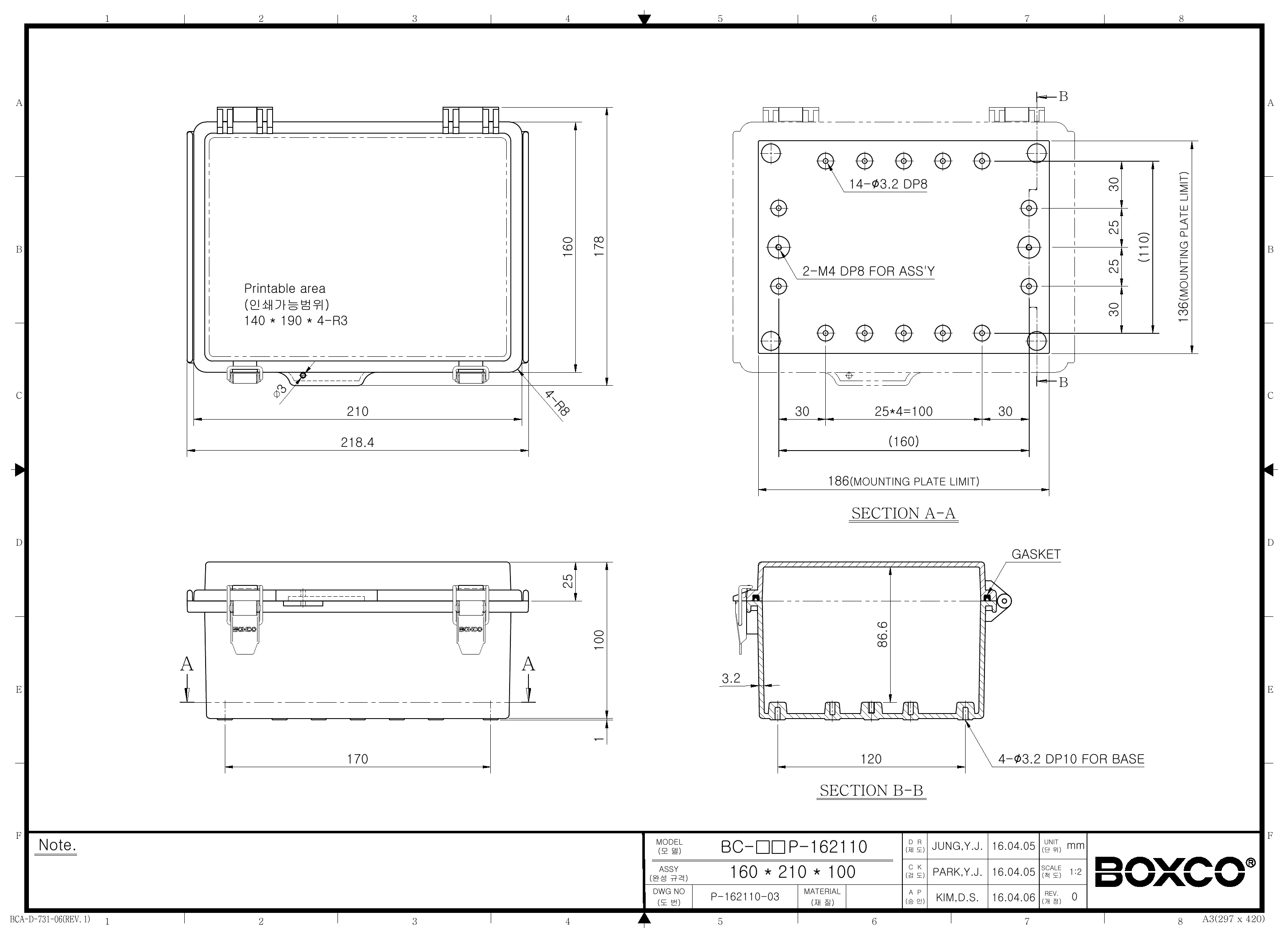

Technical drawings

BC-AGP-162110 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

Is this enclosure suitable for outdoor industrial use?

Yes. This Boxco P-Series enclosure includes an ultraviolet stabilizer for outdoor exposure and is rated IP67 for protection against dust and water ingress. Its roof-protection design also helps reduce water and dust penetration when the cover is opened or closed.

What level of environmental and impact protection does this model provide?

This model is rated IP67 and IK08. That means it is designed for strong dust and water protection and also offers solid resistance to external mechanical impact for demanding applications.

What are the dimensions and material of this enclosure?

This enclosure measures 6.30 x 8.27 x 3.94 inches, which is 160 x 210 x 100 mm. It is made from ABS and comes with a grey cover in a molded hinge and latch style.

What kinds of applications is this enclosure commonly used for?

This model is well suited for protecting control components, instrumentation, and other sensitive electronics that need a sealed plastic enclosure. Its anti-static material and high-impact construction make it a practical choice for industrial and outdoor equipment housings.

Does this enclosure support internal mounting hardware or accessory plates?

Yes. It includes pre-molded mounting screw nuts for securing DIN rail or other equipment, and it also has mounting plate attachment points for fixing an internal mounting plate. These features make it better suited for organized internal component layouts than a plain empty box.

What temperature range can this enclosure handle?

This model is specified for use from -40 degrees C to 70 degrees C. That range supports use in both cold and warm operating environments, depending on the needs of the enclosed equipment.
