Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

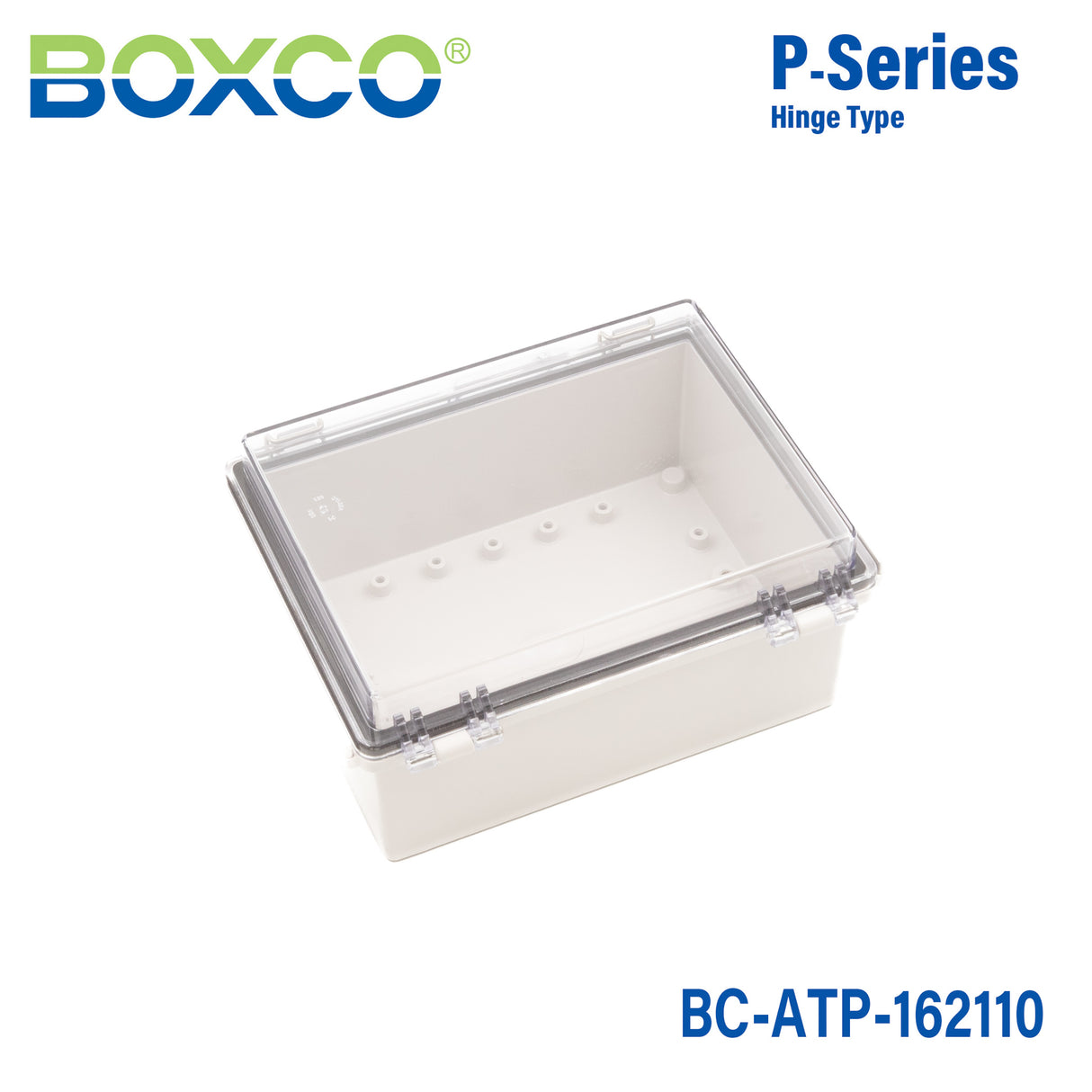

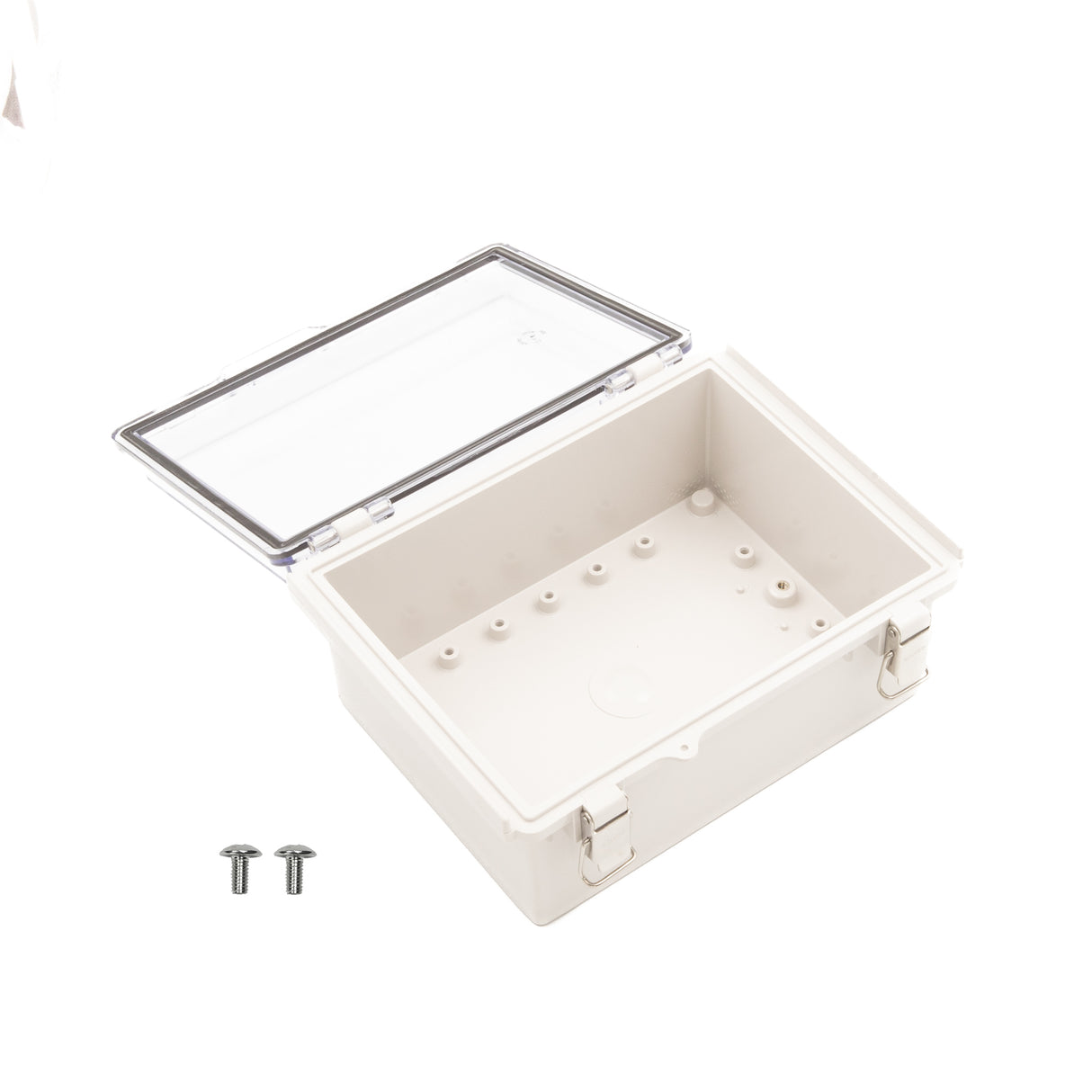

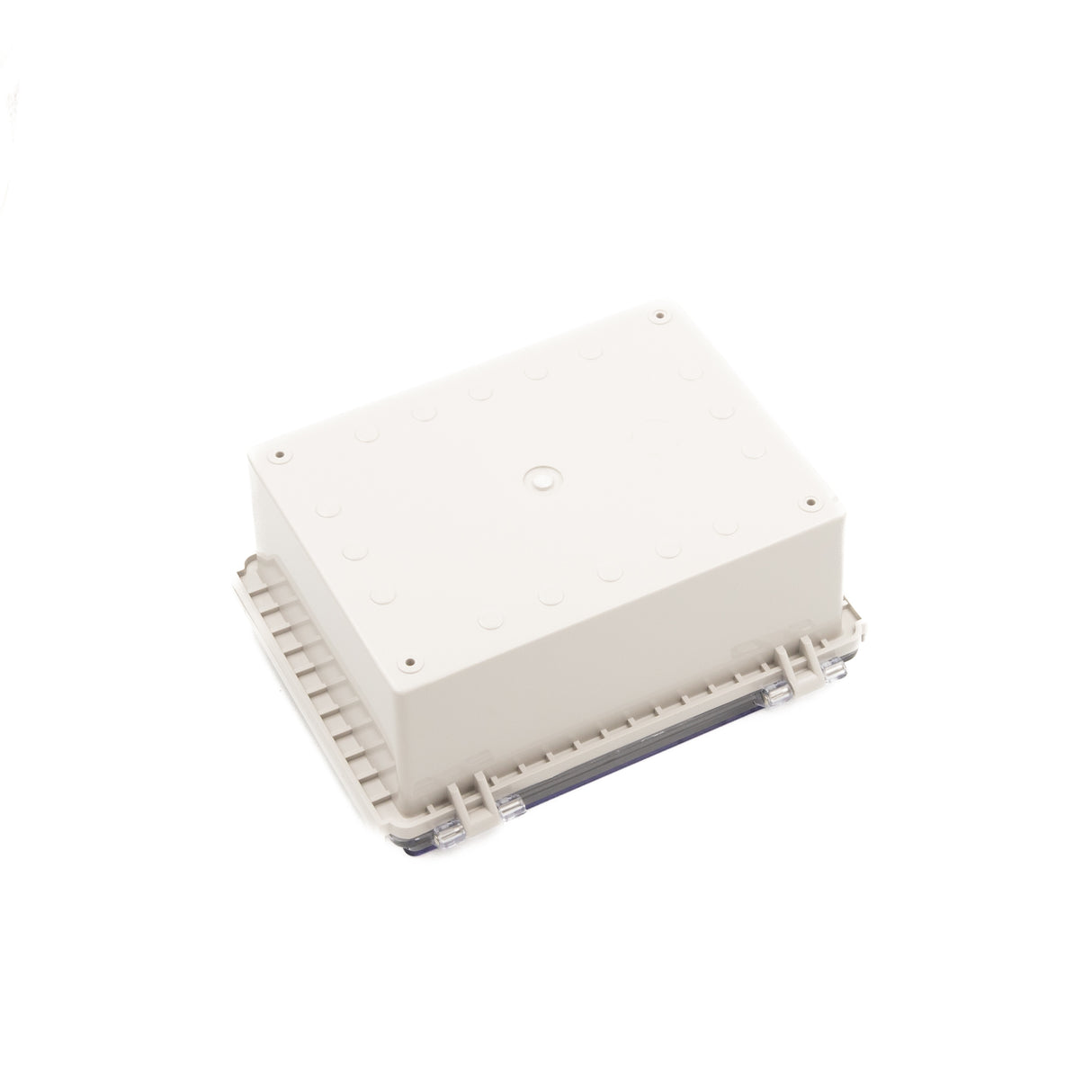

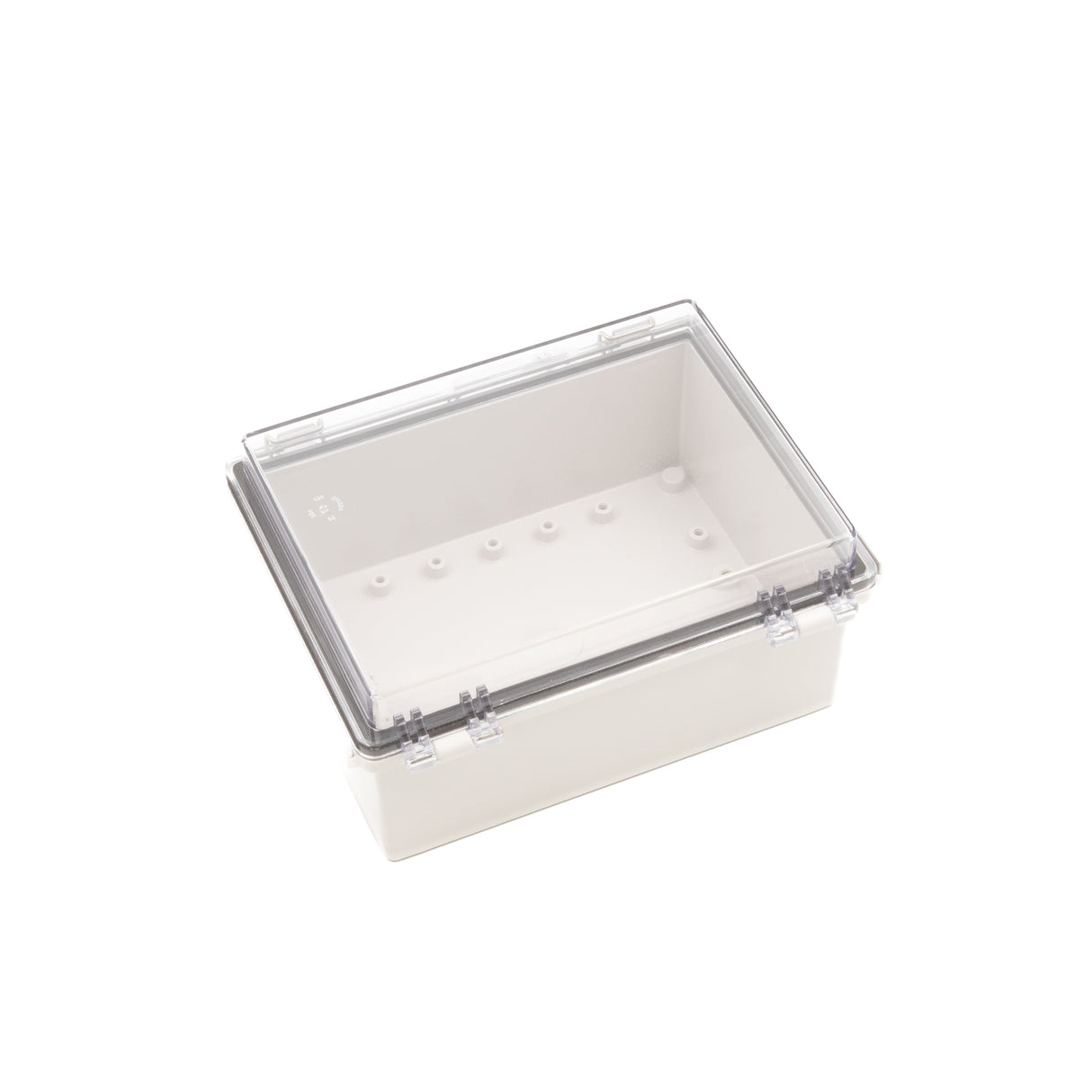

Boxco P-Series 160x210x100mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Molded Hinge and Latch Type

SKU BC-ATP-162110
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-ATP-162110 is a 160×210×100 mm ABS enclosure with a transparent cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-ATP-162110Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
160×210×100 mm (6.30×8.27×3.94 in)
Mounting plate dimension M1 × M2
129 × 179 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
1520 G (Plastic, G type), 1520 P (Plastic, P type), 1520 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

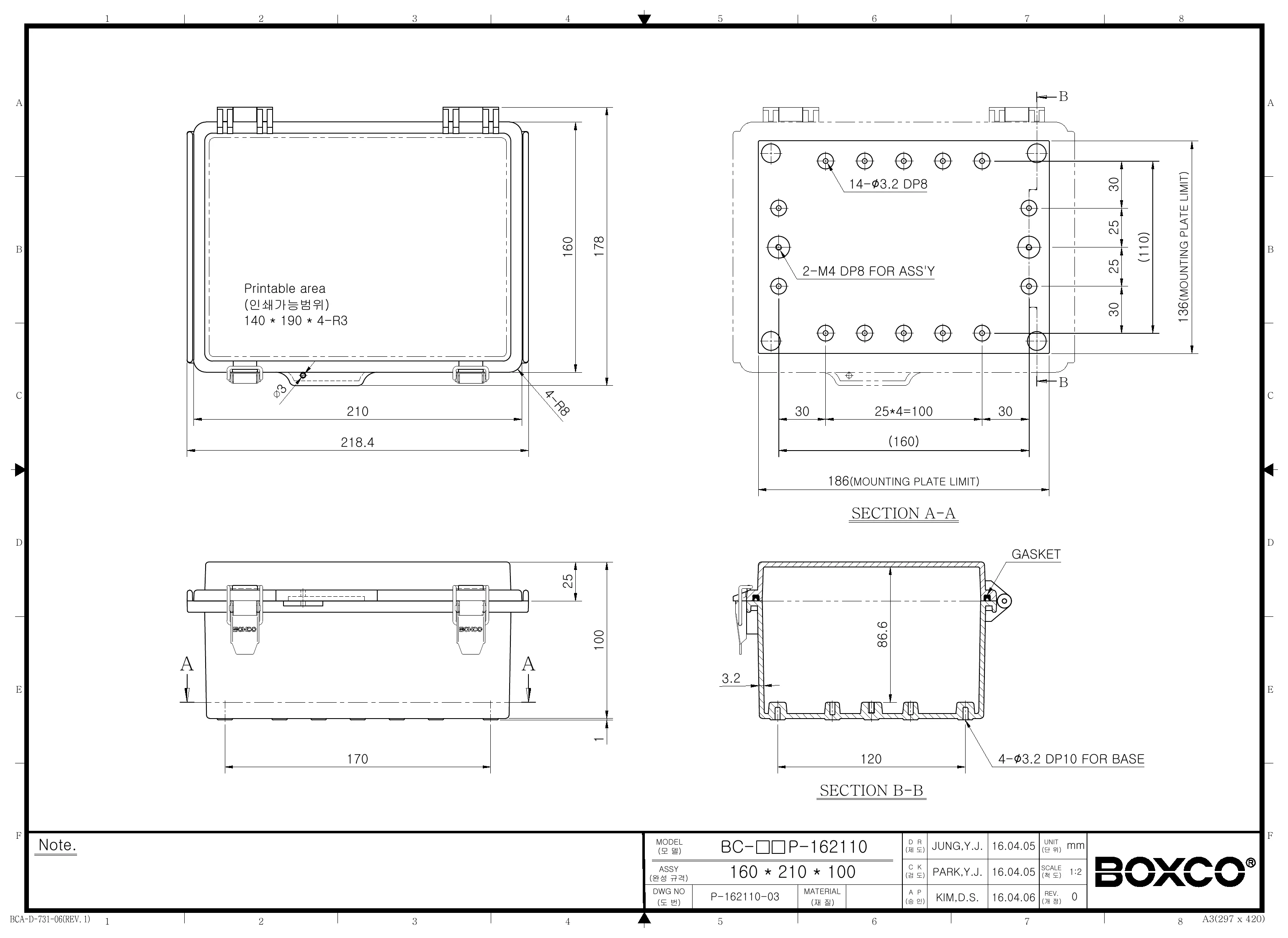

Technical drawings

BC-ATP-162110 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the dimensions of this Boxco P-Series enclosure?

This model measures 6.30 x 8.27 x 3.94 inches, which corresponds to 160 x 210 x 100 mm. It is sized for applications that need a compact but protective plastic enclosure with room for internal components.

What material and cover style does this enclosure use?

This enclosure is made from ABS plastic and includes a transparent cover. The clear cover helps with quick visual inspection of enclosed components without changing the enclosure style.

Is this enclosure suitable for outdoor or washdown environments?

This model is rated IP67, which indicates strong protection against dust ingress and temporary immersion in water. The product description also notes ultraviolet stabilizer protection and roof protection features intended to improve outdoor durability.

How durable is this enclosure against impact?

This enclosure carries an IK08 impact rating and is described as using high impact resistant material. That makes it a good fit for industrial environments where the housing may be exposed to bumps or mechanical contact.

What temperature range can this enclosure handle?

This model is specified for use from -40 degrees C to 70 degrees C. That range supports use in both cold and warm operating environments, provided the overall application stays within those limits.

What design features make this model different from a basic plastic enclosure?

This version includes a transparent cover, molded hinge, and latch-type closure, along with pre-molded mounting screw nuts and internal mounting plate attachment points. It is also described as having a CNC-injected gasket, stainless steel latch components, and integrated hinge construction for longer service life.
