Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco P-Series 160x260x100mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Molded Hinge and Latch Type

SKU BC-AGP-162610
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-AGP-162610 is a 160×260×100 mm ABS enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-AGP-162610Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
160×260×100 mm (6.30×10.24×3.94 in)
Mounting plate dimension M1 × M2
129 × 229 mm

Material

Material
ABS
Cover
Grey
Mounting plates
1525 G (Plastic, G type), 1525 P (Plastic, P type), 1525 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

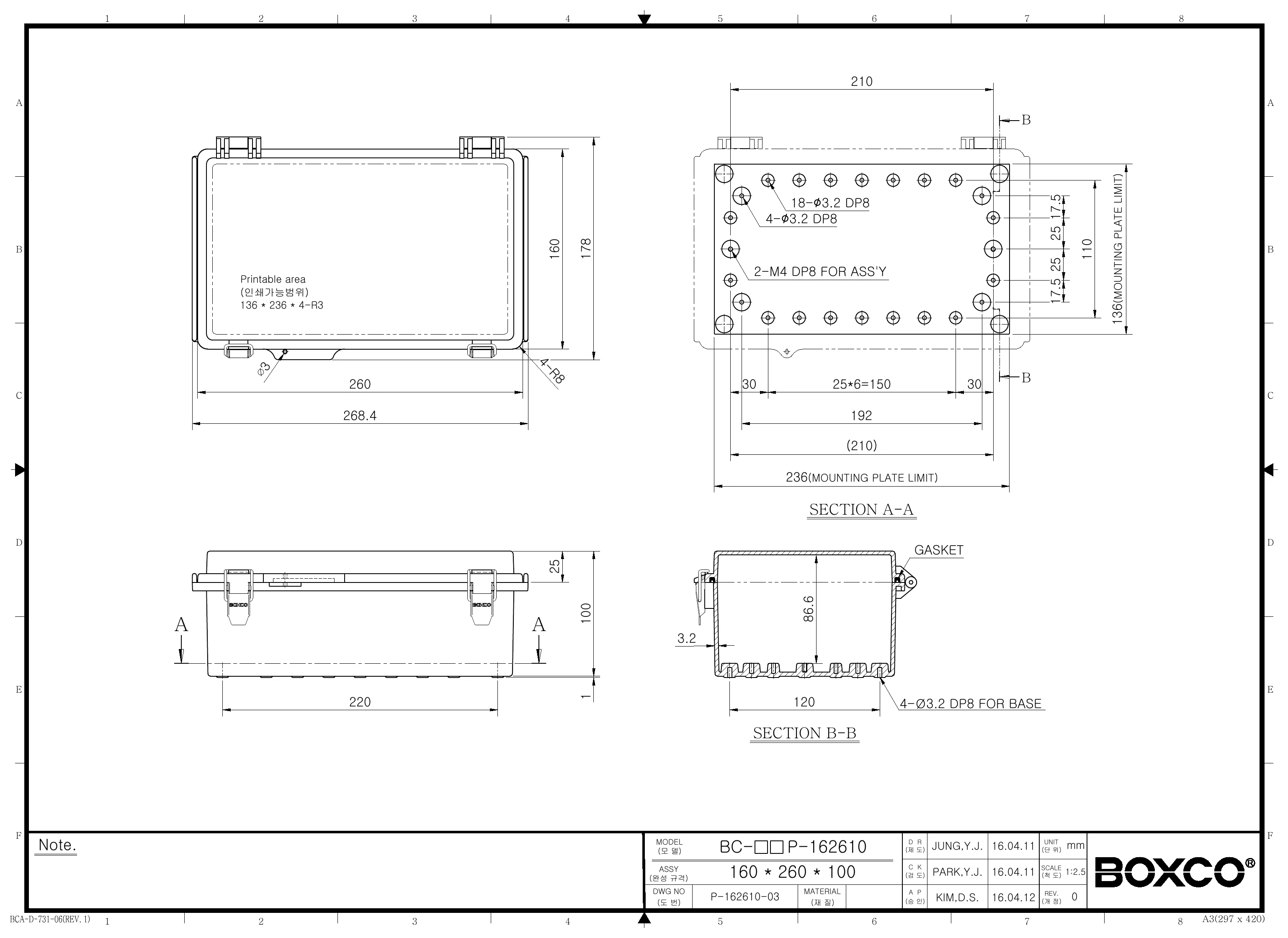

Technical drawings

BC-AGP-162610 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the main specifications of the Boxco P-Series BC-AGP-162610 enclosure?

This model measures 6.30 x 10.24 x 3.94 inches (160 x 260 x 100 mm) and is made from ABS with a grey cover. It is rated IP67 for dust and water protection and IK08 for impact resistance. The enclosure weighs 0.58 kg and has a molded hinge and latch-style cover.

Is this enclosure suitable for outdoor use?

Yes. The product description states that an ultraviolet stabilizer is added to help protect the enclosure in outdoor use and reduce visible color change over time. Its IP67 rating and roof-protection design also support use in exposed environments where dust and water resistance matter.

What kind of applications is this enclosure intended for?

This enclosure is designed for protecting electronic and industrial components in environments where sealing and impact resistance are important. The anti-static material makes it a strong fit for housing sensitive electronic instruments. Its hinged, latched design is also practical where repeated access to the interior is needed.

What temperature range can this enclosure handle?

The rated operating temperature range for this model is -40 degrees C to 70 degrees C. That makes it suitable for both cold and warm industrial or outdoor environments within that range. Buyers should match the full assembly's temperature limits to the most sensitive internal component.

Does this enclosure support mounting internal components?

Yes. The product description notes pre-molded mounting screw nuts for securing DIN rail or other equipment, along with internal mounting plate attachment points. It also states that the mounting plate can be fixed tightly onto brass-inserted injection molding to support heavier internal equipment.

How does this model differ from a basic plastic enclosure?

Compared with a basic plastic box, this model adds several protective and durability-focused features, including IP67 sealing, IK08 impact resistance, a molded hinge, and a latch with a stainless steel main part. It also includes UV-stabilized material for outdoor use, anti-static properties for sensitive electronics, and detailed sealing features such as a robot-injected gasket.
