Boxco

Boxco P-Series 160x260x100mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Molded Hinge and Latch Type

SKU BC-ATP-162610
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-ATP-162610 is a 160×260×100 mm ABS enclosure with a transparent cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-ATP-162610Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
160×260×100 mm (6.30×10.24×3.94 in)
Mounting plate dimension M1 × M2
129 × 229 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
1525 G (Plastic, G type), 1525 P (Plastic, P type), 1525 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

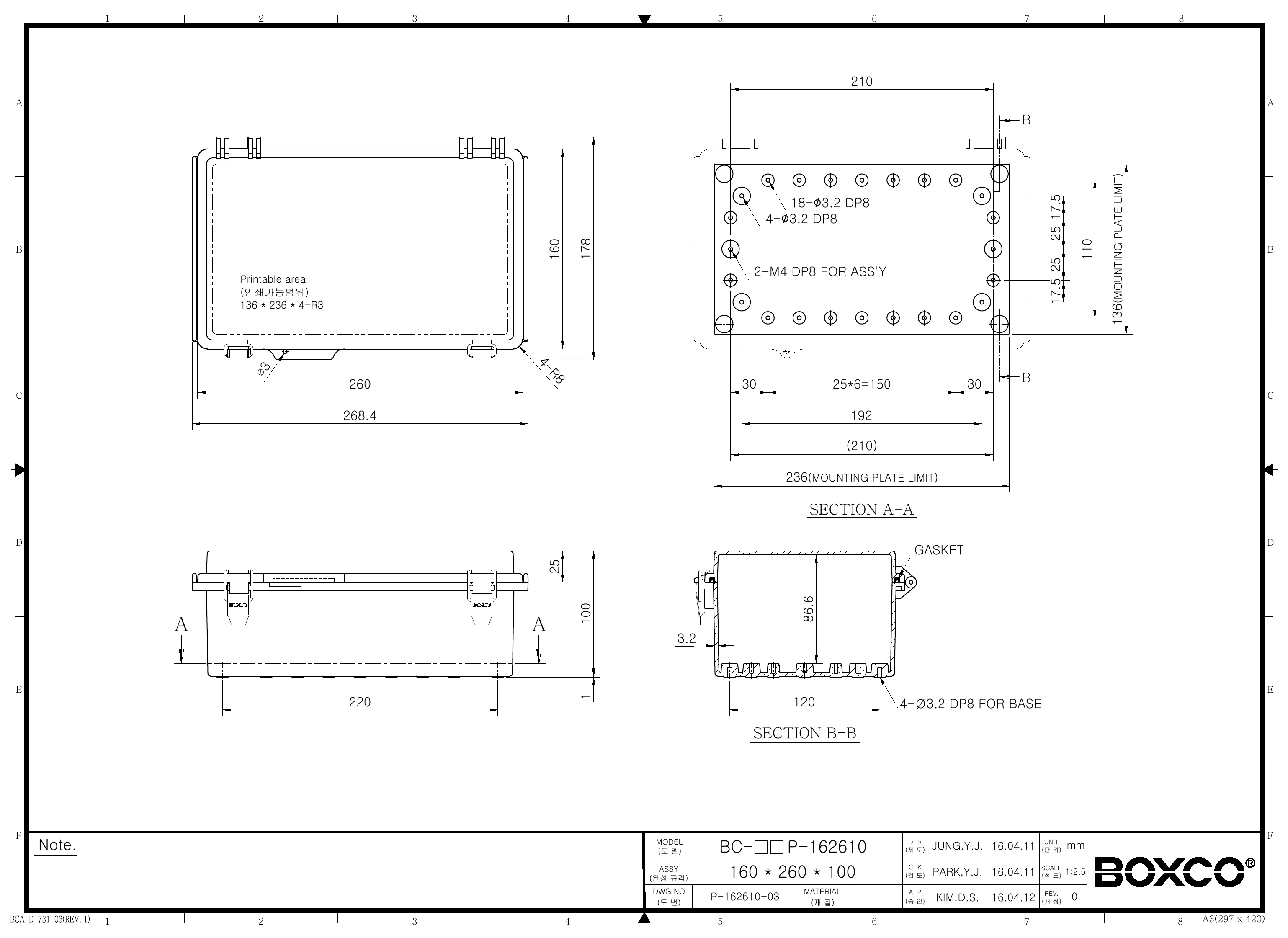

Technical drawings

BC-ATP-162610 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is this Boxco P-Series enclosure designed for?

This model is a plastic enclosure for protecting electrical or electronic equipment in indoor or outdoor environments where dust and water resistance matter. Its molded hinge, latch-style transparent cover, and internal mounting provisions make it suitable for housed control, monitoring, or instrumentation assemblies.

How large is the BC-ATP-162610 enclosure?

The enclosure measures 6.30 x 10.24 x 3.94 inches, which corresponds to 160 x 260 x 100 mm. That size gives more internal room than compact junction-style boxes and is better suited to applications needing space for larger components or mounting plates.

Is this enclosure suitable for outdoor or washdown-prone environments?

This model is rated IP67, so it is built for strong protection against dust ingress and temporary water exposure. The product description also notes UV stabilizer content and a roof-protection design to improve outdoor durability and reduce water intrusion during cover operation.

What does the transparent cover provide compared with an opaque cover enclosure?

The transparent cover allows visual inspection of indicators, displays, or internal status without opening the enclosure. That can be useful in applications where you want to check equipment condition while still maintaining the enclosure's closed protective design.

What materials and impact protection does this enclosure use?

The enclosure is made from ABS and carries an IK08 impact rating. The description also states it uses high-impact-resistant material and a stainless-steel bearing in the integrated hinge to support durability over repeated use.

What mounting or internal hardware features are included in this model?

This enclosure includes pre-molded mounting screw nuts for securing DIN rail or other internal equipment and dedicated attachment points for an internal mounting plate. Brass-inserted mounting areas are intended to support more secure fastening for heavier internal assemblies.

What operating temperature range is specified for this enclosure?

The specified operating temperature range is -40 °C to 70 °C. That makes it appropriate for demanding industrial or outdoor environments as long as the installed equipment inside the enclosure is also rated for the same temperature conditions.
